SANSUN
Operating Principles

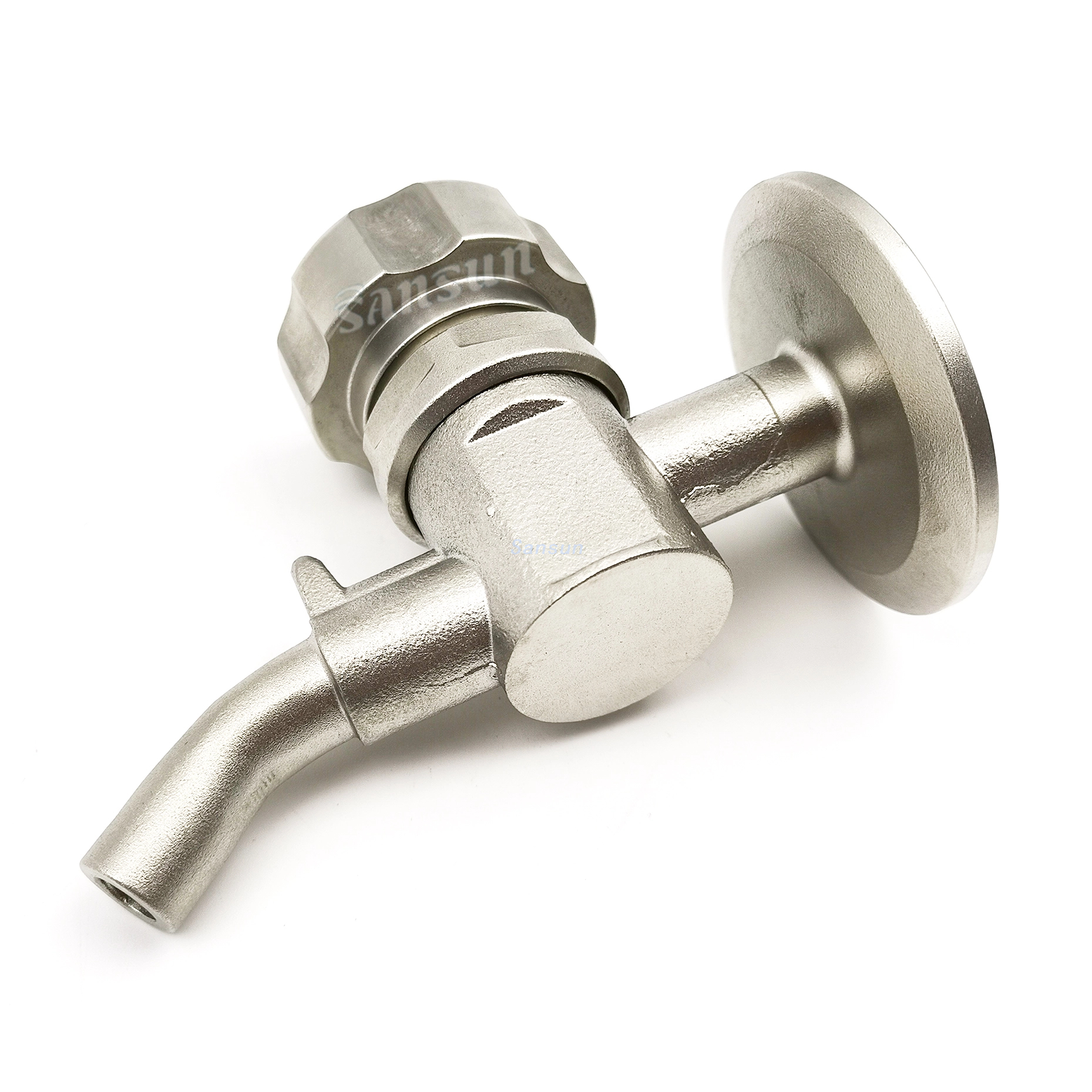

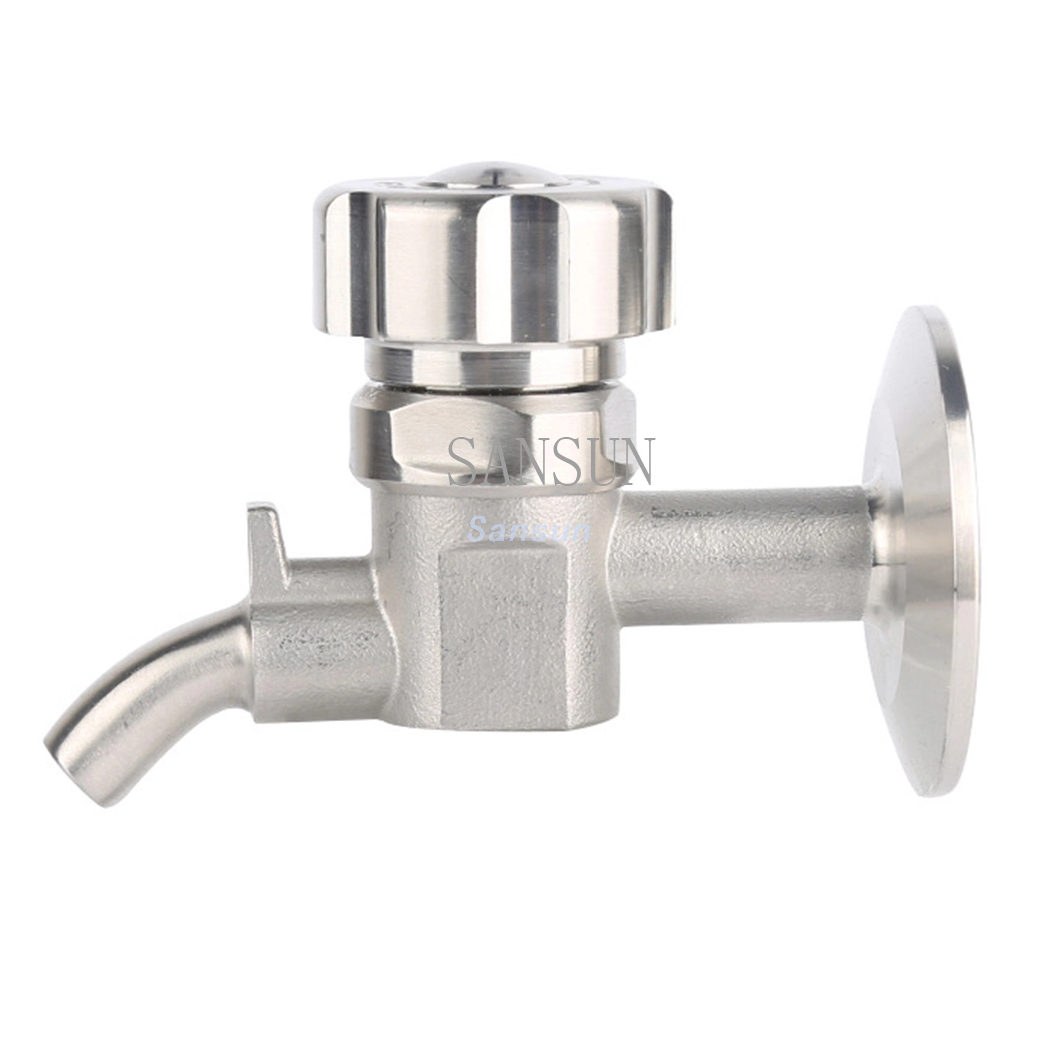

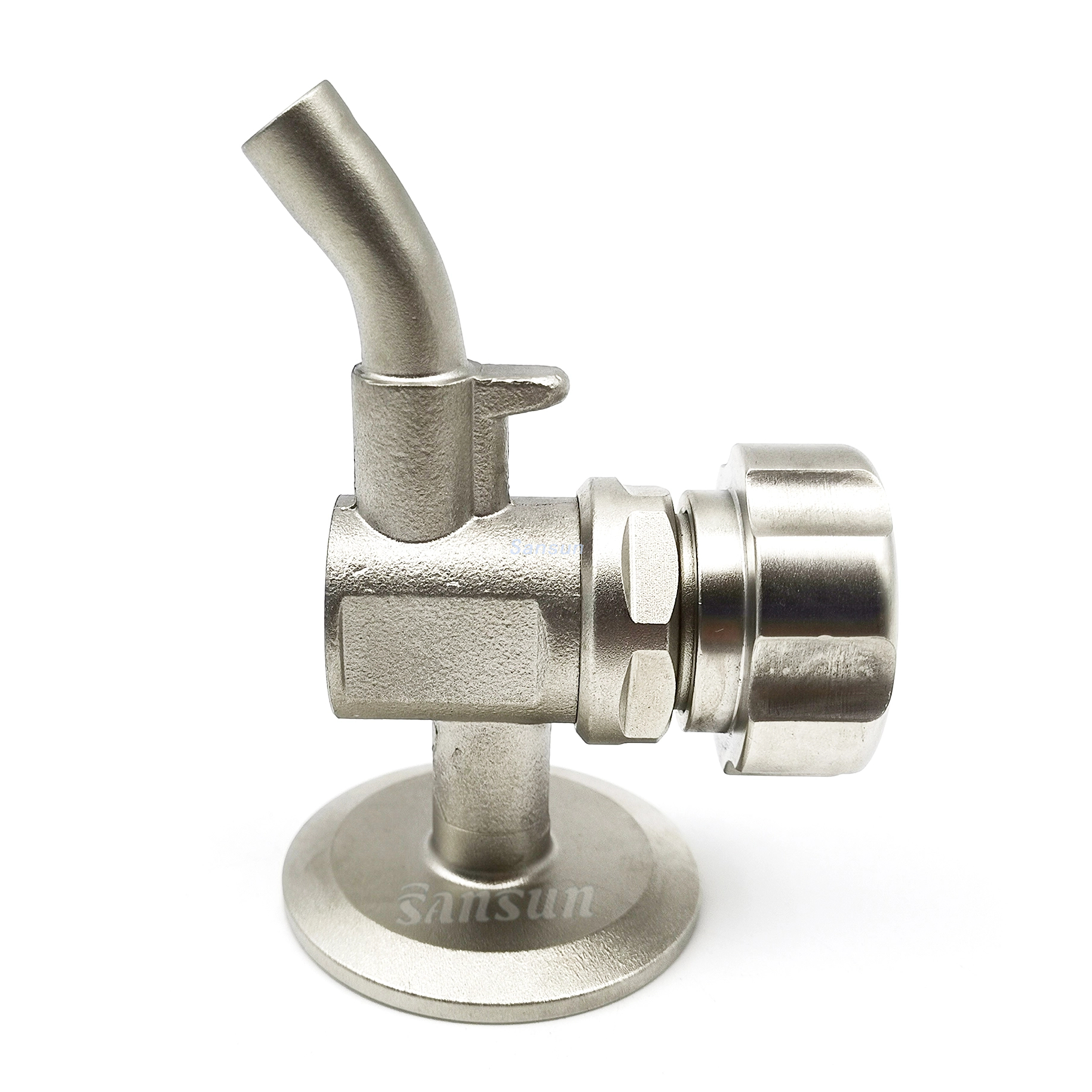

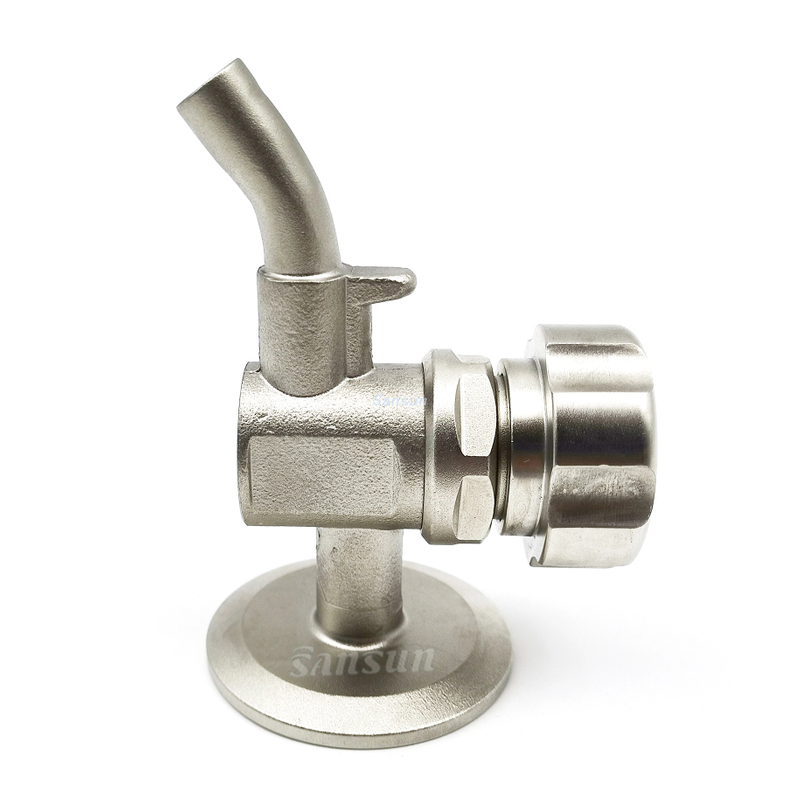

Sample valve offers a truly hygienic design. EPDM seats ensure positive seal and ears allow for pigtail hook up.
Replaceable seat assembly and SS304 construction makes for a long term sanitary solution for tank or process sampling requirements.
Sample Valve for tanks to take samples. Use together with Coil for Sample Valve for less foam.
Technical Specifications
Temperature range: 14°F to 248°F (-10°C to 120°C)
Working Pressure: 14.5-145Psi (1-10Bar)
Materials
Valve body: AISI316L/304
Gasket Material: Silicon, EPDM,Teflon (PTFE)
Standard Design
Available in size: BSP or NPT male thread 1/4", 3/8", 1/2" 3/4" ; clamp diameter 25.4mm or 50.5mm
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: thread, clamp, or others upon request
Corresponding size can be provided upon request
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
