SANSUN
SV5002

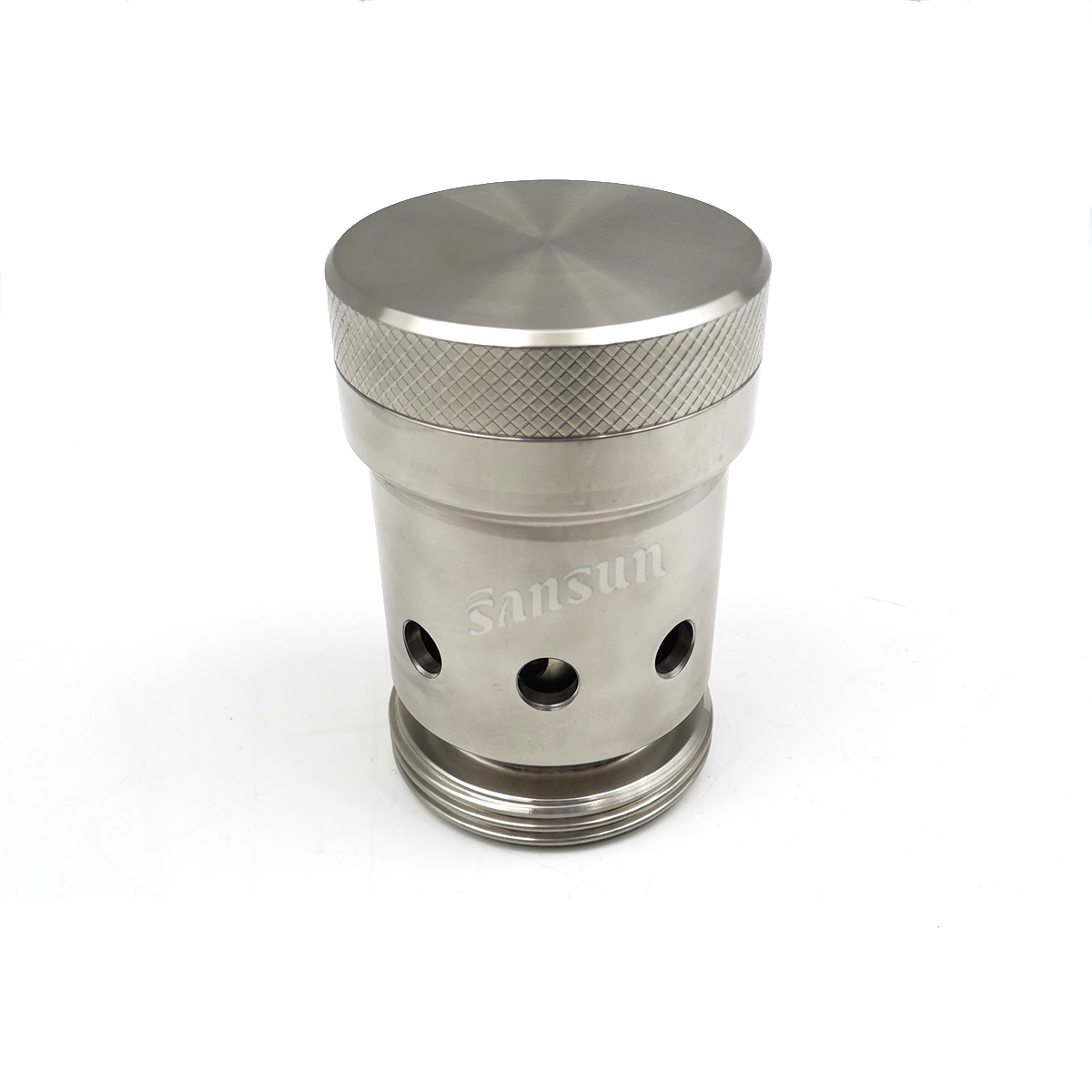

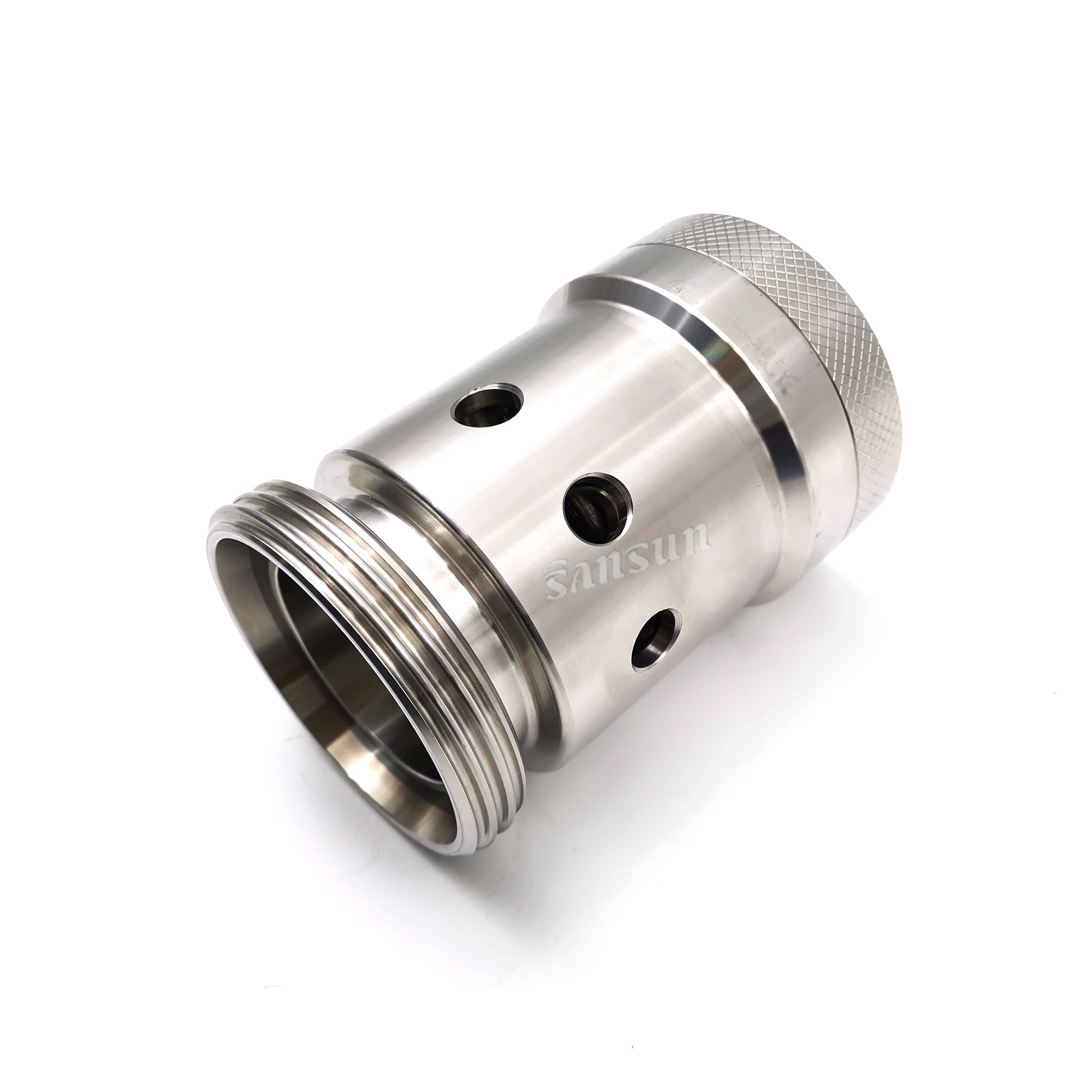

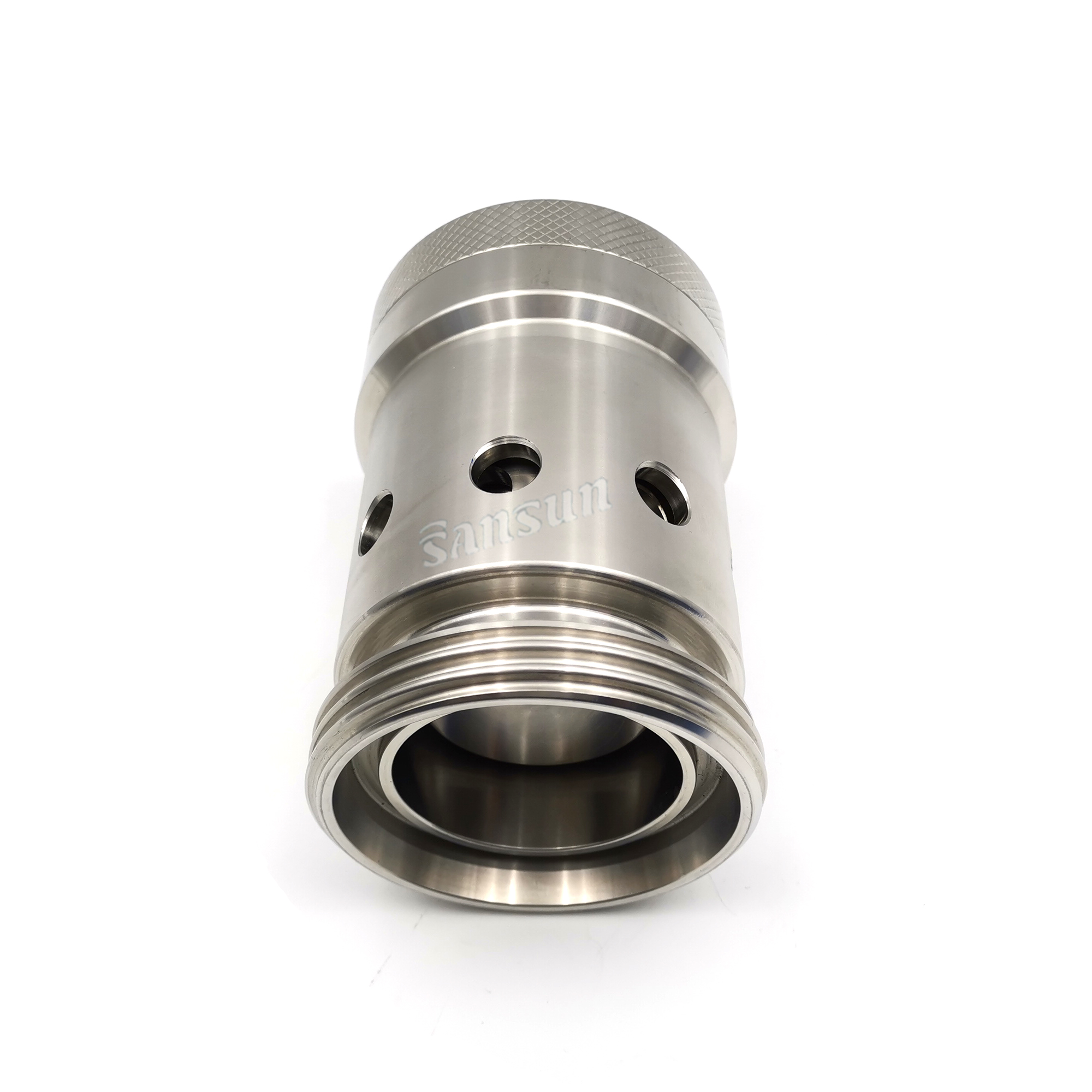

Sanitary pressure relief and vacum valve is our another main product we provide pressure fixed and adjustable type.
Tank Pressure and Vacuum Valve is designed to protect stainless tank working in safety.
From pressure side, when the valve is normally closed andtank pressure exceeds the rated pressure on the outsideof valve,
the valve automatically opens and vents air toatmosphere.
From vacuum side, when the valve isnormally closed and there is vacuum in tank,
the vacuum piston inside the valve opens automaticallyand draws air into the tank.
In return, this keeps the pressure inside and outside the tank balanced.

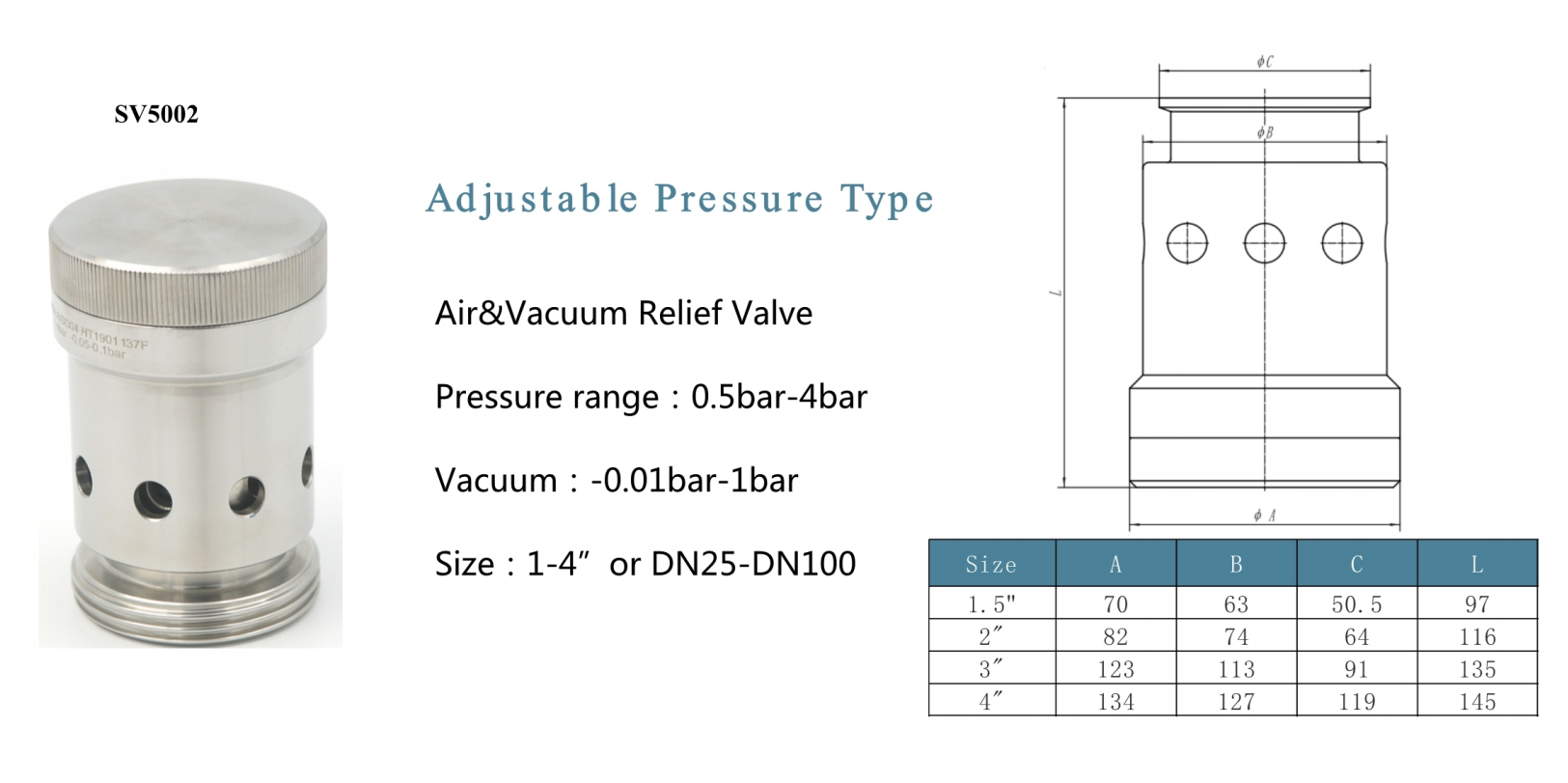

Technical Specification
Working Pressure: 14.5psi/ 1bar (standard), could be pre-set before production
Temperature range: medium
Body Materials: SS304 or SS316L
Gasket:EPDM,VITON according to FDA
O-Ring:EPDM,VITON according to FDA
Standard Design
Available in size: 1"-4" or DN25-DN100
Installation: supposed to be installed overhead tanks
Standard: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE
Connection: butt-welded, clamp, or other's upon request
Inspection
All kinds of non-standard products are customized according to the requirements of customers.
Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
