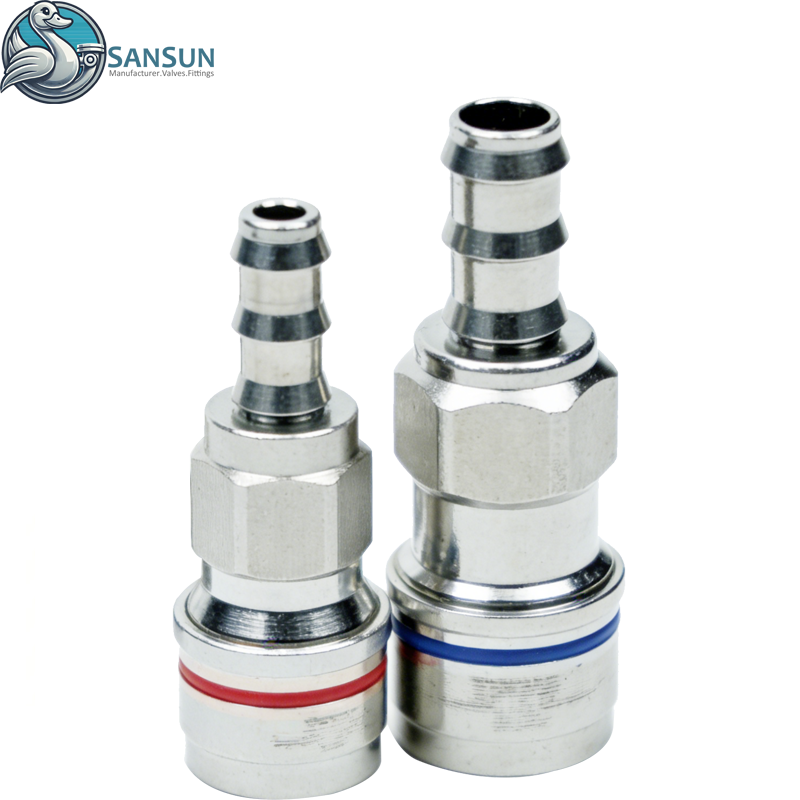

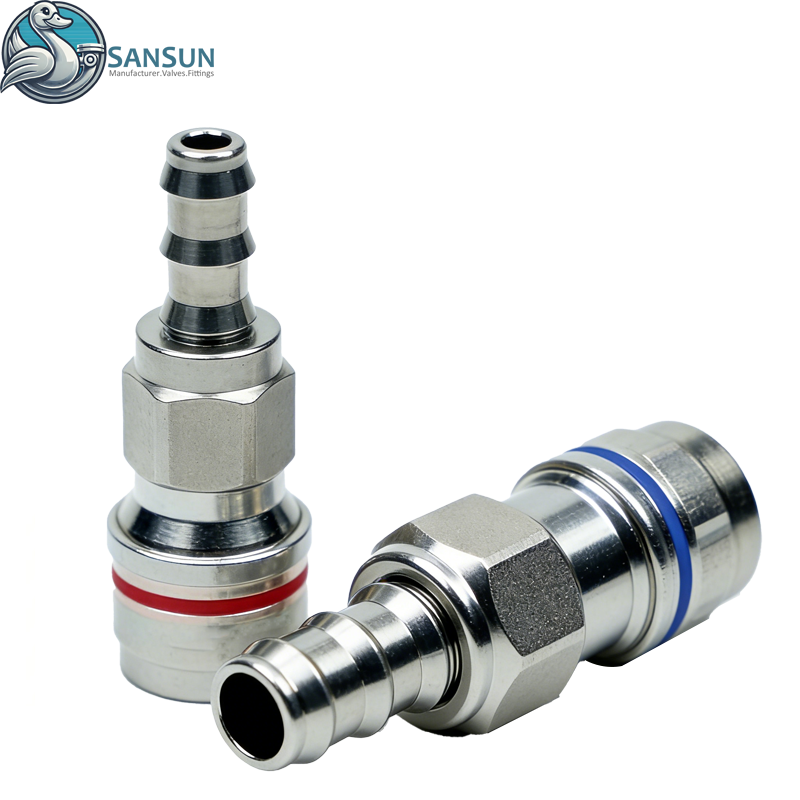

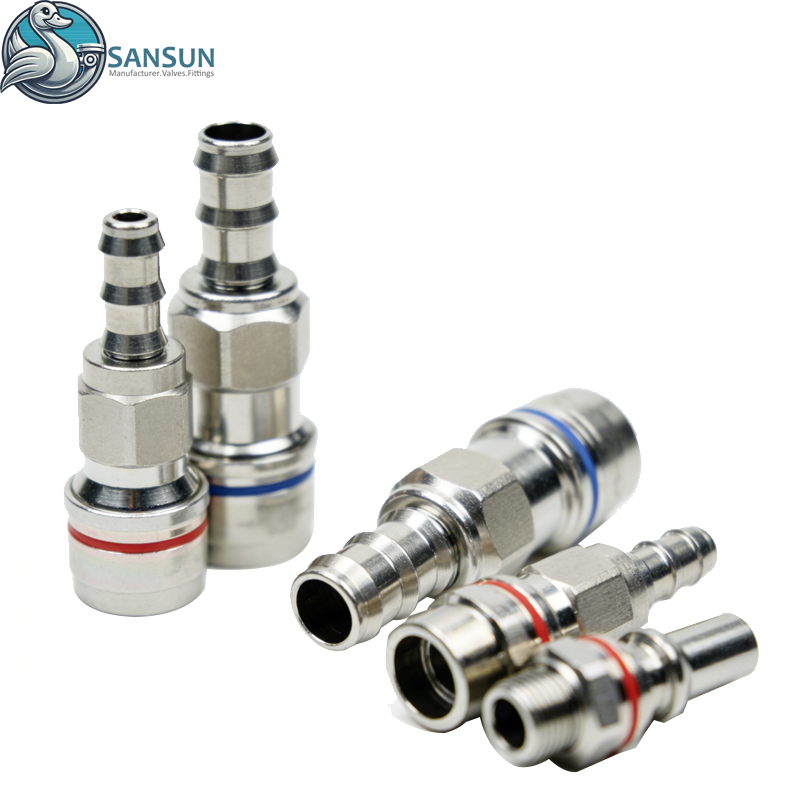

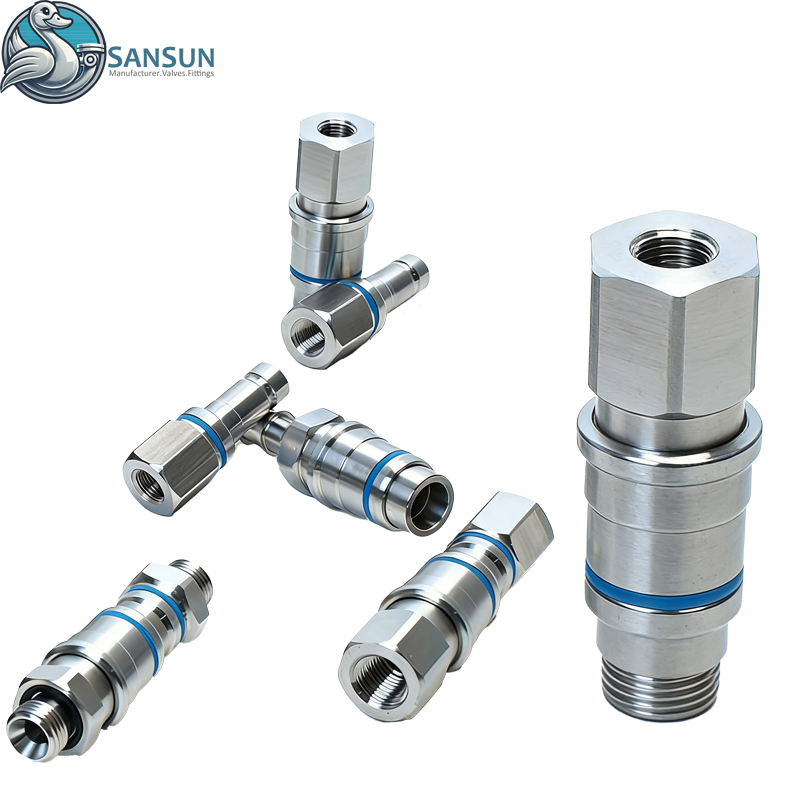

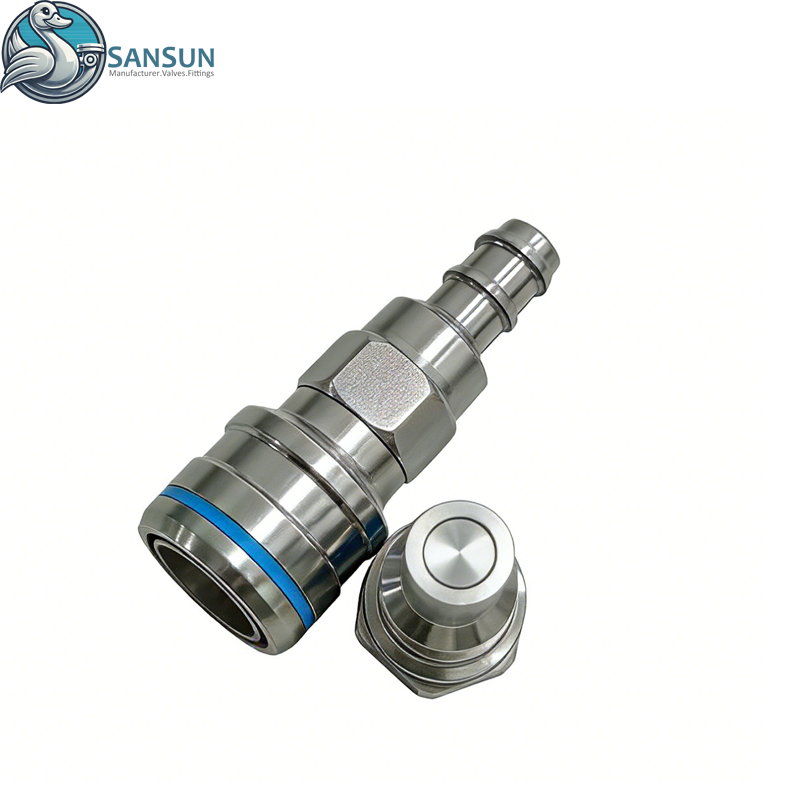

Stainless Steel Quick Connect for Server Liquid Cooling Systems

Designed for mission-critical data center cooling systems, these quick disconnect fittings deliver fast, tool-free, and leak-proof connections.
Constructed from high-quality materials for superior corrosion resistance and extended service life, they ensure stable coolant flow, effortless installation, and consistent performance in server rack liquid cooling applications.

Size:	DN6 DN8 3/8" 1/2" 5/8"
Material:	SS304 SS316L
Availability:

Quantity:



Inquire Add to Basket

Brand:
SANSUN

Product Description

Size:	DN6-DN8
Valve Body Material:	AISI304/AISI316L ,1.4404/1.4301 (Forged)
Vale Disc Material:	AISI304/AISI316L ,1.4404/1.4301 (Forged)
Surface Finishing：	Ra < 0.4-0.8 µm (32 µin)
Max Working Pressure:	145psi (10bar)
Helium Leak Test:	<1 × 10⁻⁹ mbar・l/s
Cleanliness:	Passivation treatment, Conforms to ASTM A380 standard
Availably standard:	DIN/3A/SMS/RJT/ISO/IDF
Certification	US 3-A, FDA, CE PED/2014/68/EC, Certification
Application scope:	sansun's Quick Disconnect is comply with the OCP specification(Open Compute Project specification), Quick Disconnect for Data center liquid cooling, Quick Disconnect for Direct-to-Chip (DTC) cooling，Quick Disconnect for CDU（Coolant Distribution Unit）.

421_sansun-factory-workshop-china-manufactuer-laser-marking (2)

Liquid Cooling Quick Disconnect server liquid cooling stainless steel quick connect Data center liquid cooling Quick Disconnect Coupling
