SANSUN
NO.50061
Characteristic:

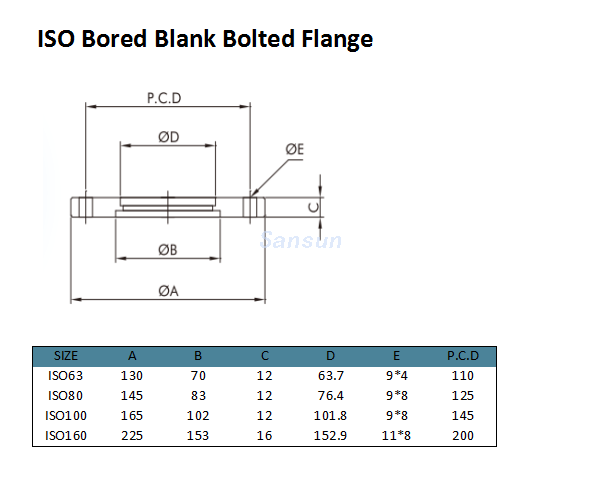

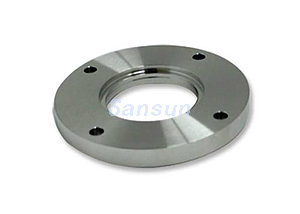

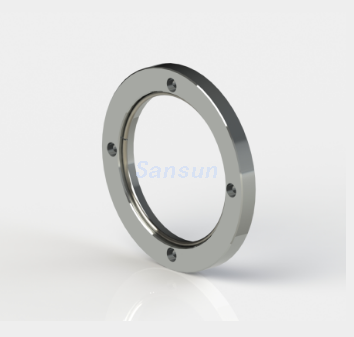

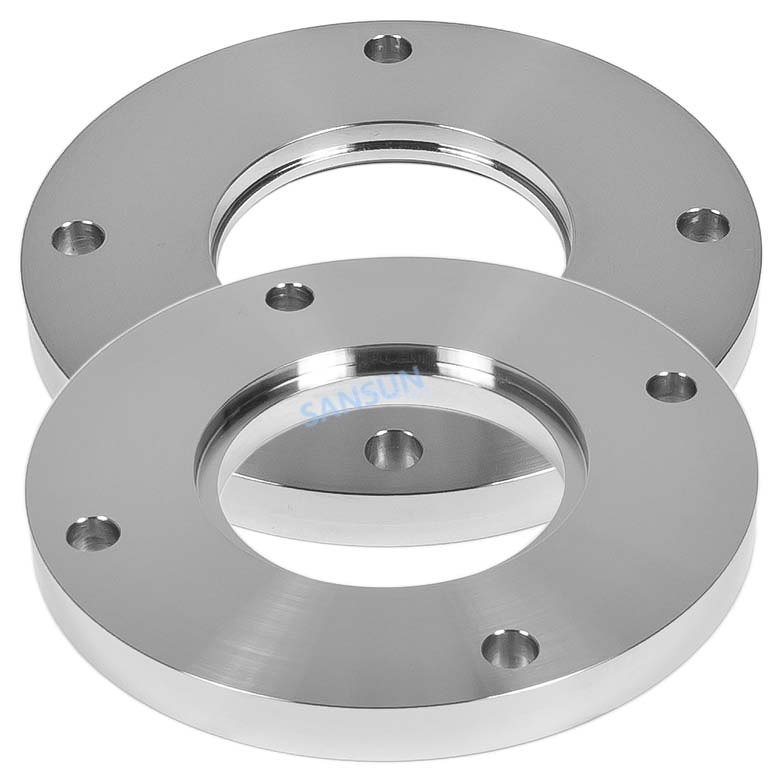

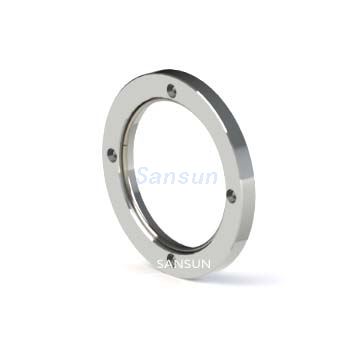

Stainless Steel ISO Bored Blank Bolted Flange Vacuum Fittings
ISO Flange series are in accordance with Intemational Standards Operation Standard, which are compatible to other makers' standard.
ISO Flange assembly:
a. ISO Clamp type- comprises two ISO flanges , a Center Ring with
O-ing. and a double wall clamp or a double claw clamp.
b.ISO Bolt type- comprises two ISO bolted flanges, a Center Ring with
O-ing. bolt screws, washers and nuts.
Description
The ISO-KF system is a modular, building block method of creating a piping system. There are several advantages in the use of ISO components.
Since component dimensions are standardized, elbows, tees, crosses or valves for a given size may be interchanged.
The flanges are "sexless" and the seal is symmetrical, so that the components are rotatable.
Materials and Size
■Flanges. Blanks. Fitting: Material SS304
■Clamps: Material Aluminum or SS304
■O-ring : Material Viton
■Sizes: ISO63-ISO160
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
