SANSUN
Operating Principles

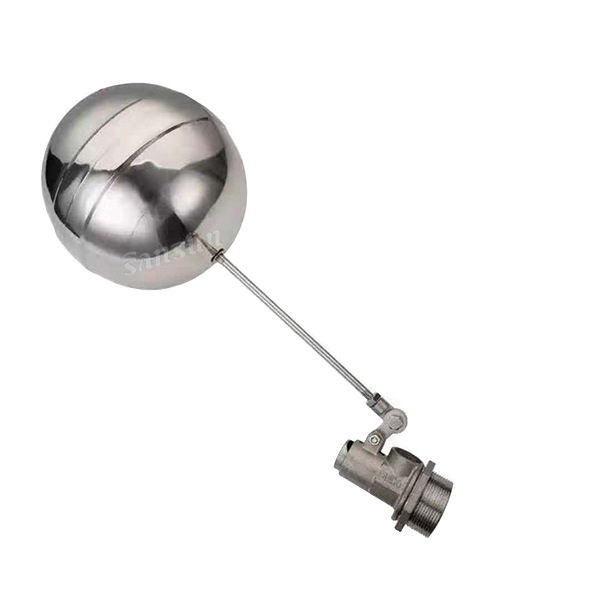

Floating Valve is designed to detect liquuid level inside a vessel from exceeding maximum level permissible.
The float mechanism mounted within the vessel, which is moved up (15 movement) by increase liquid level.
After the movement reached 15, the valve will be closed by the mechanism, and liquid can't flow pump into inside the vessel.
It is widely used in Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc.
Technical Specifications
Max working pressure:145psi (10bar)
Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option
Materials
Material:SS304/SS316L
Seat Gasket: PTFE or on request
Standard Design
Available in sizes from 3/4" to 4" or DN15 to DN80
Standard:ISO/IDF/3A/BPE/DIN
Connection Type:clamp,thread,weld
Manual handle, pneumatic actuator, electric actuator are interchangeable.
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
