SANSUN
NO.500102
Characteristic:

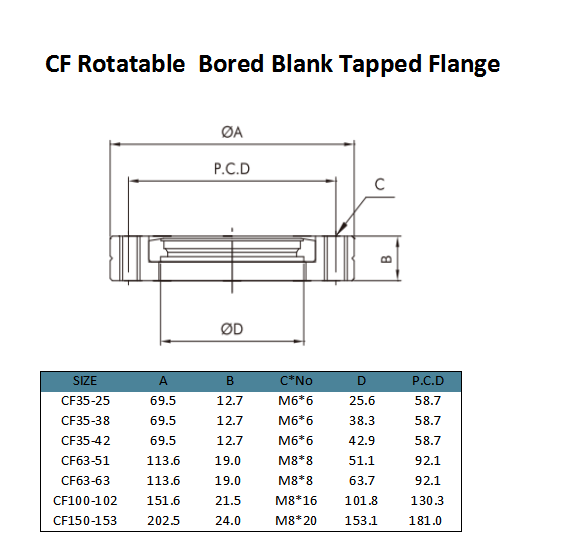

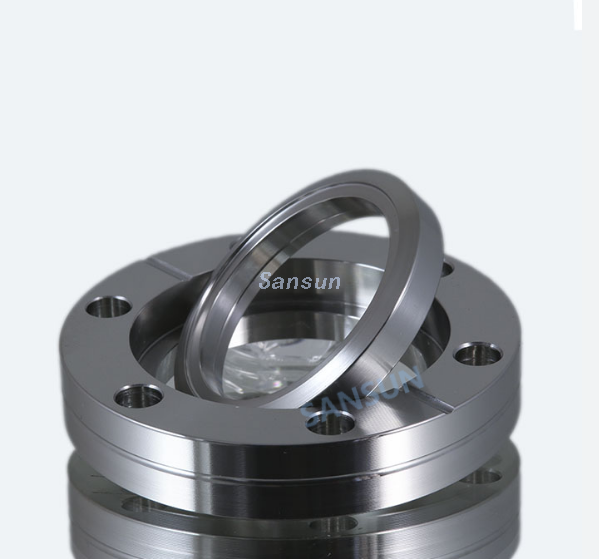

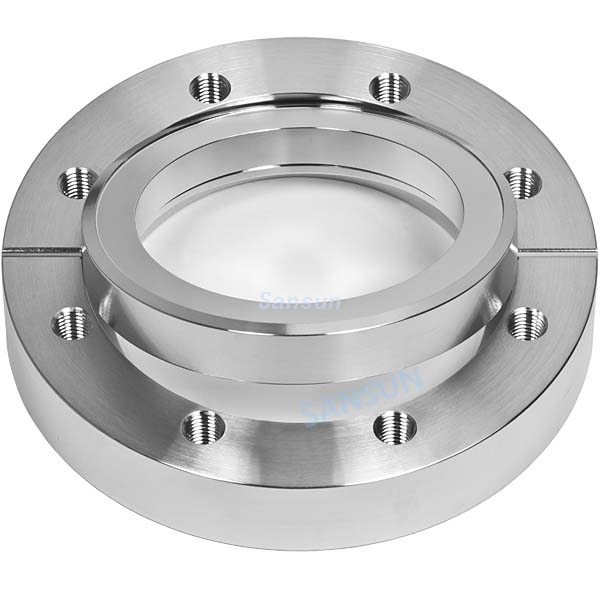

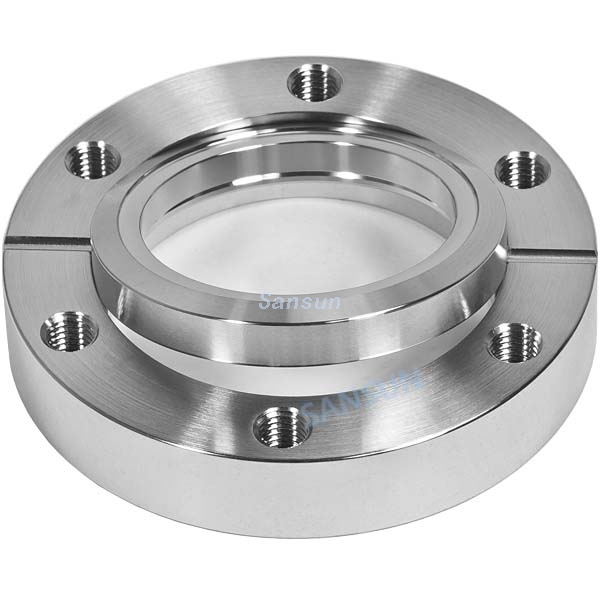

Stainless Steel CF Rotatable Bored Blank Tapped Flange vacuum fittings
*CF Flange assembly comprises two CF flanges, a flat copper gasket, insert,
bolts and Nuts.
*CF Flange design Option:
CF Flange blank or CF Bored Flange blank
CF Tapped Hole Flange or Untapped Hole Flange
CF Nonrotatable Flange or Rotatable Flange
Description:
CF flanges are available with tapped or untapped holes. Tapped flanges are available in UNC/UNF or metric threads. Tapped flanges have through holes, so bolts may protrude slightly from the back of the flange when fastened to an untapped flange. Untapped CF flanges can be fastened to each other with stainless steel bolts and hex nuts or plate nuts. Plate nuts center themselves over two adjacent holes and can be held in place with one finger while the bolts are tightened. They are available for most flange sizes from 1 1/3 to 10 inch (33.96-254mm) ODs. As an alternative to hex head bolts, 12-point bolts are available for CF flanges from 2 3/4 to 10 inch (33.96 to 354mm) ODs.
Silver plated bolts eliminate the need for anti-seize compound in clean room environments.
Material and Size:
*Flanges, Blanks, Fitting: Material SS304
*Gaskets : Material Copper
*Sizes: CF16-CF150
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
Characteristic:
Stainless Steel CF Rotatable Bored Blank Tapped Flange vacuum fittings
*CF Flange assembly comprises two CF flanges, a flat copper gasket, insert,
bolts and Nuts.
*CF Flange design Option:
CF Flange blank or CF Bored Flange blank
CF Tapped Hole Flange or Untapped Hole Flange
CF Nonrotatable Flange or Rotatable Flange
Description:
CF flanges are available with tapped or untapped holes. Tapped flanges are available in UNC/UNF or metric threads. Tapped flanges have through holes, so bolts may protrude slightly from the back of the flange when fastened to an untapped flange. Untapped CF flanges can be fastened to each other with stainless steel bolts and hex nuts or plate nuts. Plate nuts center themselves over two adjacent holes and can be held in place with one finger while the bolts are tightened. They are available for most flange sizes from 1 1/3 to 10 inch (33.96-254mm) ODs. As an alternative to hex head bolts, 12-point bolts are available for CF flanges from 2 3/4 to 10 inch (33.96 to 354mm) ODs.
Silver plated bolts eliminate the need for anti-seize compound in clean room environments.
Material and Size:
*Flanges, Blanks, Fitting: Material SS304
*Gaskets : Material Copper
*Sizes: CF16-CF150
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
