Operating Principles
Lift type Double Seat Valve is remotely operated through compressed air.It is normally closed beforerunning.
The Double Seat Valve is constructed with two independent plugs,which will form a leakage chamberthat interlinks to atmosphere under normal working status.
When occasional failure of the mediumeakage happen,medium will low into the chamber and be discharged at the out port.
The leakage chamber is dosed when the valve is operating.So medium can flow through one pipelineto another.This valve can be clean in place.
Many options of CIP and SIP combinations are available tousers.(Refer to ceaning sterlization function options)
Technical Specifications
Available sizes:DN40-1.1/2"to DN100-4"
Working temperature:-10℃ to 120℃(140℃for short periods or sterilisation)
Max. working pressure:10bar (for DN4°-DN100 valves-max.5bar)
Compressed air pressure: 5,5bar-7bar
Air supply connections:R1/8"(BSP)
Materials
Parts in contact with the product: AISI 316L
Other parts in stainless steel: AlSI 304
Gasket: EPDM in compliance with FDA177.2600
lnternal surface finish: Ra ≤ 0.8 μm
External surface finish: bright polish
Standard Design
Surface finish: Ra≤ 0,5 μm
Available sizes:DN 25 -DN 100, 1"- 4"
Connections:DIN,Clamp,SMS,RJT,FL-IDF,etc.

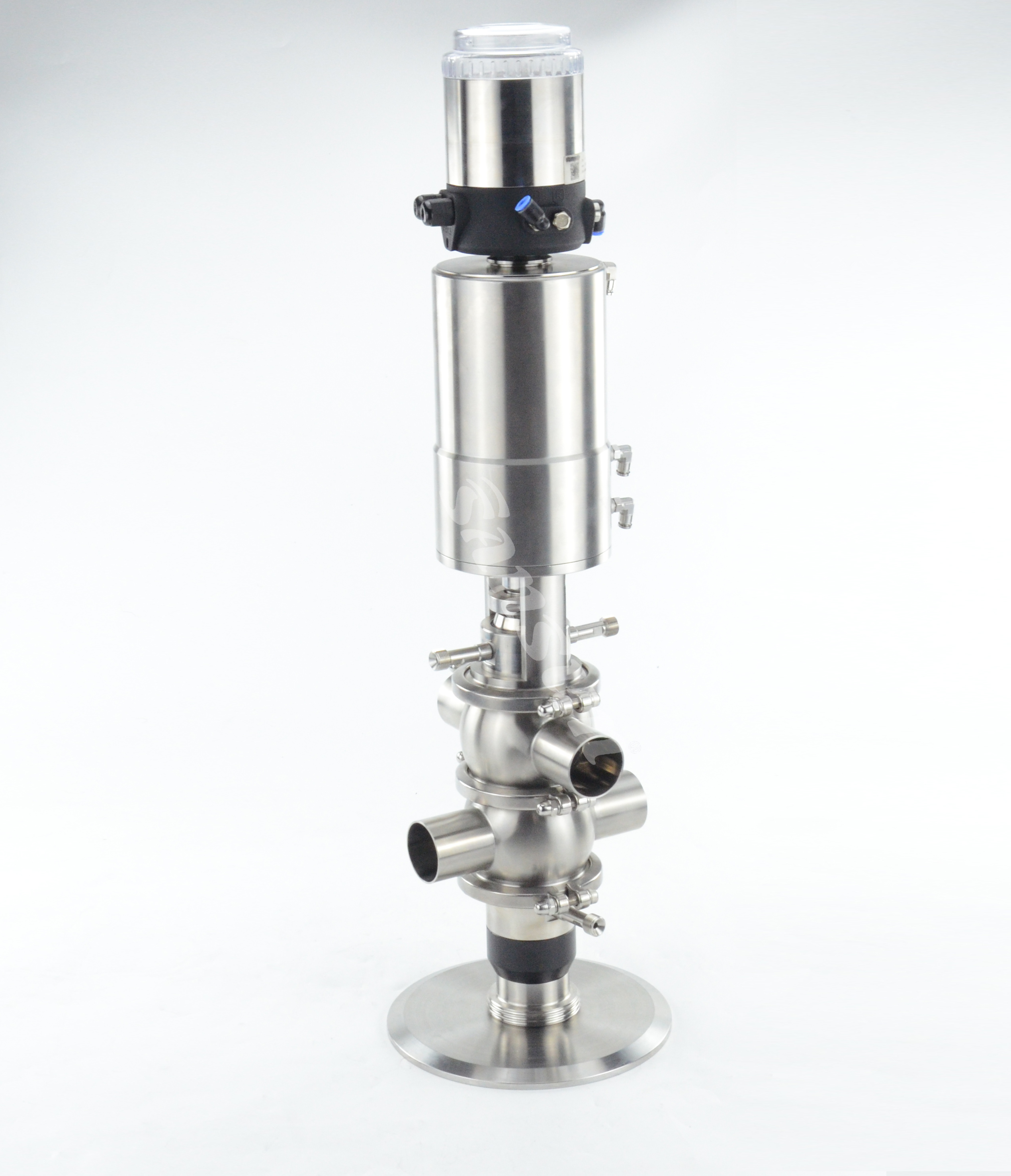

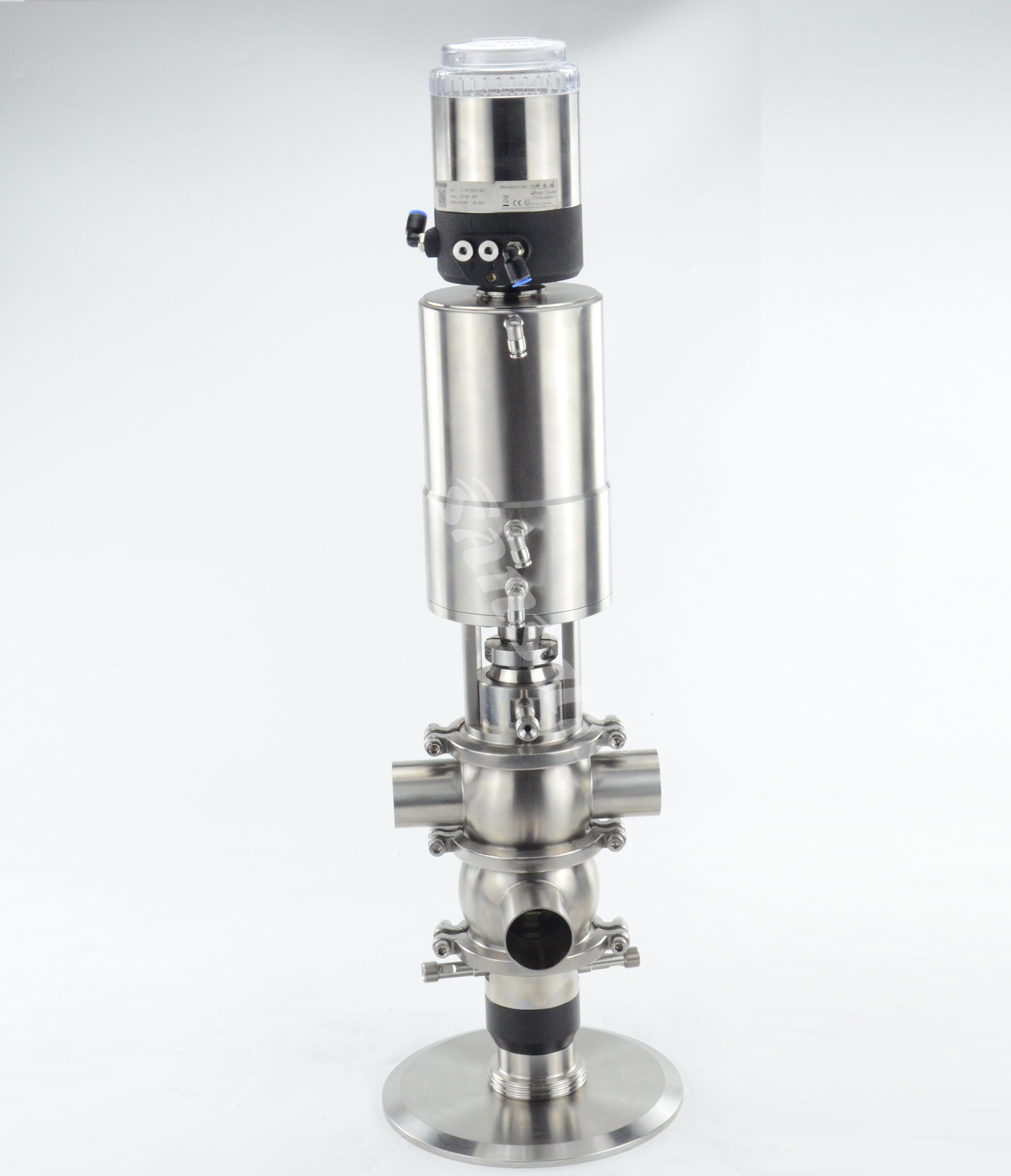

Mixproof Double Seat Valve
