| Size | 1"-4" (DN25-DN100) |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Valve Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | EPDM, Silicone |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Ofcores： | Metal Mesh,Pertorated Plate,Wedge Wire |
| Availably standard: | DIN/3A |
| Connection type | Clamp End,Weld End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

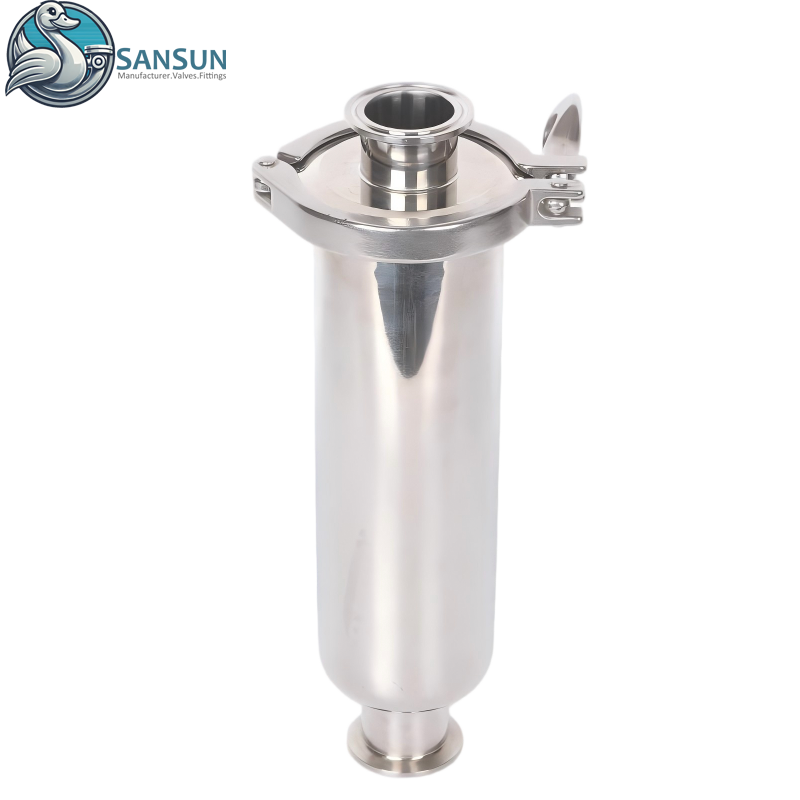

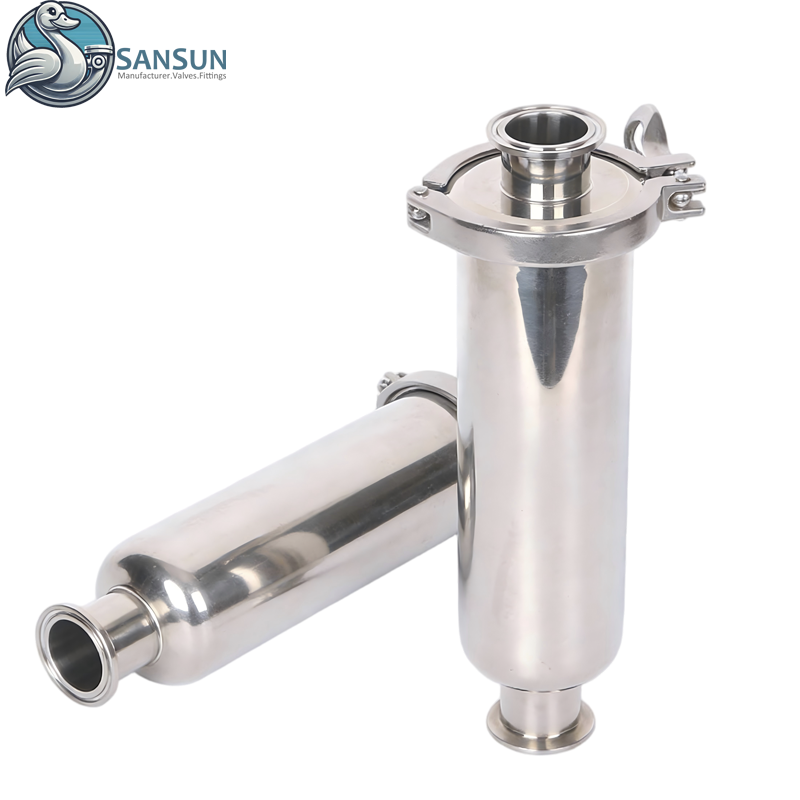

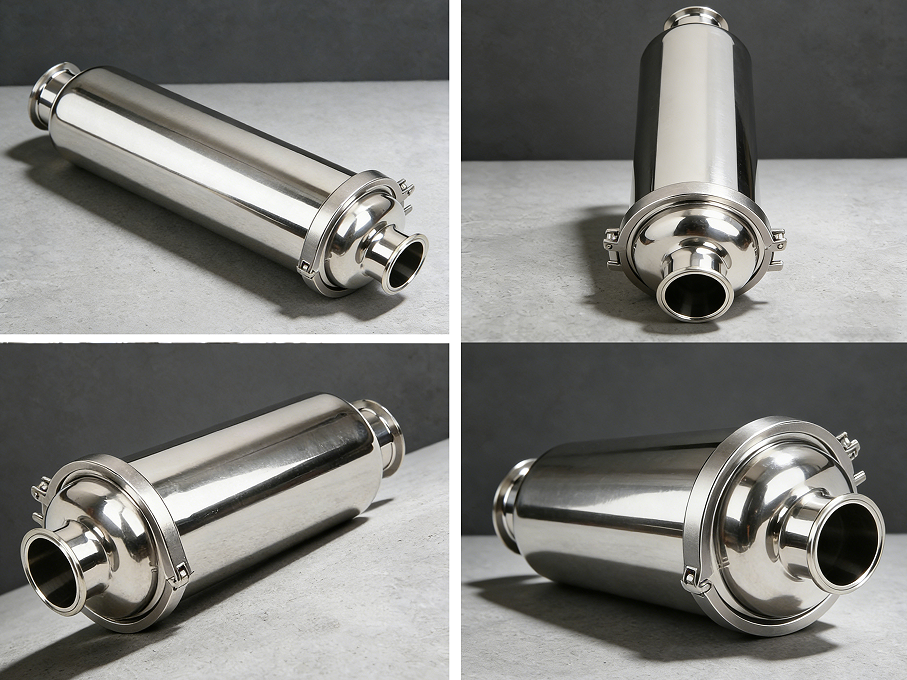

| Application scope: | This stainless steel tri clamp straight strainer is for AI data center CDU liquid cooling pipelines. It filters coolant impurities to protect equipment. Tri clamp connection allows quick assembly and disassembly, and smooth inner wall reduces flow resistance for continuous coolant circulation. |
