SANSUN
SS-V1019
Operating Principles

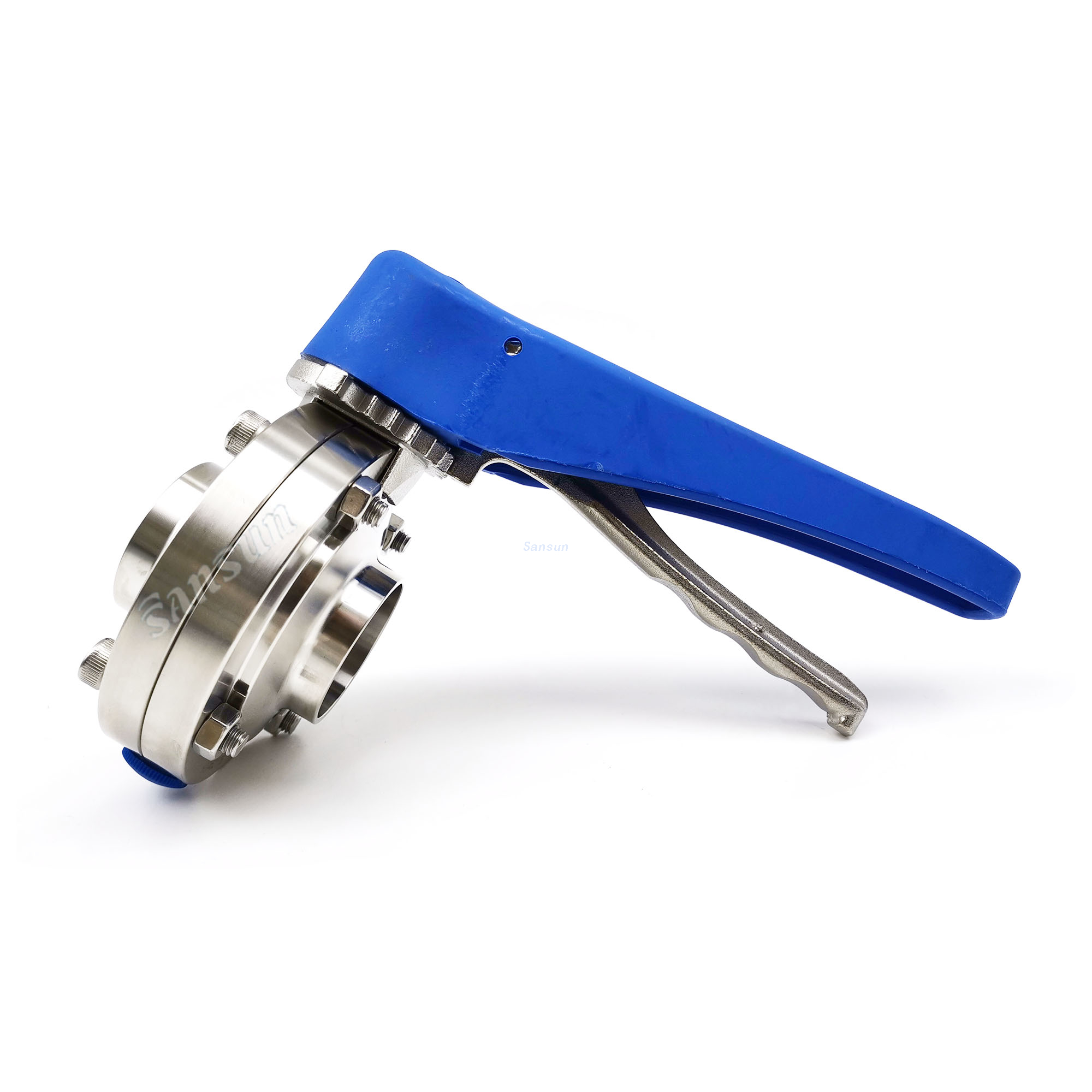

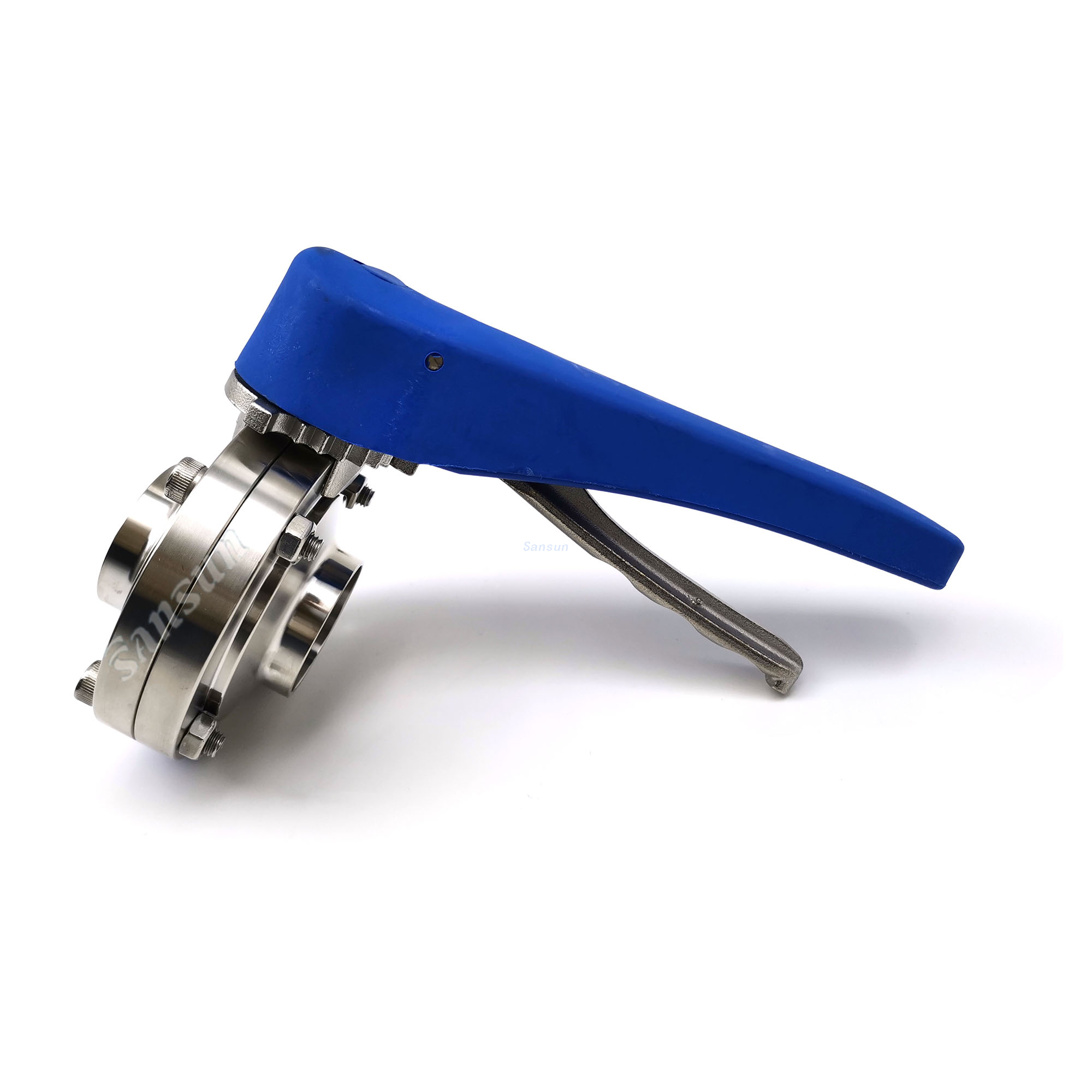

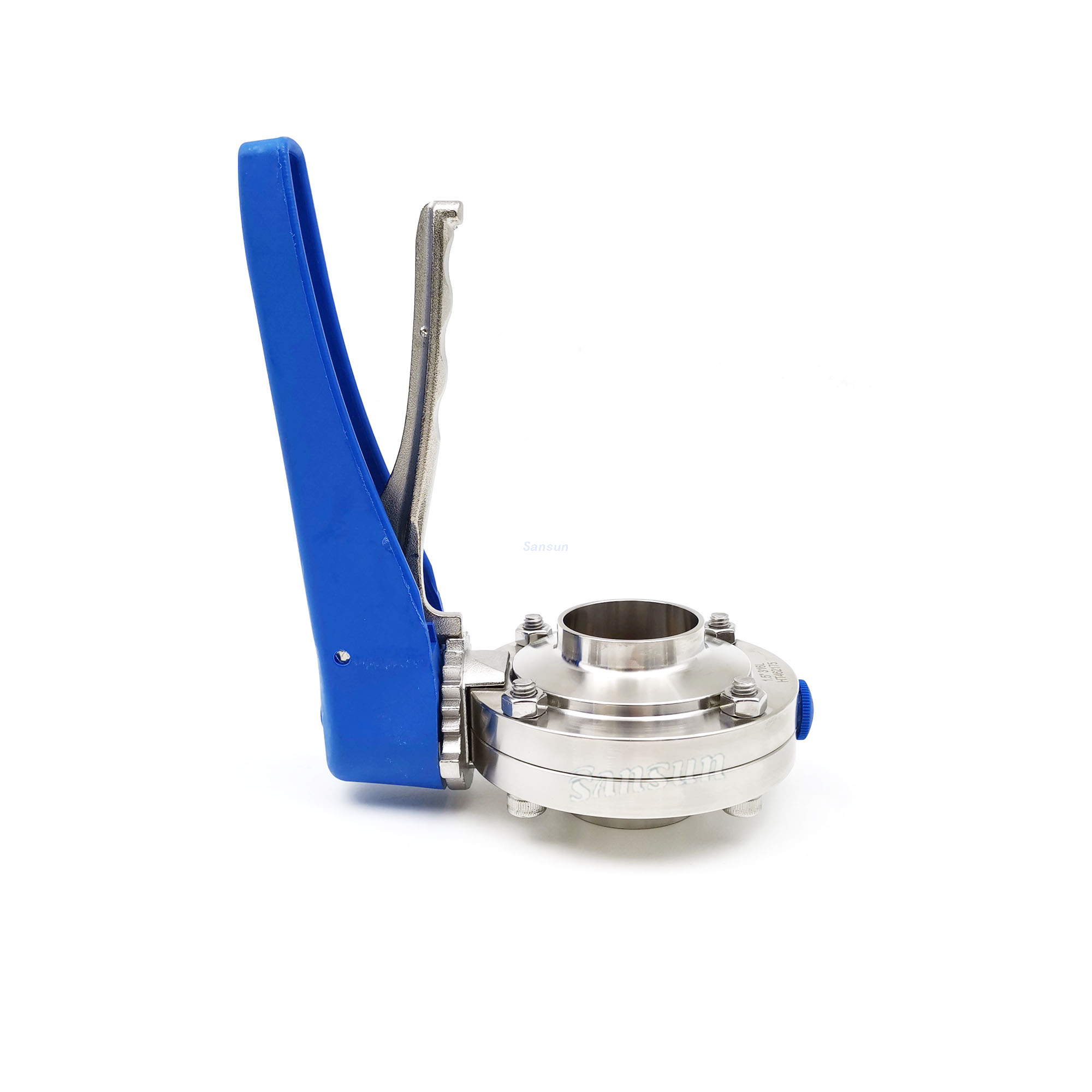

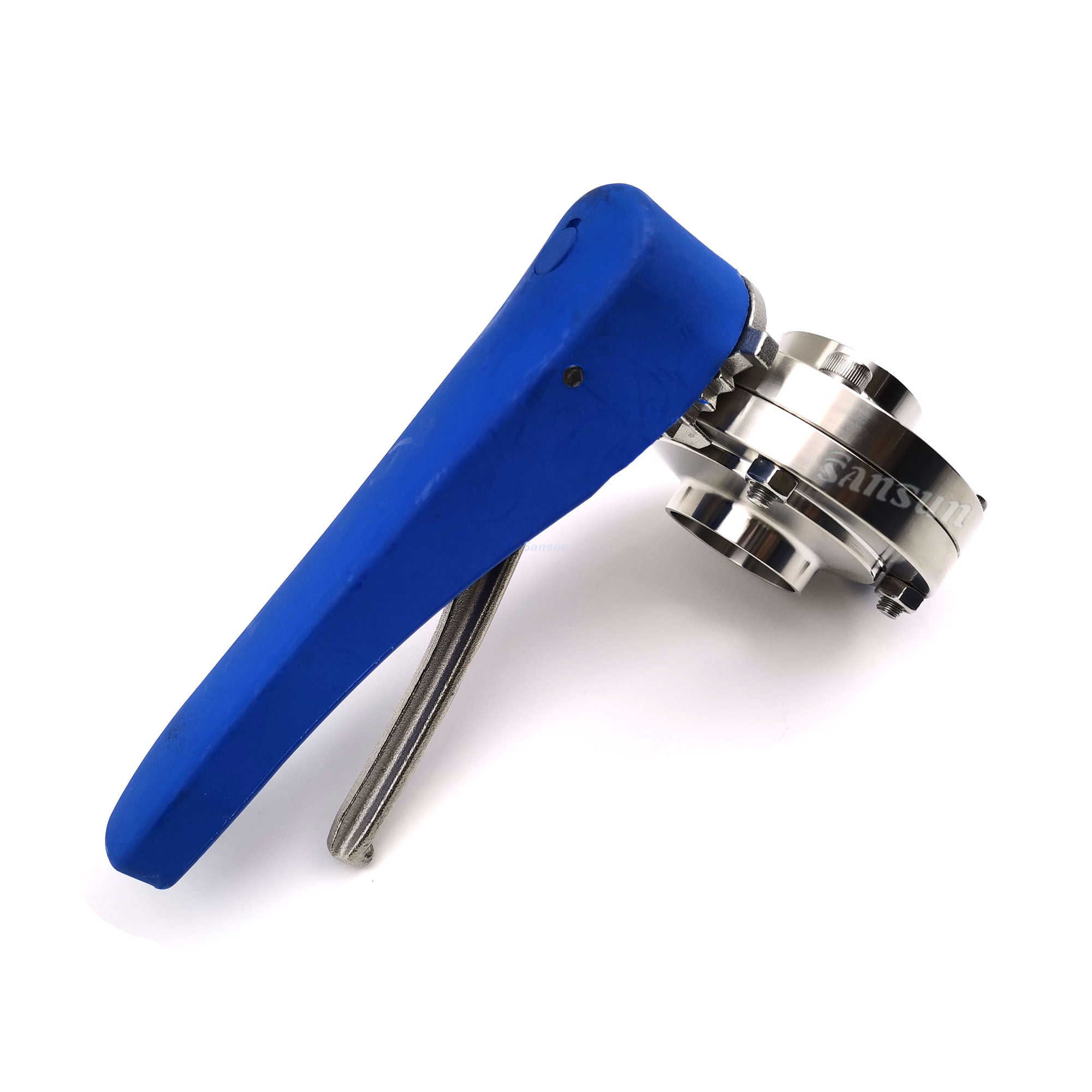

Sanitary weld butterfly valve with Blue plastic handle
The welded butterfly valves can be operated automatically through actuator or manually with the handle.
The handle blocks the valve in the "open" or "closed"position, certainly there are the other position available.
The actuator push piston of axial movement into 90 degree so that it controls butterfly valve.
The butterfly valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.
Technical Specifications
Max.pressure: 10 bar (DN-25/100);8 bar (DN-125/150)
Min.pressure: 0.2 bar p.abs
Operating temperature:-10℃ to +120℃ (EPDM)
Materials
Butterfly plate: AISI316L/304(forged)
Valve body: AISI316L/304(forged)
Handle: AISI304/PP
Surface finishing: Ra=0.8
Standard Design
Available in sizes from DN10 / 1/2" to DN200 / 8"
The size of multi-position handle uo to DN100 / 4"
The size of pull handle up to DN125 / 150 / 6"
Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A
Connection: weld, clamp, thread, single weld single thread, flange
Handle: two-position handle, three-position handle, four-position pulling handle,multi-position plastic triggle handle
and multi-position stainless steel triggle handle
Control: position sensor, C-TOP controller, C-TOP controller(AS-I)
Butterfly Valves Curve
Butterfly Valve Handle Style
Exploded view of Butterfly Valve with Pulling Handle
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
