SANSUN
Operating Principles

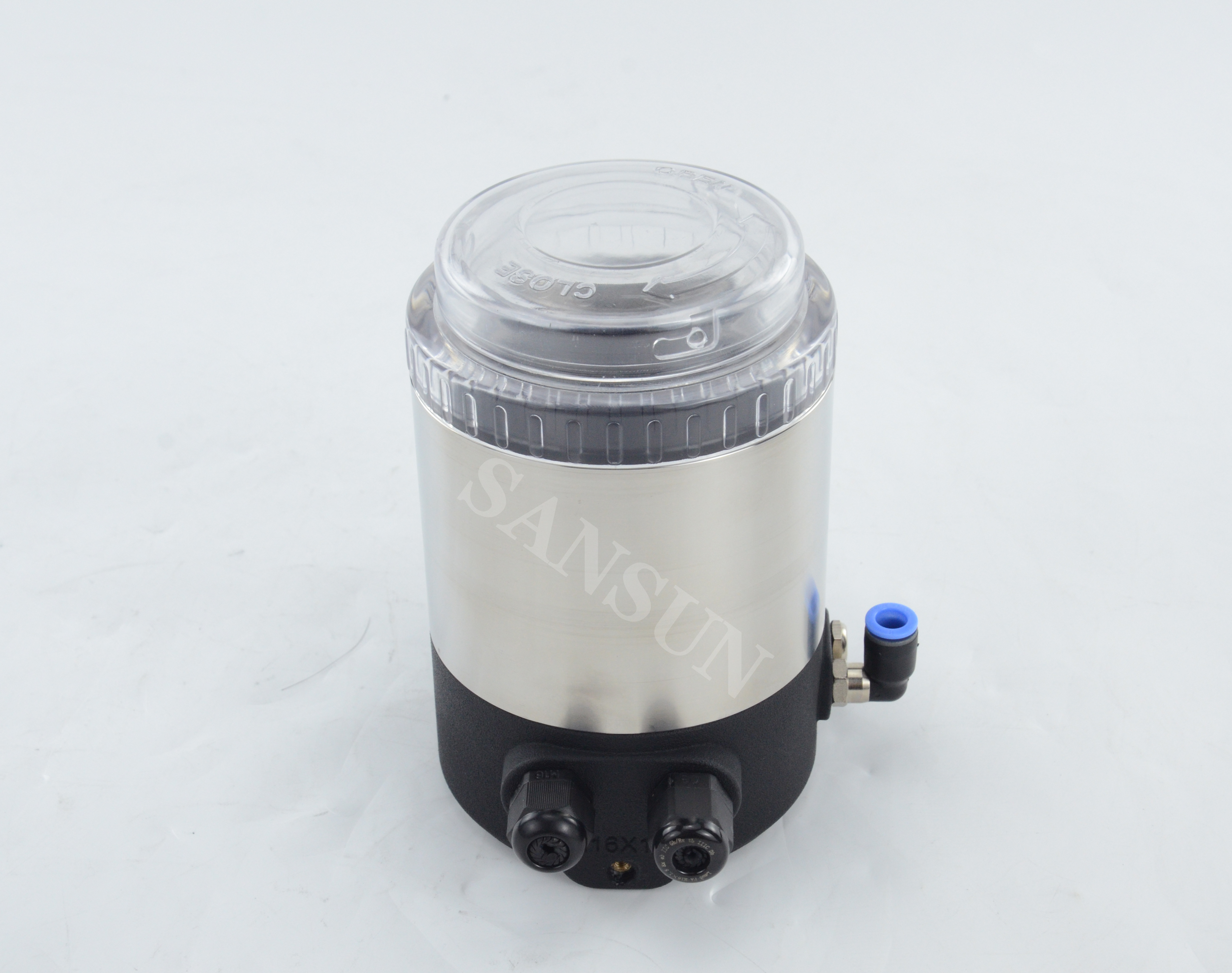

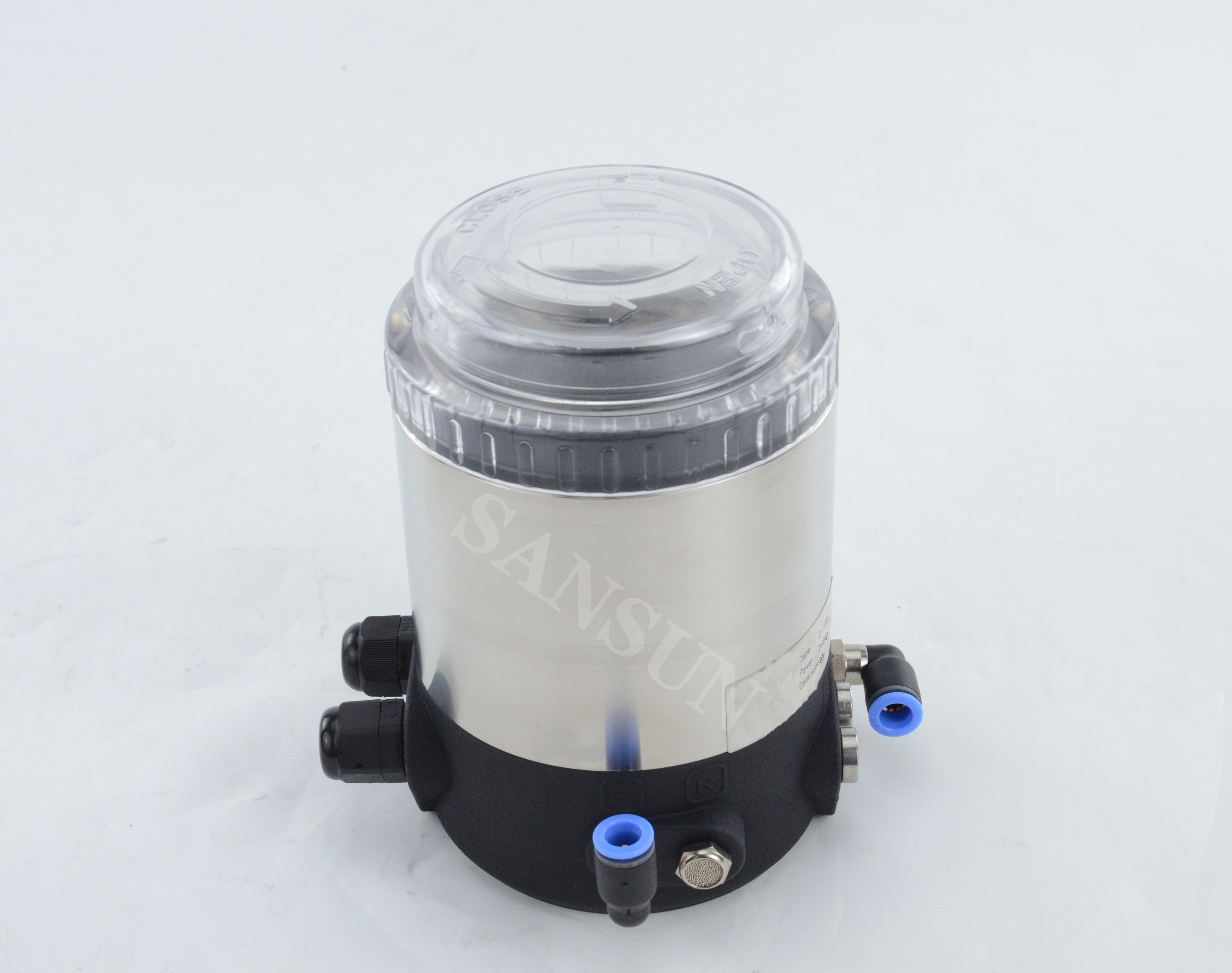

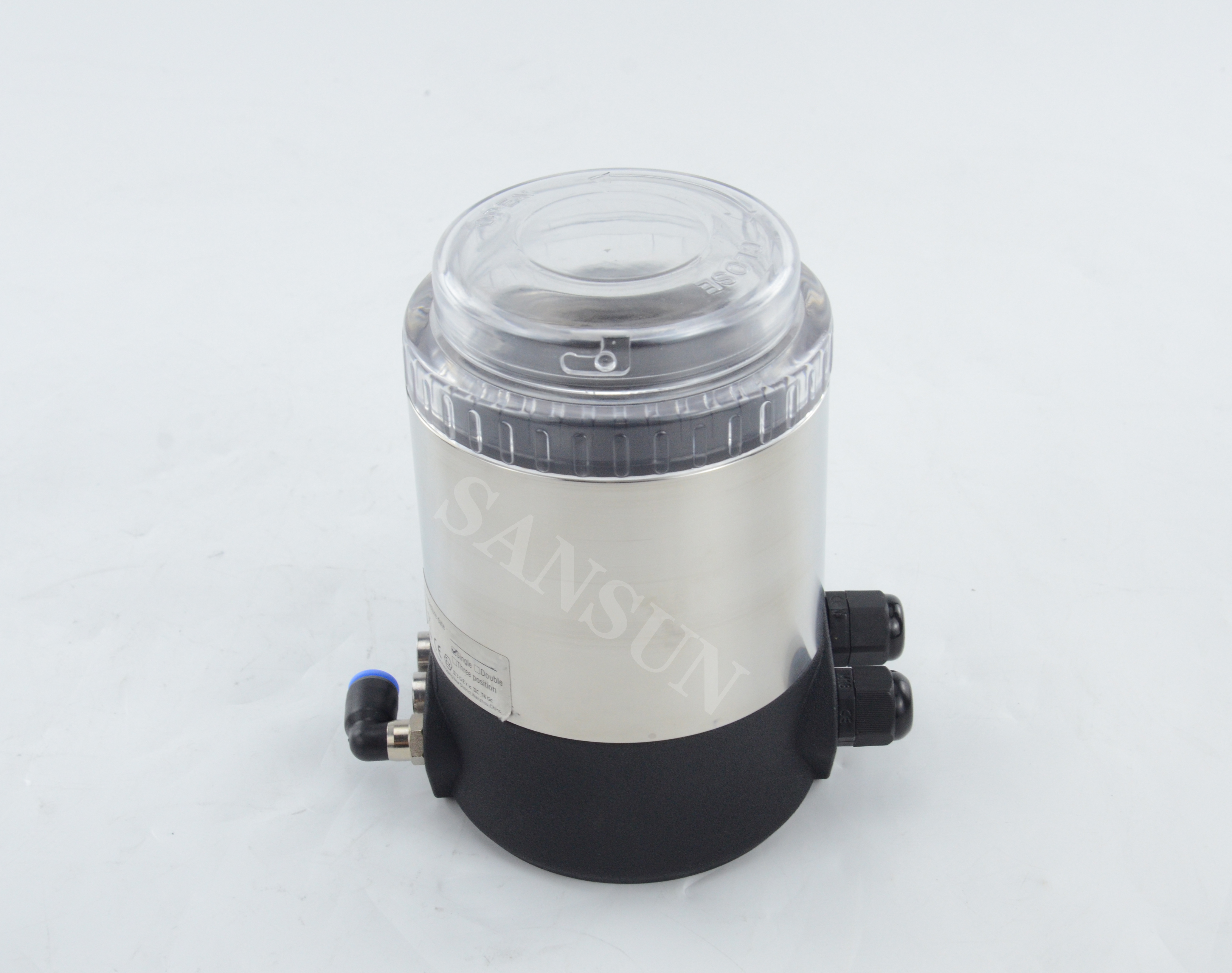

This controller (C- TOP) is mainly used in all kinds of fluid process control and flow control system
C- TOP can be installedto all kinds of Linear actuators, such as pneumatic angle seat valve, pneumatic diaphragm valve, pneumatic butterfly valve,pneumatic Divert Seat valve, pneumatic ball valve and other applicable as traffic Section of the valve
Technical Specifications
Actuator: 1) single-action 2) double-action 3) triple action
Bus version: AS-I BUS
Displacement version: self-tuning valve function,4-20mA output,DC24V outpu
Power: DC24V / AC220V/110V
pressure：: 1.5 *7 bar ( 22 -102 PSI )
Standard Design
The controller (in a single component) includes the following features:
● Green LED: indicates that the valve is open
● Red LED: indicates that the valve is closed
● Red LED light flickers: indicating it doesn't reach target position or valve position is deviated by pipeline pressure etc.
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
Operating Principles
This controller (C- TOP) is mainly used in all kinds of fluid process control and flow control system
C- TOP can be installedto all kinds of Linear actuators, such as pneumatic angle seat valve, pneumatic diaphragm valve, pneumatic butterfly valve,pneumatic Divert Seat valve, pneumatic ball valve and other applicable as traffic Section of the valve
Technical Specifications
Actuator: 1) single-action 2) double-action 3) triple action
Bus version: AS-I BUS
Displacement version: self-tuning valve function,4-20mA output,DC24V outpu
Power: DC24V / AC220V/110V
pressure：: 1.5 *7 bar ( 22 -102 PSI )
Standard Design
The controller (in a single component) includes the following features:
● Green LED: indicates that the valve is open
● Red LED: indicates that the valve is closed
● Red LED light flickers: indicating it doesn't reach target position or valve position is deviated by pipeline pressure etc.
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
