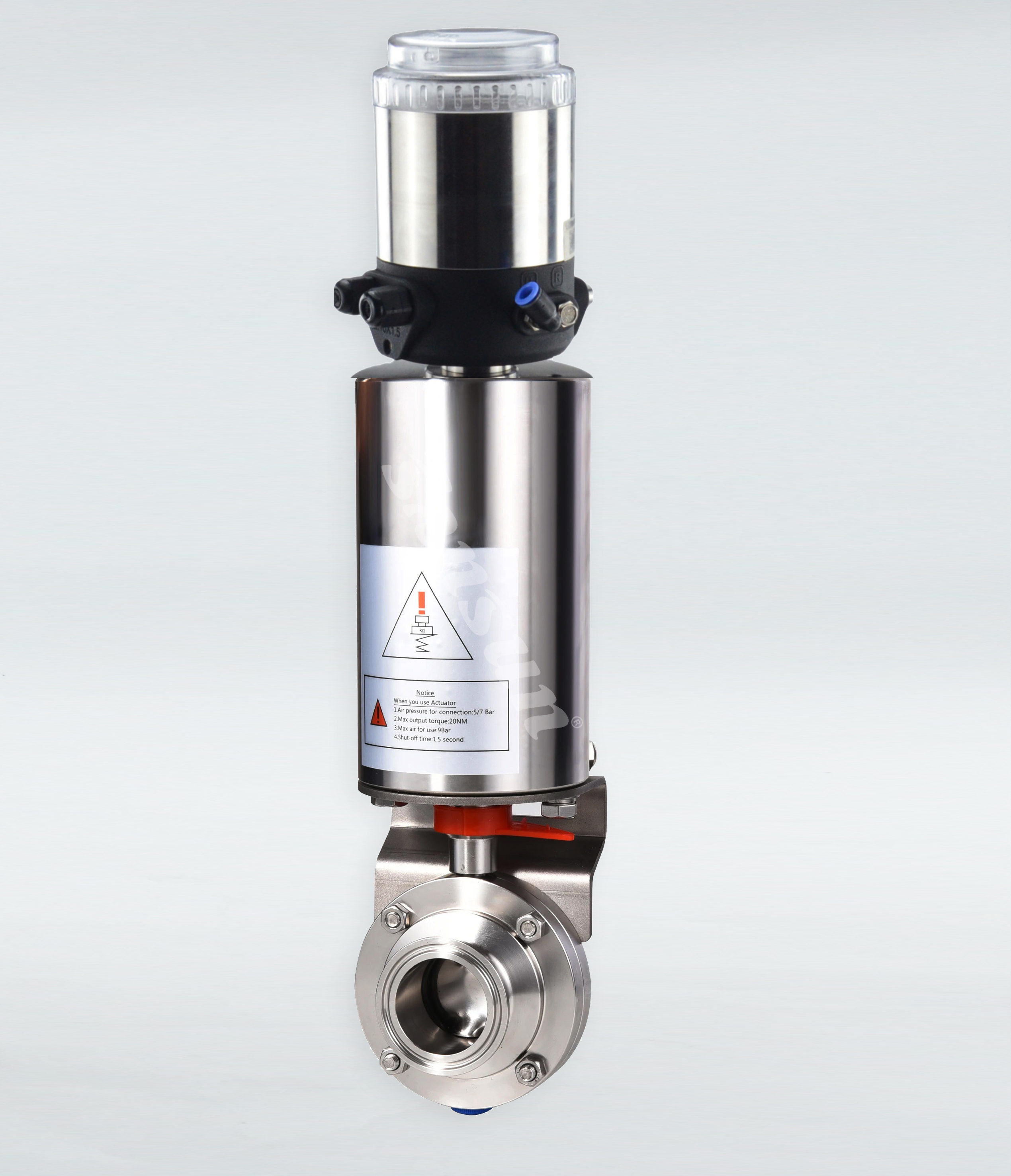

Sanitary pneumatic control valve with C-TOP control unit for flow regulation, ASI bus version output 24V 4-20mA

Operating Principles

          Pneumatic butterfly valve+C-TOP can be applied to a variety of fluid control systems, such as food and beverage, wine, pharmaceutical and other industries.

         The valve has feature of no dead ends, simple maintenance, small volume appearance.

Technical Specifications

Max.pressure: 10 bar (DN-25/100);8 bar (DN-125/150)

Pressure: 10bar

Temperature: EPDM-20℃ to 130℃（depend on seal material ）

Materials

Butterfly plate: AISI316L/304(forged)

Valve body: AISI316L/304(forged)

Surface finishing: Ra=0.8

Standard Design

Available in sizes from  1/2" to 8"

Power supply: DC 24V ± 10%

Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A

Connection: Weld, Clamp, Thread, Flange and Other standards

Actuator: pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator

Single-acting (standard), Double acting (option)

One-touch auto-tuning function valve position

Support for manual operation

Control: position sensor, C-TOP controller, C-TOP controller(AS-I)

Butterfly Valves Curve

Different Drive Way of Pneumatic Butterfly Valve

Exploded view of Intelligent pneumatic butterfly valve

Inspection

All kinds of non-standard products are customized according to the requirements of customers.

Products can be traced back to the manufacturing and time of each process to ensure the quality of products.

Package
