| Size | 1 1/2''-4''(DN40-DN100) |
| Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Operation: | pneumatic actuator+ ControlTOP |
| Pipe Joint Systems: | DIN/3A /SMS |
| Connection type | Tri-Clamp End, Butt Weld End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

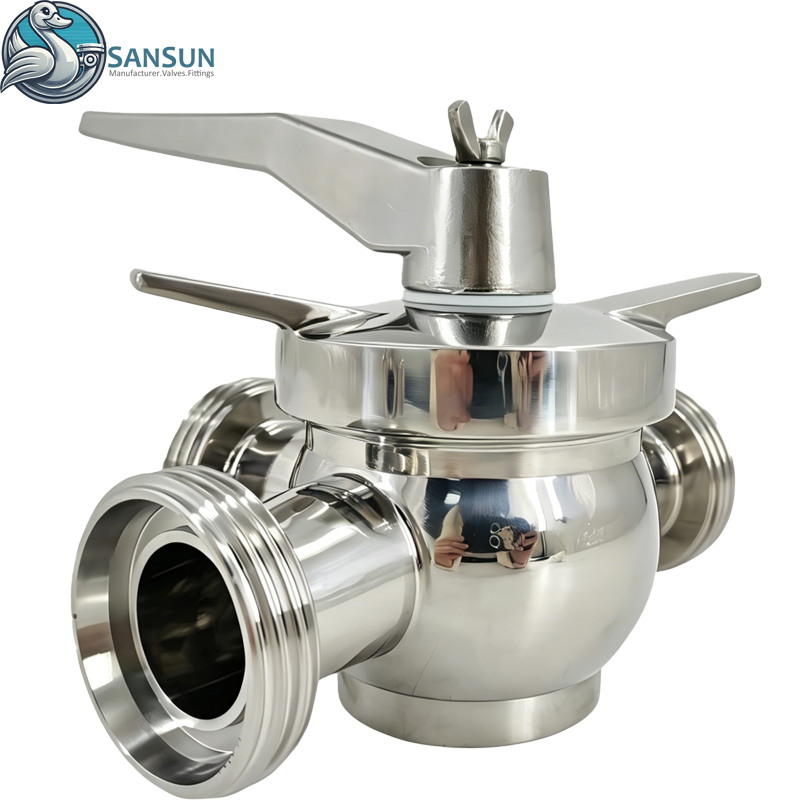

| Application scope: | SANSUN'sFood grade AISI 316L three-way plug valve with zero dead leg structure, avoids material retention, fully compatible with CIP cleaning for food and fermentation production lines. |
