SANSUN
SS-V4022
Operating Principles

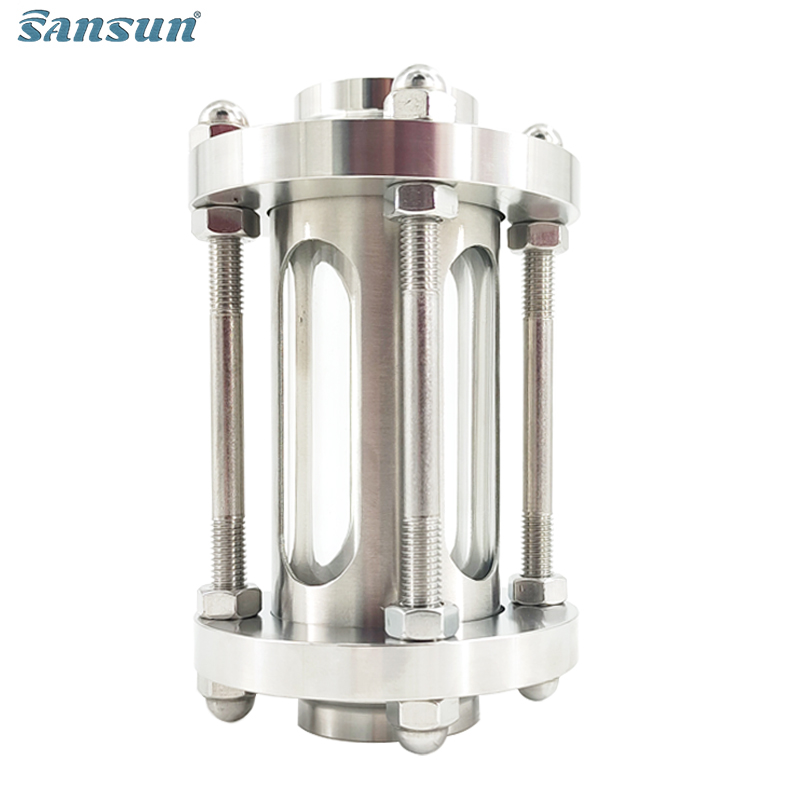

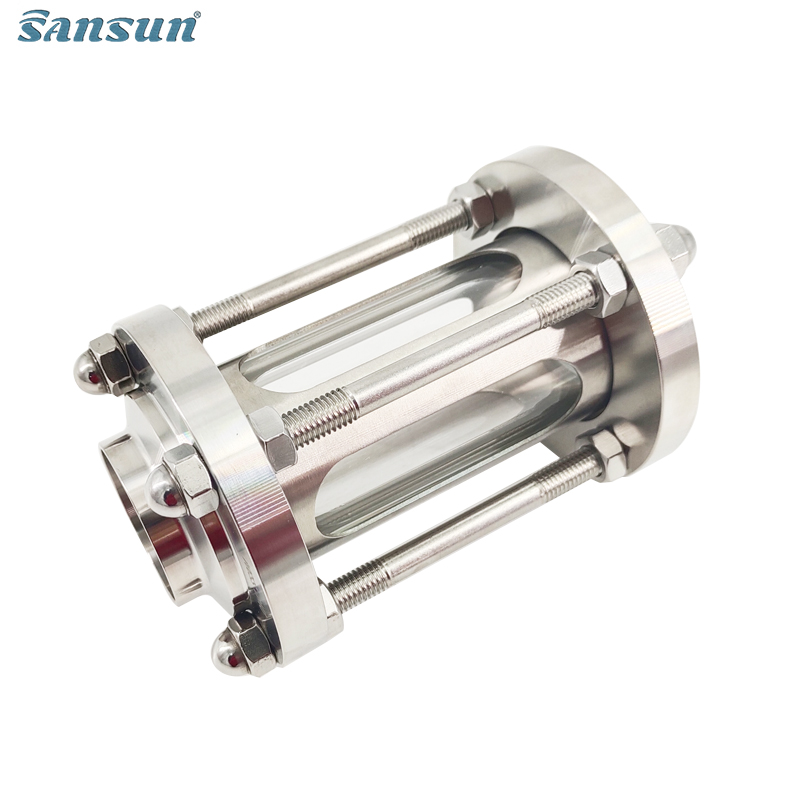

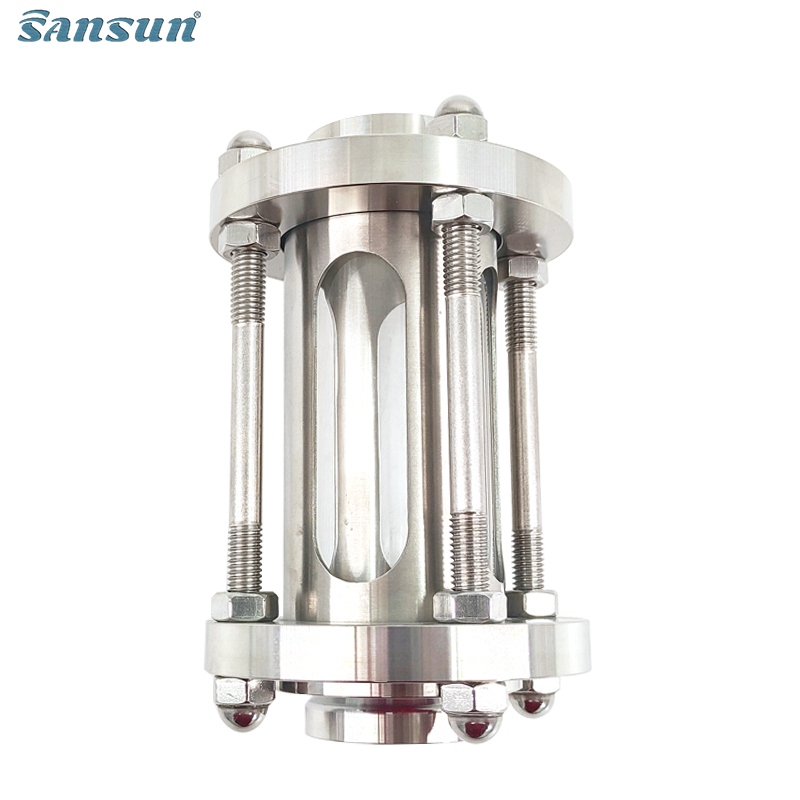

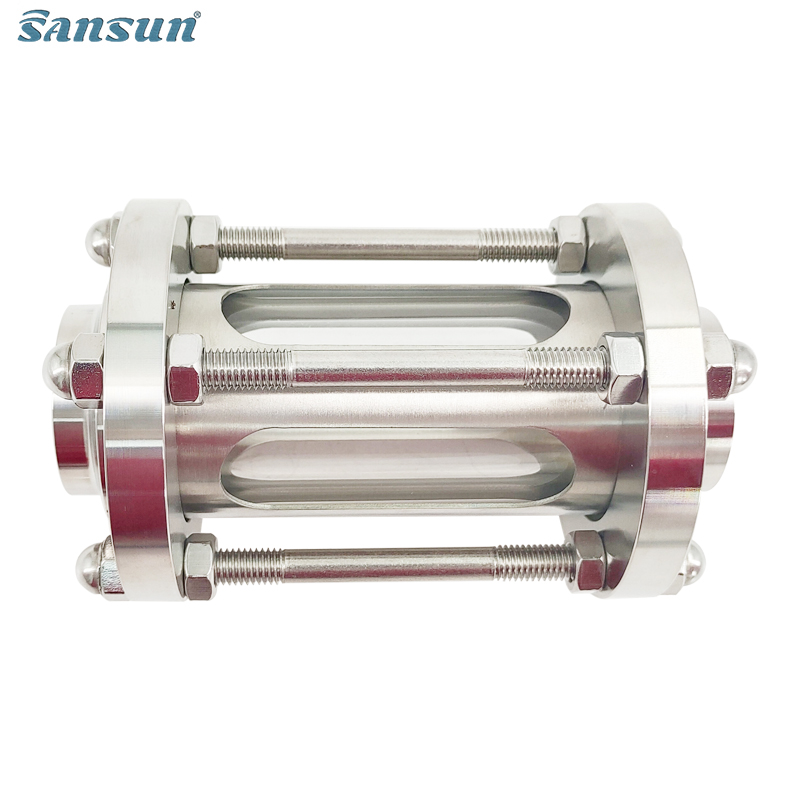

Sanitary Welded Inline Sight Glass Best Price
Welded sight glass allows for the ability to visually inspect tube media.
Welded connection requires use of gaskets and clamp for secure fit.
Sanitary In-line Sight Glasses are used widely in the food, dairy and beverage sanitary processes to view products and fluids.
Sanitary Straight Sight Glasses are constructed with SUS304 、316L housing, Tempered Glass and silicone seals.
These In-line Sight Glasses are easier to clean.
Technical Specifications
Working temperature:-20-135°C (when the sealing is EPDM.)
Surface treatment: CNC machining
Materials
Body Materials: AISI-304 or AISI-316L
Tempered glass
Gasket Material:Silicon, EPDM, FRM, Viton

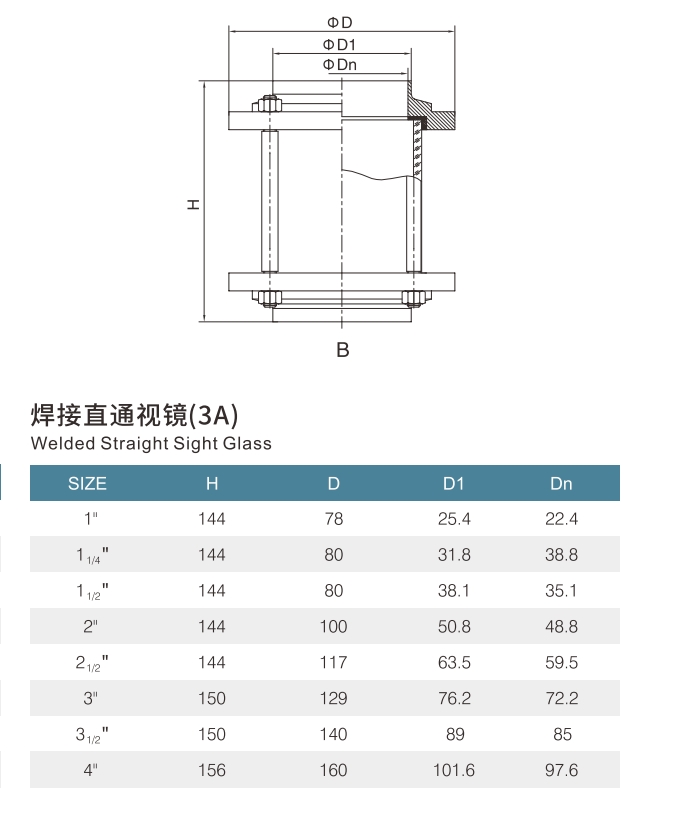

Standard Design
Available in size from 1"-4", DN20-DN125 or others upon requirement
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Vertical or horizontal installation
360 degree view angle
Can be used in vertical or horizontal position.

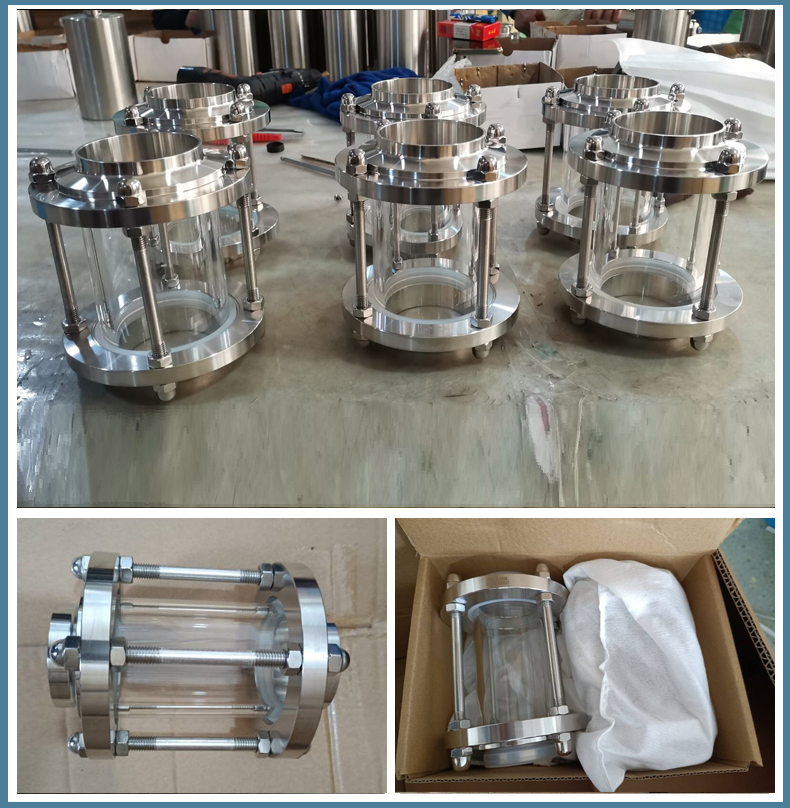

Package
