SANSUN
SS-V1021
Operating Principles

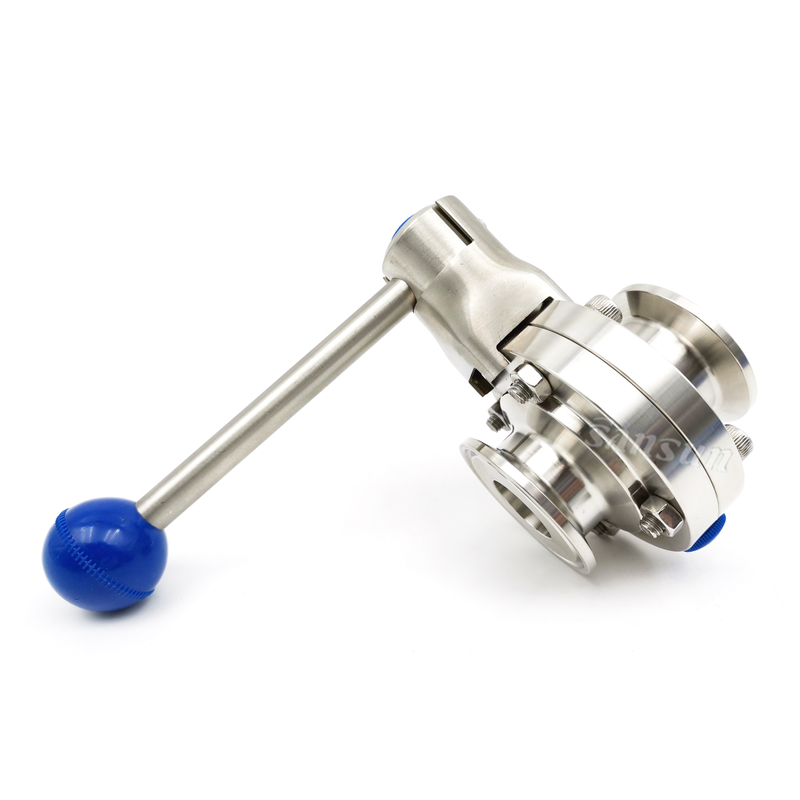

Hygienic Tri Clover TC Butterfly Valve for Food
The clamp butterfly valves can be operated automatically by an actuator or manually by a handle.
The handle blocks the valve in the "open" or "closed"position, of course there are the other position available.
The actuator push piston of axial movement into 90 ° so that it controls butterfly valve.
The butterfly valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.
Technical Specifications
Max.pressure: 10 bar (DN-25/100);8 bar (DN-125/150)
Min.pressure: 0.2 bar p.abs
Operating temperature:-10℃ to +120℃ (EPDM)
Materials
Butterfly plate: AISI316L/304(forging)
Valve body: AISI316L/304(forging)
Handle: AISI304/PP
Surface finishing: Ra=0.8
Standard Design
Available in sizes from DN10 / 1/2" to DN200 / 8"
The size of multi-position handle uo to DN100 / 4"
The size of pull handle up to DN125 / 150 / 6"
Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A
Connection: weld, clamp, thread, single weld single thread, flange
Handle: two-position handle, three-position handle, four-position pulling handle,multi-position plastic triggle handle
and multi-position stainless steel triggle handle
Control: position sensor, C-TOP controller, C-TOP controller(AS-I)
Butterfly Valves Curve
Butterfly Valve Handle Style
Exploded view of Butterfly Valve with Pulling Handle
Package for Butterfly Valve
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
