SANSUN
SV7003
Operating Principles

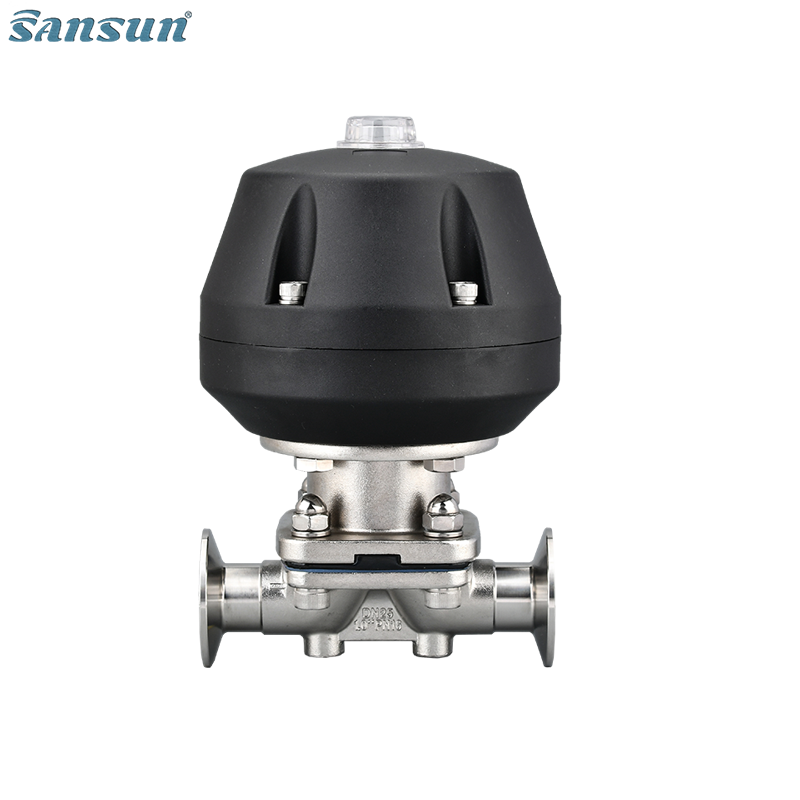

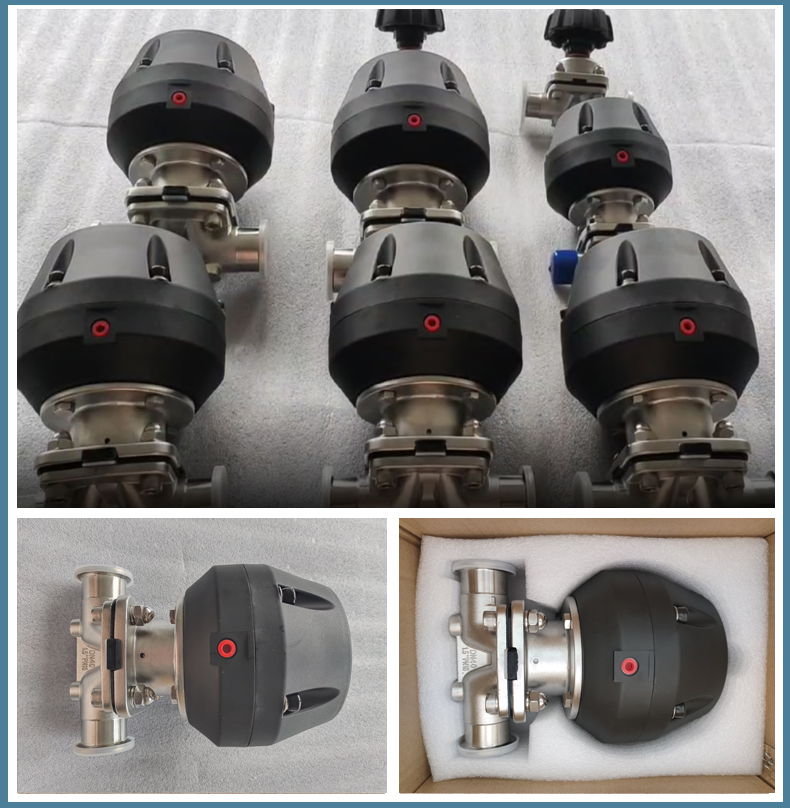

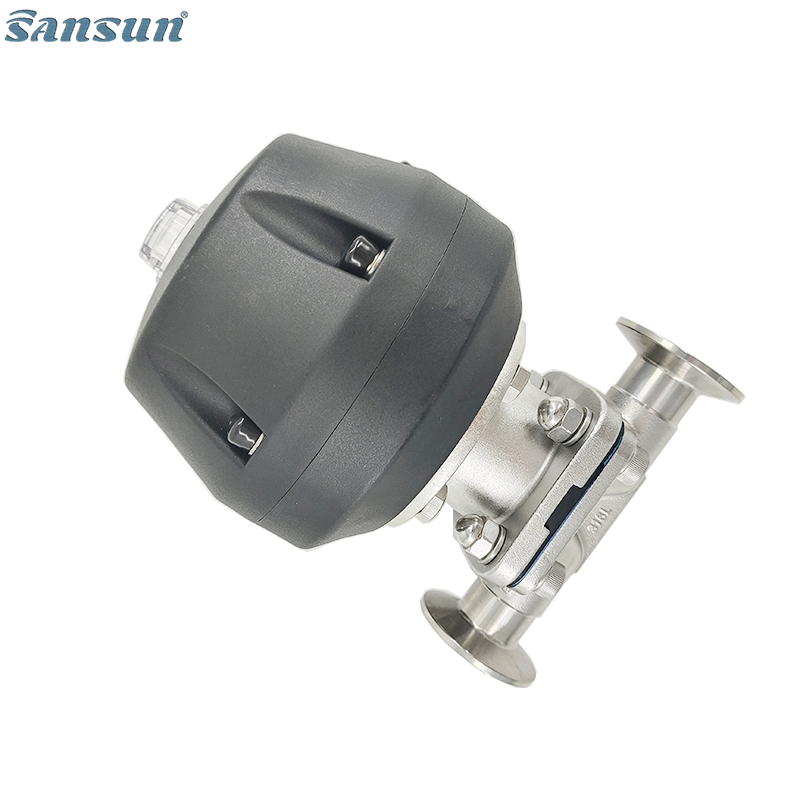

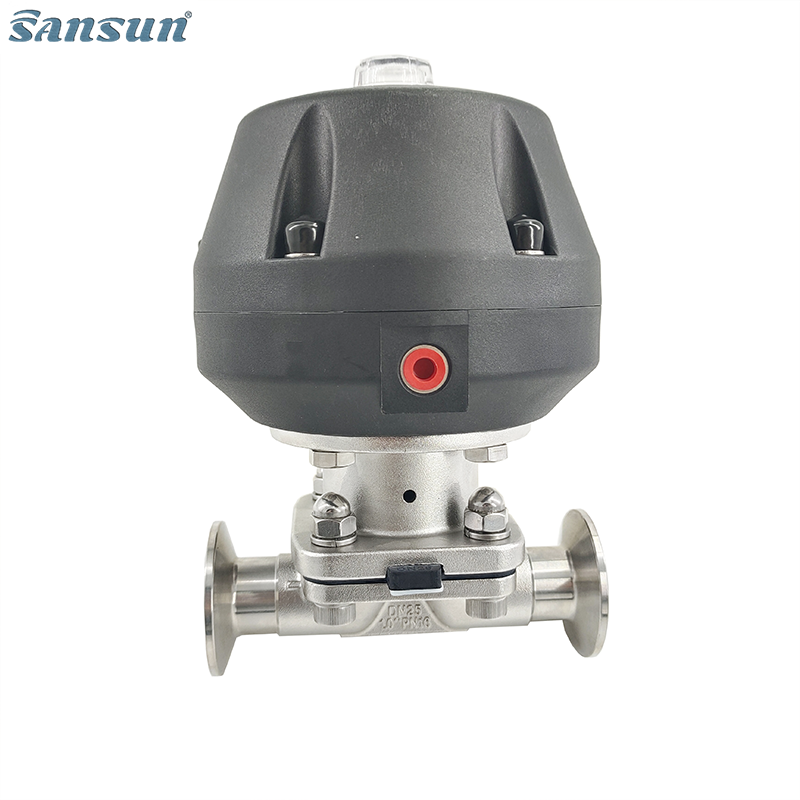

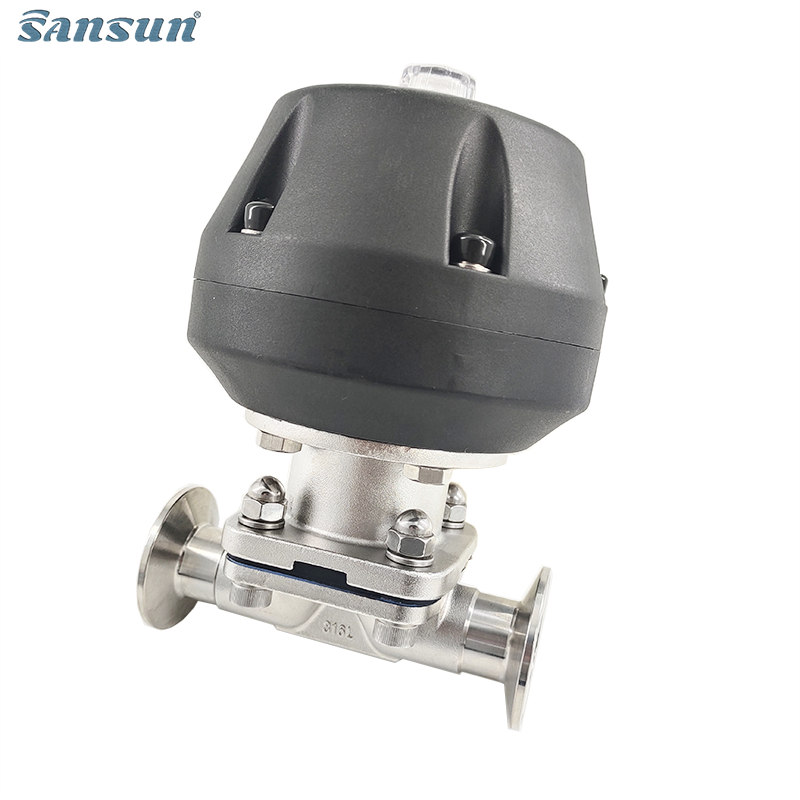

Sanitary Pneumatic tri clamp Diaphragm Valve Good quality valve

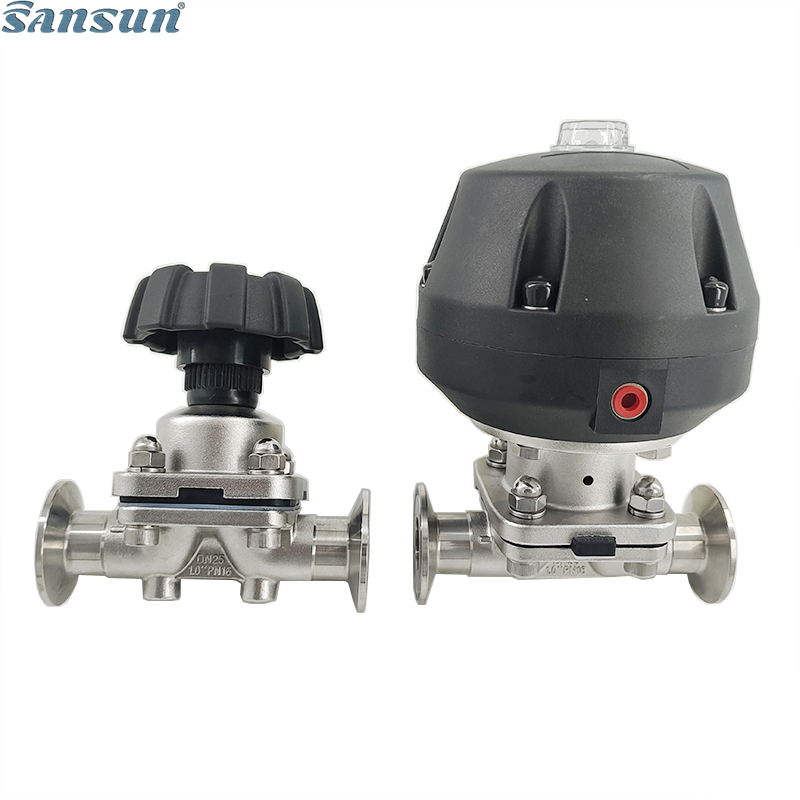

The diaphragm valves can be operated automatically through actuator or manually with the handwheel.
The handwheel blocks the valve in the "open" or "closed"position, certainly there are the other position available.
The closing and opening of the actuator is realized by the pressure from the pipeline acting on the reinforced rubber diaphragm.
The diaphragm valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.
Technical Specifications
Max.pressure: 147psi (10bar)
Operating temperature:-10℃ to +120℃ (EPDM)
Available for CIP/SIP
Materials
Valve body: AISI316L
Diaphragm: EPDM+PTFE or EPDM
Standard Design
Available in sizes from DN20 / 3/4" to DN100/ 4"
Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE
Connection: weld, clamp, or others upon request
Body type: T-type tee, U type tee, Mini type, tank bottom type, etc
The Diaphragm of Diaphragm Valve

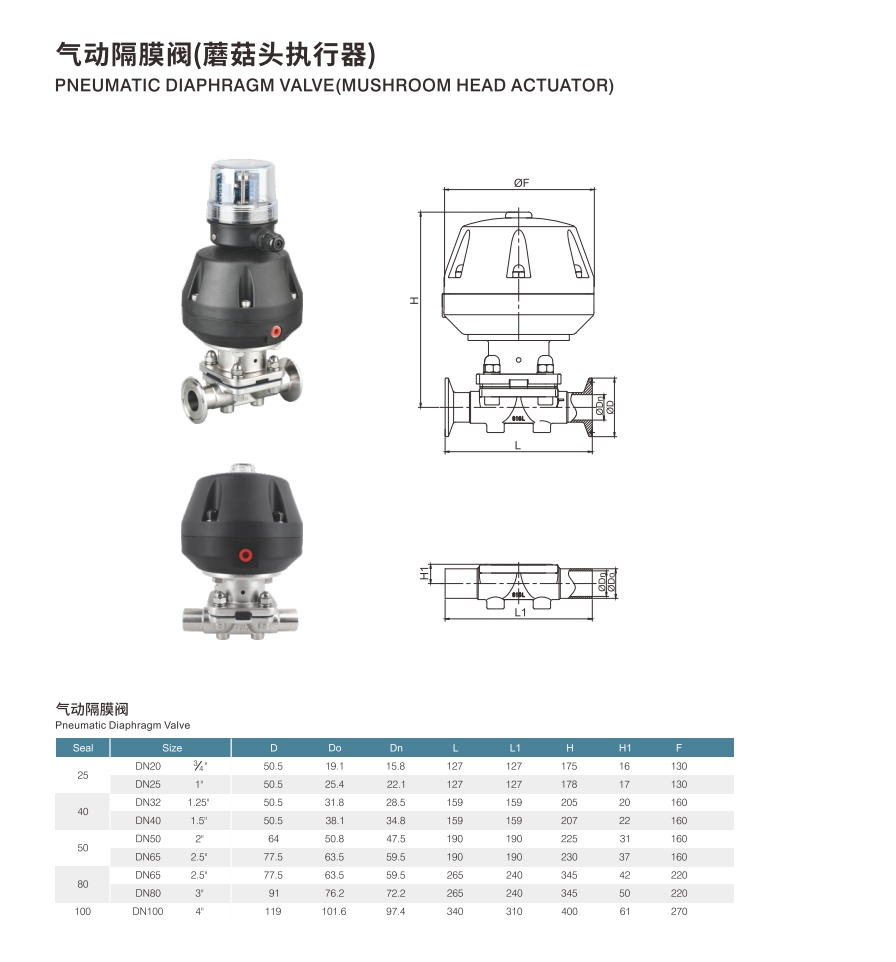

Exploded view of Diaphragm Valve with Plastic Pneumatic Actuator
Package for Mini Diaphragm Valve
