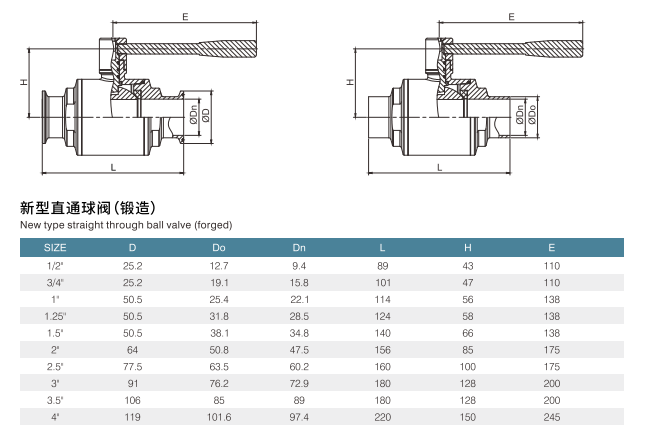

| Size | DN25-DN100(1''-4'') |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Valve Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | PTFE |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Availably standard: | DIN/3A/SMS |
| Connection type | Clamp End,Weld End,Threaded End Flange |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |
| Application scope: | This SS316L sanitary straight clamp ball valve features tri‑clamp connection for fast disassembly and convenient maintenance. It comes with smooth mirror finish and zero dead corners to support thorough CIP SIP cleaning. Adopted high‑quality PTFE seal to achieve reliable zero‑leakage performance. Suitable for dairy beverage pharmaceutical processing pipelines as well as AI data center liquid cooling CDU closed‑loop coolant circulation system. Multiple specifications and custom sizes are availabl
|
