| Size | 1 "-4" (DN25-DN100) |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Valve Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | Silicone
|
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Availably standard: | DIN/3A |
| Connection type | Clamp End,Thread End,Weld End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

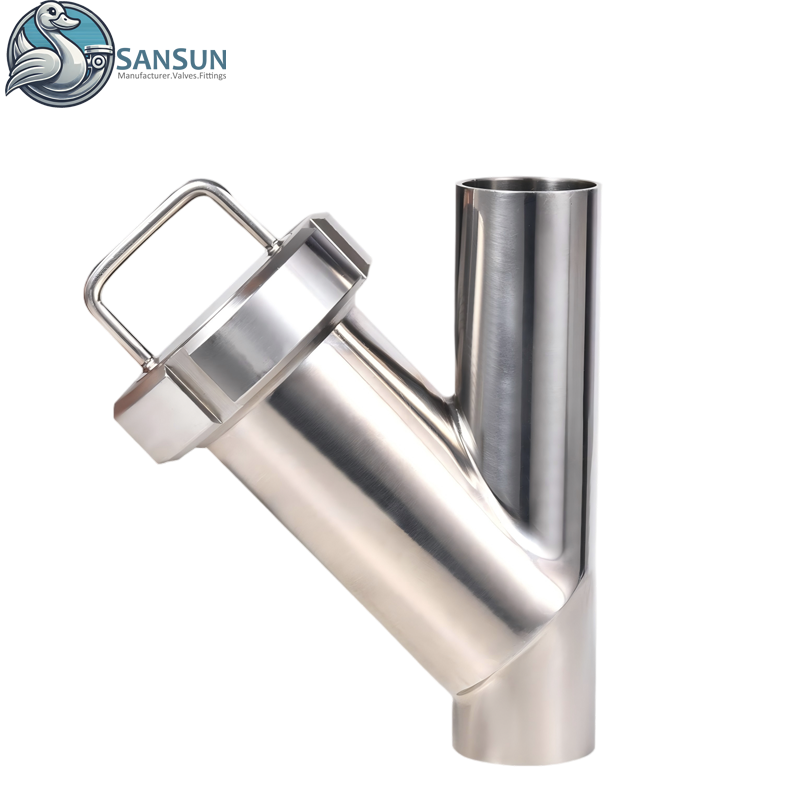

| Application scope: | Welded sanitary stainless steel Y strainer for data center glycol liquid cooling loops.
Made of SS304/316L with full welded ends for leak-free pipeline connection. It traps metal debris and welding slag in coolant to protect liquid cooling pumps and server cold plates from clogging. Removable screen for easy cleaning, smooth inner surface minimizes flow resistance, stable for 24/7 continuous cooling operation. Custom sizes available. |
