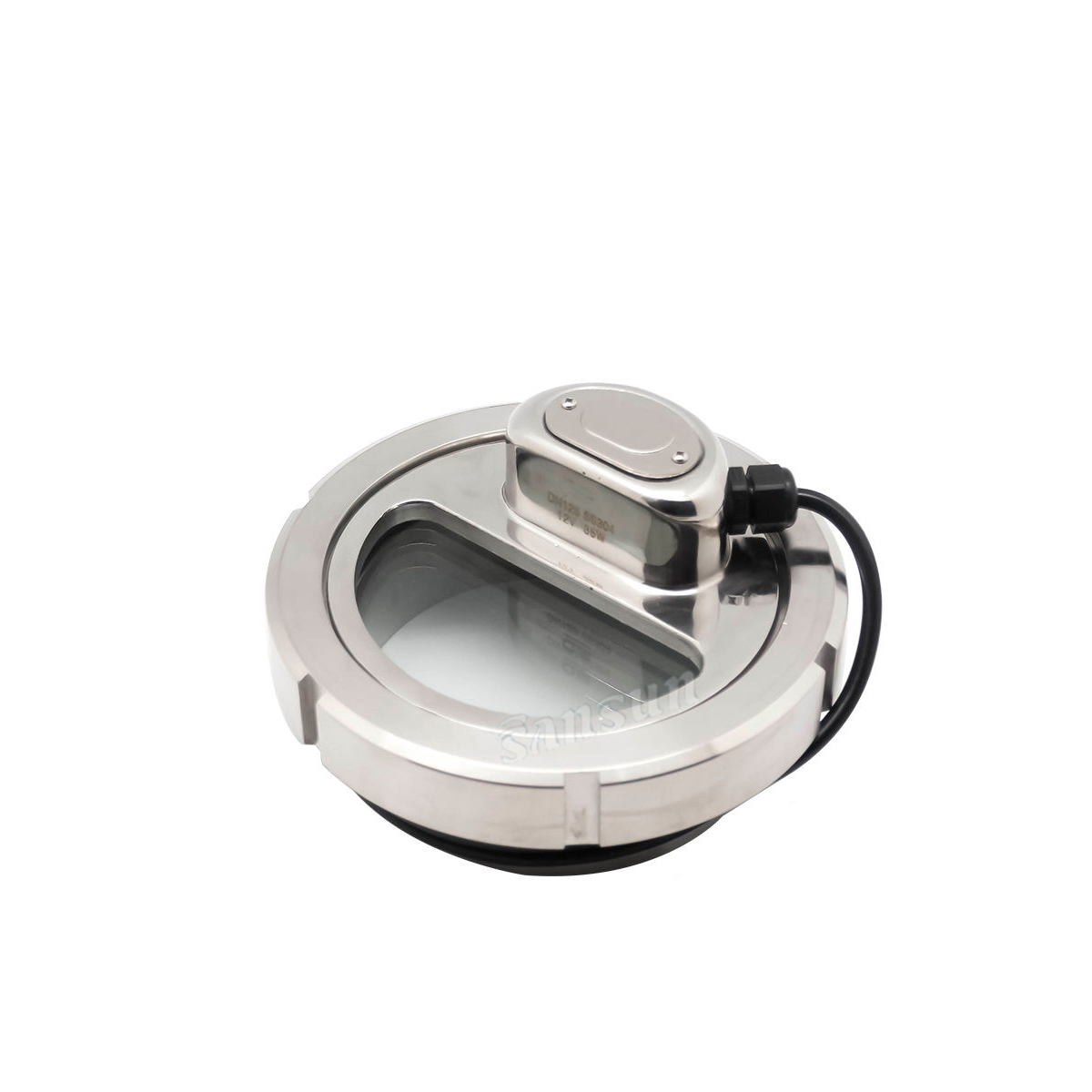

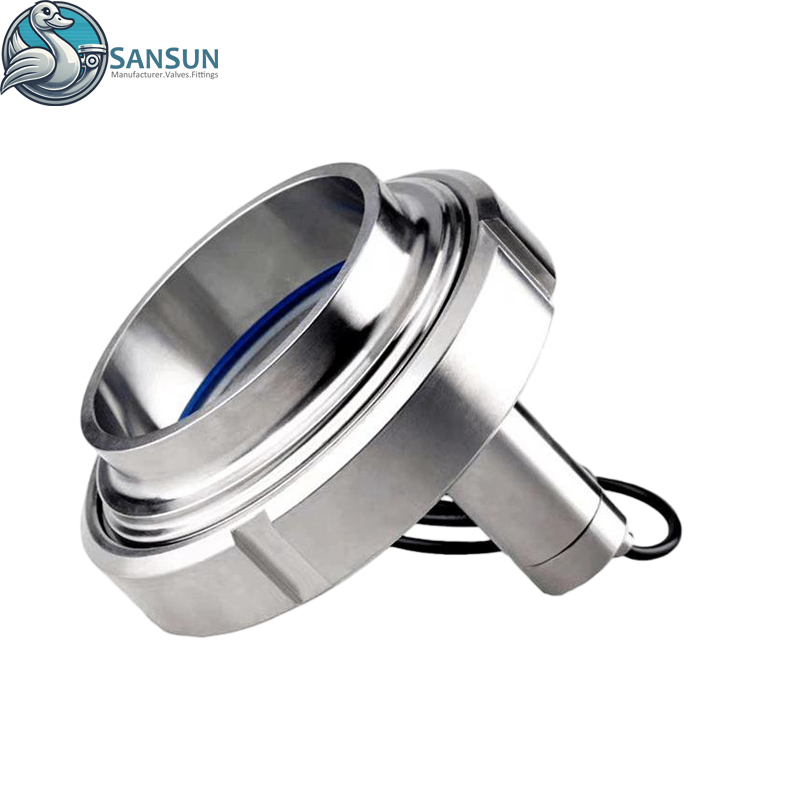

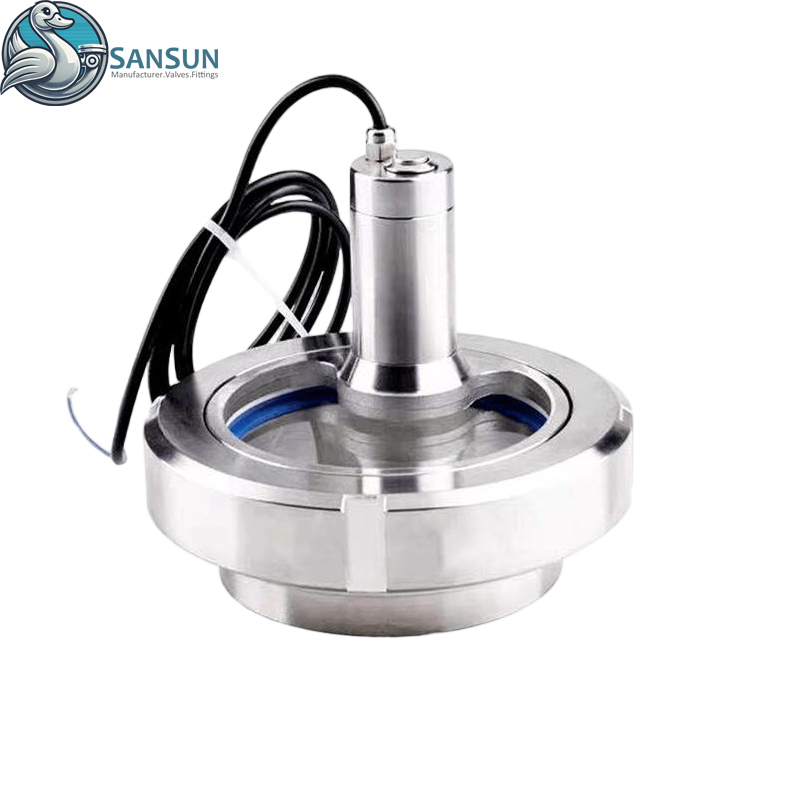

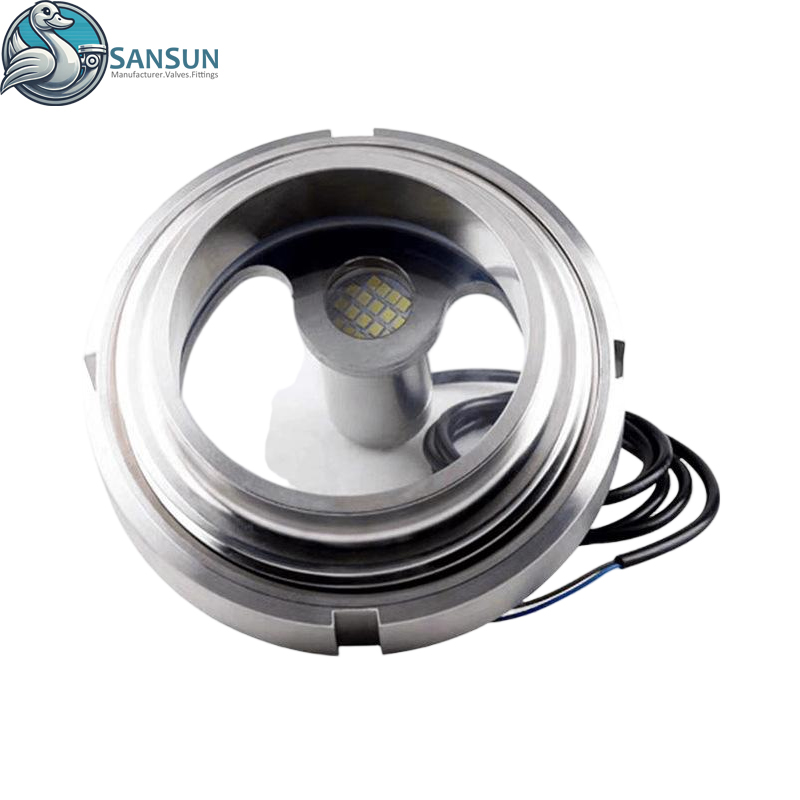

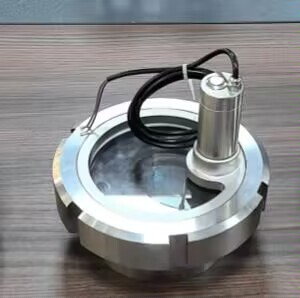

Sanitary Stainless Steel Union Sight Glass with Light

Application

union type sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc.

For it is convenient to view the condition of equipment running state and system work state.

Materials

Body Materials: AISI-304 or AISI-316L

Tempered glass

Gasket Material:Silicon, EPDM, FRM

Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

Available in size from 1"-4", DN25-DN100 or others upon requirement

Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

End connections: butt-welded, sanitary clamp, or others upon request

Vertical or horizontal installation

Technical Specification

Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

Surface treatment: CNC machining

Inspection

All kinds of non-standard products are customized according to the requirements of customers.

Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
