SANSUN
SV6610

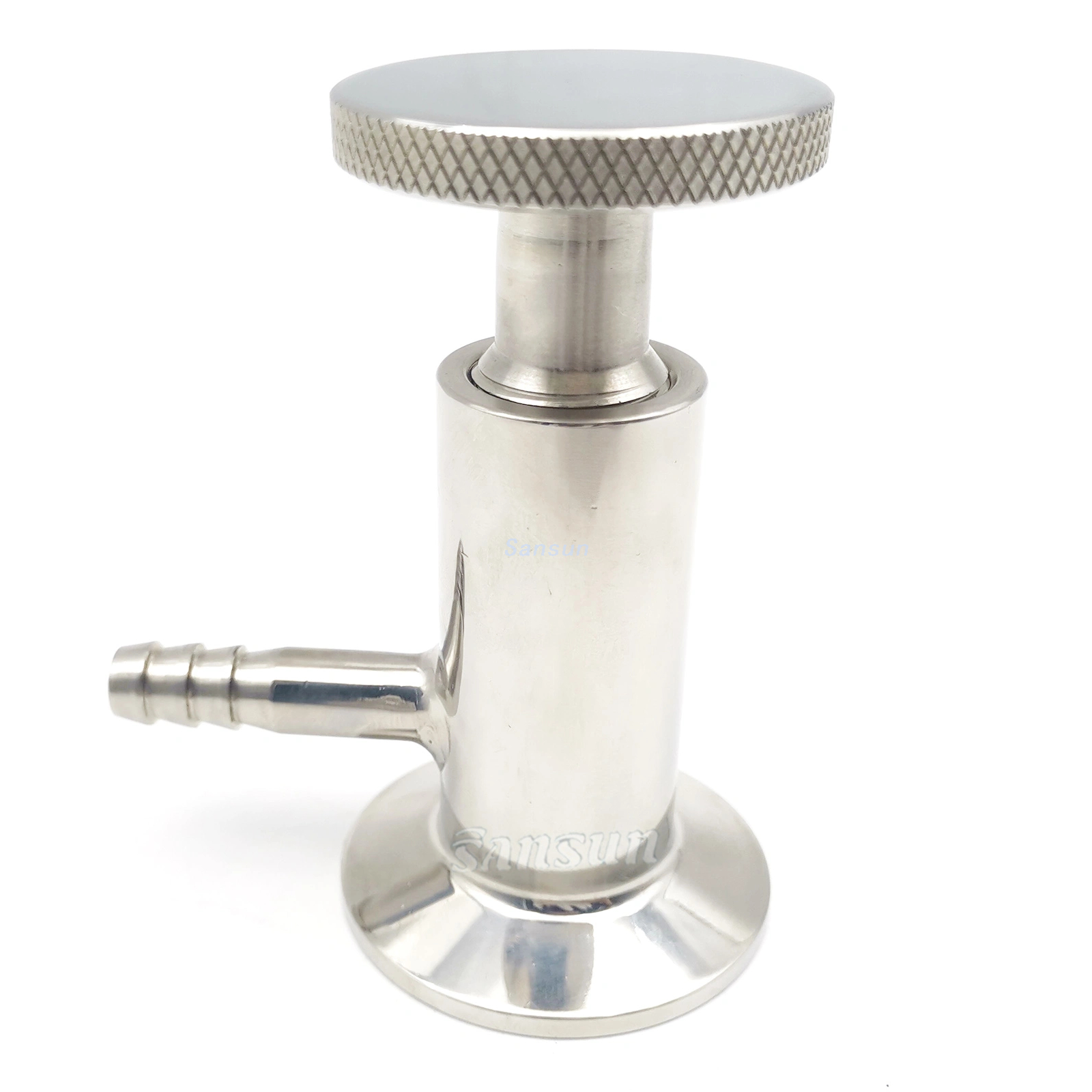

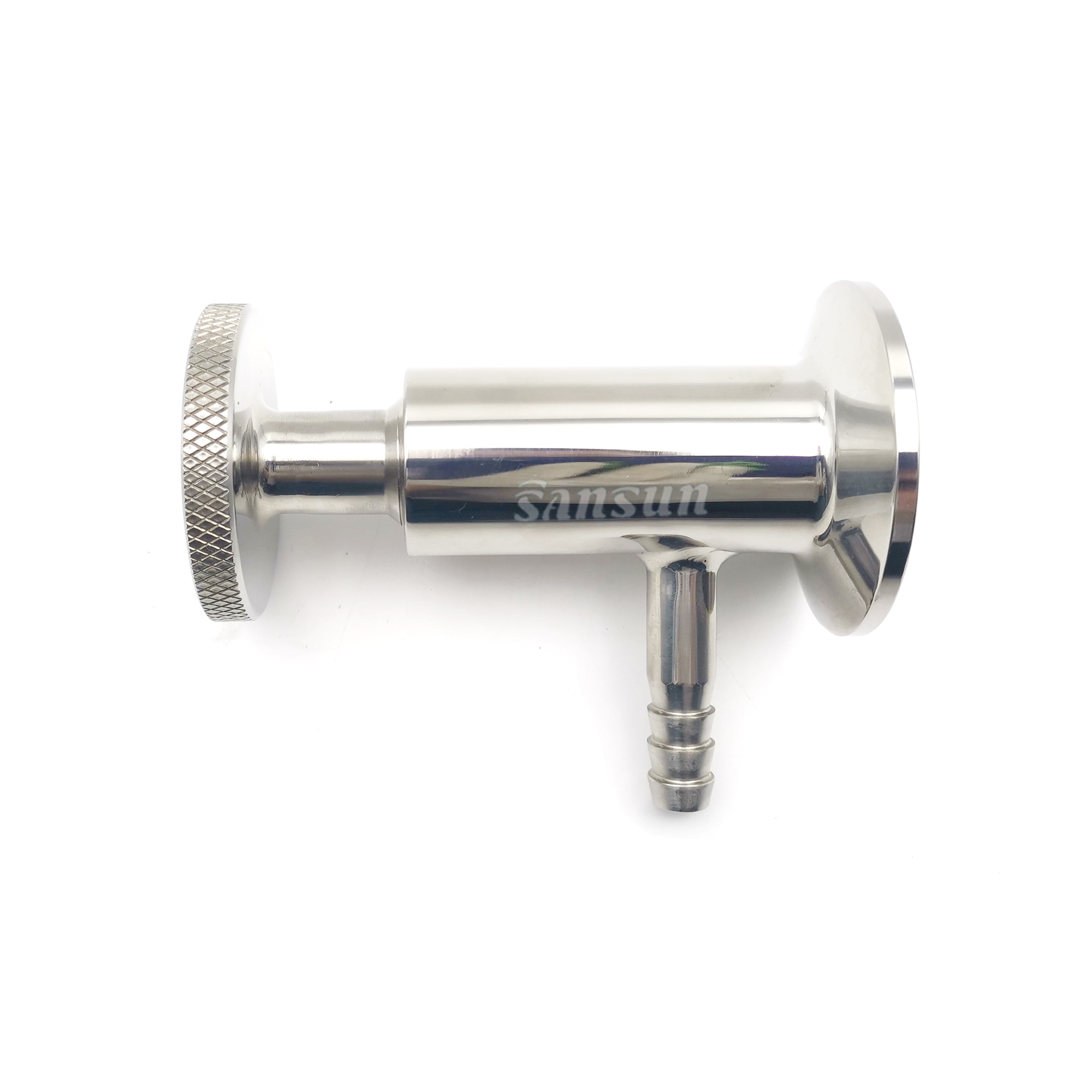

Sampling Valves are used in piping systems or on tanks for sampling.
It is used for low viscosity materials, such as water, beer, wine, fluid milk and so on.
It also can be assembled at the bottom of the tank or pipeline to drain away the remains.
Material
Body: SS304 or SS316L
Seal: PTFE
Valve seat and gasket comply with FDA 21CFR177.2600
Standard Design
Available Size: 1/4"-1"
End connection: weld, triclamp or thread
Handle: round type hand
Technical Specification
Max. pressure: 10bar (145psi)
Temperature range: 50 ~ 248°F (-10 ~ 120°C)
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Spiral Type Sampling Valve Applicable Occasions
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
Sampling Valves are used in piping systems or on tanks for sampling.
It is used for low viscosity materials, such as water, beer, wine, fluid milk and so on.
It also can be assembled at the bottom of the tank or pipeline to drain away the remains.
Material
Body: SS304 or SS316L
Seal: PTFE
Valve seat and gasket comply with FDA 21CFR177.2600
Standard Design
Available Size: 1/4"-1"
End connection: weld, triclamp or thread
Handle: round type hand
Technical Specification
Max. pressure: 10bar (145psi)
Temperature range: 50 ~ 248°F (-10 ~ 120°C)
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Spiral Type Sampling Valve Applicable Occasions
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
