SANSUN
NO.20113
Operating Principles

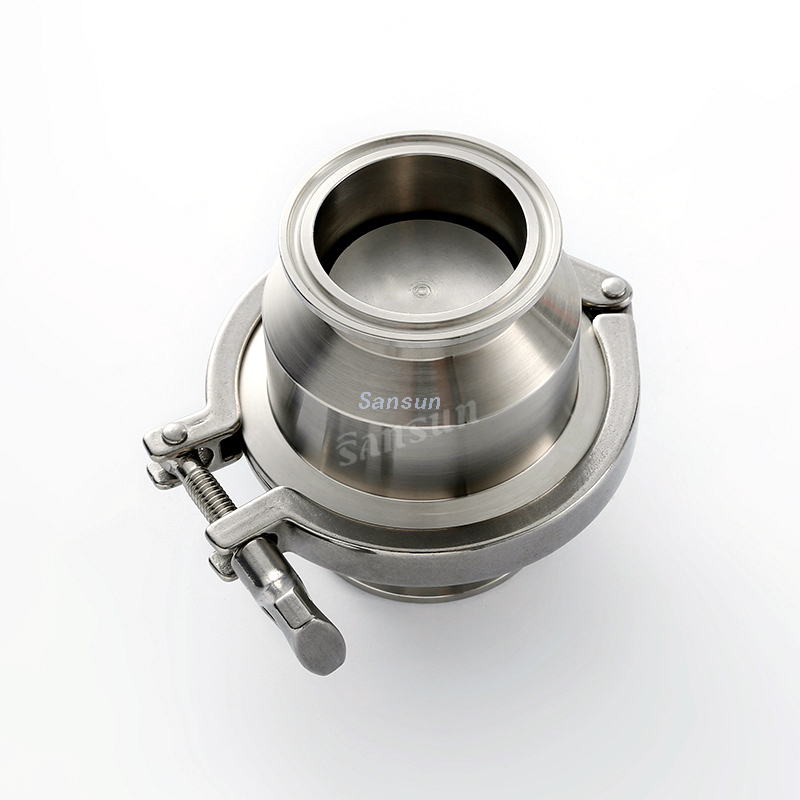

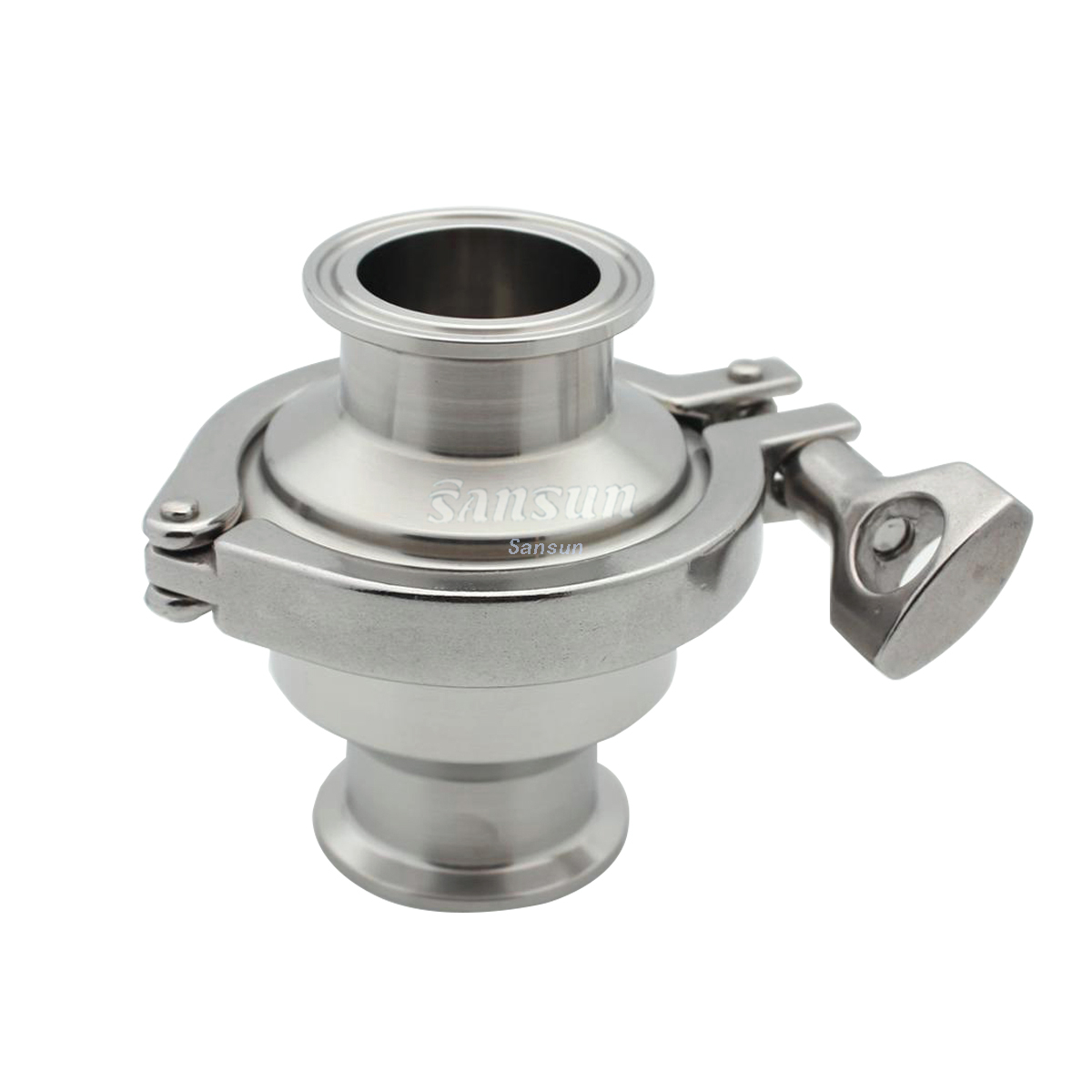

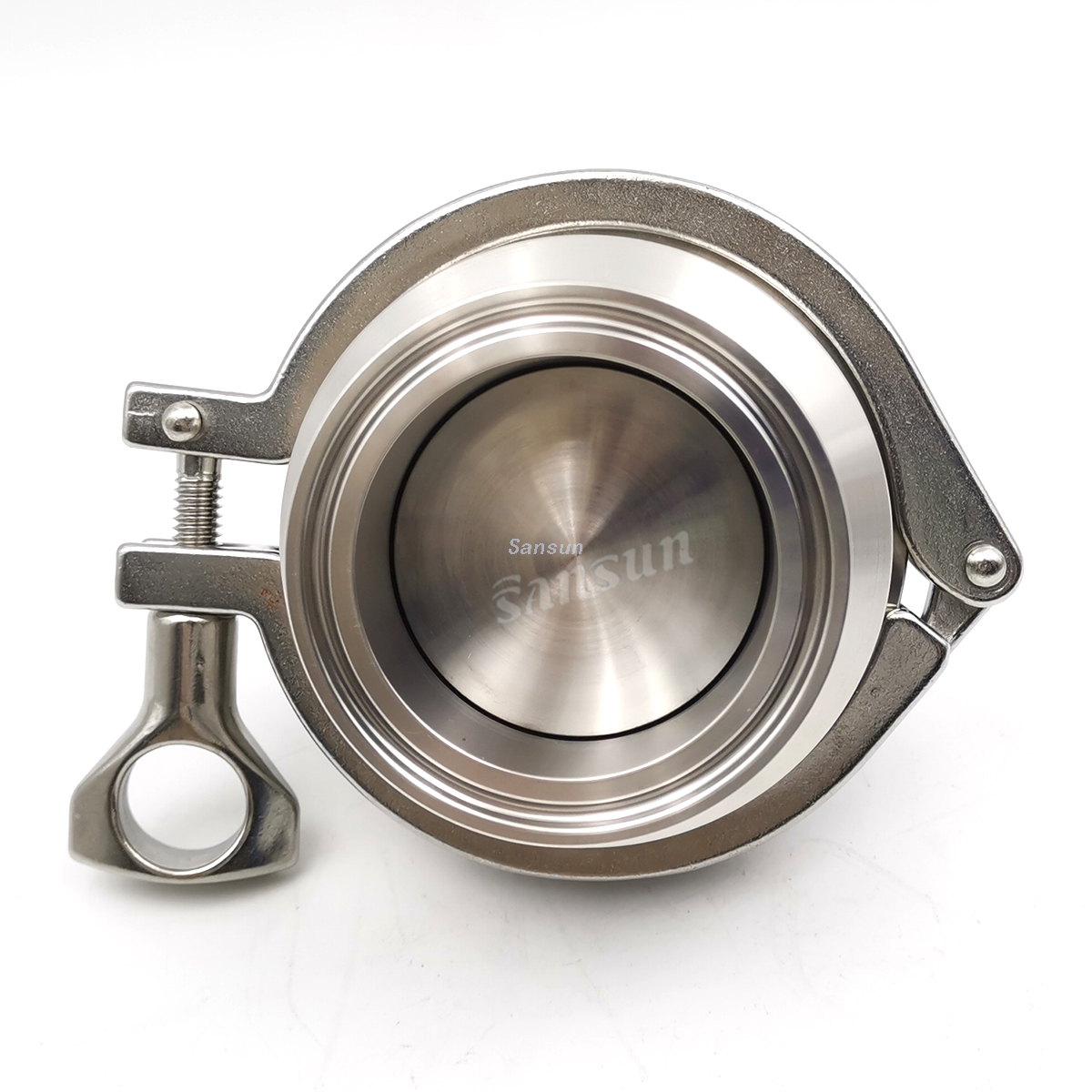

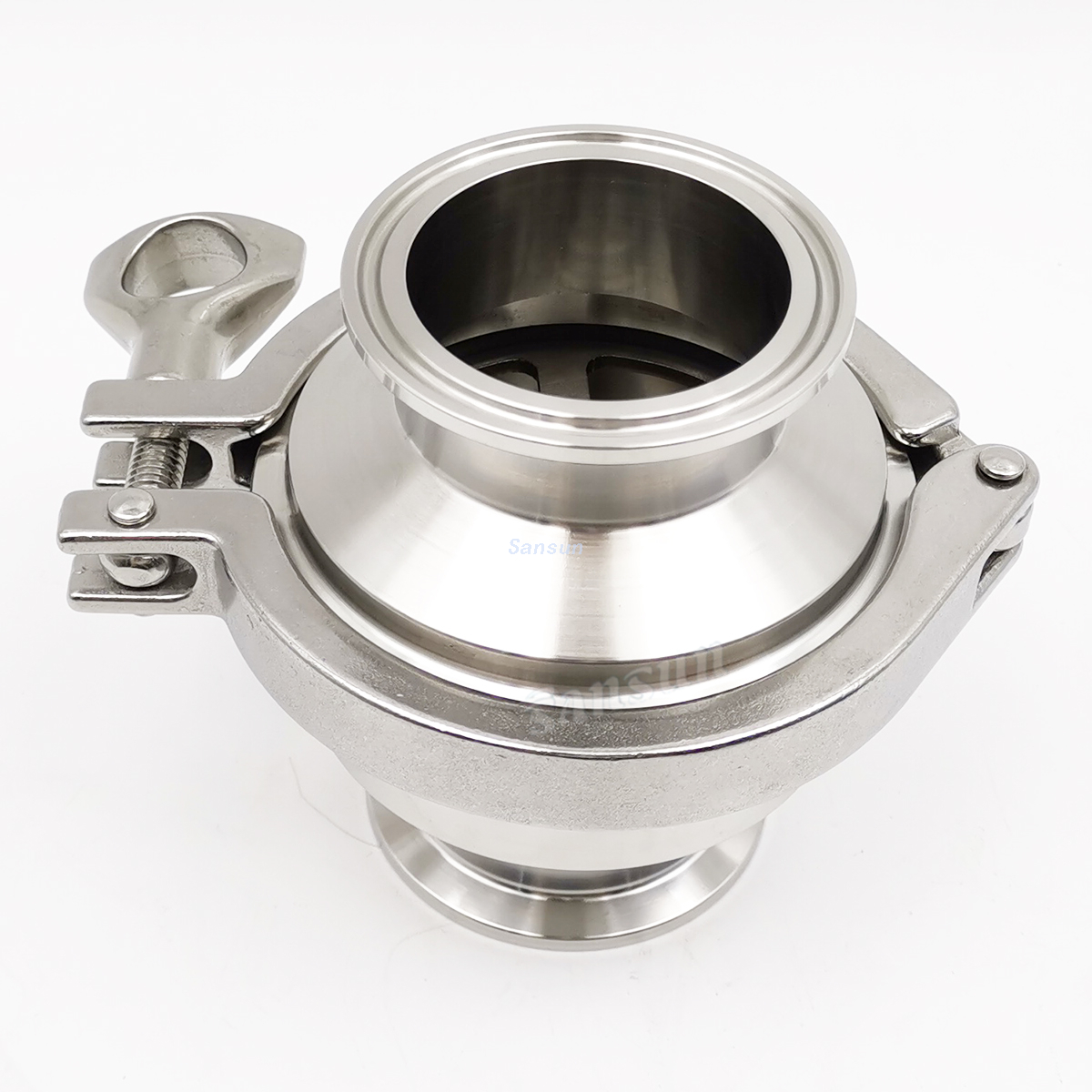

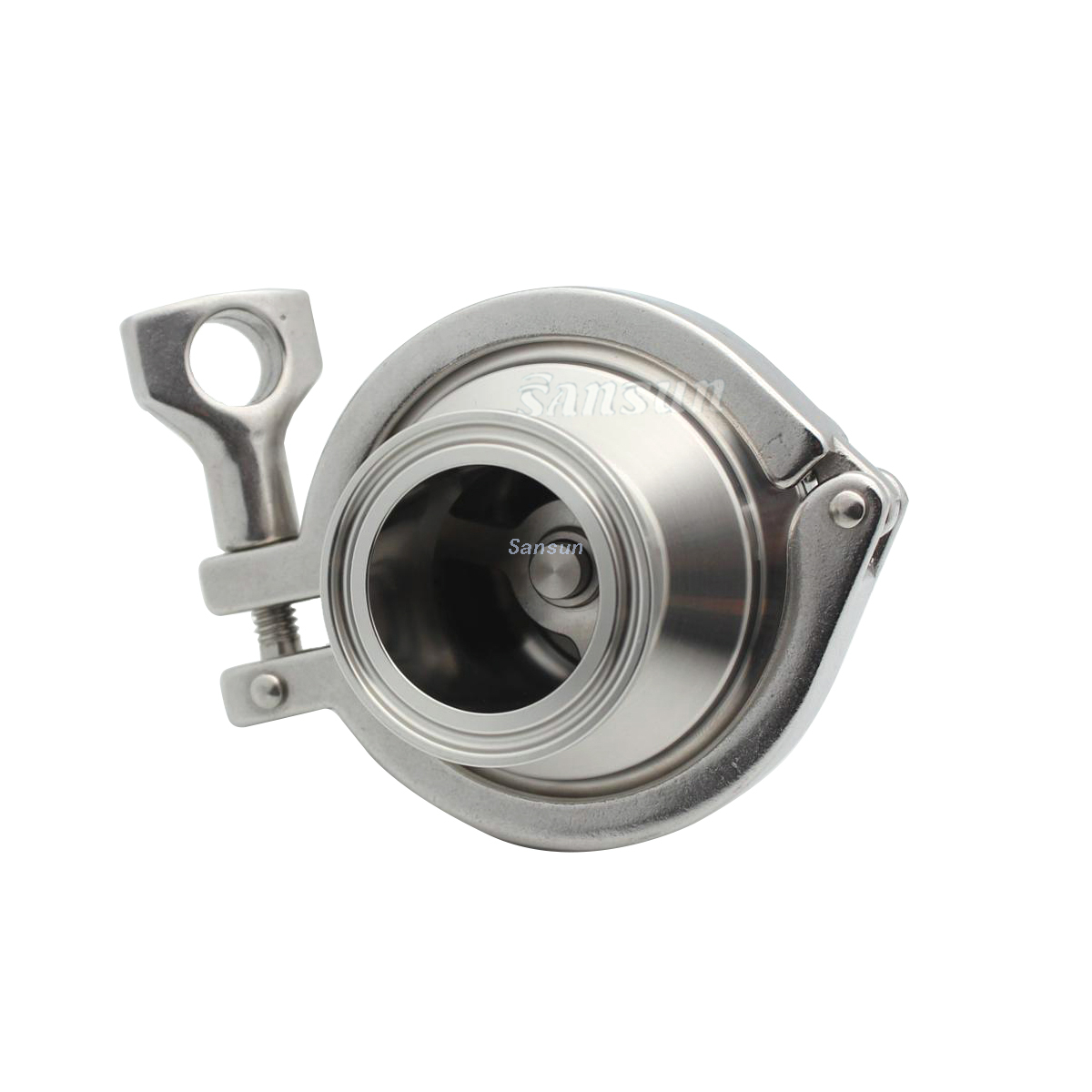

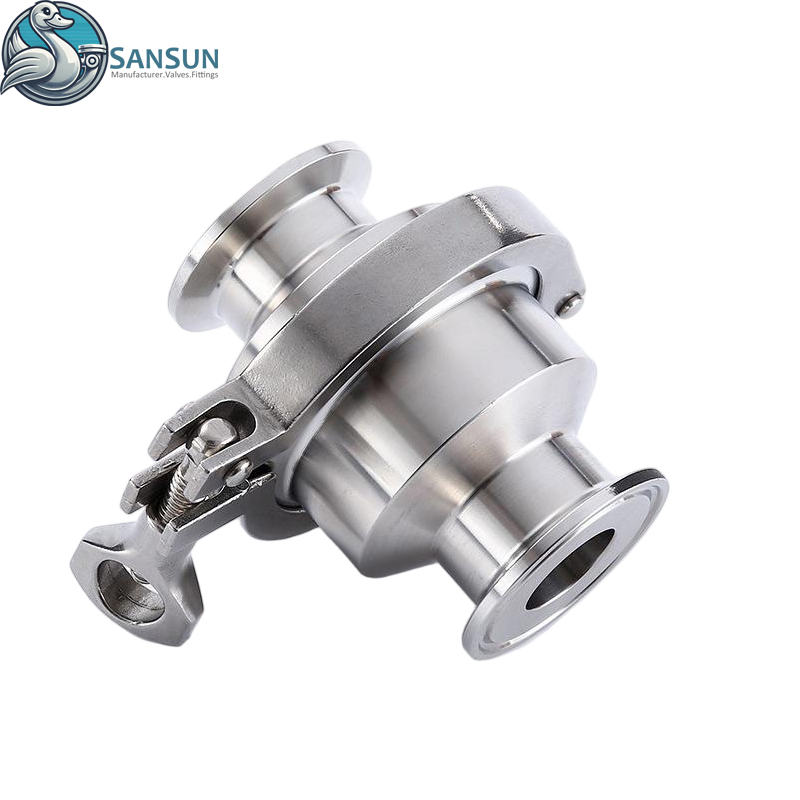

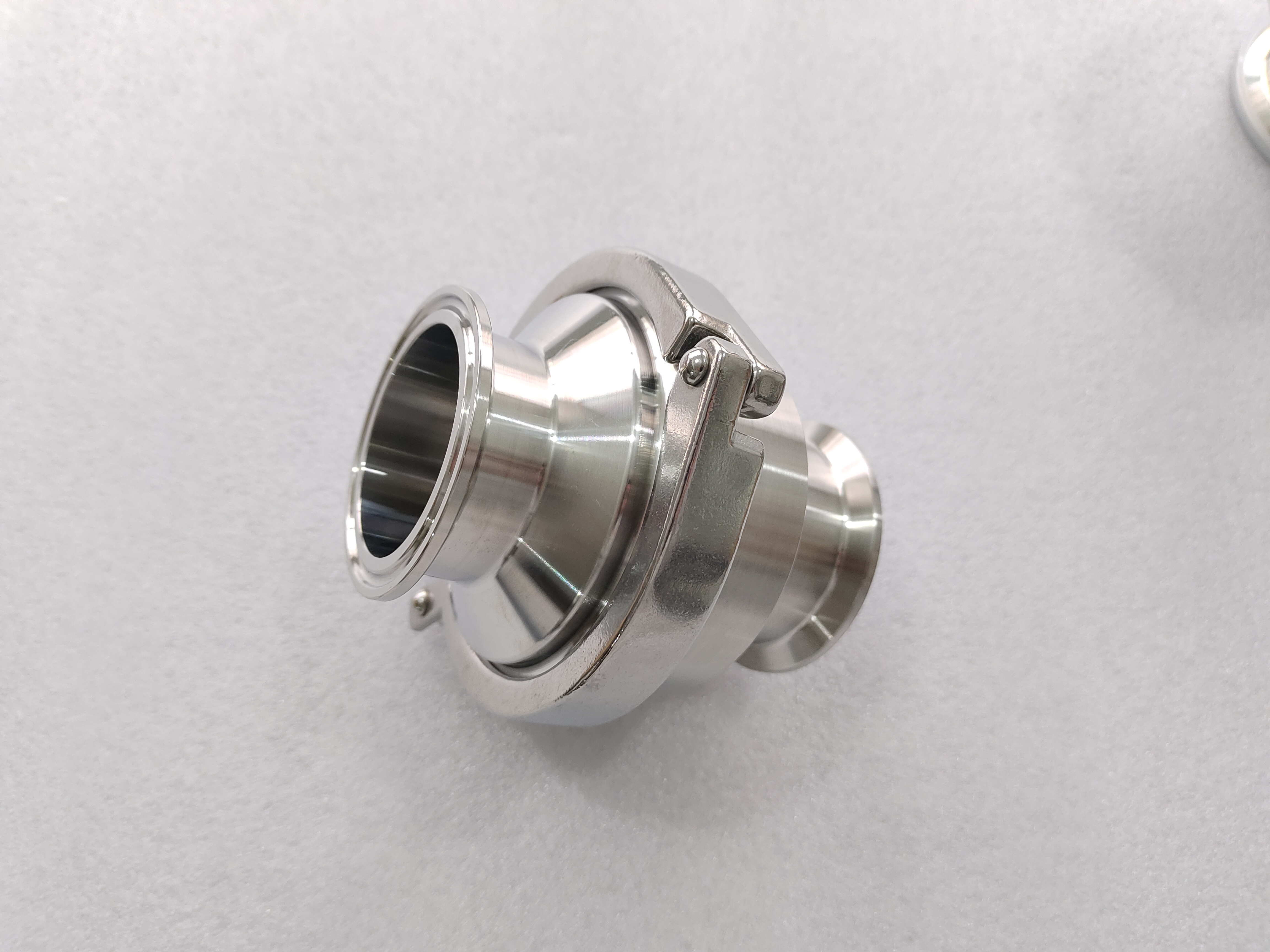

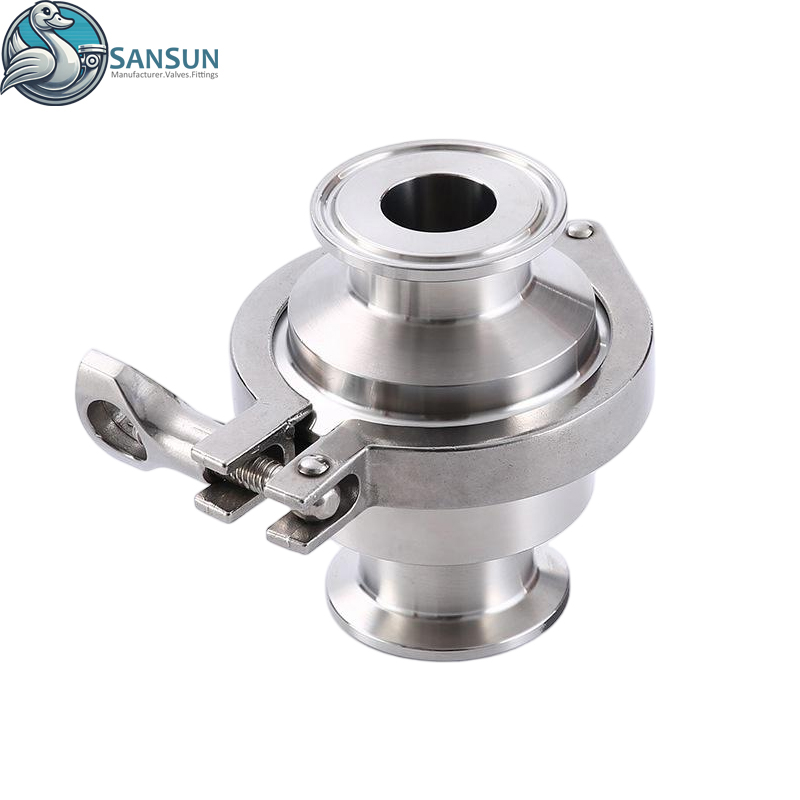

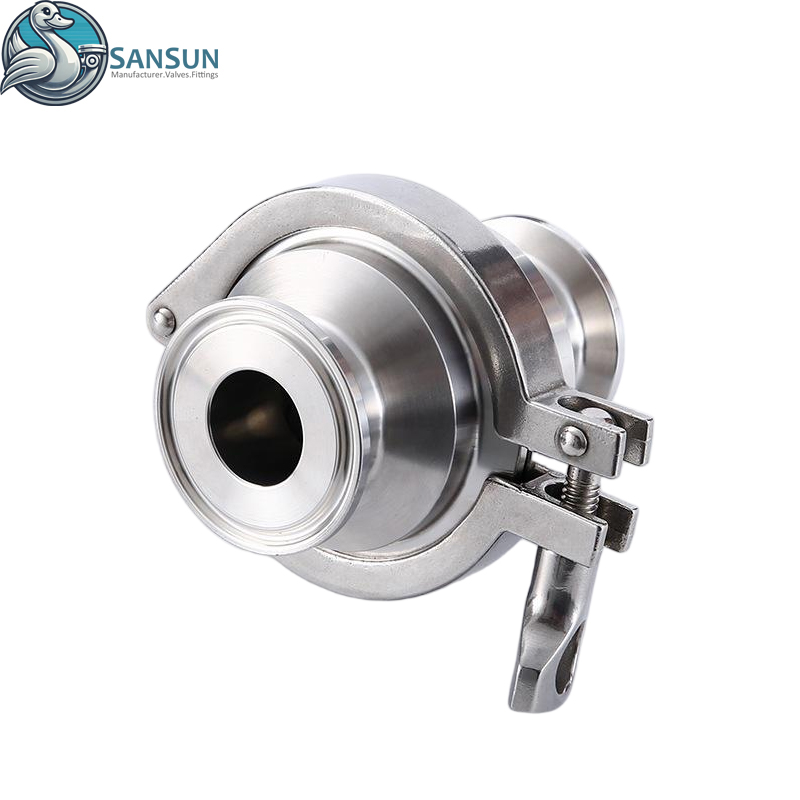

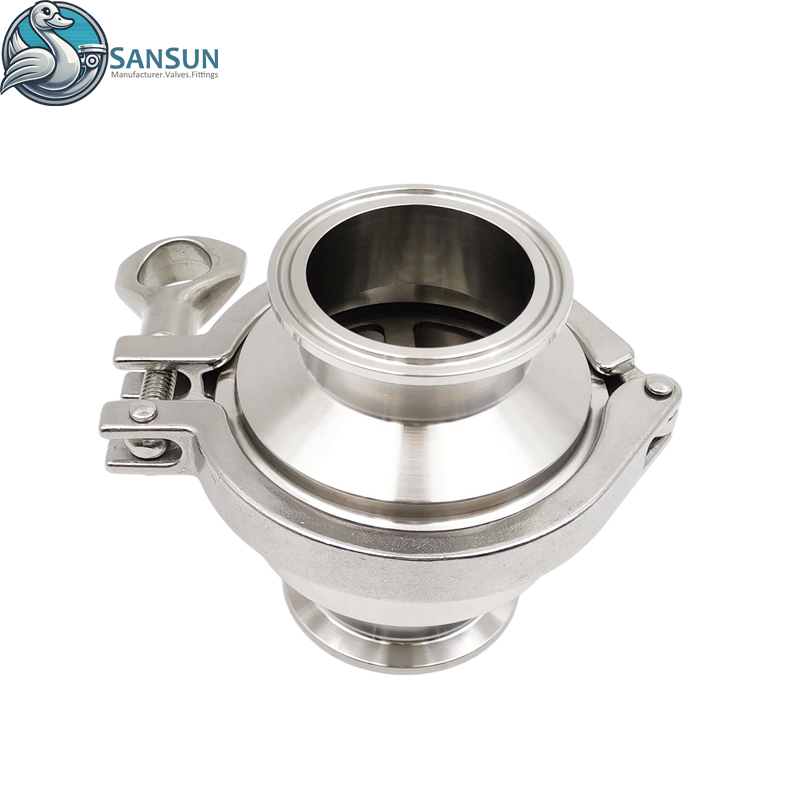

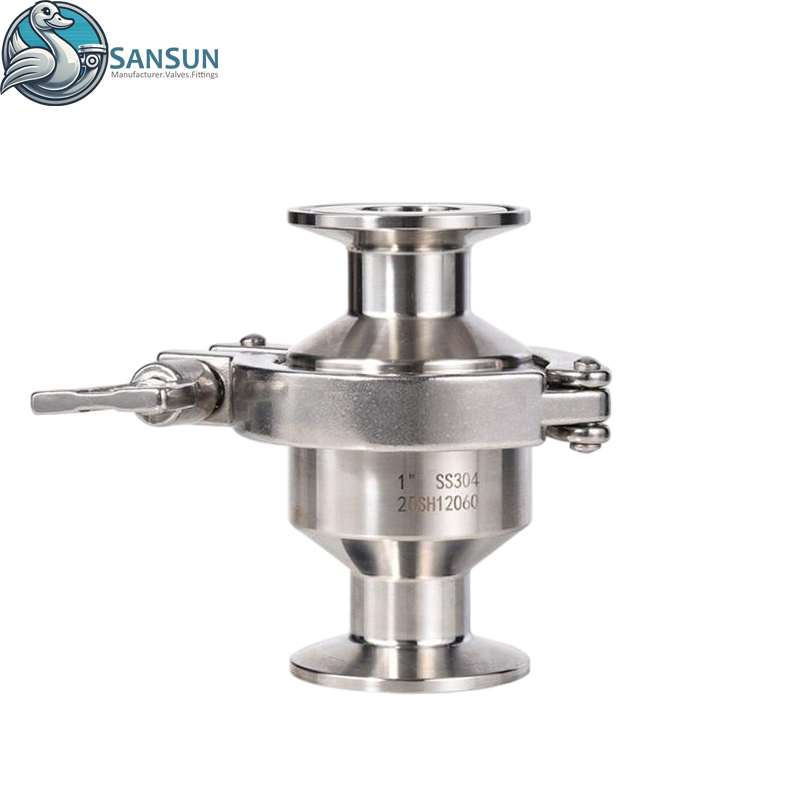

Sanitary Stainless Steel Tri Clamp Check Valve best price
The sanitary check valve is a universal one-way fluid valve. It is light in weight, small in size, and easy to install between flanges.

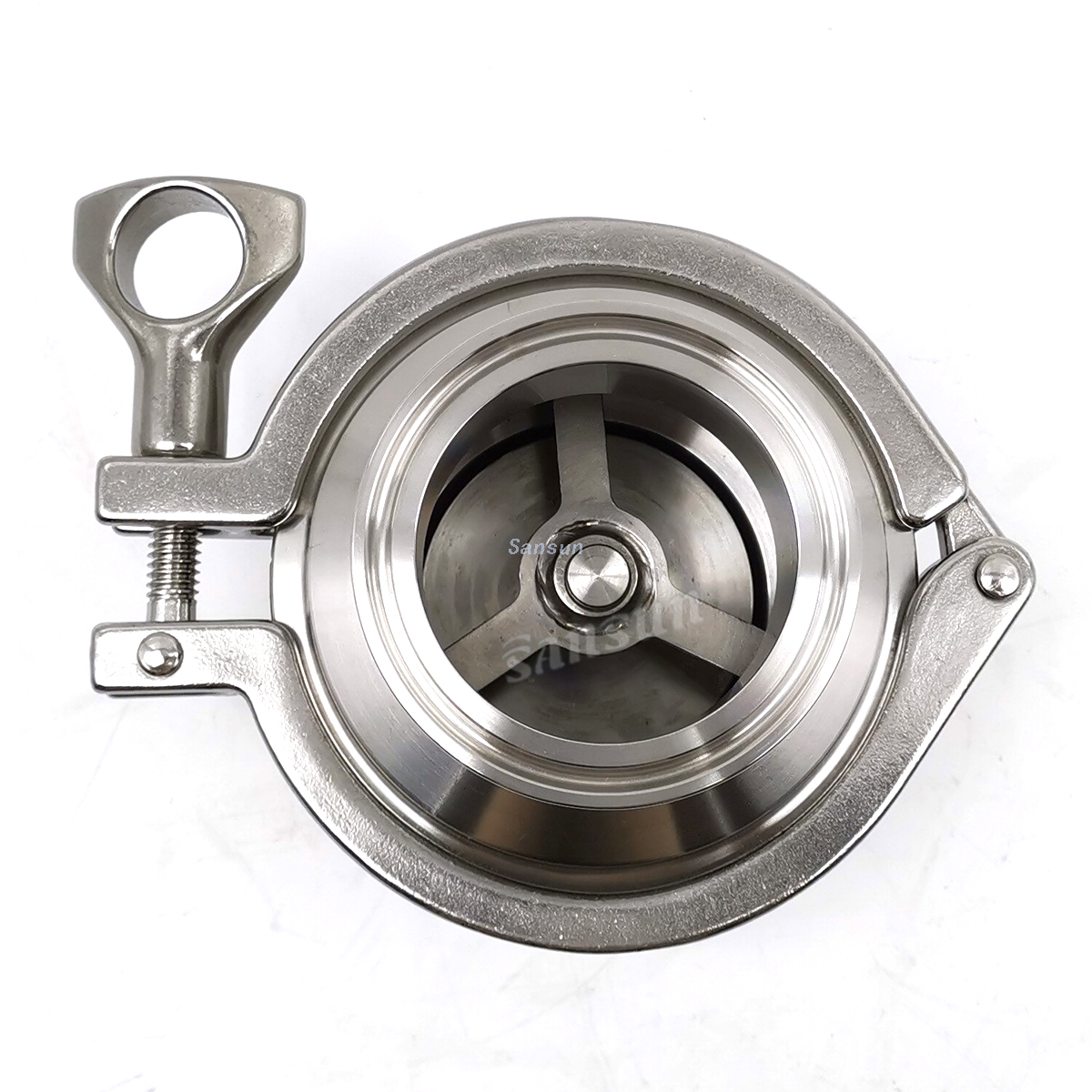

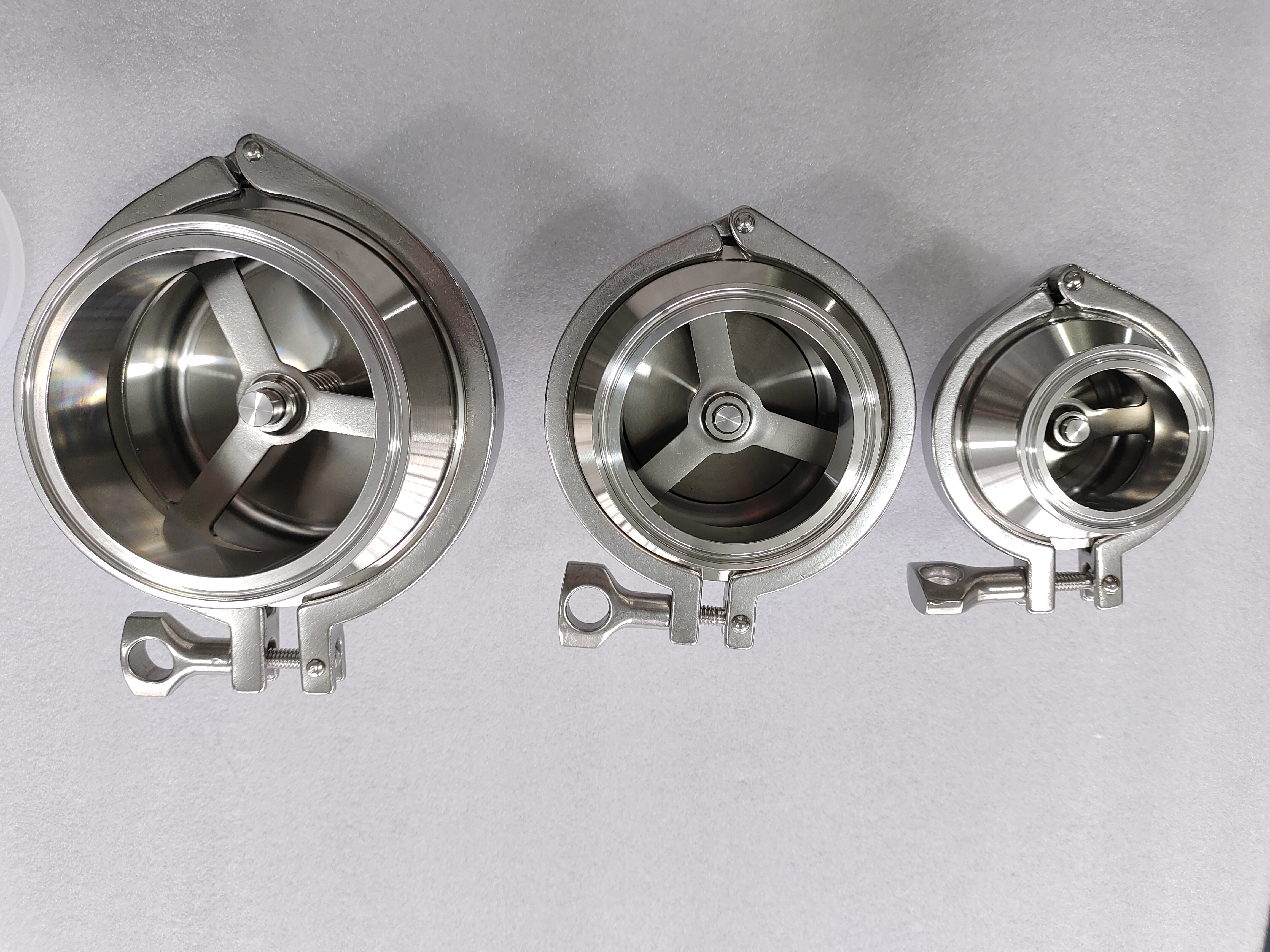

The inside of the valve is composed of two semicircular springs and a plate surface.
The spring is fixed on the valve body with a pin to close the valve plate and the fluid pressure opens the spring.
The deformation is very fast, which can protect the pipeline from water hammer damage.
The check valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.
Technical Specifications
Max. pressure: 10bar (145psi)
Opening pressure: 0.3bar (DN25) 0.2bar (DN32-40) 0.1bar (DN50-100). The opening pressure can be set as customers require.
Working temperature: 14 ~ 248°F (-10 ~ 120°C), EPDM
Materials
Materials: AISI-304 or AISI-316L
Standard Gasket Material: EPDM, Silicon, Viton or on request

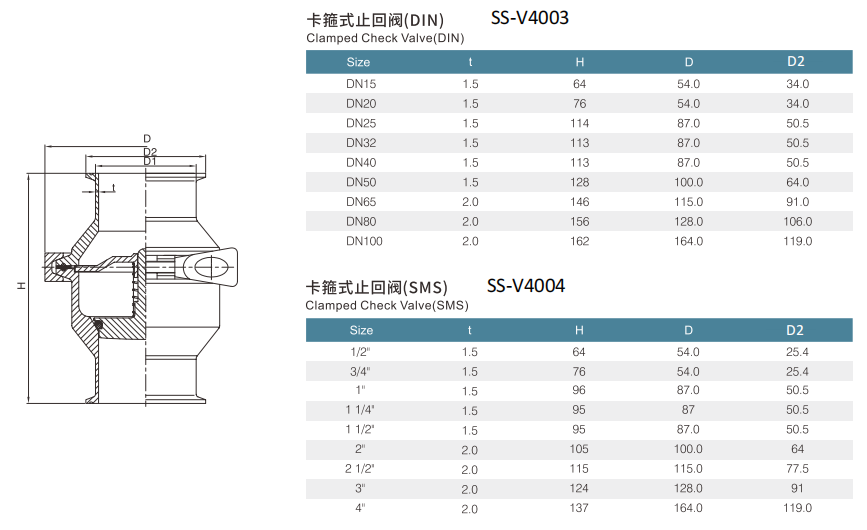

Standard Design
Available sizes:DN15 -DN 100,DN 3/4"-DN 4"
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
Package for Sanitary Stainless Steel Tri Clamp Check Valve best price
