SANSUN
Operating Principles

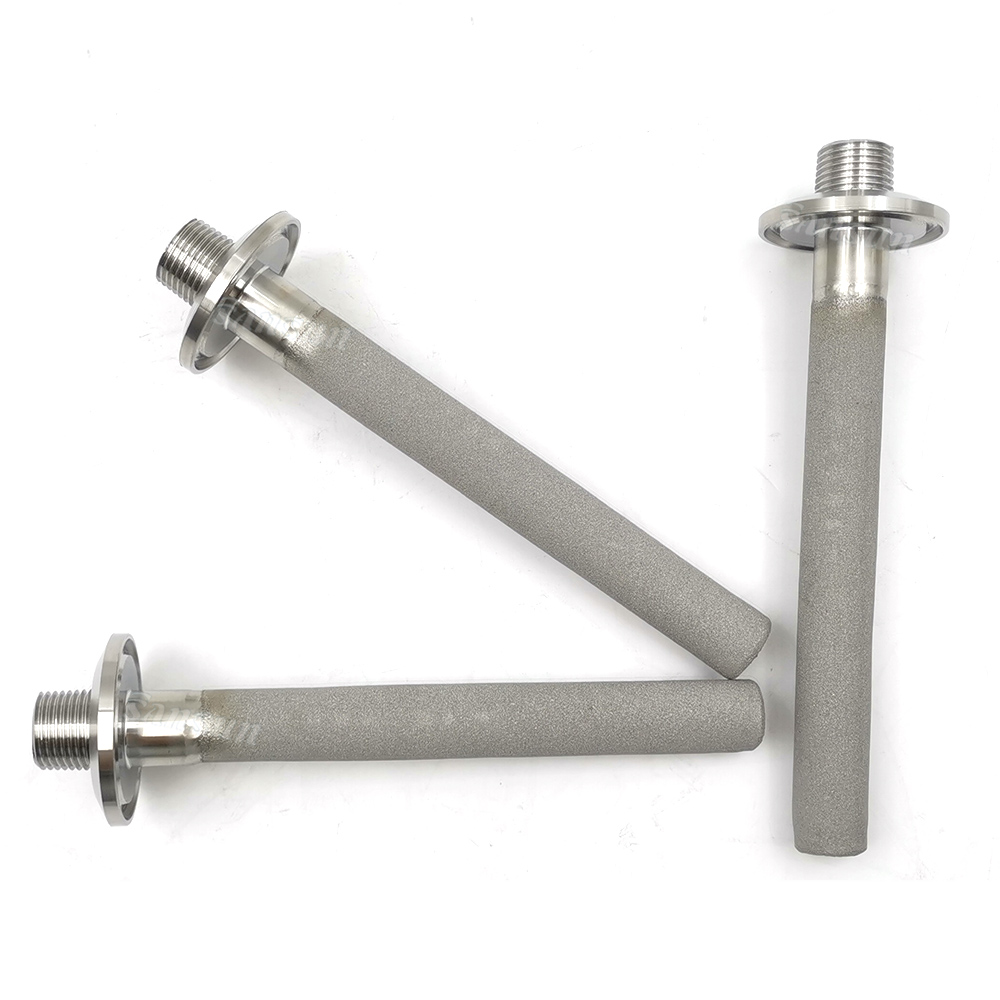

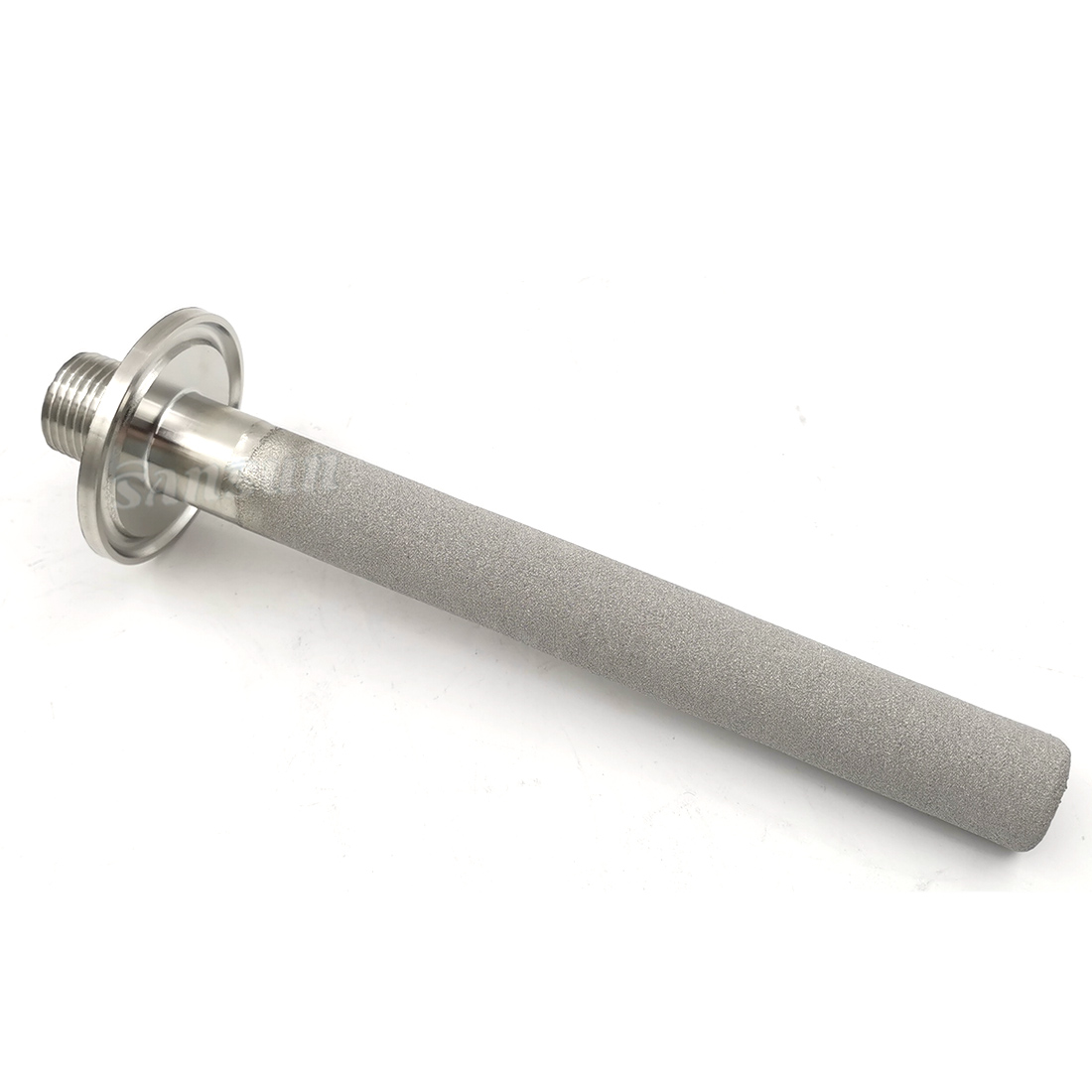

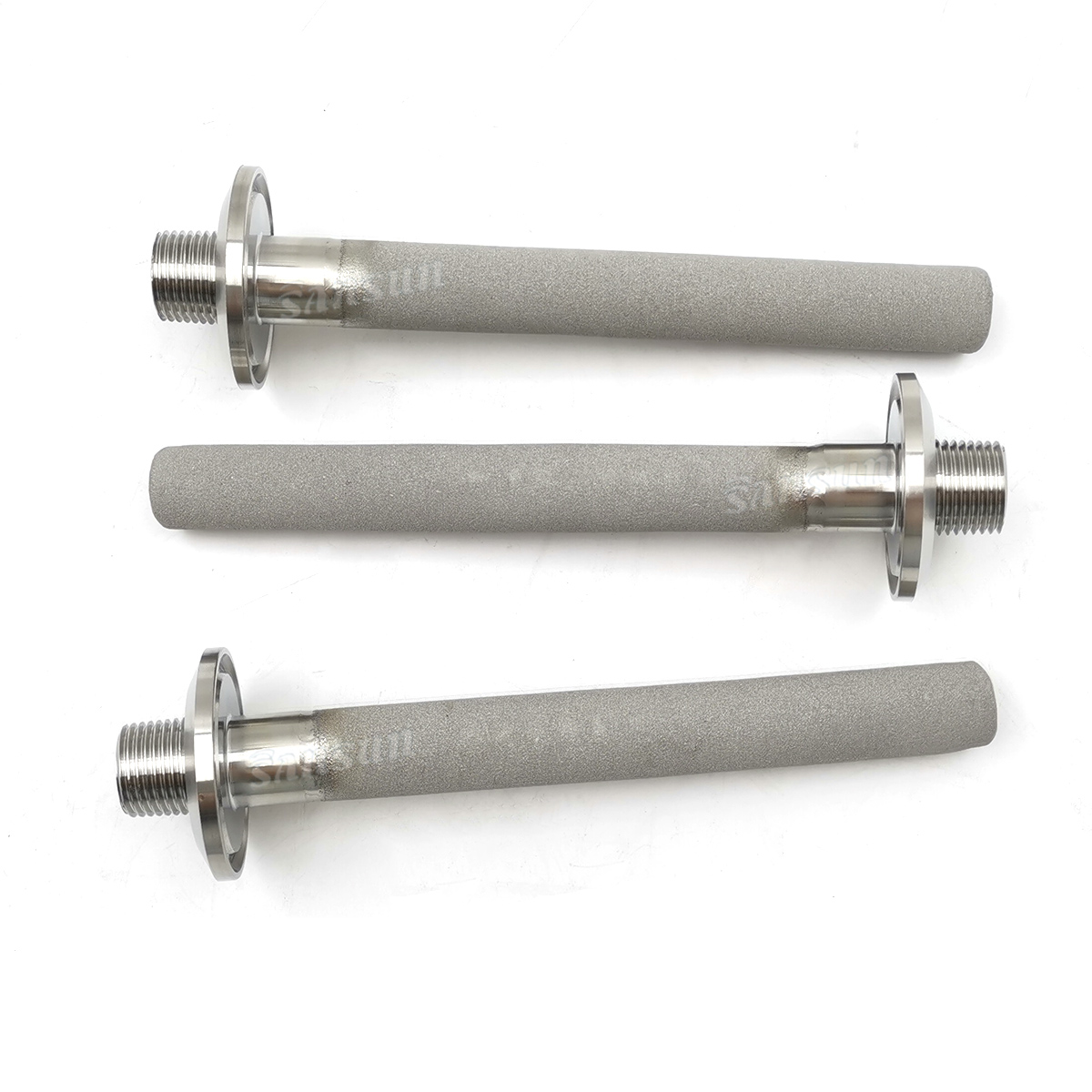

Male carbonation stones, typically found on brite beer fermentation tanks, are designed for direct mounting via a Tri Clamp fitting.
Each carbonation stone, made from sintered stainless steel SS316, is a submersible porous body
that diffuses CO₂ gas directly into brewing liquid.
In an ideal system, the stone is mounted on the lowest part of the brite tank providing for
the longest distance for CO₂ to travel to the head.
Some brewers use a carbonating stone inside a conical fermenter (or Uni Tank), rather than a brite tank.
We also have a very popular carbonation guide (new window will open).
Technical Specifications
Temperature range: 14°F to 248°F (-10°C to 120°C)
Working Pressure: 14.5-145Psi (1-10Bar)
Materials
Valve body: AISI316L/304
Standard Design
Available in size: BSP or NPT male thread 1/4", 3/8", 1/2", 3/4", 1" ; clamp diameter 25.4mm or 50.5mm
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: thread, clamp, or others upon request
Corresponding size can be provided upon request
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
