SANSUN
SS08313
Operating Principles

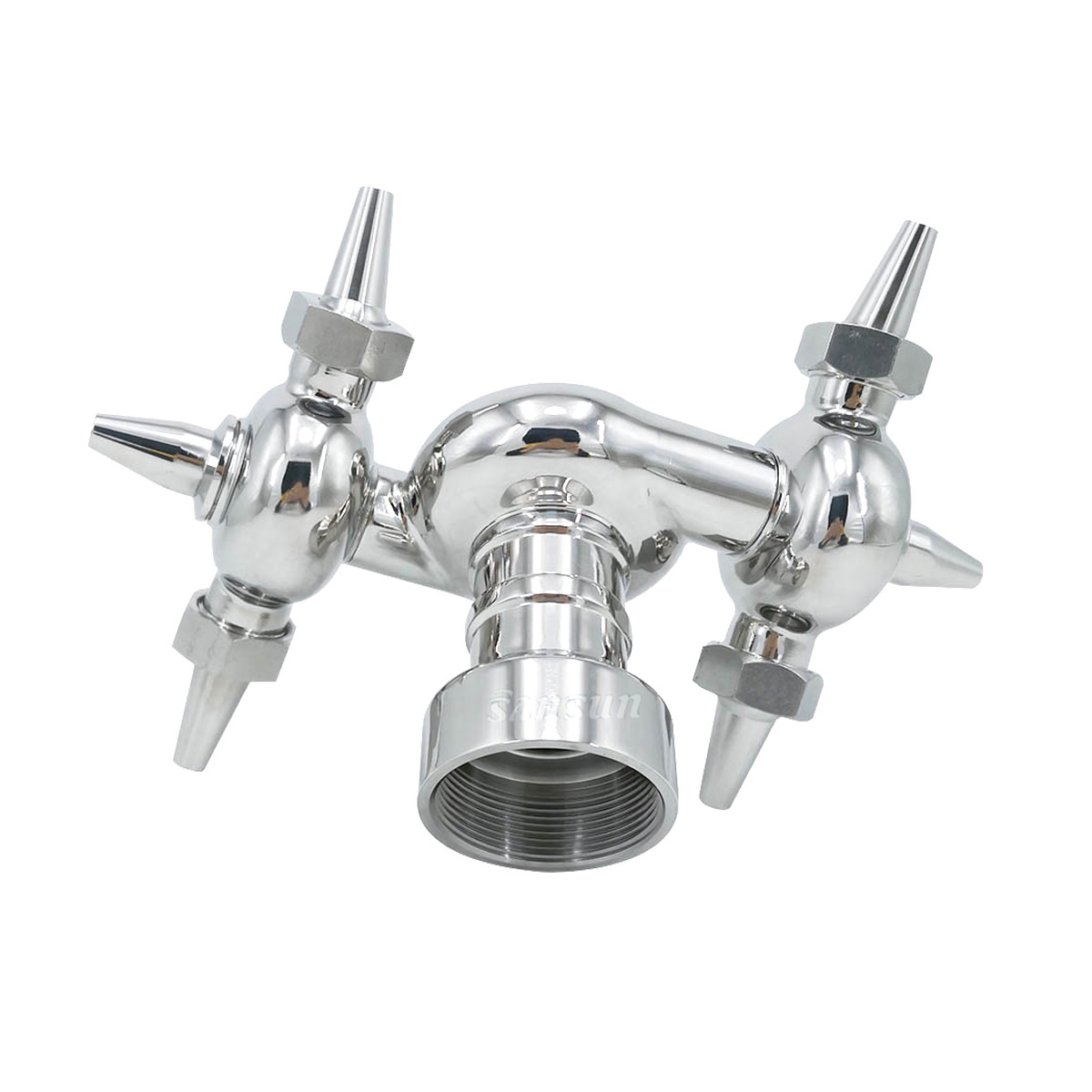

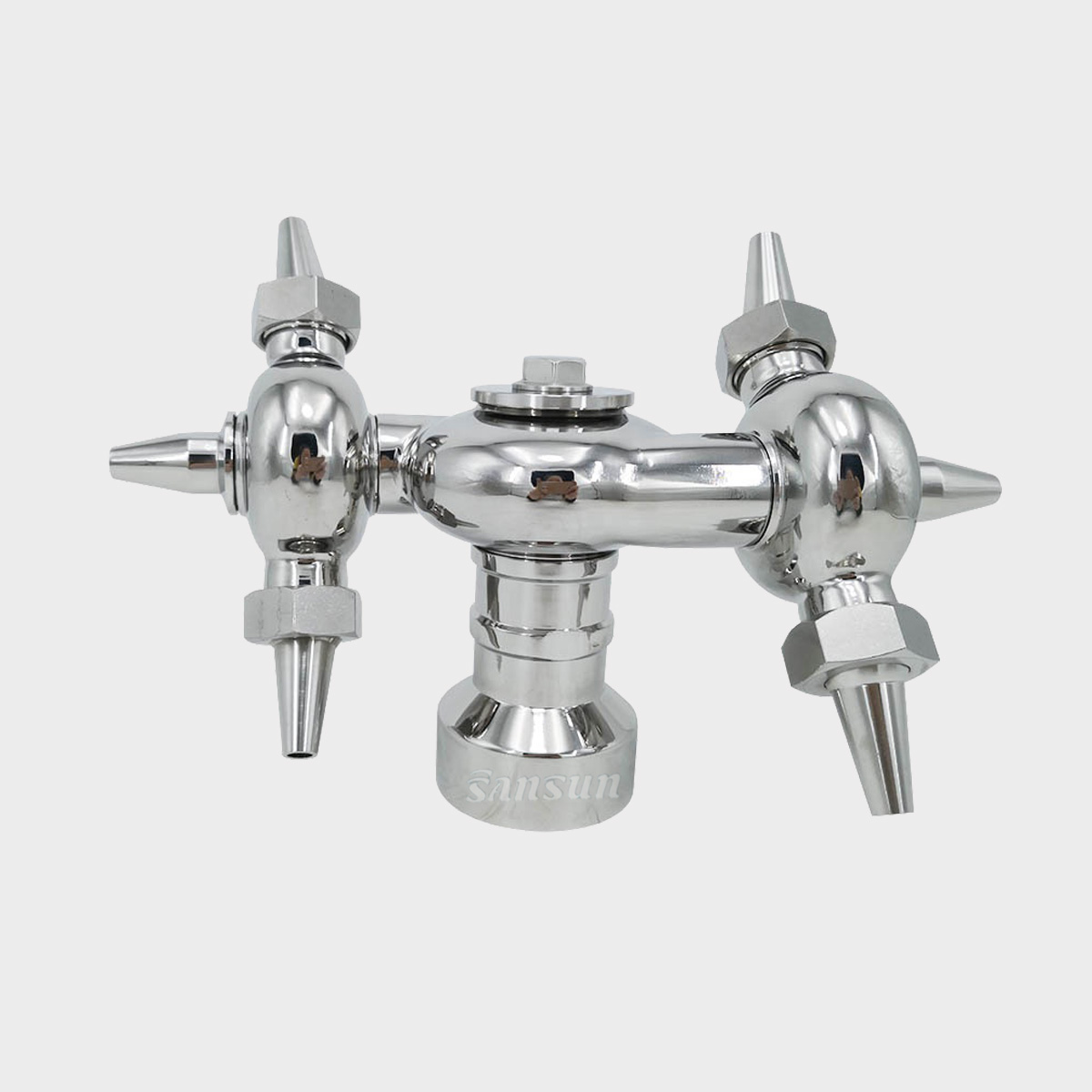

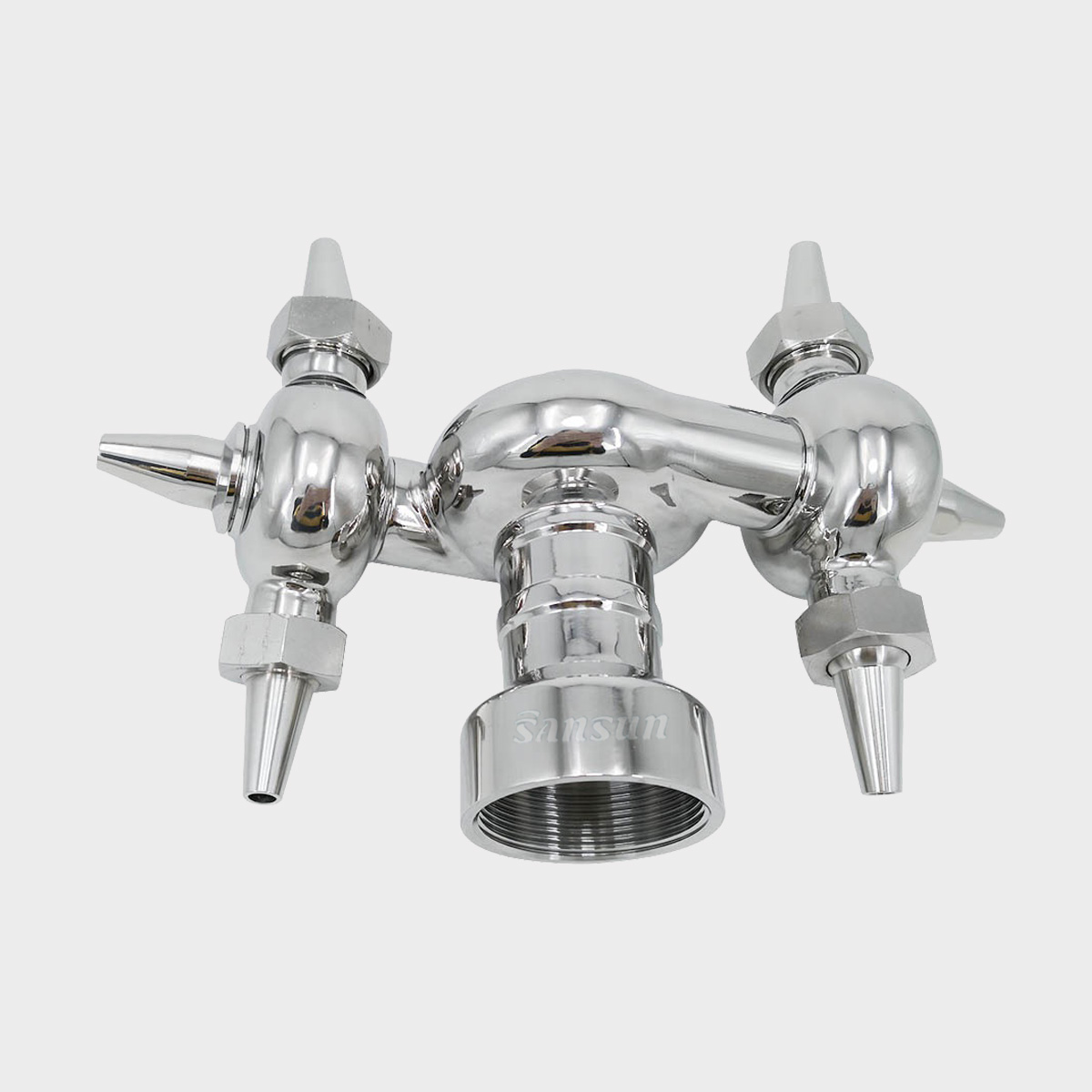

Sanitary Stainless Steel Thread Spray Ball Nozzle for Beer
Rotary cleaning balls are used in the beverage industry to simplify the internal cleaning of tanks and pipes.
Fermentation or brine tanks can be sanitized with a high velocity spray of water and/or chemicals on the inside, causing a sheeting action that goes along the walls of the container to remove residue.
The CIP spray ball is not only fast, but also safe for workers because it does not require water in the tank.
CIP spray balls are not only faster, but significantly safer for workers because there is no need to scrub and touch the cleaning agent by hand.
The spray cleaning ball is clamped to the top or bottom of the sanitary tank.
Cleaning solution is ejected through the holes in the cleaning ball nozzle and then strongly injected into the interior of the sanitation can.
Spary cleaning balls are generally used in the sanitation industry.
Spary cleaning balls are generally used in sanitary industries such as food processing, beverage, beer, pharmacy, liquor, cosmetics, etc.

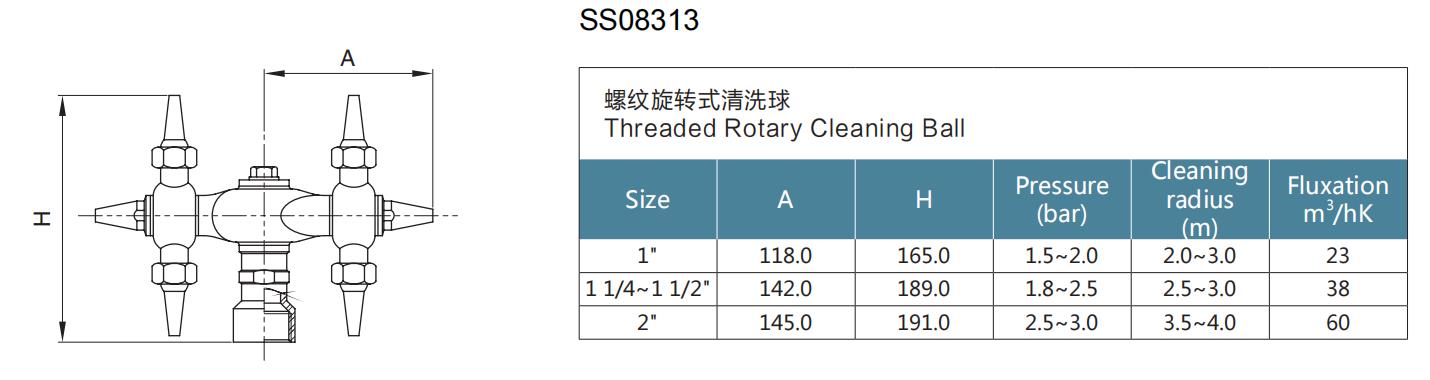

Technical Specifications
Max Temperature: 284℉ (140℃)
Working Pressure: 14.5-50Psi (1-3.5Bar)
Cleaning Radius: 3.2-10 ft
Finished: mirroir or stain
Materials
Material:AISI304(1.4301)/316L(1.4404)
Standard Design
Available in size from 1"-2"
Standards: DIN, SMS, ISO / IDF, 3A, BS
End connections: butt-welded, clamp, thread, clip-on
Options: 360 Dgreee Spray cleaning, 180 Degree Spray Cleaning
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
