SANSUN
Operating Principles

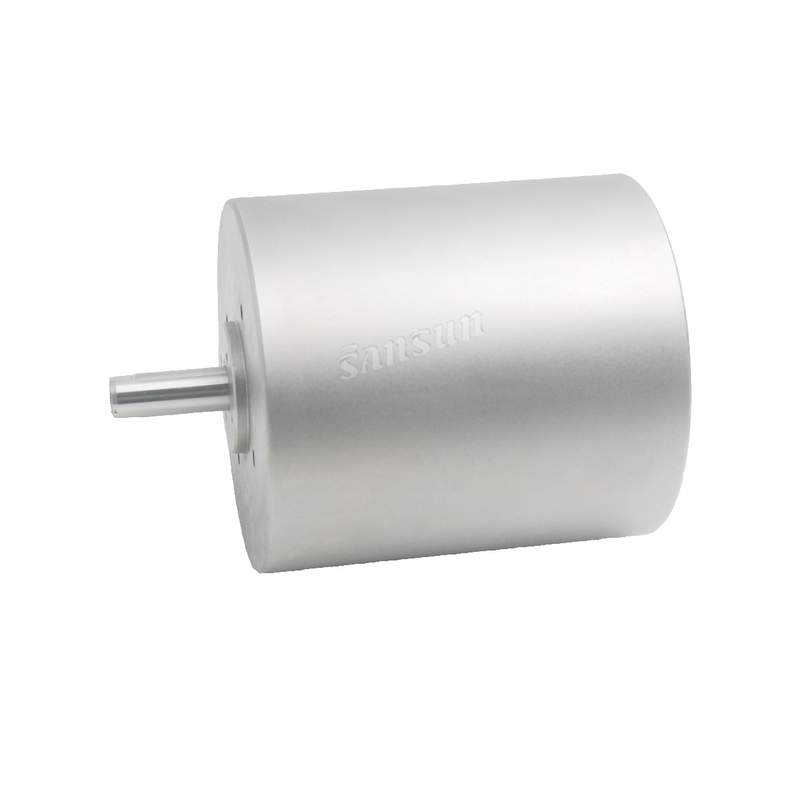

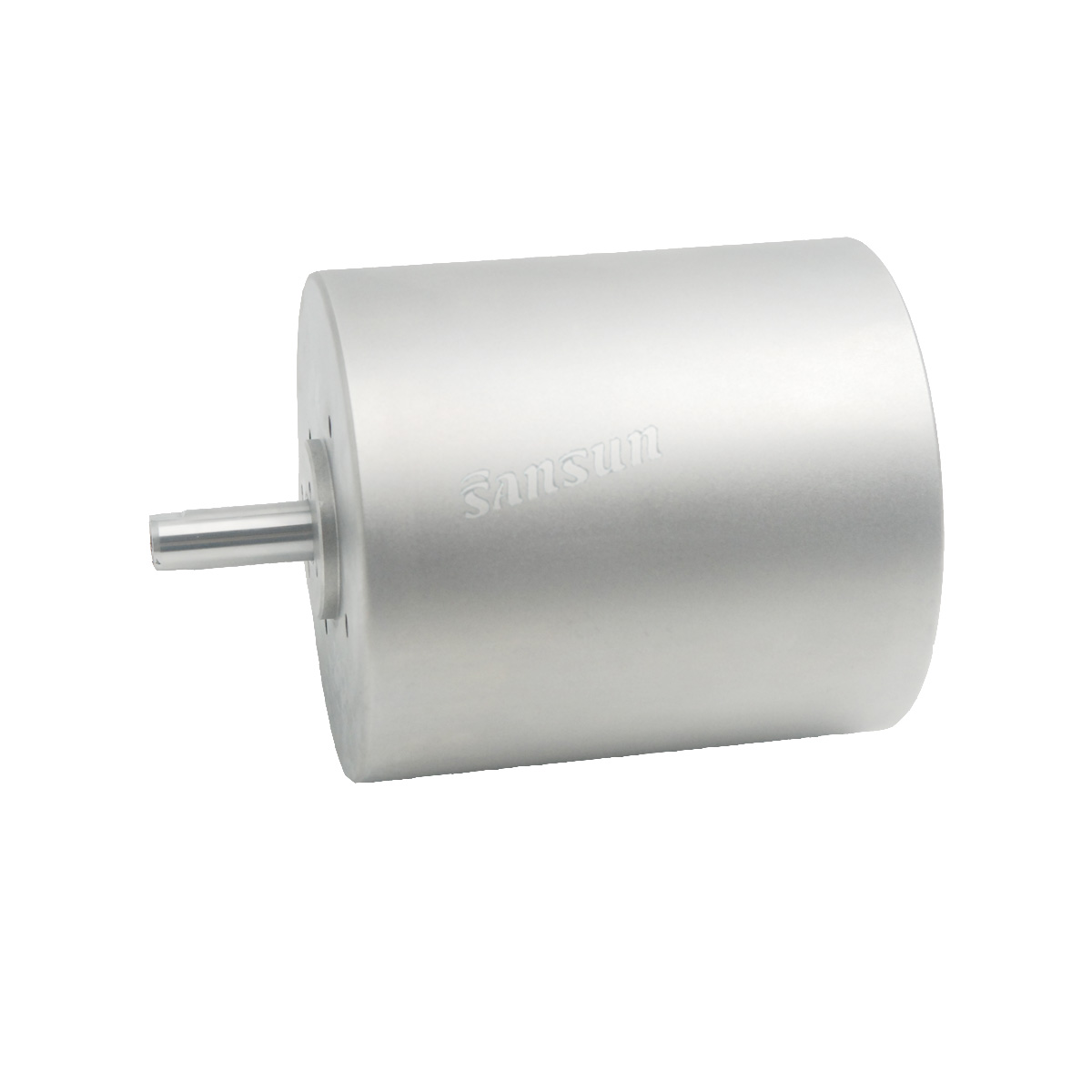

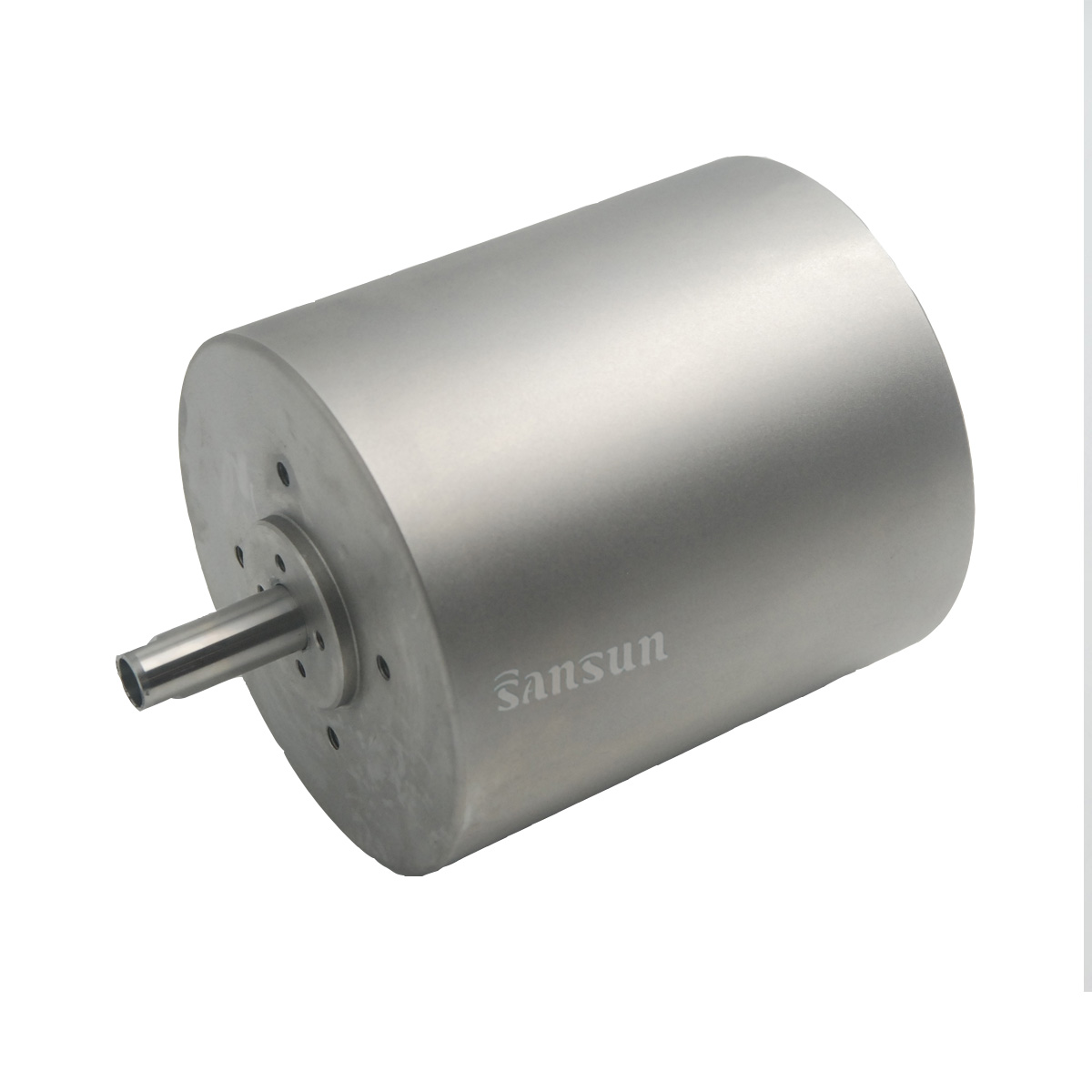

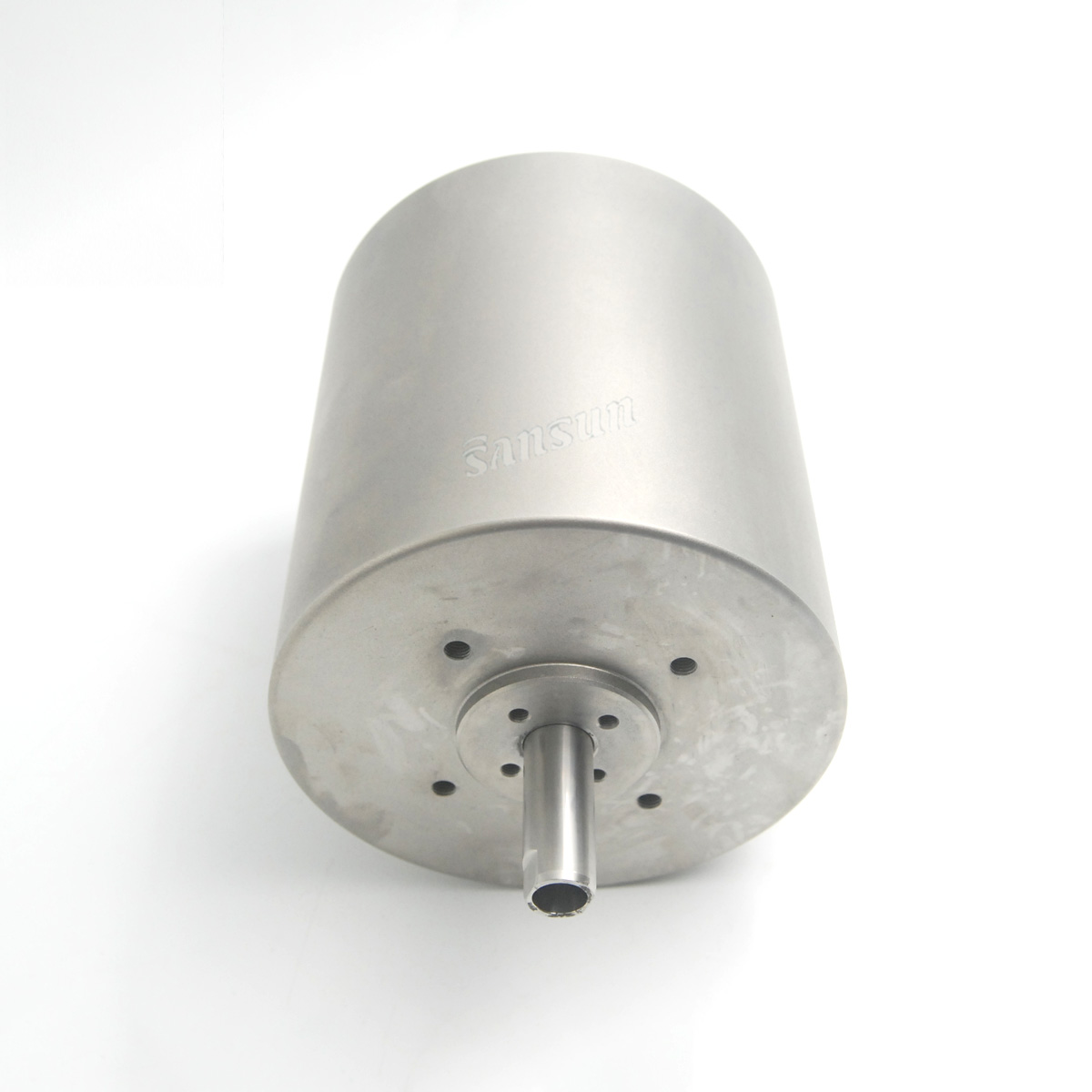

Sanitary Stainless Steel Pneumatic Actuator for Valve
This sanitary pneumatic actuator is suitable for use in multiple industries that rely on sanitary fluid operation.
This stainless steel pneumatic actuator is designed with a vertical angle, and it can be mounted on a variety of angled stroke valves.
The actuator can also be configured with various control modules, like positioner/locator, C-TOP, proximity switches, etc.
Technical Specifications
Operating temperature: -10°C - 80°C
Air pressure: 5- 7bar
Standard Design

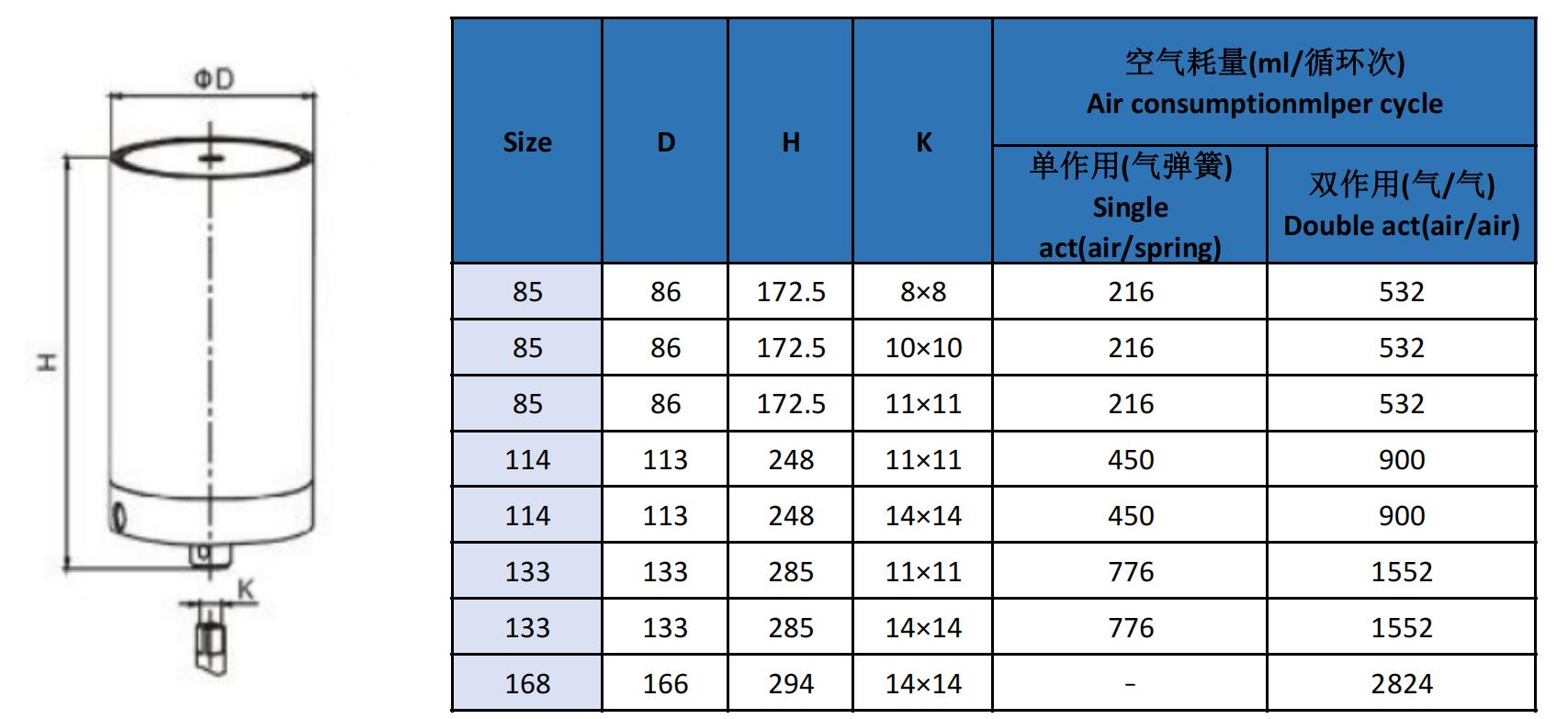

Cylinder specification: Φ85-Φ168
Connection shat:8*8/9*9/10*10/11*11/12*12/14*14mm
NC operated: normally closed (fail closed)---air to open, spring to close
No operated: normally open (fail open)---air to close, spring to open
AA operated: double acting---air to open, air to close

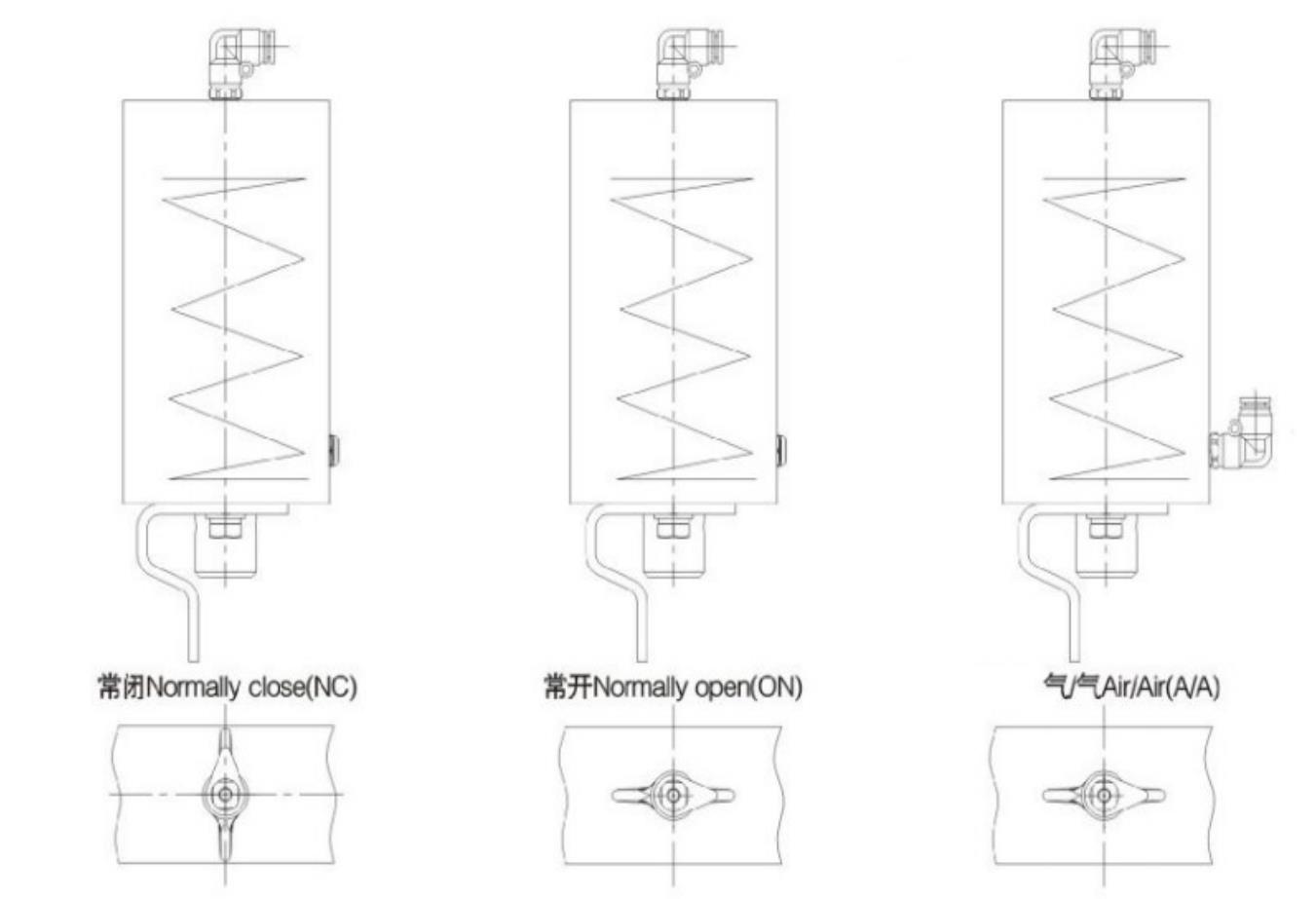

Three Modes of Operation

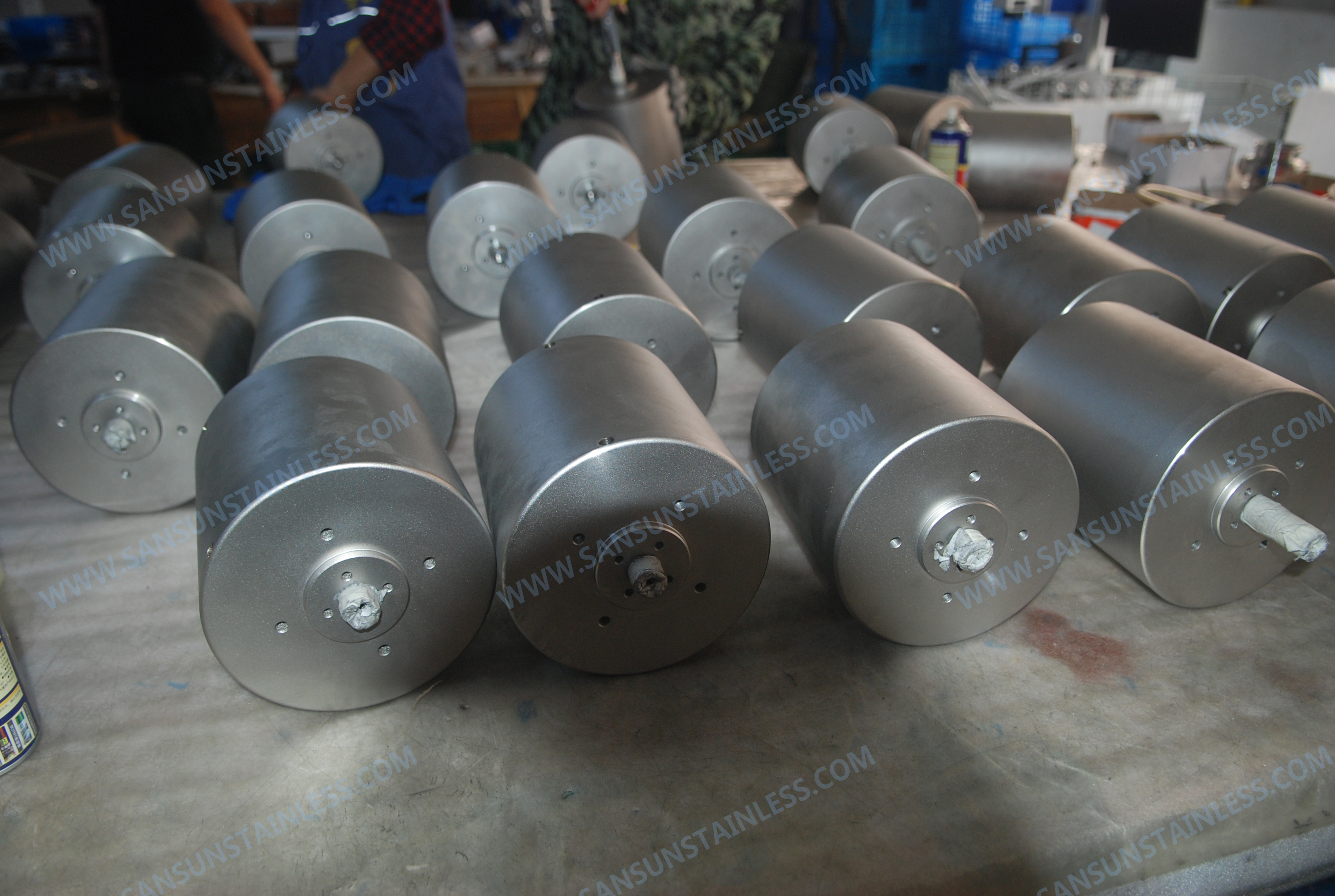

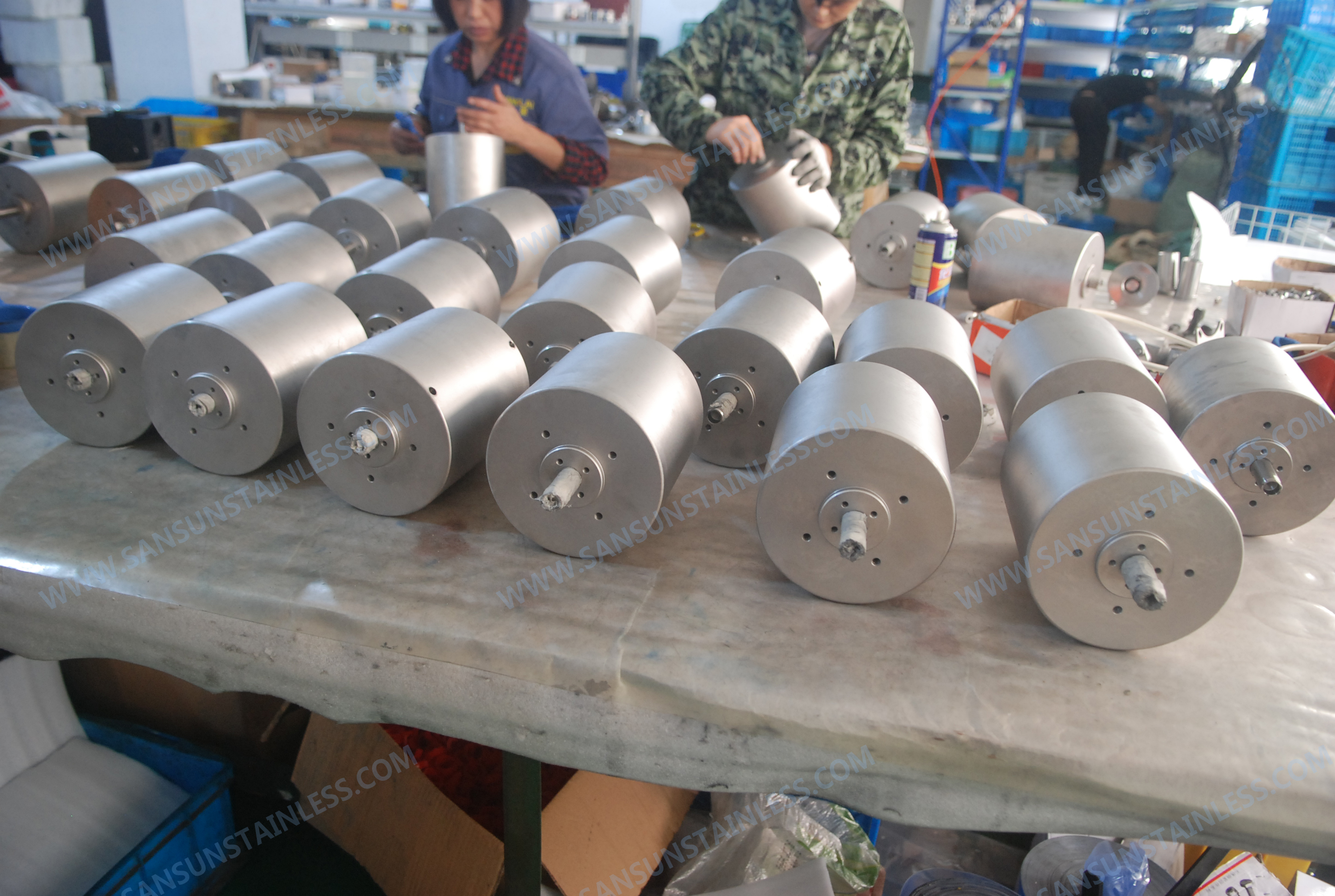

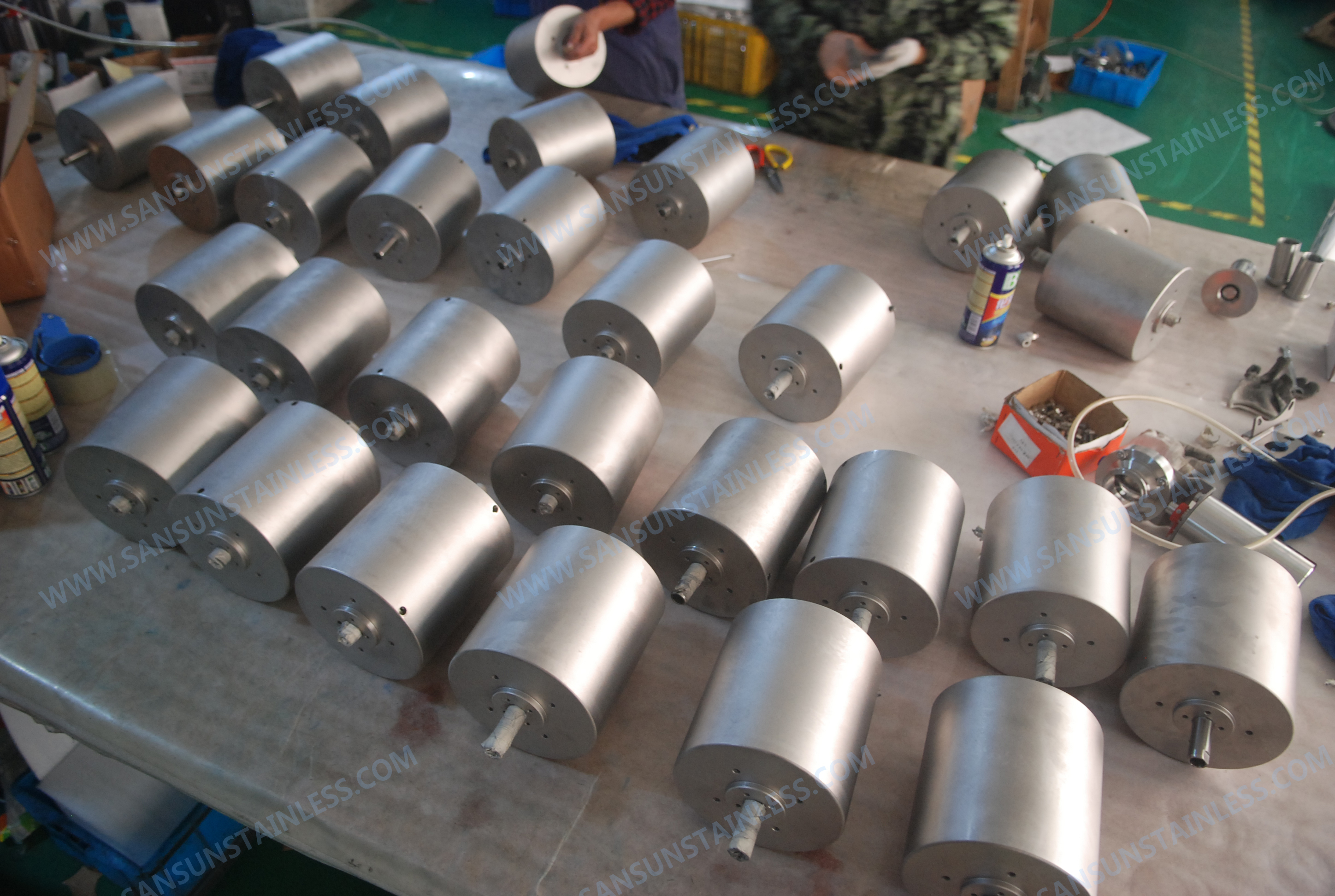

Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
