SANSUN
Operating Principles

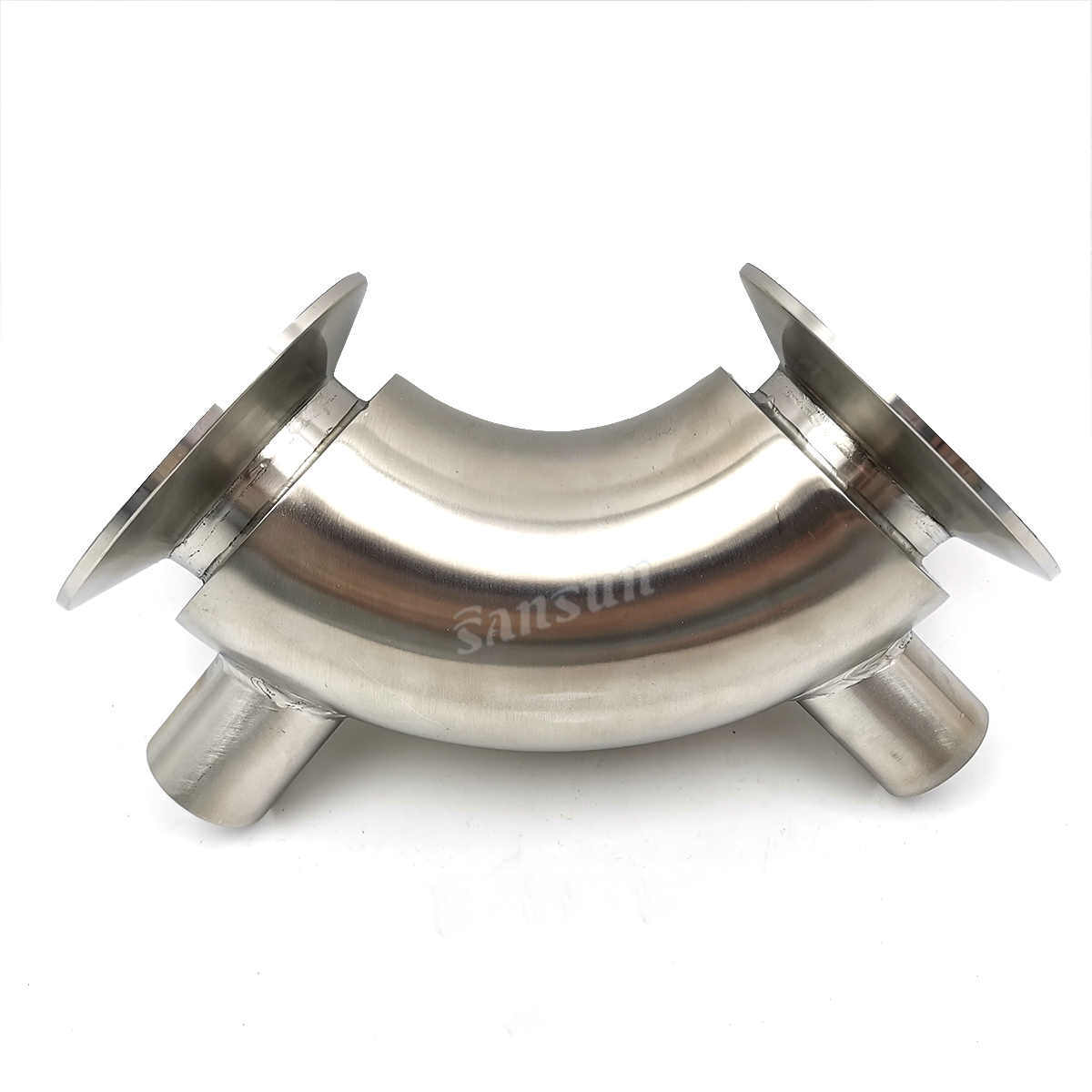

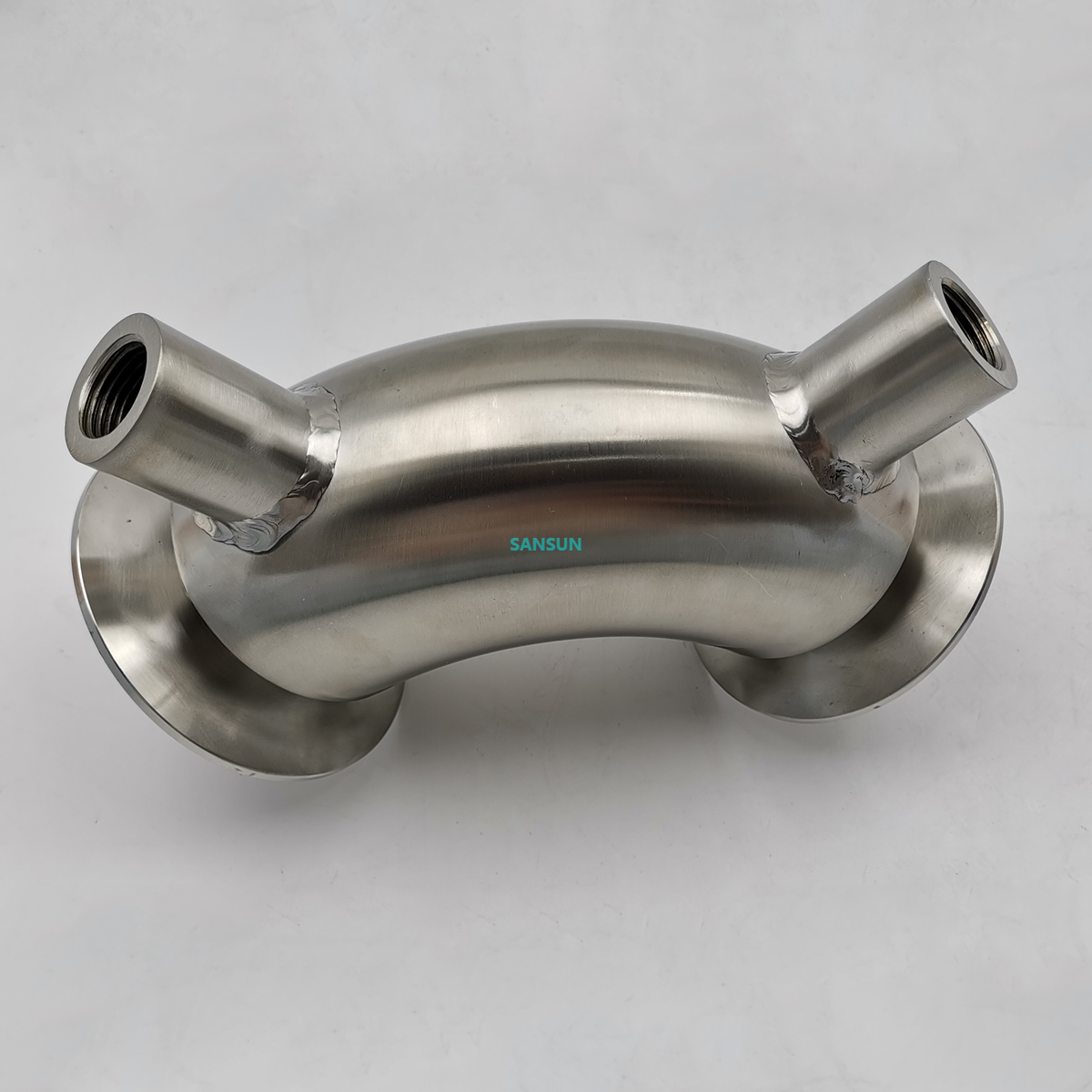

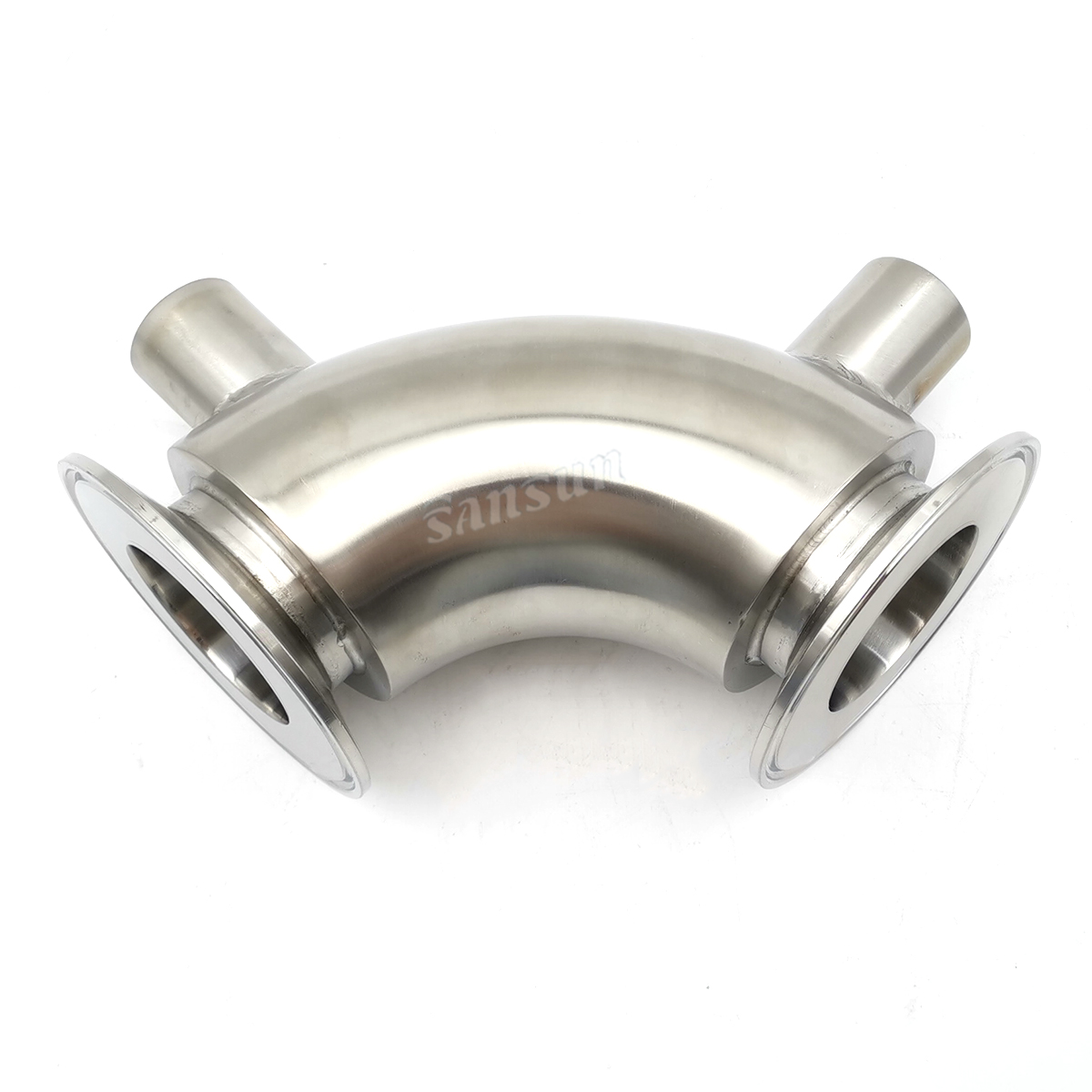

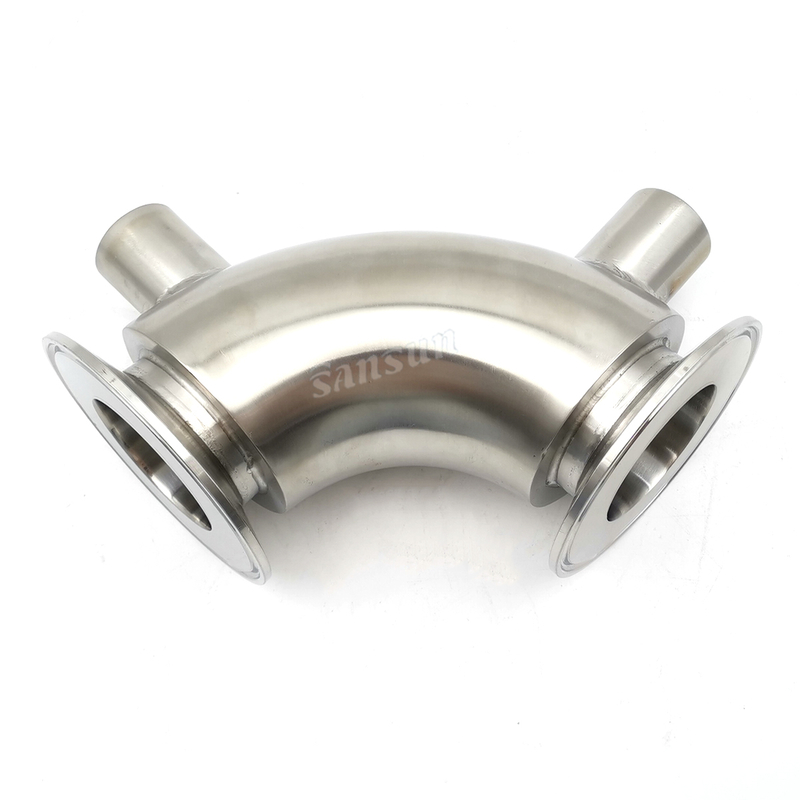

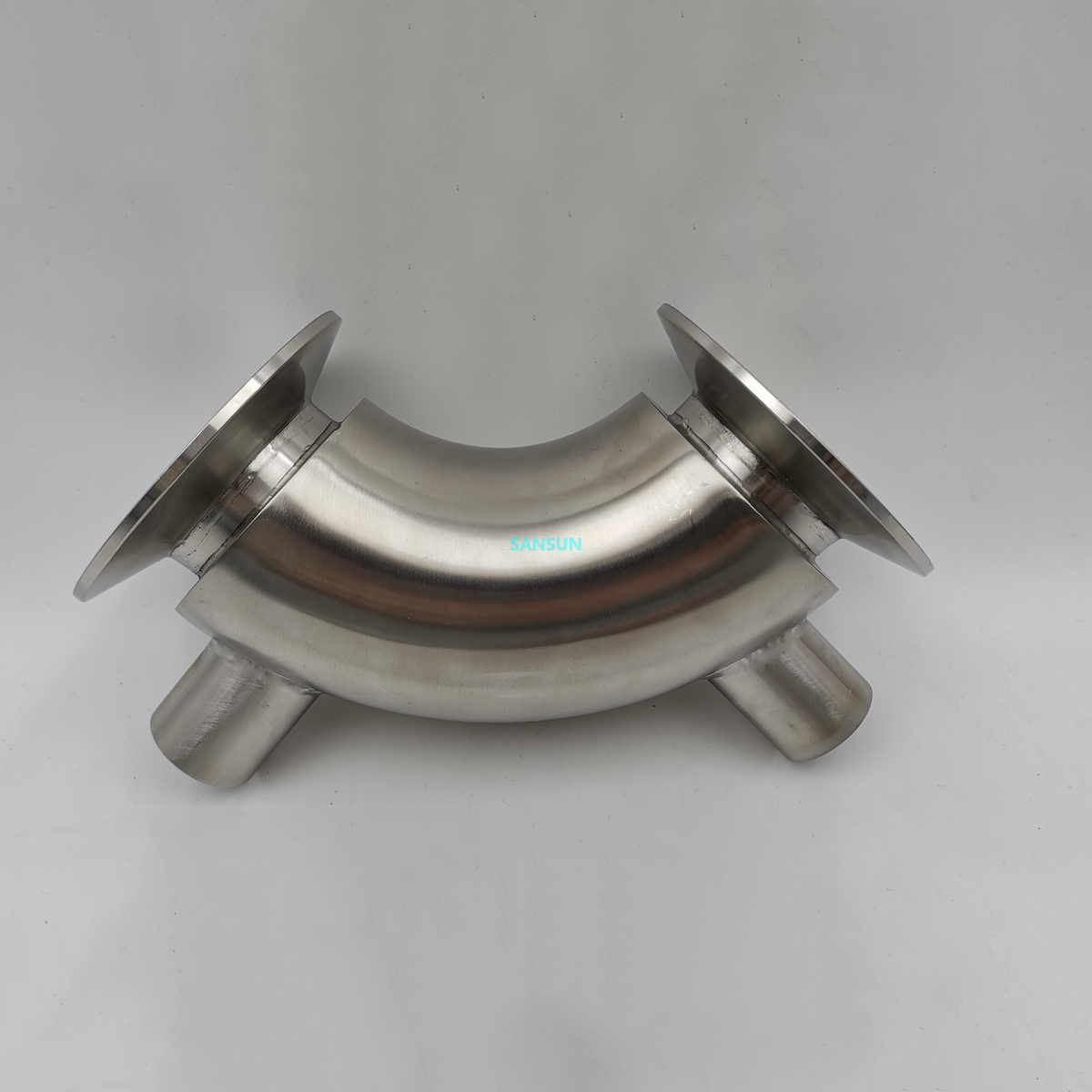

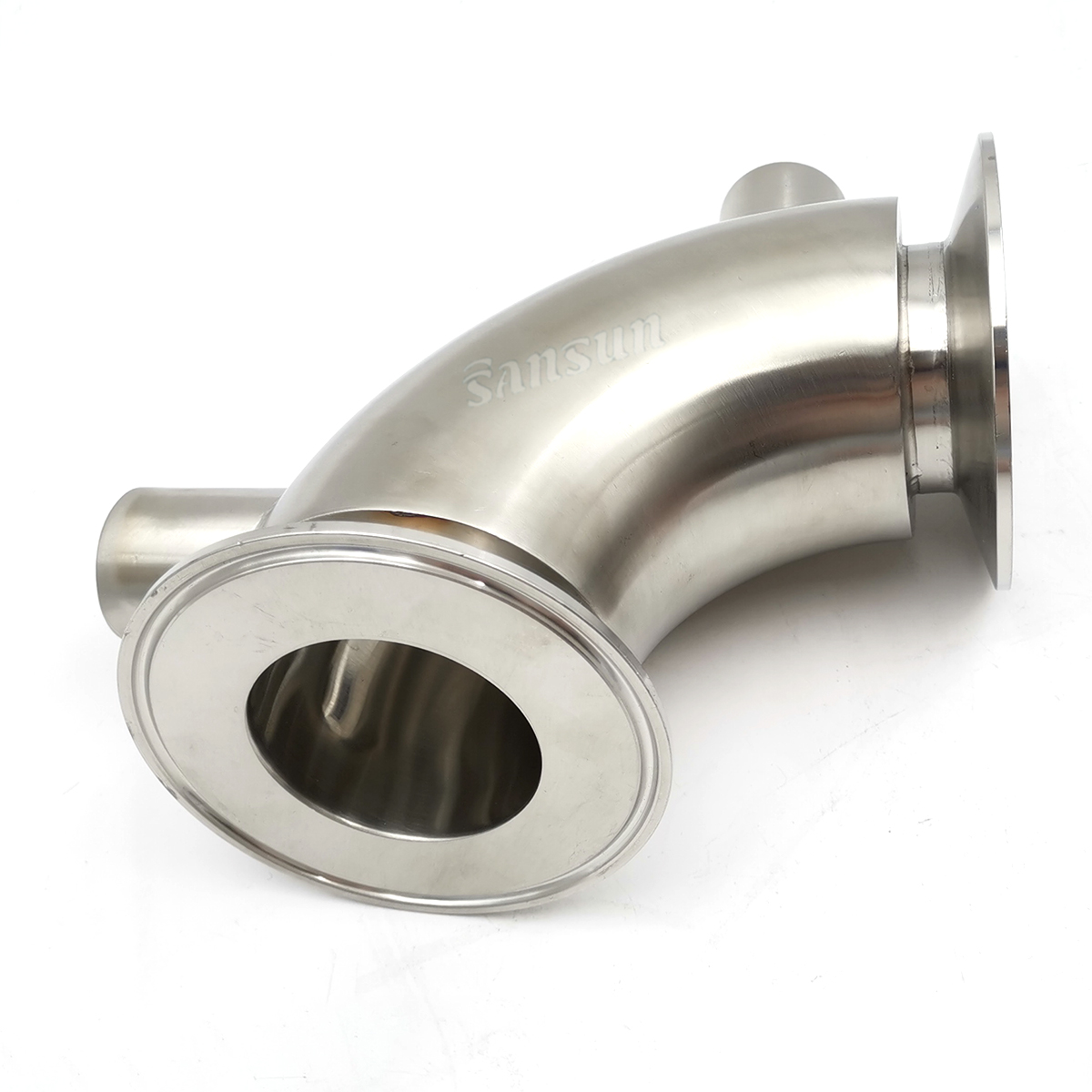

Fully Jacketed Triclamp/ Tri Clover 90 Degree bend is extended out to end to end to add extra length to the fitting.
It is made out of Stainless steel with a high polish interior and exterior and has 2 FNPT ports on the outer jacket
and is made to circulate fluid through the outer jacket to either condense or heat up the internal vapors or liquids.
The design has an insulating jacket shell, in order to achieve the best heat transfer.
It can protect the easy solidification sensitive medium, cases of chocolate, margarine or similar media holding liquid flow.
Materials
Materials: AISI-304 or AISI-316L

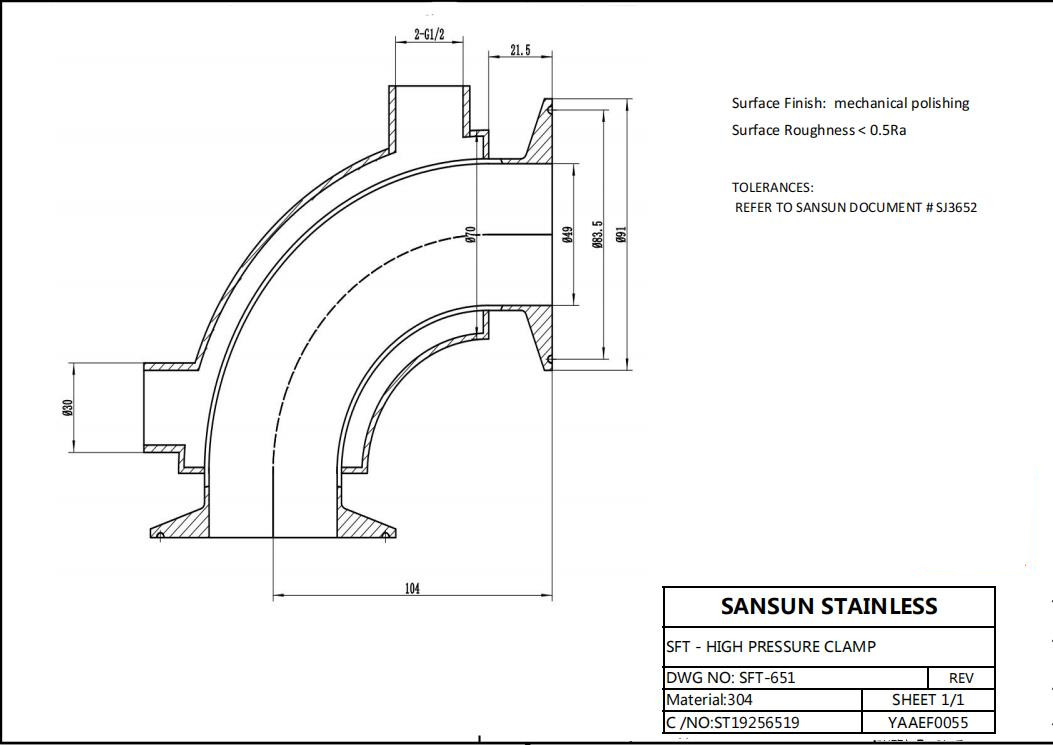

Standard Design
Specifications：DN25-DN100，1"-4"
Material: ASTM304/316L,1.4301/1.4404
Connection mode：Clamp,threaded,flanged
Standards:DIN11850 SMS ISO IDF DS BS4825 AS1528
Inner Surface: Mechanical Polishing Ra 0.4μm,0.8μm；
Outer Surface：Ra 0.8μm
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
