| Size | DN25-DN100(1''-4'') |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Valve Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | PTFE |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Ofcores： | Metal Mesh,Pertorated Plate,Wedge Wire |
| Availably standard: | DIN/3A/SMS |
| Connection type | Clamp End,Weld End,Threaded End Flange |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

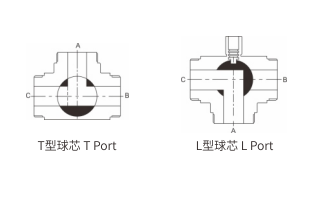

| Application scope: | Sanitary Full Bore 3-Way Non-Retention Ball Valve, no dead space & no material residue. Full bore design reduces flow resistance for honey, syrup, milk and other viscous fluid. Supports CIP cleaning. Manual / pneumatic / electric operation available, tri-clamp, weld connections optional.
|
