| Size | 1 1/2"-2 1/2" (DN40-DN65) |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Valve Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | EPDM |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Ofcores： | Metal Mesh,Pertorated Plate,Wedge Wire |
| Availably standard: | DIN/3A |
| Connection type | Clamp End,Thread End,Weld End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

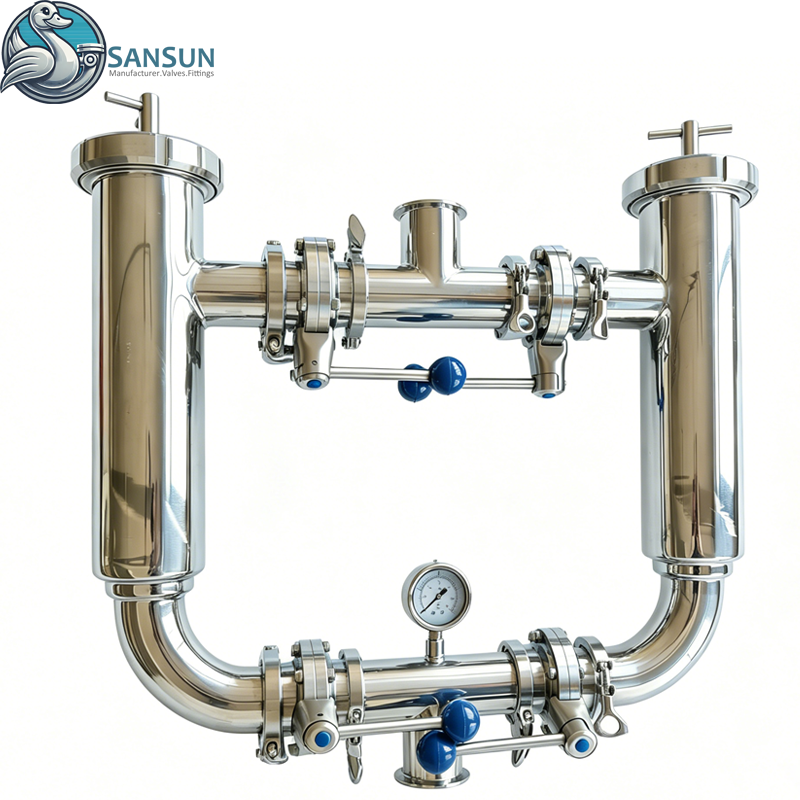

| Application scope: | This duplex basket filter is made of sanitary stainless steel for beverage, dairy and juice filtration. Its dual-basket design allows non-stop filtration by switching filter baskets during cleaning or maintenance. Smooth polished stainless steel structure complies with food hygiene requirements, efficiently filtering particles and sediments in liquid materials. Custom specifications and connections are available to match your production pipeline. |
