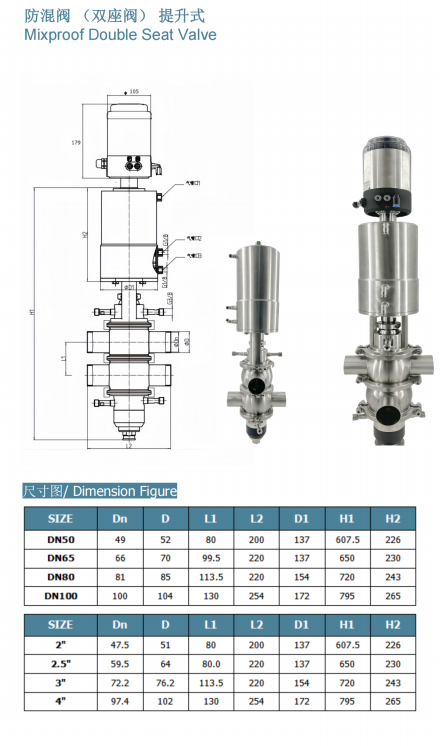

| Size | 2"-4" (DN50-DN100) |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Valve Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Gasket: | NBR,FPM |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Ofcores： | Metal Mesh,Pertorated Plate,Wedge Wire |
| Availably standard: | DIN/3A |
| Connection type | Clamp End,Weld End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

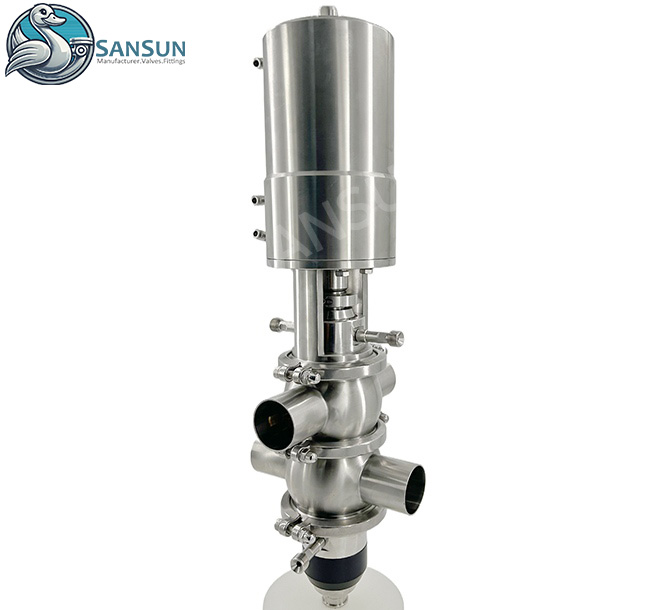

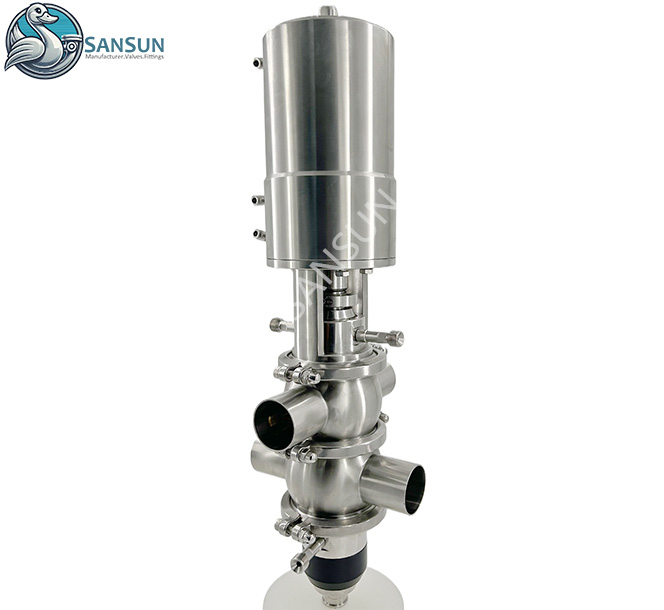

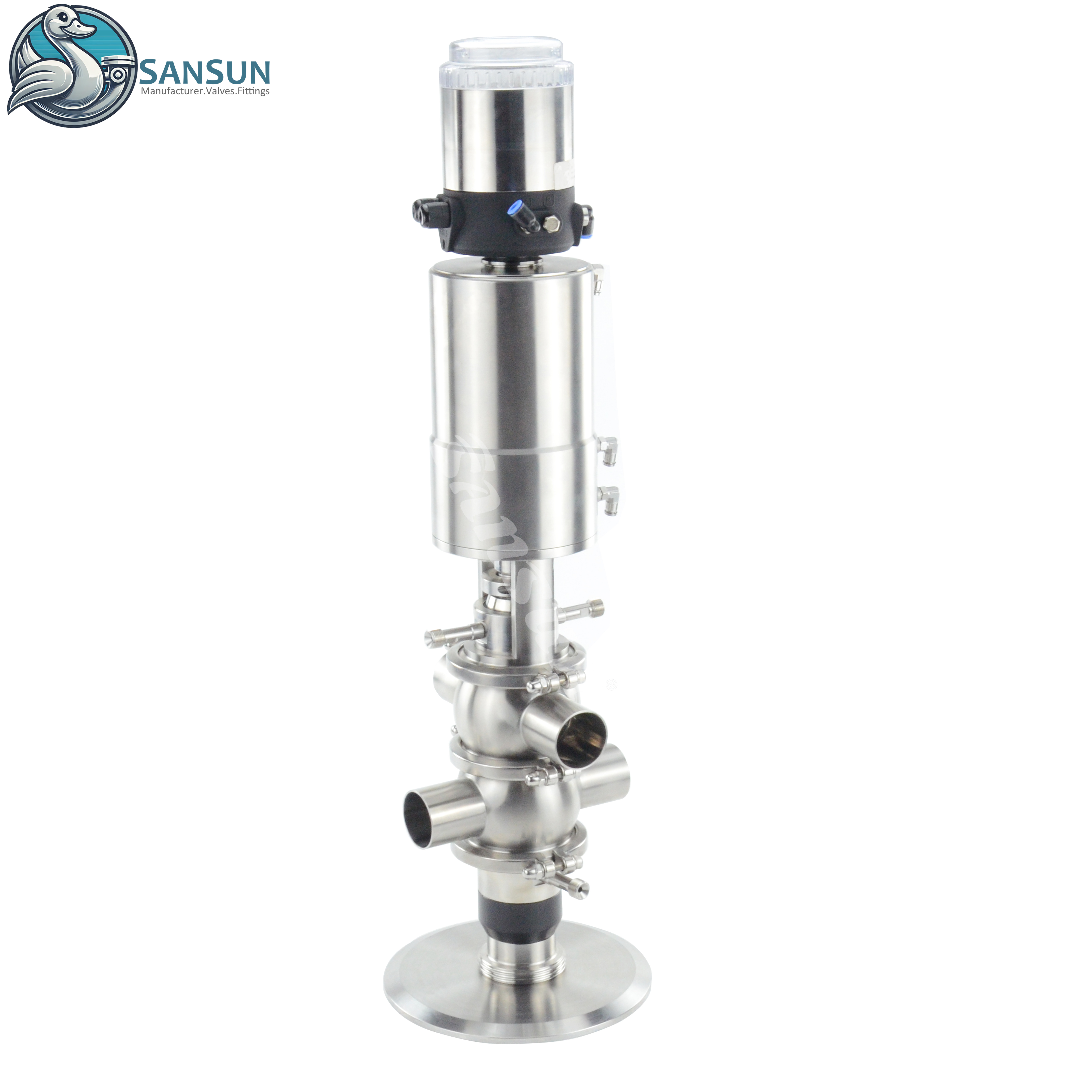

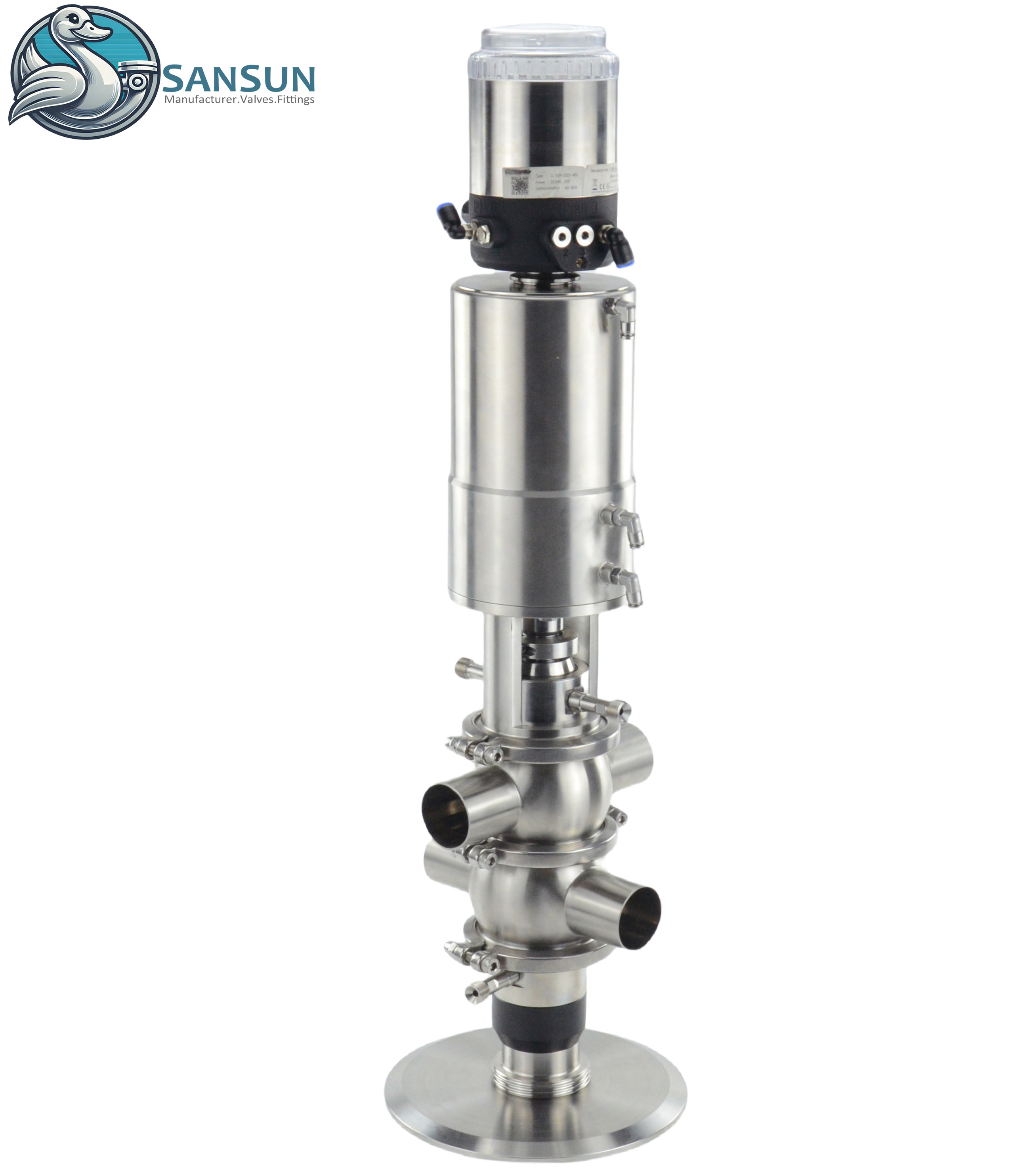

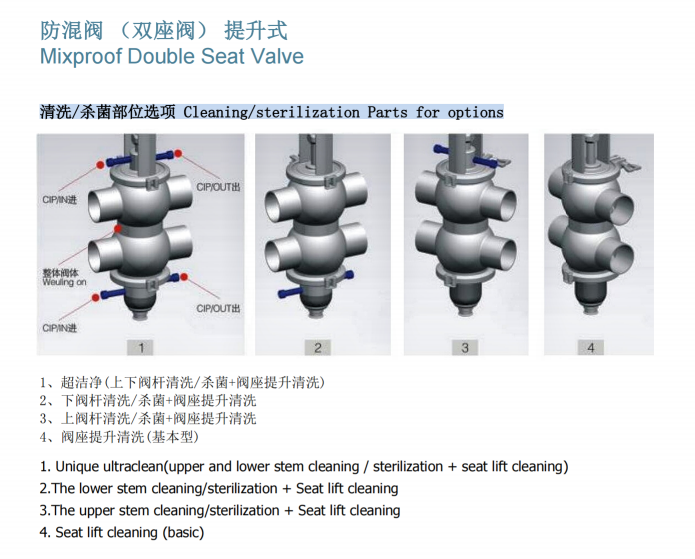

| Application scope: | SANSUN's double seat mixproof valve adopts dual independent sealing structure to avoid cross contamination during flow switching. The streamlined dead-leg-free body supports full CIP and SIP cleaning. It replaces multiple separate valves to simplify piping and cut failure points. Fitted with pneumatic actuator, it works seamlessly with automatic dairy, beverage and brewery production lines. The 316L mirror polished valve body and food-grade EPDM seals fully meet EU sanitary standards. |
