Sanitary Double seat Mixproof Valve
● Double Seat Mixproof Valve is designed to allow two diferent products to flow through the valve at one time without risking cross-contamination,provides the safety, separation, ClP capable and leakage detection.
● Hygienic design meets US 3-A standard. t is widely used in food procesing industriesmostly in dairny and beverage. Mix Proof Valve is remote-controlled by means of compressed air. The valve is a NC valve.
●With a simple C-TOP on every pneumatic actuator (solenoids and sensors)
Details about Sanitary Double Seat Mixproof Valve
Specification
| Size | 1 1/2" to 4”(DN40-DN100) |
| Body Material | AISI 316L |
| Temperature | 14°F to 266°F (-10 to 130°C) |
| Max pressure | 145psi (10bar) |
| Seal | EPDM, Silicone, FKM, FFKM, TEFLON, PTFE, HNBR, NBR, FDA approved |
| Pipe Joint Systems | DIN 3A |
| Operation | pneumatic actuator+ ControLTOP |
| Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |
| Connection type | Tri-Clamp End, Butt Weld End |

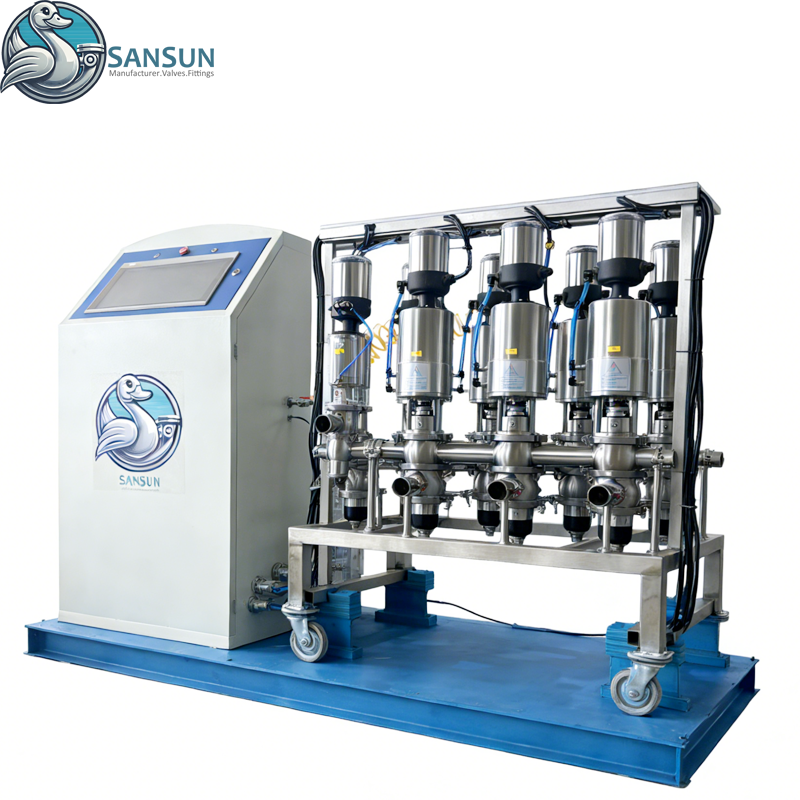

| Application scope: | sansun's Mipoof valve manifold is comply with the OCP specification(Open Compute Project specification), Mipoof valve manifold for Data center liquid cooling, Mipoof valve manifold for Direct-to-Chip (DTC) cooling，Mipoof valve manifold for CDU（Coolant Distribution Unit）. |
提升式防混阀阀体组合图(图1)Body combination diagram(Figure 1)
卡箍式阀体连接组合 一体式阀体
Clamped body combination One-piece valve body
Sanitary Double Seat Mixproof Valve Different Body
Drawing
Package
