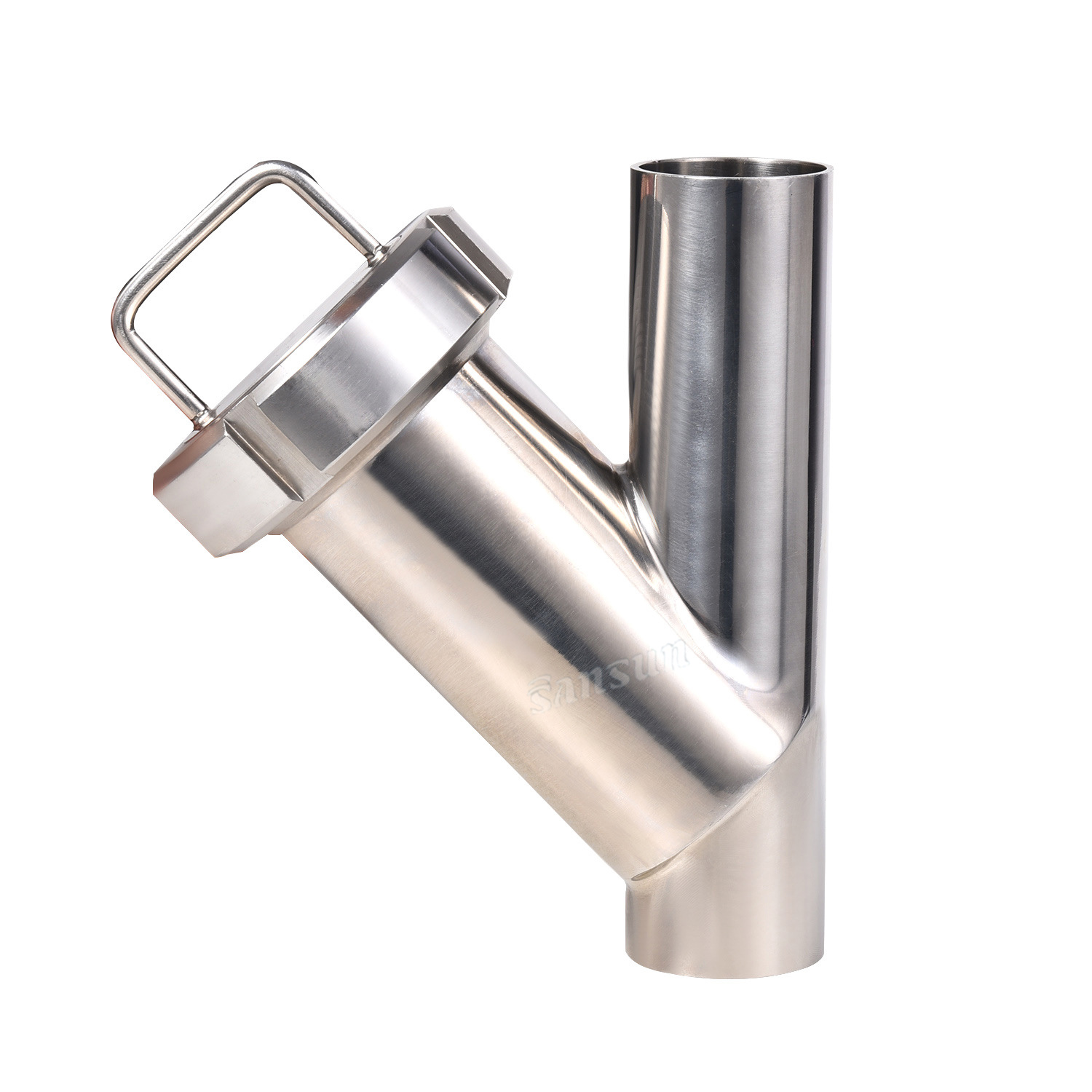

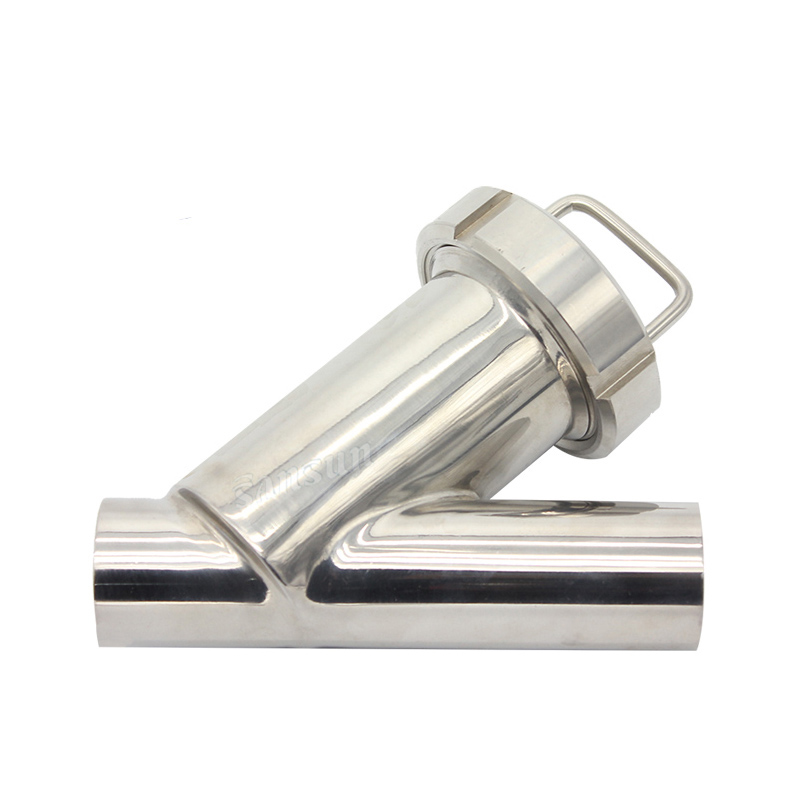

Sanitary Stainless Steel Butt Weld Y Type Filter Strainer

Filter is used to prevent the solid particles from media mixed into the follow-up pipeline facilities.The larger solid particles or impurities will remaining in it after the media is put into proper filter core, as it can reach the request. When surrounding pressure of the filter exceeds demand, or when the filter core is damaged, you can remove the filter, clean or change new filter core, and re-install it.

Size:	1" 1 1/2" 2" 2 1/2" 3" 4" DN25 DN32 DN40 DN50 DN65 DN80 DN100
Availability:

Quantity:



Inquire Add to Basket

Brand:
SANSUN
Code:
SS08405

Operating Principles

Filter is used to prevent the solid particles from media mixed into the follow-up pipeline facilities.The larger solid particles

or impurities will remaining in it after the media is put into proper filter core, as it can reach the request.

When surrounding pressure of the filter exceeds demand, or when the filter core is damaged, you can remove the filter,

clean or change new filter core, and re-install it.

Technical Specifications

Temperature range: -4℉ ~ 275℉ (-20℃ ~ 135℃), EPDM

Working Pressure: 14.5-145Psi (1-10Bar)

Surface Finishing: Mirror polish Ra<0.5 um

Materials

Valve body: AISI316L/304(forged)

Filter Screen: Metal Mesh, Perforated Plate and Wedge Wire

Gasket Material: EPDM, NBR, PTFE, Sillicone or Viton

Standard Design

Available in size from 1"-4", DN25-DN100 or others upon requirement

Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE

Connection: weld, clamp, thread, flange, or others upon request

Type: Y type, Angle Type, Inline, Straight, Micro

Three types of Filter Screen

sanitary y type filter sanitary strainer stainless steel y type filter sanitary weld y type filter sanitary weld y type strainer stainless steel weld y type filter stainless steel weld y type strainer
