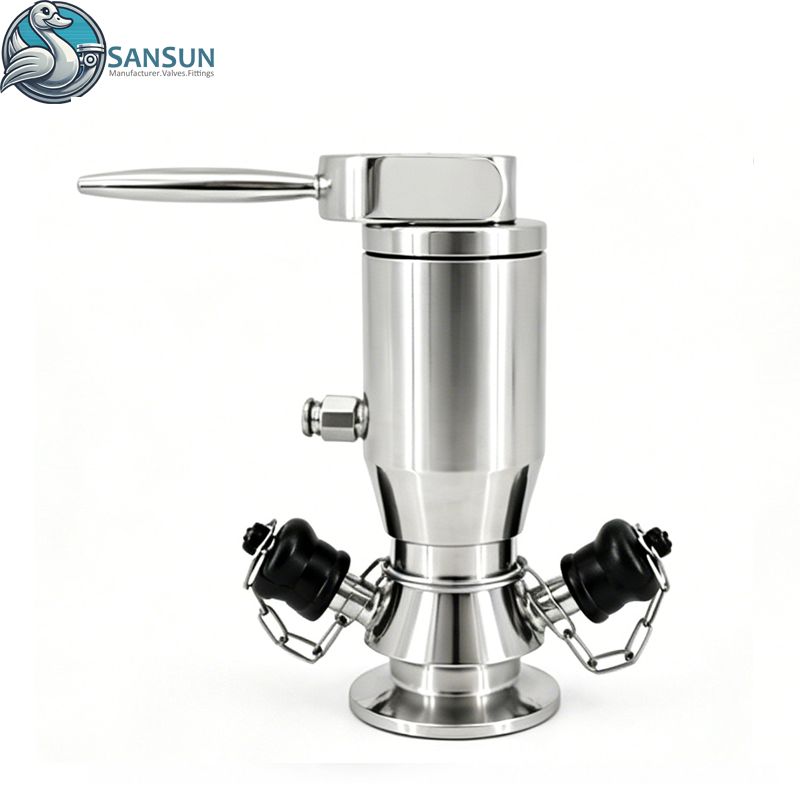

Sanitary Stainless Steel Aseptic Sampling Valve With Double Sample Ports

This sanitary stainless steel aseptic sampling valve uses 304/316L mirror-polished steel, compliant with craft brewery hygiene standards. It has dual sample ports with anti-drop chains for sterile, contamination-free wort & beer sampling to ensure precise test data. The ergonomic long handle allows easy one-handed operation for fermentation monitoring. Tri-clamp ends support fast disassembly and full CIP/SIP cleaning with no dead zones. Its tight sealed structure stops bacteria from entering tanks to prevent beer deterioration. Compact, corrosion-proof and durable, it fits fermenters, bright beer tanks and brewing pipelines for routine quality sampling.
Size:
Material:
Availability:
Quantity:
  • SANSUN

  • SS-V1021

Size DN6-DN15
Valve Body Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Valve Disc Material: AISI304/AISI316L ,1.4404/1.4301   (Forged)
Seal Material: PTFE
Surface Finishing: Ra < 0.4-0.8 µm (32 µin)
Max Working Pressure: 145psi (10bar)
Helium Leak Test: <1 × 10⁻⁹ mbar・l/s
Cleanliness: Passivation treatment, Conforms to ASTM A380 standard
Ofcores: Metal Mesh,Pertorated Plate,Wedge Wire
Availably standard: DIN/3A
Connection type Clamp End,Weld End
Certification US 3-A, FDA, CE PED/2014/68/EC, Certification
Application scope:
Sansun aseptic sampling valve is applied to beer, milk, beverage, fruit juice, pharmacy industries etc.

Drawing


saeptiic sampling valveclamp sampling valvesampling valve

Aseptic Sampling Valve

Sanitary Pneumatic Tri-Clamp Aseptic Sampling Valve
