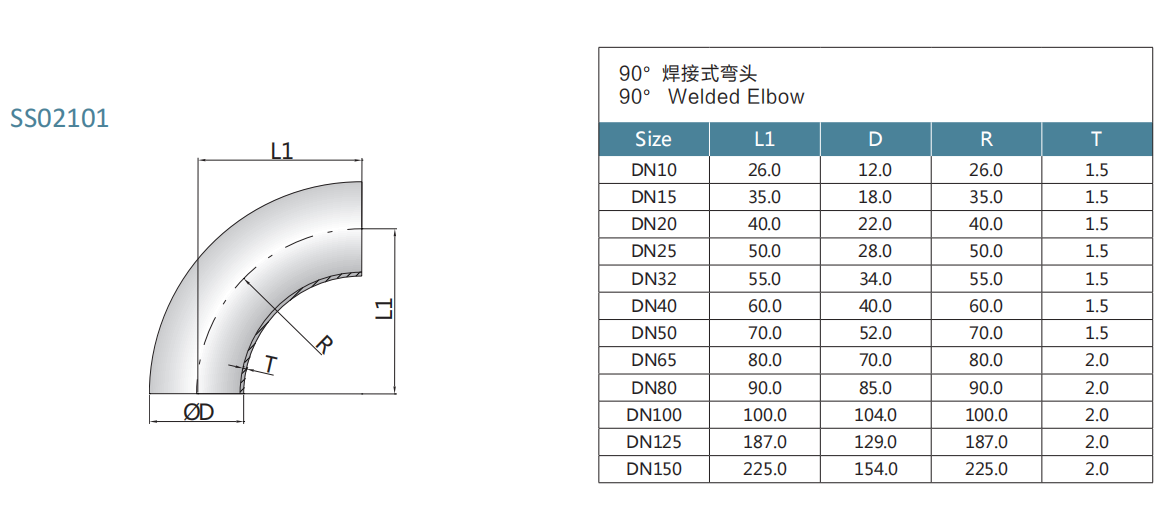

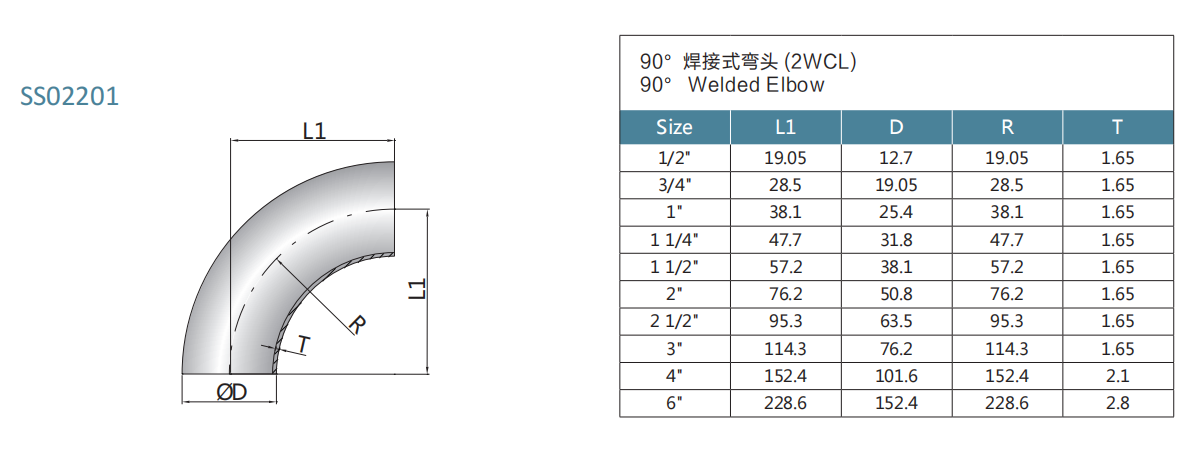

| Size | DN25-DN150(1/2''-6'') |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Valve Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Ofcores： | Metal Mesh,Pertorated Plate,Wedge Wire |
| Connection type | Clamp End,Weld End,Threaded End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

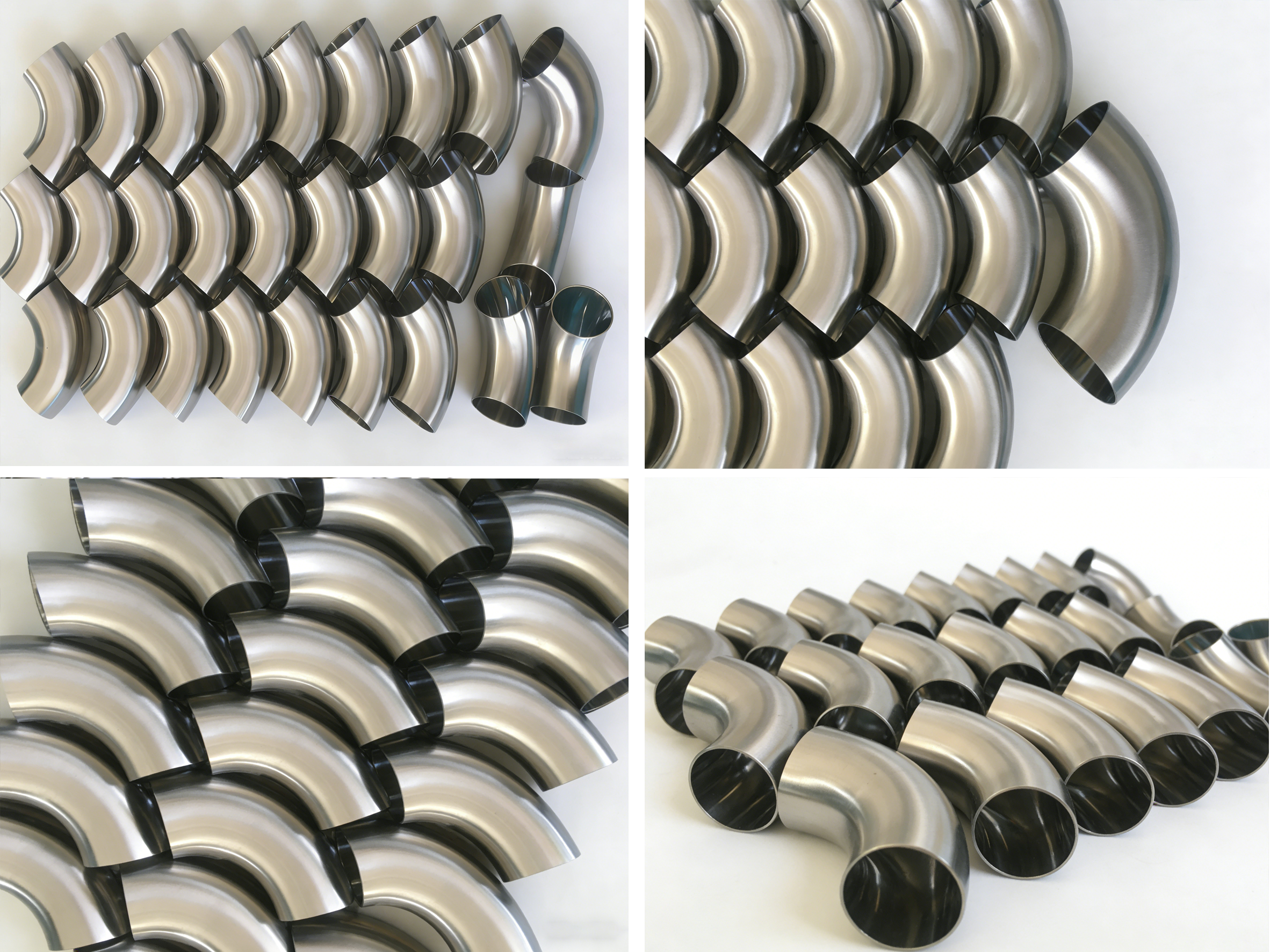

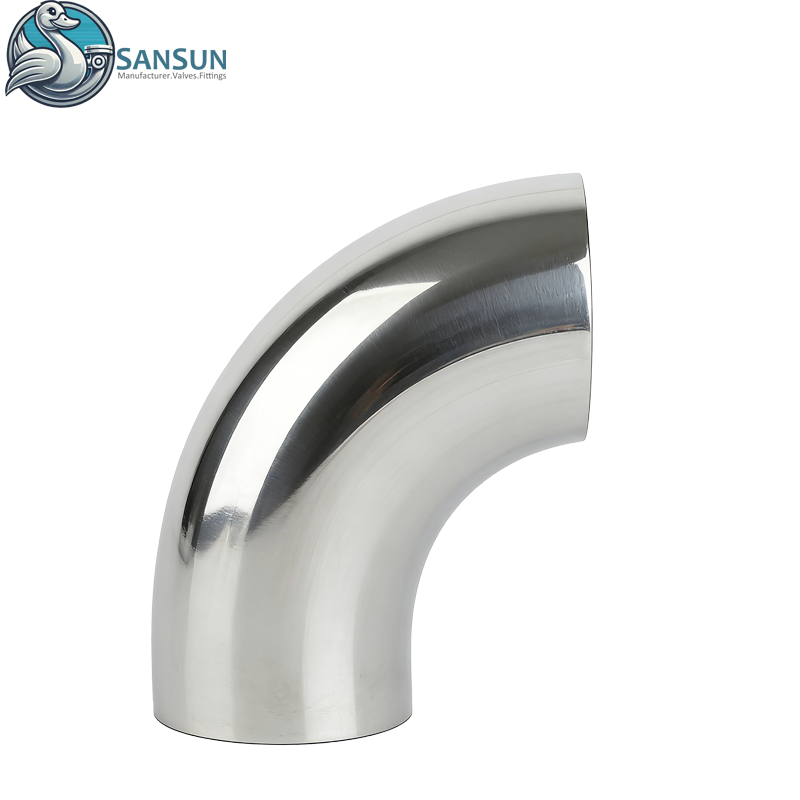

| Application scope: | This hygienic stainless steel 90 degree elbow is engineered for AI data center liquid cooling CDU and closed‑loop coolant piping systems. Manufactured from AISI304 or AISI316L stainless steel with polished smooth inner wall to reduce flow resistance and coolant turbulence. Good corrosion resistance ensures stable long‑term continuous operation of liquid cooling loops. It is also suitable for food beverage pharmaceutical hygienic fluid transfer pipelines.
|
