SANSUN
Application

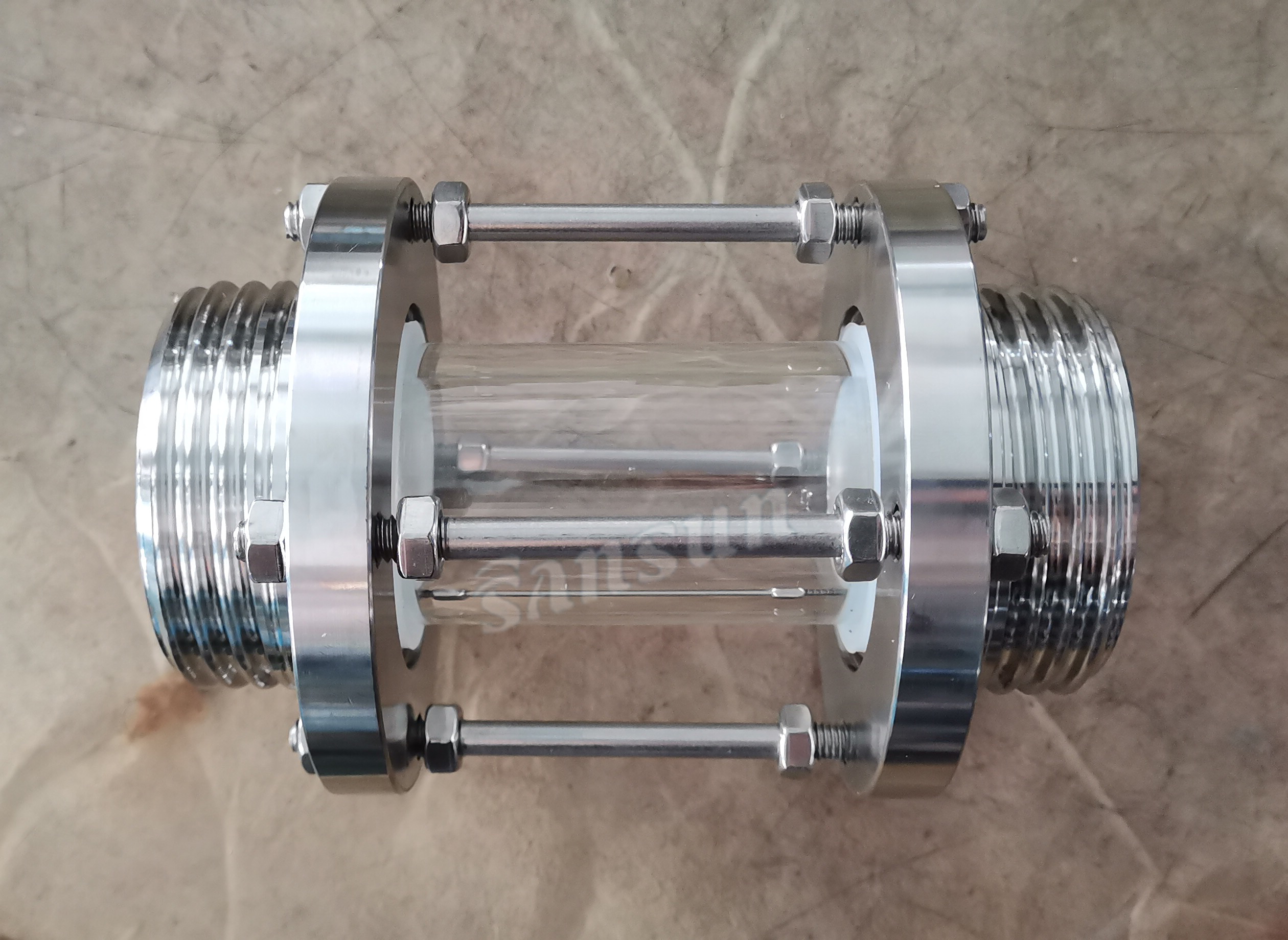

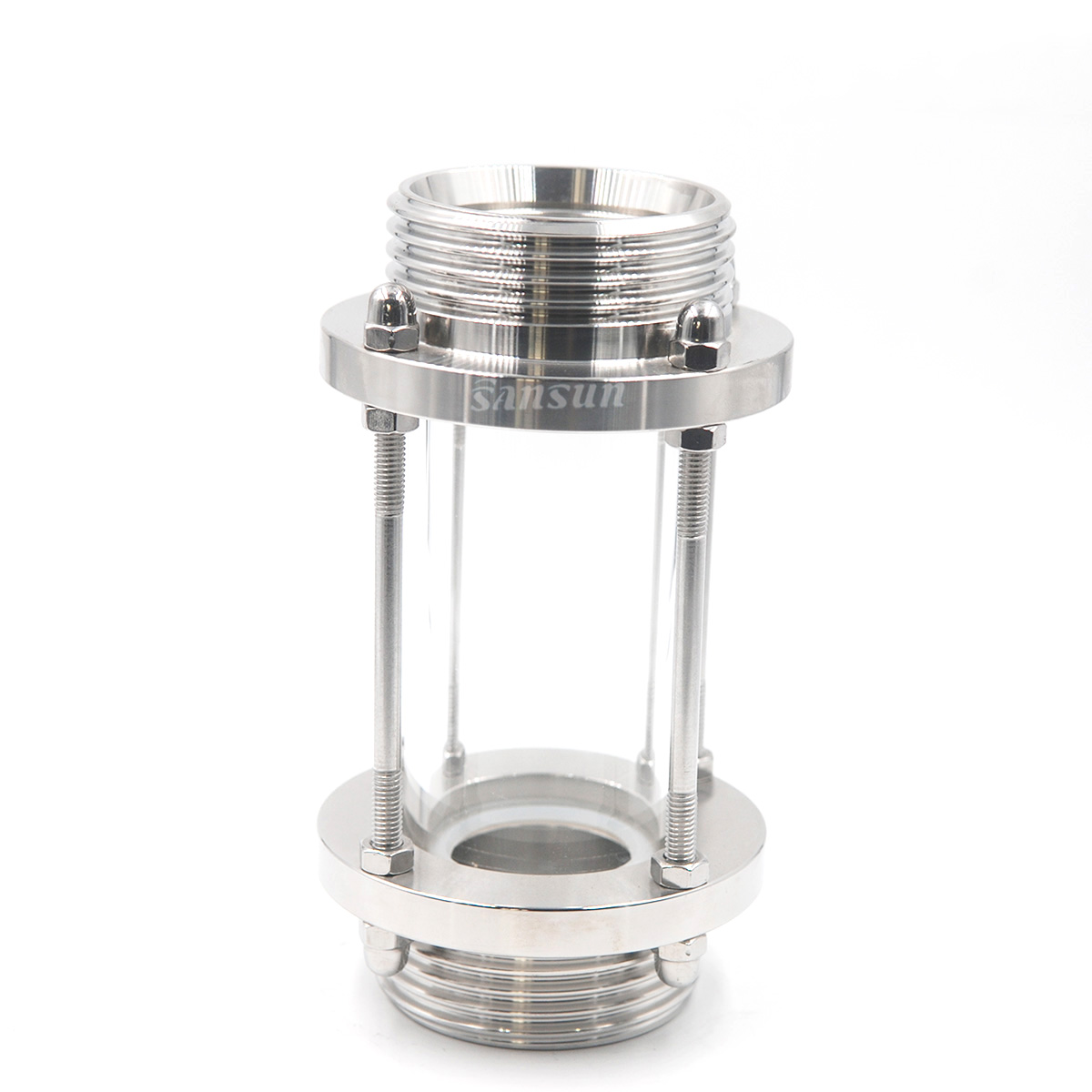

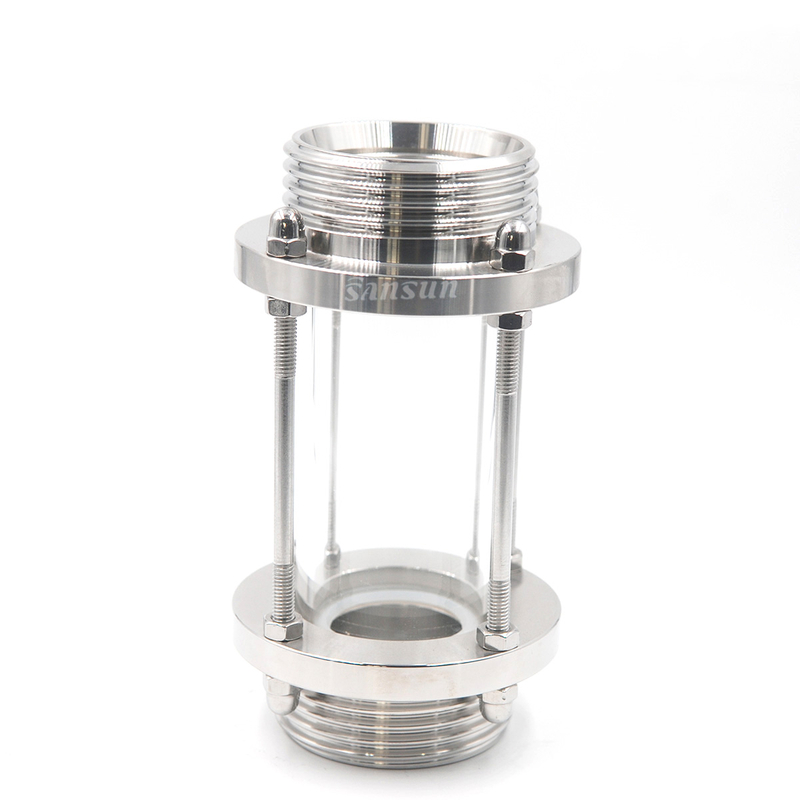

Threaded sight glass allows for the ability to visually inspect tube media.
Threaded connection requires use of gaskets and clamp for secure fit.
Sanitary In-ine Sight Glasses are used widely in the food,
dairy and beverage sanitary processes to view products and fluids.
Sanitary Straight Sight Glasses are constructed with sUS316 housing, Tempered Glass and silicone seals.
These In-line Sight Glasses are easier to clean.
Materials
Body Materials: AISI-304 or AISI-316L
Tempered glass
Gasket Material:Silicon, EPDM, FRM
Seat and gasket comply with FDA 21CFR177.2600
Standard Design
Available in size from 1/2"-6", DN10-DN150 or others upon requirement
Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Vertical or horizontal installation
Technical Specification
Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon
Surface treatment: CNC machining
Clamp Straight Sight Glass Applicable Occasions
Inspection
All kinds of non-standard products are customized according to the requirements of customers.
Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
