SANSUN
Operating Principles
The ball valves can be operated automatically through actuator or manually with the handle.
The handle blocks the valve in the "open" or "closed"position, certainly there are the other position available.
The actuator push piston of axial movement into 90 degree so that it controls ball valve.
The ball valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.
Technical Specifications
Max.pressure: 10 bar (DN-25/100);8 bar (DN-100/150)
Min.pressure: 0.2 bar p.abs
Operating temperature:-10℃ to +120℃ (PTFE)
Materials
Valve body: AISI316L/304(forged)
Handle: AISI304/PP
Surface finishing: Ra=0.8
Standard Design
Free of maintenances
Compact and portable
Small operating torque
Available in sizes from DN10 / 1/2" to DN100 / 4"
Standard Avaliable: DIN, SMS, RJT, 3A, FIL
Connection: weld, clamp, thread, flange
Type of valves: One way ball valve, three-piece ball valve, Three-way ball valve
Type of cores: T type,L type, direct type
Actuator: pneumatic stainless steel actuator, electric actuator

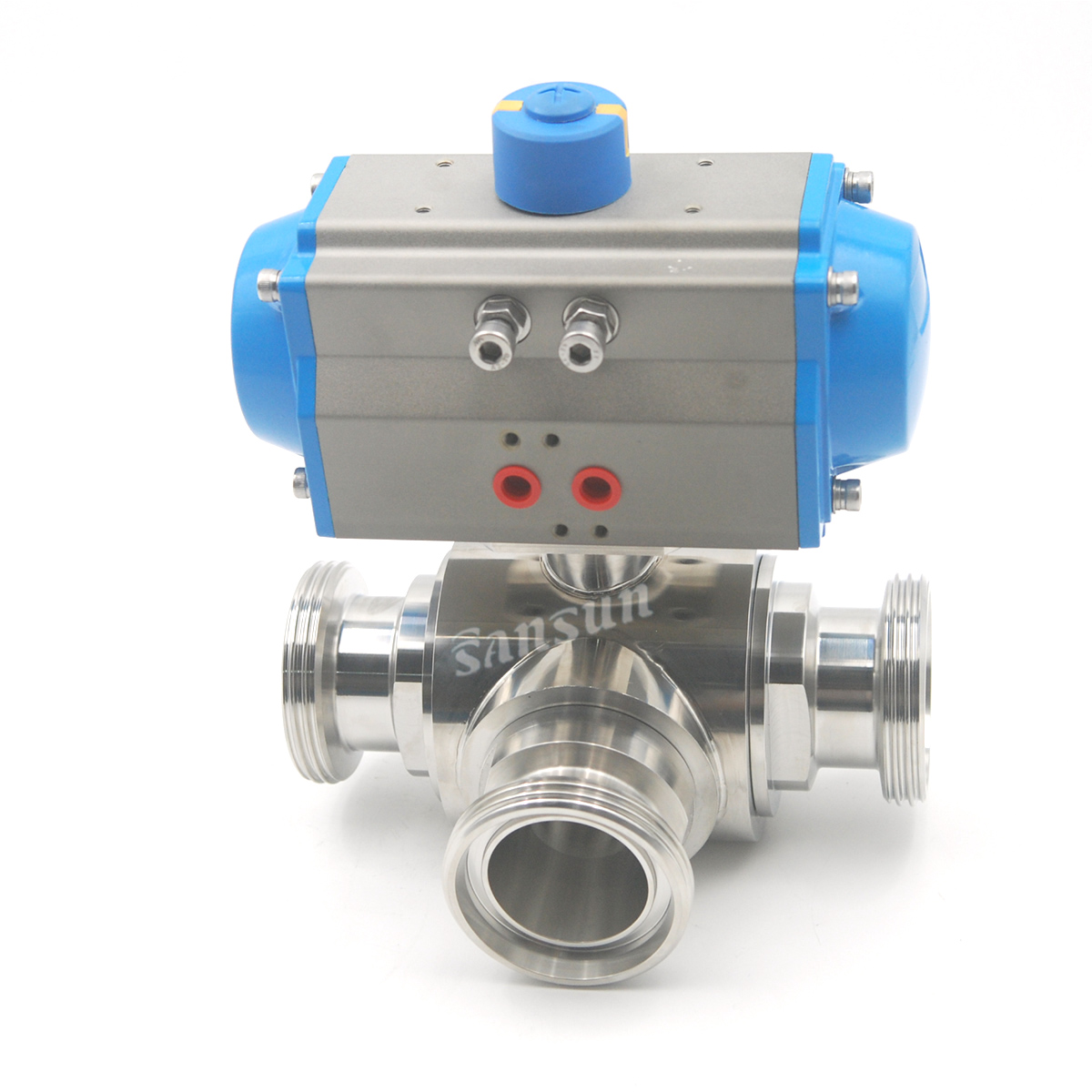

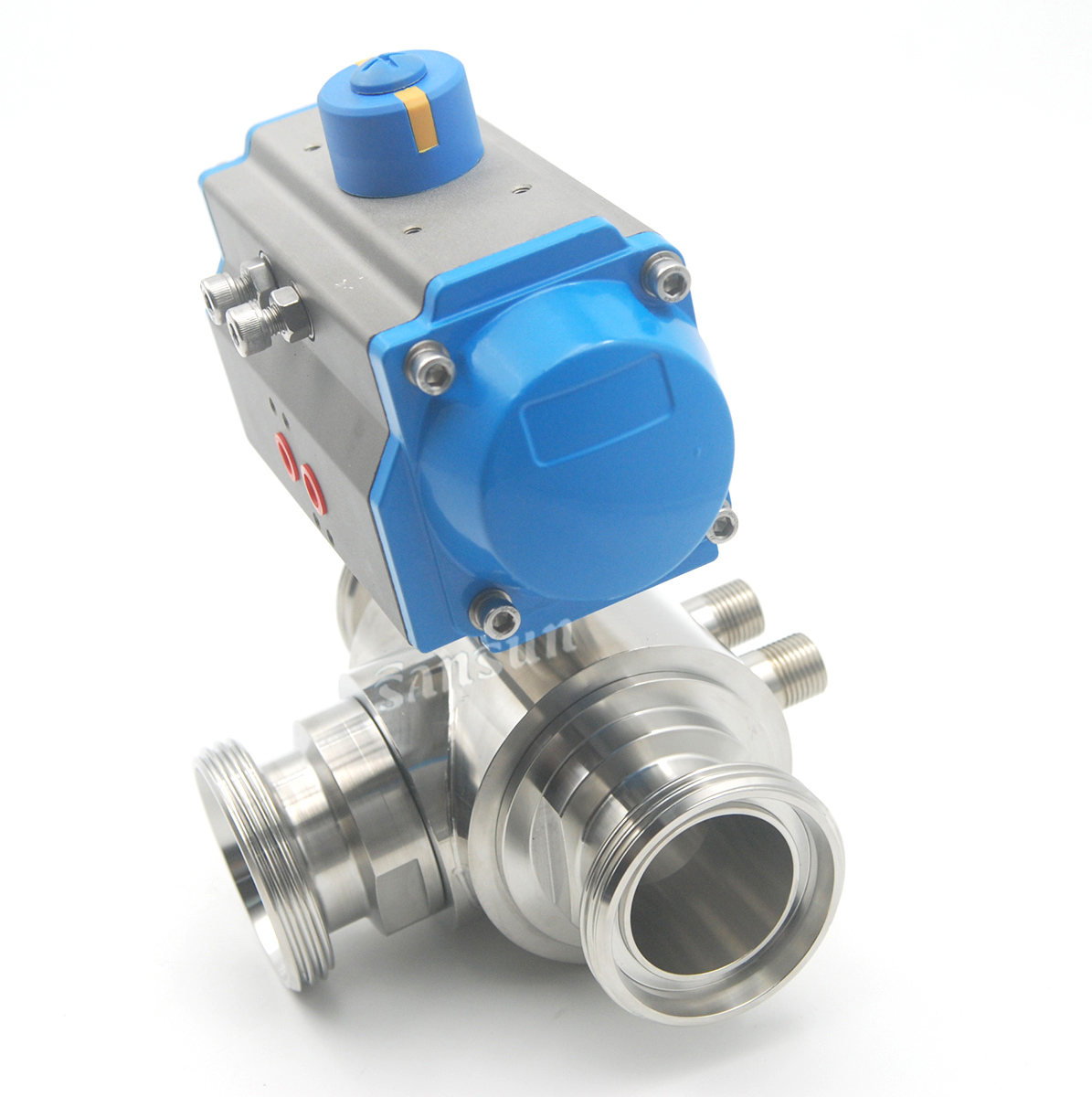

The Gateway of Three Way Ball Valve
Inspection
All kinds of non-standard products are customized according to the requirements of customers.
Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
