SANSUN

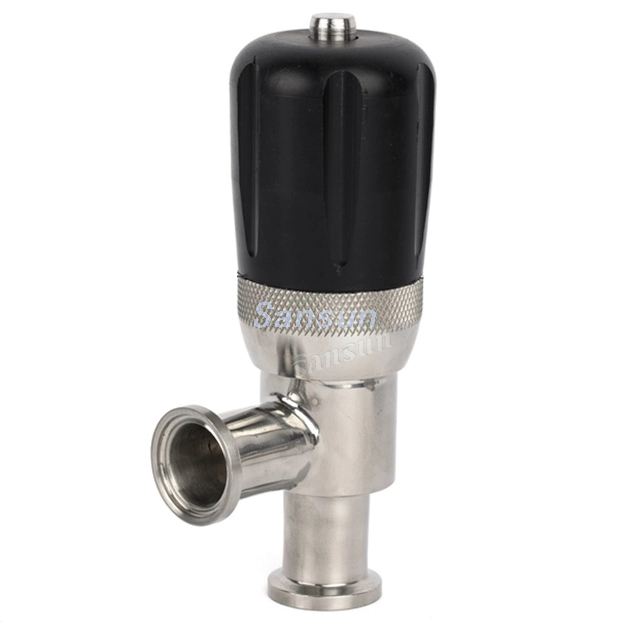

Sanitary stainless steel safety valve, also known as"pressure relief valve" , is used to control over pressurization in aprocess piping
system.
When the line pressure exceeds the limit set for the safety valve, the valve plug will lift and release the pressure through the side port.
The valve will remain open until the line pressure decreases to avalue lower than the set value.
it is good for safety protect function in pipeline, pump, device, storage tank.Extensively use to food and beverage industries.

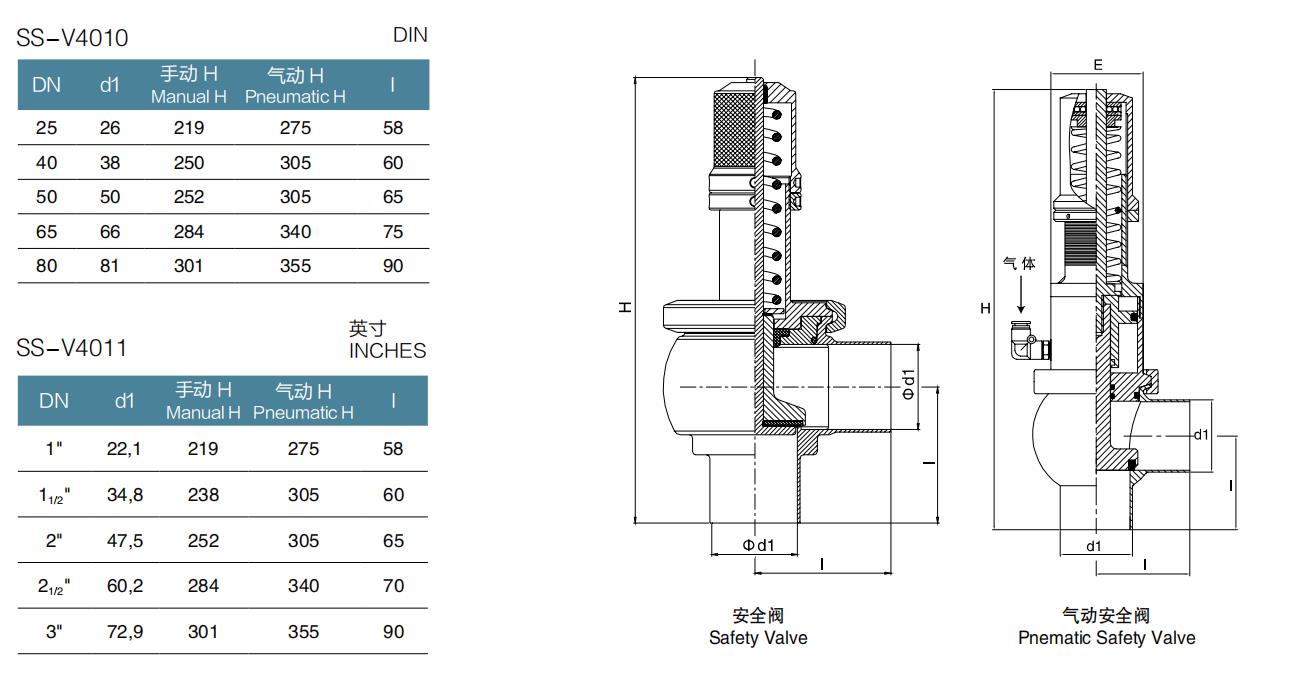

Technical Specification
Working Pressure: 14.5psi/ 1bar (standard), could be pre-set before production
Temperature range: medium
Max. Temperature: 121℃ （EPDM）/ 250°F
Body Materials: SS304 or SS316L
Gasket:EPDM,VITON according to FDA
O-Ring:EPDM,VITON according to FDA
Standard Design
Available in size: 1"-3" or DN25-DN80
Installation: supposed to be installed overhead tanks
Standard: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE
Connection: butt-welded, clamp, or other's upon request
Inspection
All kinds of non-standard products are customized according to the requirements of customers.
Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
Sanitary stainless steel safety valve, also known as"pressure relief valve" , is used to control over pressurization in aprocess piping
system.
When the line pressure exceeds the limit set for the safety valve, the valve plug will lift and release the pressure through the side port.
The valve will remain open until the line pressure decreases to avalue lower than the set value.
it is good for safety protect function in pipeline, pump, device, storage tank.Extensively use to food and beverage industries.
Technical Specification
Working Pressure: 14.5psi/ 1bar (standard), could be pre-set before production
Temperature range: medium
Max. Temperature: 121℃ （EPDM）/ 250°F
Body Materials: SS304 or SS316L
Gasket:EPDM,VITON according to FDA
O-Ring:EPDM,VITON according to FDA
Standard Design
Available in size: 1"-3" or DN25-DN80
Installation: supposed to be installed overhead tanks
Standard: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE
Connection: butt-welded, clamp, or other's upon request
Inspection
All kinds of non-standard products are customized according to the requirements of customers.
Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
