| Size | DN10-DN200(1/2''-8'') |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Valve Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | EPDM, FPM ,Silicone ,Viton |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Ofcores： | Metal Mesh,Pertorated Plate,Wedge Wire |
| Availably standard: | DIN/3A/SMS |
| Connection type | Clamp End,Weld End,Threaded End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

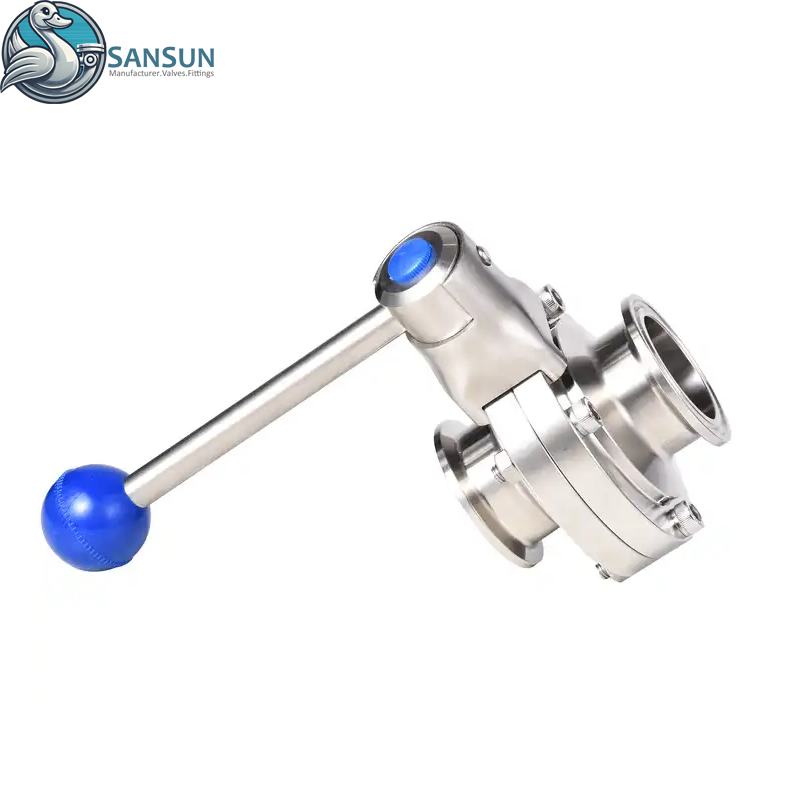

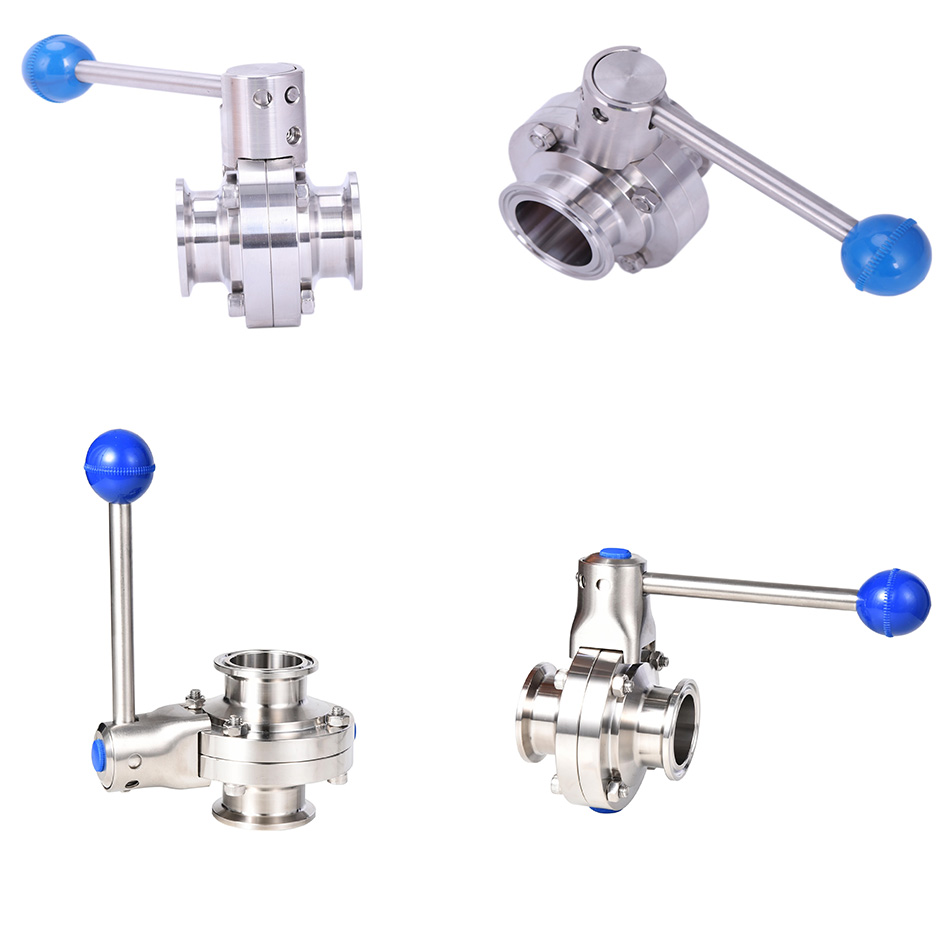

| Application scope: | Sanitary manual tri-clamp butterfly valve is made of mirror-polished 304/316L stainless steel. Ergonomic long handle enables easy one-handed flow regulation, tri-clamp ends for quick disassembly. Zero dead zone fits full CIP/SIP cleaning, leak-proof EPDM/FPM seal avoids contamination.Suitable for data center liquid cooling loops, craft beer, dairy and beverage sanitary pipelines.
|
