SANSUN

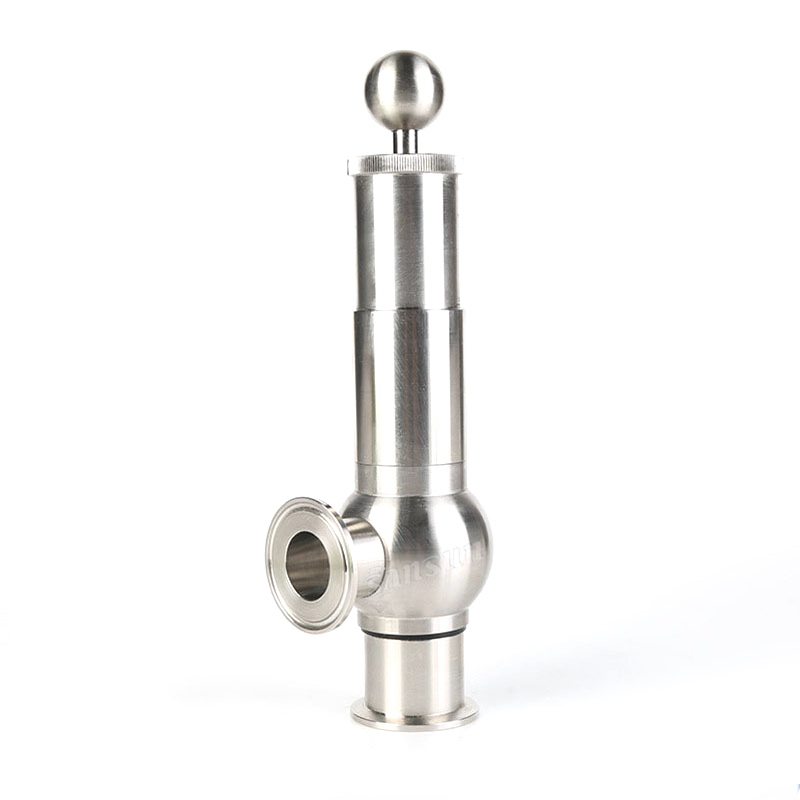

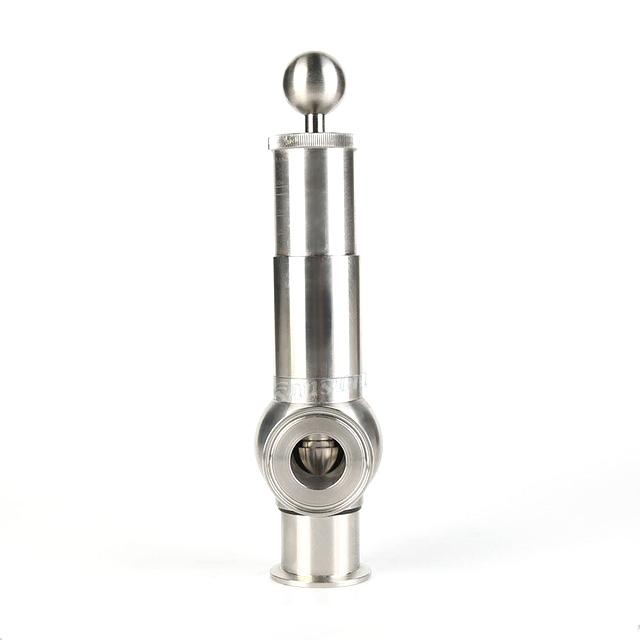

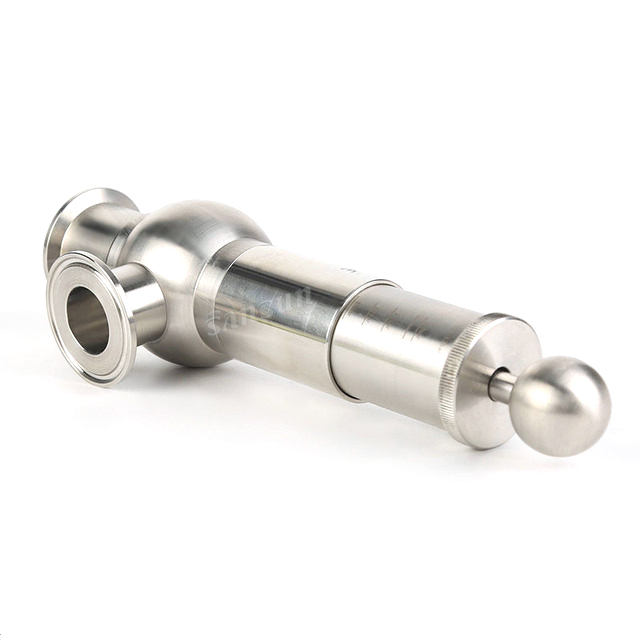

This valve is used in pressure vessel piping systems. Adjust the pressure relief valve to protect the explosion-proof effect of
excessive pressure of the container. When the pressure is higher than the set pressure (standard 1BAR), it can be exhausted,
otherwise it is closed, the pressure scale is marked on the adjustment rod, and the required pressure is adjusted according to the
scale. The exhaust gas can be recovered and discharged outdoors. The valve is easy to use and accurate in scale.
It can also meet the needs of various production processes and is suitable for various industrial fields
such as food processing, beer, beverages and pharmaceuticals.
Technical Specification
Work Pressure:0.2-2.2bar
Pressure Range:1.1-3.2bar
Operating temperature:-30℃ to +150℃
Body Materials: SS304 or SS316L
Standard Design
Available in size: 1-1.5", 2"
Standard: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE
Connection: clamp
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
This valve is used in pressure vessel piping systems. Adjust the pressure relief valve to protect the explosion-proof effect of
excessive pressure of the container. When the pressure is higher than the set pressure (standard 1BAR), it can be exhausted,
otherwise it is closed, the pressure scale is marked on the adjustment rod, and the required pressure is adjusted according to the
scale. The exhaust gas can be recovered and discharged outdoors. The valve is easy to use and accurate in scale.
It can also meet the needs of various production processes and is suitable for various industrial fields
such as food processing, beer, beverages and pharmaceuticals.
Technical Specification
Work Pressure:0.2-2.2bar
Pressure Range:1.1-3.2bar
Operating temperature:-30℃ to +150℃
Body Materials: SS304 or SS316L
Standard Design
Available in size: 1-1.5", 2"
Standard: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE
Connection: clamp
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the
manufacturing and time of each process to ensure the quality of products.
