SS316 1.5 tc dairy butterfly valve with triggle handle

Operating Principles

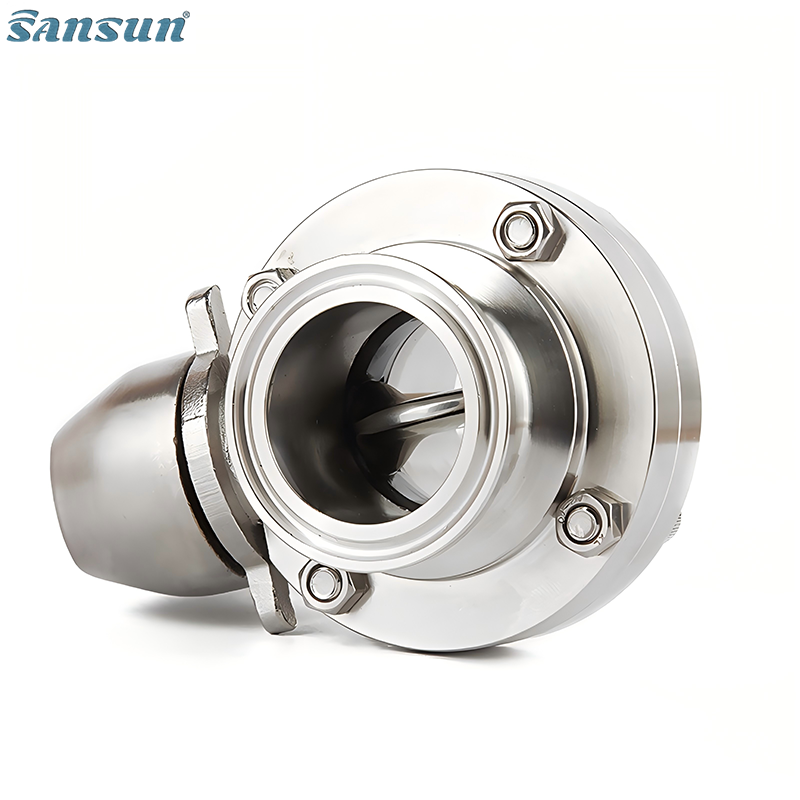

Sanitary Steel Good Quality Clamp Butterfly Valve

The Clamp butterfly valves can be operated automatically through actuator or manually with the handle.

The handle blocks the valve in the "open" or "closed"position, of course there are the other position available.

The actuator push piston of axial movement into 90 °，which controls butterfly valve.

The butterfly valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.

Technical Specifications

Max.pressure: 10 bar (DN-25/100);8 bar (DN-125/150)

Min.pressure: 0.2 bar p.abs

Operating temperature:-10℃ to +120℃ (EPDM)

Materials

Butterfly plate: AISI316L/304(forged)

Valve body: AISI316L/304(forged)

Handle: AISI304/PP

Surface finishing: Ra=0.8

Standard Design

Available in sizes from DN10 / 1/2" to DN200 / 8"

The size of multi-position handle uo to DN100 / 4"

The size of pull handle up to DN200 / 8"

Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A

Connection: weld, clamp, thread, single weld single thread, flange

Handle: two-position handle, three-position handle, four-position pulling handle,multi-position plastic triggle handle

and multi-position stainless steel triggle handle

Control: position sensor, C-TOP controller, C-TOP controller(AS-I)

Butterfly Valves Curve

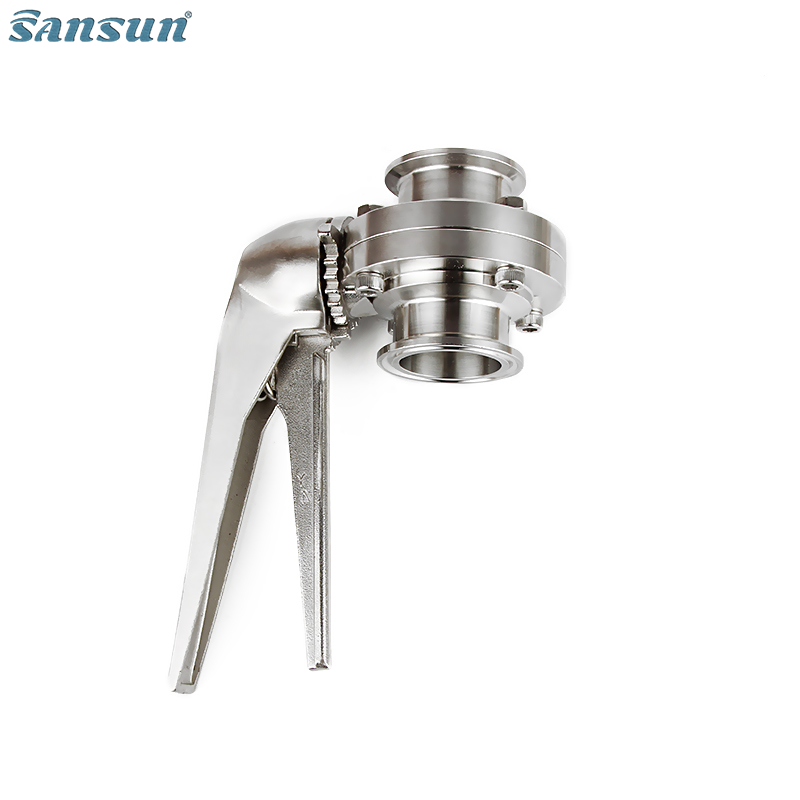

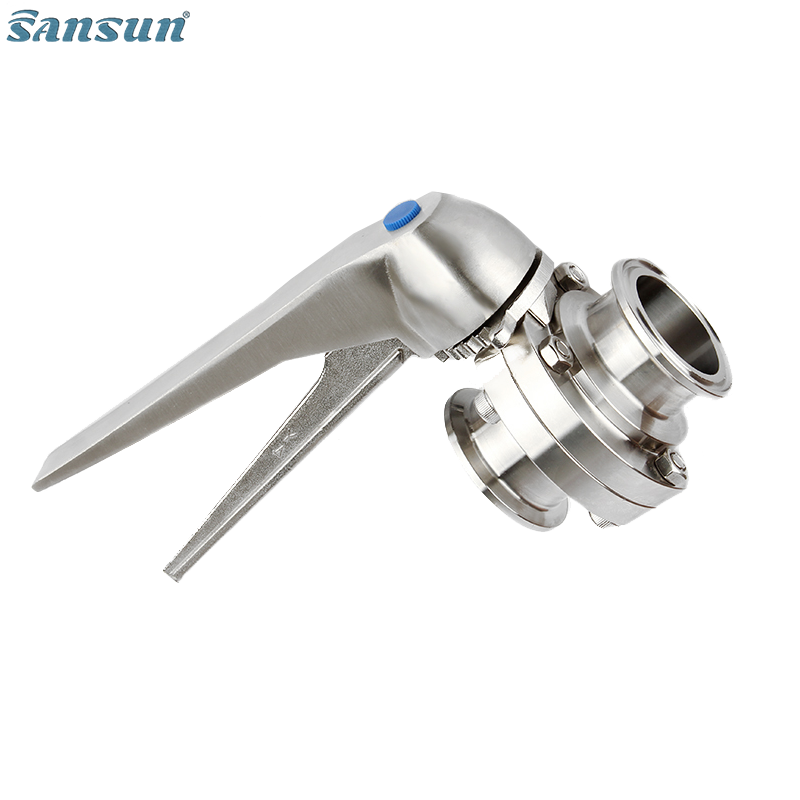

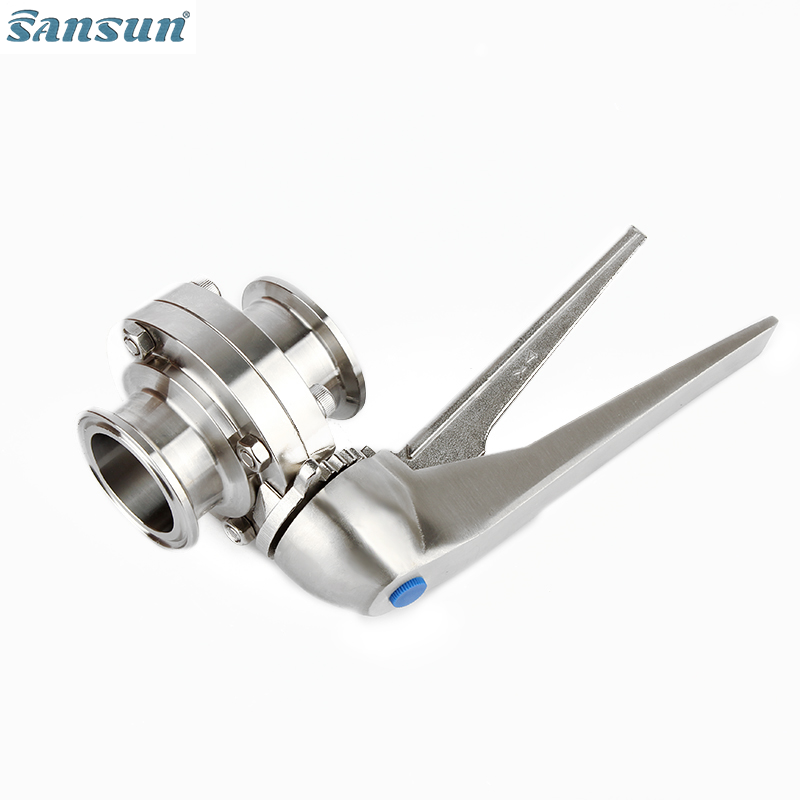

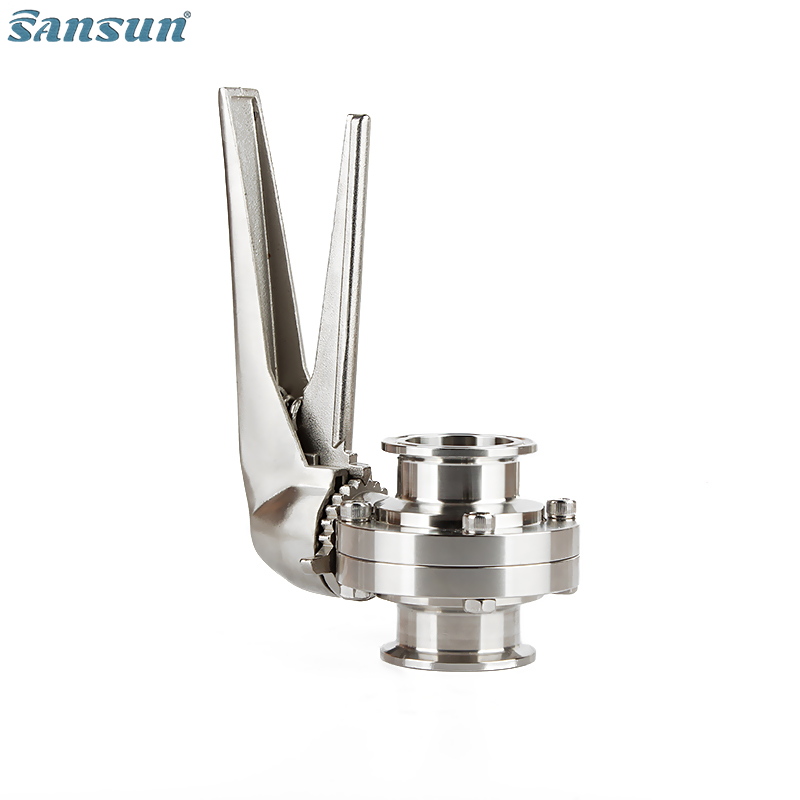

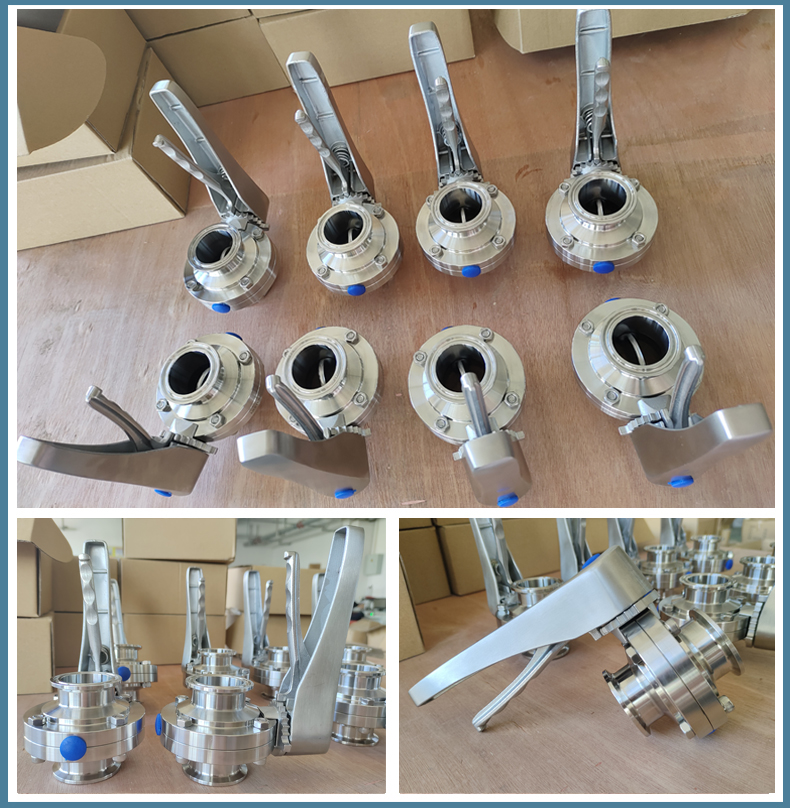

Butterfly Valve Handle Style
