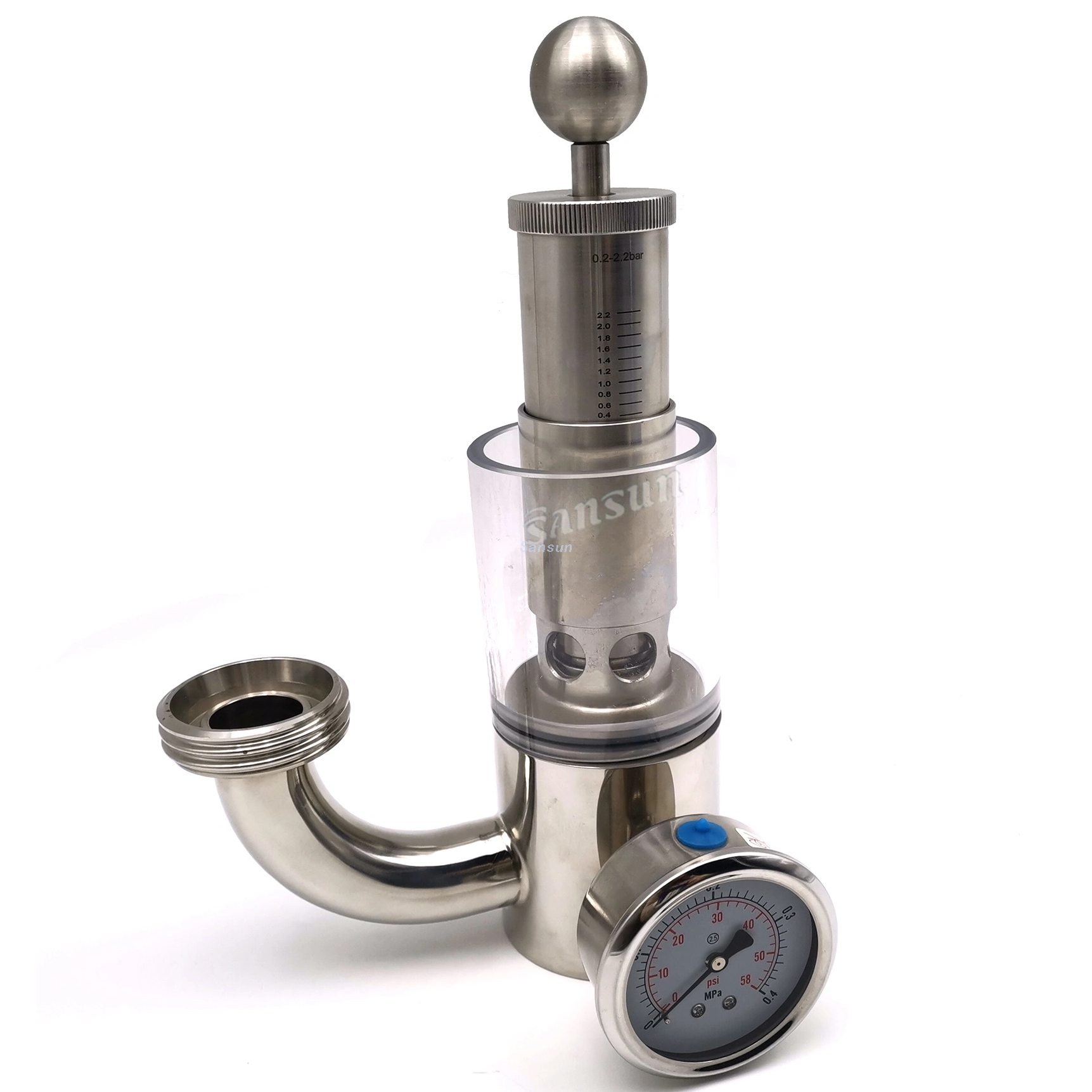

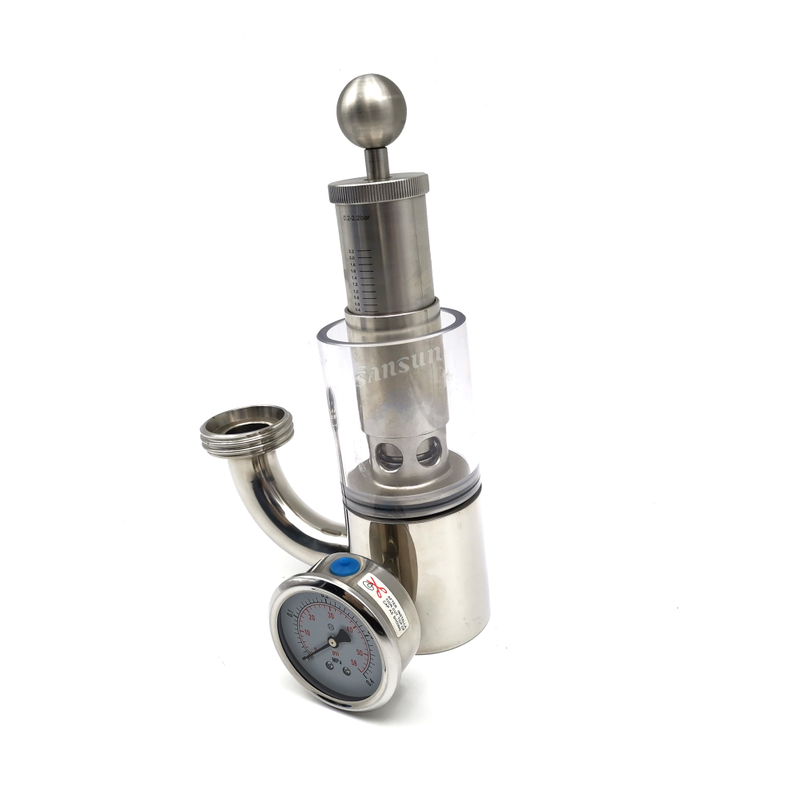

SS304 1.5 inch Tri-Clamp Pro Bunging Device Valve

The pressure relief valves with spring return are continuouslyadjustable.Exactly adjustable to the desired openingpressure, the valves are closed and opened verysensitively with low differential pressure.Pressure relief valves are available both in open design(freeblowing-off of CO₂,) and in closed design with pipeconnection. The closed design enables to collect theexcess CO₂.

Size:
1"
1.25"
1.5"
DN25
DN32
DN40
Material:
SS304
SS316L
Availability:
Quantity:
Inquire Add to Basket

  • SANSUN

Operating Principles

The male pressure relief valve with pressure gauge are adjustable, exactlyadjust to opening pressure,

the spunding valve is open and closed sensitively with small differ pressure.

Available in opendesign(free blowing-off of air) and closed design(collect theexcess air).

This valve with stainless steel materals,hygienicdesign,applied to all kinds of,food processing,drink,andpharmaceutical

and other industrial fields.

Technical Specification

Working Pressure: 14.5psi/ 1bar (standard), could be pre-set before production

Temperature range: medium

Materials

Body Materials: SS304 or SS316L

Gasket:EPDM,VITON according to FDA

O-Ring:EPDM,VITON according to FDA

Glass Cylinder : Organic Glass

Standard Design

  • Available in size: 1"-1.5" or DN25-DN40

  • Installation: supposed to be installed overhead tanks

  • Standard: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE

  • Connection: butt-welded, clamp, or other's upon request

Inspection

  • All kinds of non-standard products are customized according to the requirements of customers.

  • Products can be traced back to the manufacturing and time of each process to ensure the quality of products.

  • sansun-factory-workshop-china-manufactuer-laser-marking (2)

bunging pressure regulator 3drawing of spunding valve

1.Our Company


sansun-factory

Wenzhou Sansun stainless Co., Ltd. Was founded in 2013, Located in Wenzhou, China, is a professional manufacturer integrating design,production, sales and service.

Our products includes: Sanitary valve,Sanitary pipe fittings,Sanitary，pump,Tank accessories, etc.

All kinds of non-standard products are customized according to the requirements of customers.Products can be traced back to the manufacturing and time of each process to ensure the quality of products.




2.Factory Environment

CNC Center




3.Factory Strength


Factory Square Meter 3000 m3

Workshop Equipment

 10--Mazak CNC Machine
6--HEADMAN CNC Machine
1--of automatic CNC center

4--plain lathe

4--Press Machine

3--bending Machine

2--Cutting Machine

2-- Chamfering Machine

10--Polishing Machine

2--Laser marking Machine
Number of employees 105 Workers + 10 officers
Number of Engineers 3 designers +2 CAD drawers
Number of Inspectors

Raw Material (3)

Finish Product (5)
Testing Equipment

2--Pressure Testing Machine

1--Surface roughness device

2--Spectro Instrument Gun




4.Exhibition

1 (1)



5.Our Certifications

3-1

证书 - 副本4-2



pressure-relief-valve
