Pneumatic Butterfly Valve with Positioner

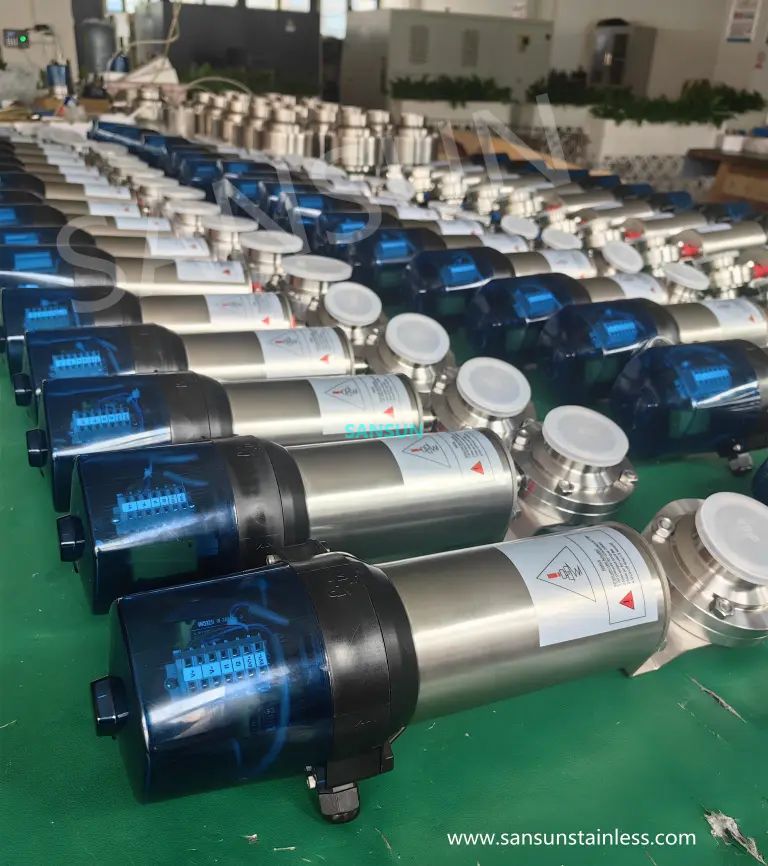

our Pneumatic Butterfly Valve with Positioner is ready for our customer

Regulating pneumatic butterfly valve can be applied in various fluid control systems, such as food and beverage, wine, pharmaceutical and other industries. The valve has feature of no dead ends, large flow, simple maintenance, small volume appearance.
◆ Support: DEVICE NET BUS
◆ Standard: Single-acting, double-acting (option)
◆ One-touch auto-tuning function
◆ Support for manual operation
◆ Power Supply: DC 24V ± 10%
◆ Analog Signals: 0/4-20mA, 0-5/ 10V
◆ Size: 1″-4″, DN25-DN100
◆ Material: 304 /316L
◆ Pressure: 10bar
◆ Temperature: 130 ℃
◆ Inner Surface Roughness: Ra0.4μm (option)
◆ Connection: weld, clamp, thread, flange and other standards

Pneumatic Butterfly Valve+C-TOP /Regulation type pneumatic butterfly valve /

Pneumatic Butterfly Valve both manual and automatic operation, can be used in industrial applications in fluid products, such as food processing, pharmaceutical and chemical industries.
Size: DN10-DN300, 1/2″-12″
Temperature: 130 ℃
Pressure: 10bar
Material: ASTM T304 / T316L, 1.4301 / 1.4404
Connection: Thread, Flange, Weld, Clamp
Operation Standard: DIN SMS RJT 3A ISO IDF
Pneumatic operation: Single acting, Double acting, Three action
Certificate: PED / 97/23 / EC, health wading license

More information, http://www.sansunstainless.com sansun@sansunstainless.com
