SANSUN
Operating Principles

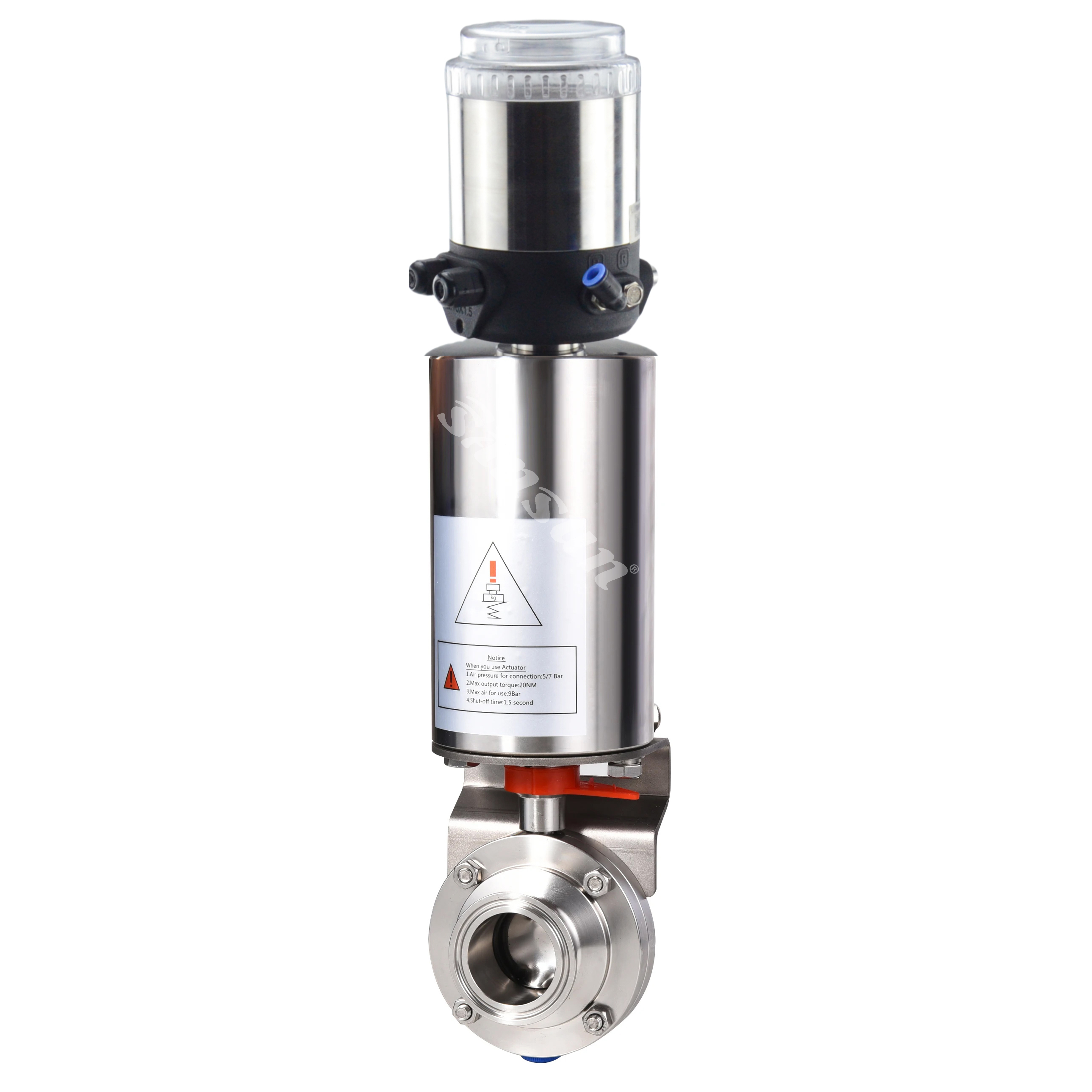

Pneumatic butterfly valve+C-TOP can be applied to a variety of fluid control systems, such as food and beverage, wine, pharmaceutical and other industries.
The valve has feature of no dead ends, simple maintenance, small volume appearance.

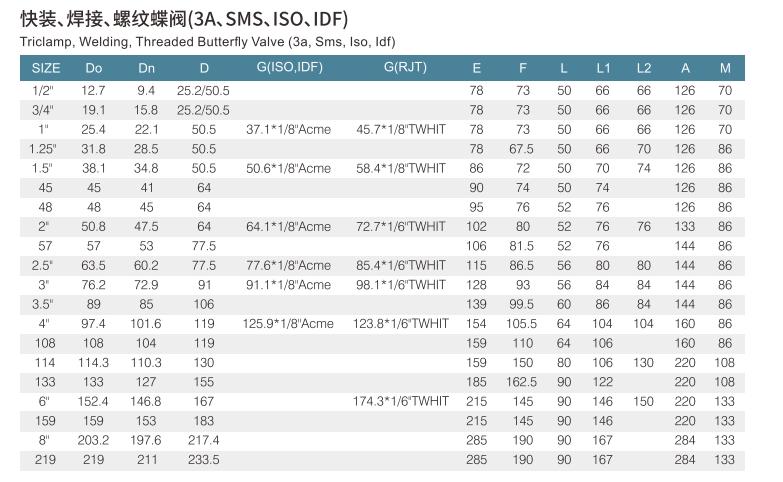

Technical Specifications
Max.pressure: 10 bar (DN-25/100);8 bar (DN-125/150)
Pressure: 10bar
Temperature: EPDM-20℃ to 130℃（depend on seal material ）
Materials
Butterfly plate: AISI316L/304(forged)
Valve body: AISI316L/304(forged)
Surface finishing: Ra=0.8
Standard Design
Available in sizes from 1/2" to 8"
Power supply: DC 24V ± 10%
Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A
Connection: Weld, Clamp, Thread, Flange and Other standards
Actuator: pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator
Single-acting (standard), Double acting (option)
One-touch auto-tuning function valve position
Support for manual operation
Control: position sensor, C-TOP controller, C-TOP controller(AS-I)
Butterfly Valves Curve

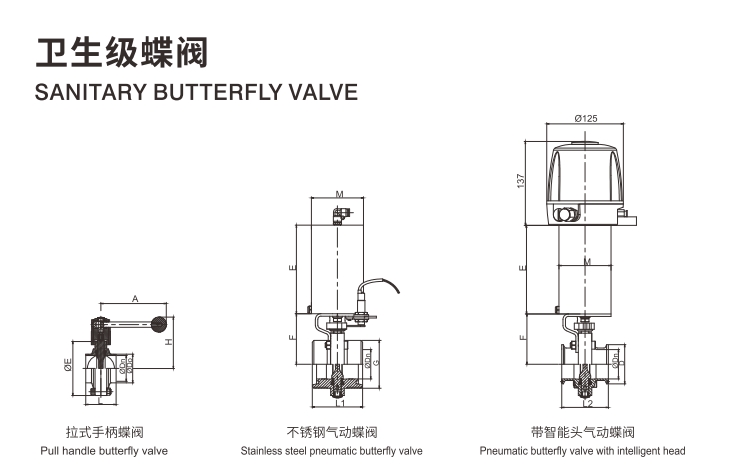

Different Drive Way of Pneumatic Butterfly Valve
Exploded view of Intelligent pneumatic butterfly valve
Inspection
All kinds of non-standard products are customized according to the requirements of customers.
Products can be traced back to the manufacturing and time of each process to ensure the quality of products.

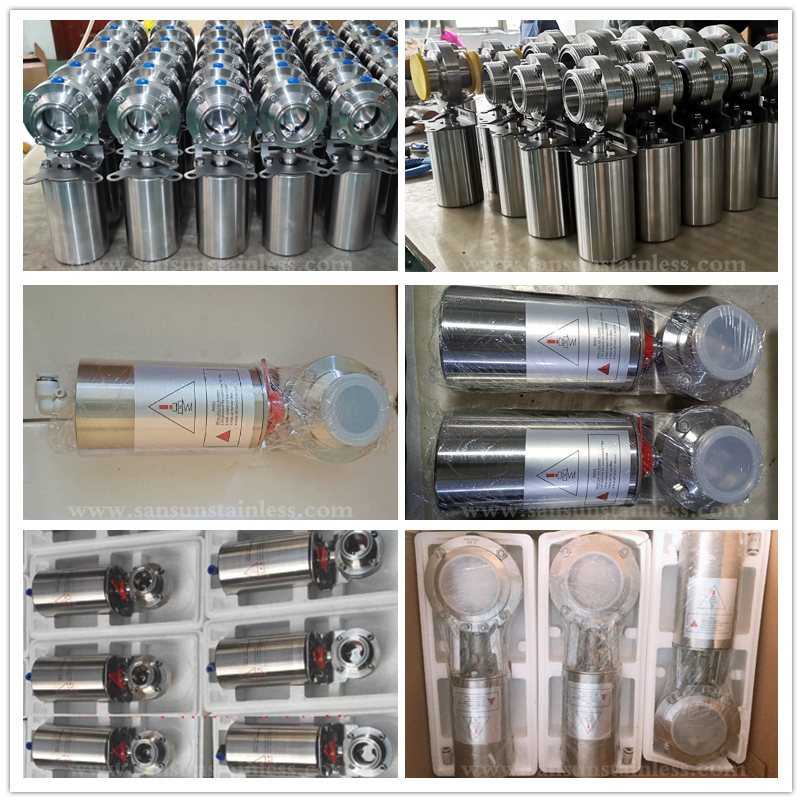

Package
