SANSUN
SV1095
Operating Principles

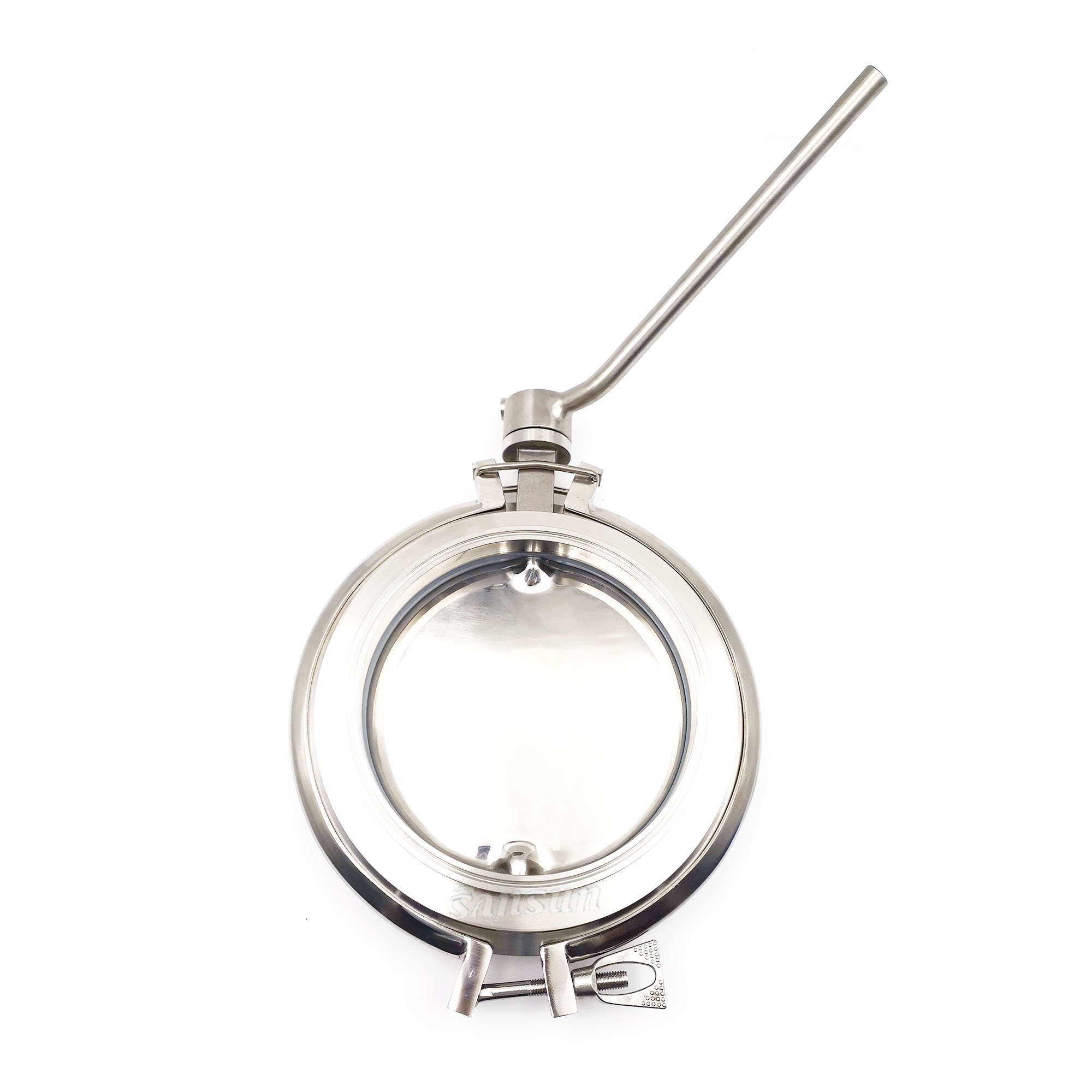

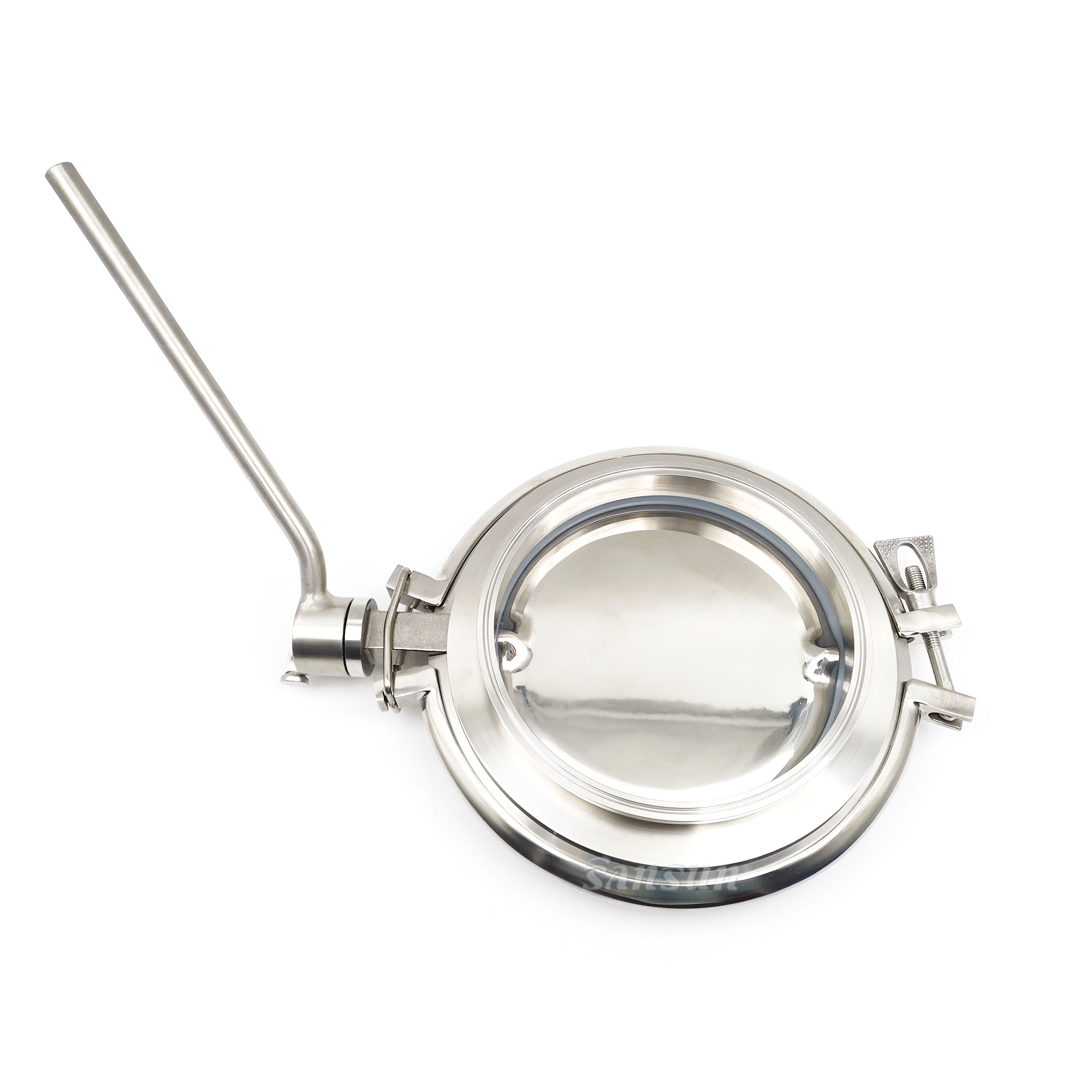

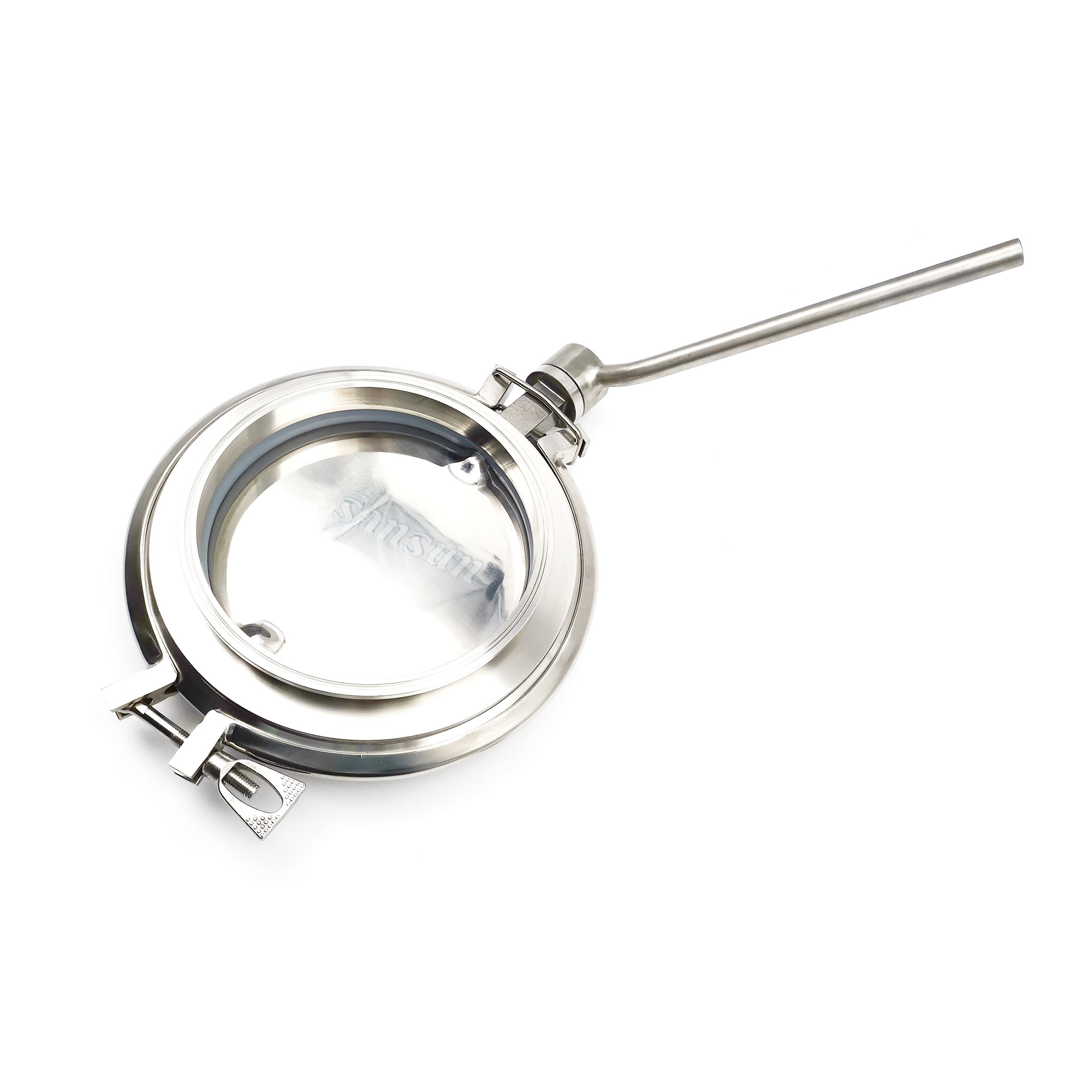

Pharma Hygienic Stainless Steel Powder Butterfly Valve
Powder butterfly valves are mainly designed for container equipment systems such as powders, granules and capsules.
The butterfly valve has the characteristics that standardbutterfly valve does not have, such as ultra-small torque,seal open/close
does not produce excessive friction, longlife, No seal powder shedding, ultra-short valve body andadjustable pressure.
The valve does not require professional tools for disassembly, maintenance, cleaning, safe, reliable, low cost and easy to operate.
And it can be interchanged by manual, pneumatic or electric means.
Technical Specifications
Max.pressure: 10 bar (DN-25/100);8 bar (DN-125/150)
Min.pressure: 0.2 bar p.abs
Operating temperature:-10℃ to +130℃ (EPDM)
Materials
Butterfly plate: AISI316L/304(forged)
Valve body: AISI316L/304(forged)
Handle: AISI304/PP
Surface treatment: Ra 0.6 μm (recommended); Ra 0.4 μm (selection)
Standard Design
Available in sizes from 4" to 10",DN100 to DN300
Seal: White silicon (recommended) Gray FKM(selection)
Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A
Connection method: clamp, weld, flange, bottom flange
Execution mode: manual, pneumatic, electricinterchangeable
External surface: matte (recommended) bright blasting electropolishing
Applicable: vacuum, high temperature 130 ° C,CIPcleaning, SIP sterilization, etc.
Butterfly Valves Curve
Butterfly Valve Handle Style
Exploded view of Butterfly Valve with Pulling Handle
Inspection
All kinds of non-standard products are customized according to the requirements of customers.
Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
