SANSUN
NO.50061
Characteristic:

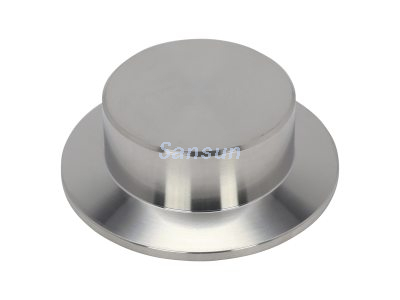

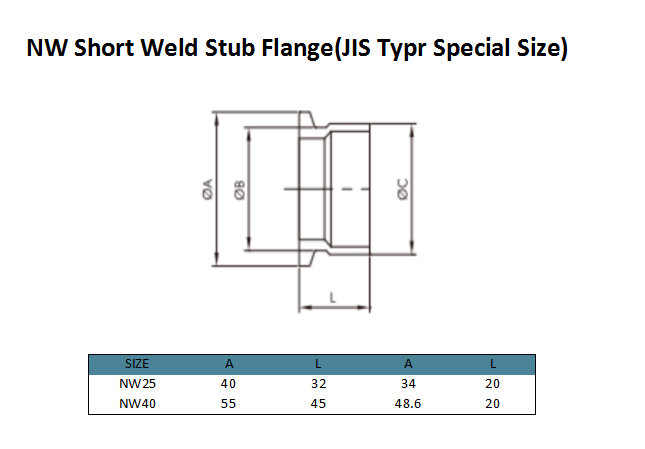

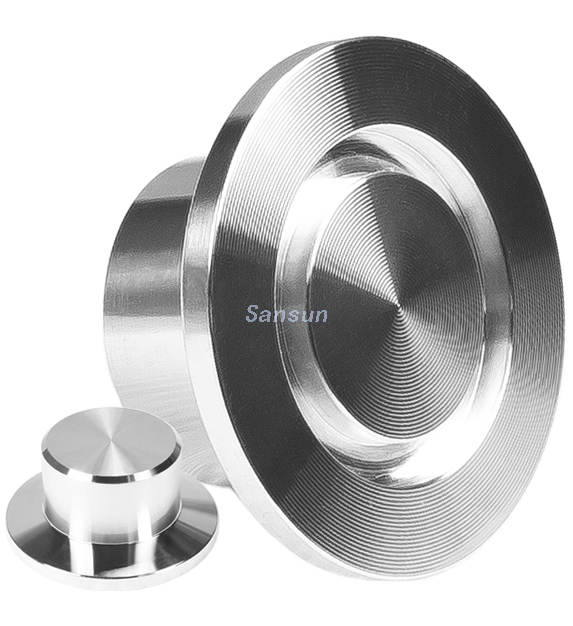

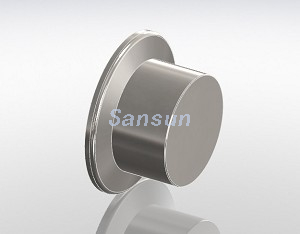

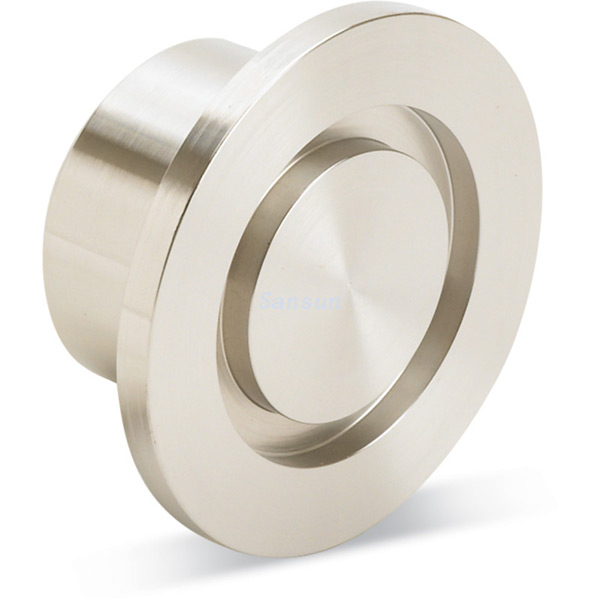

NW Short Weld Stub Flange Vacuum fittings (JIS Typr Special Size)
*Easy Assembly and Quick Disassembly manually without tools-KF or NW assembly
comprises two flanges, a center-ring, an O-ring and an aluminum clamp or stainless steel clamp with a wingnut
fastener for quick and fast connection.
*Uniform Pressure to Effect Vacuum Seal Connection-15° taper surface of KF/NW flange allows uniform pressure
to compress an O-ring, which is held in place by metal center-ring, by the clamp to generate a vacuum seal.
Description
The ISO-KF system is a modular, building block method of creating a piping system. There are several advantages in the use of ISO components.
Since component dimensions are standardized, elbows, tees, crosses or valves for a given size may be interchanged.
The flanges are "sexless" and the seal is symmetrical, so that the components are rotatable.
Materials and Size
*Clamps: SS304
*O-ring :Viton
*Sizes: KF10~KF1 60, JIS Standard: NW 10~NW100
1.Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
