SANSUN
Operating Principles

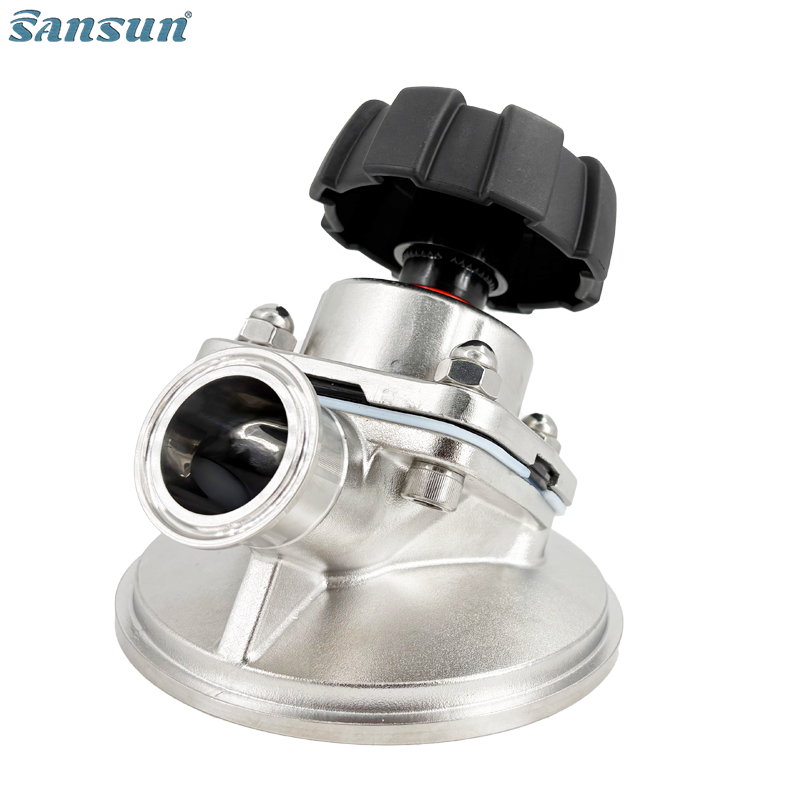

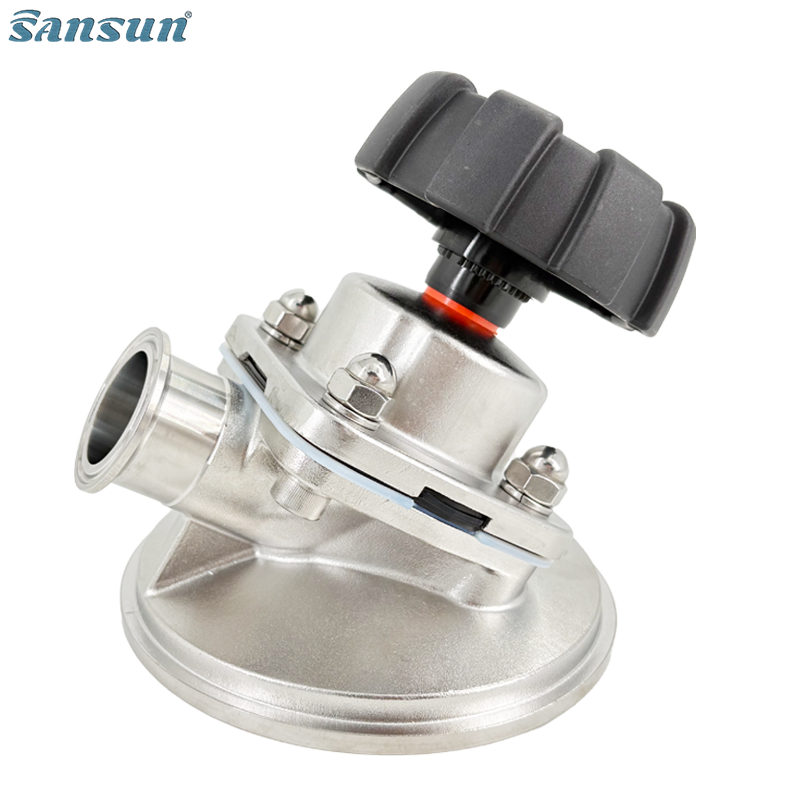

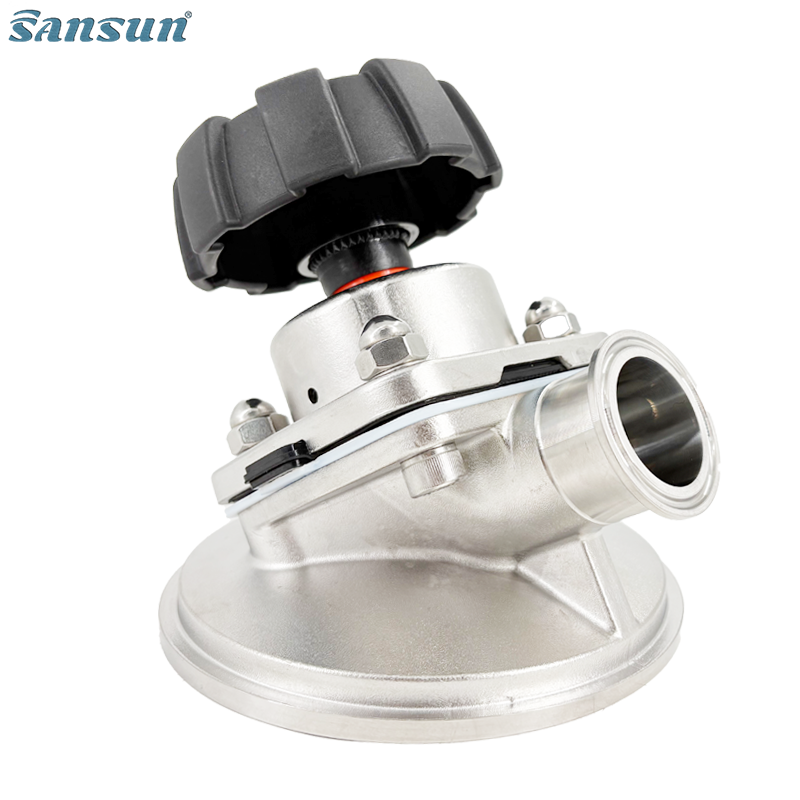

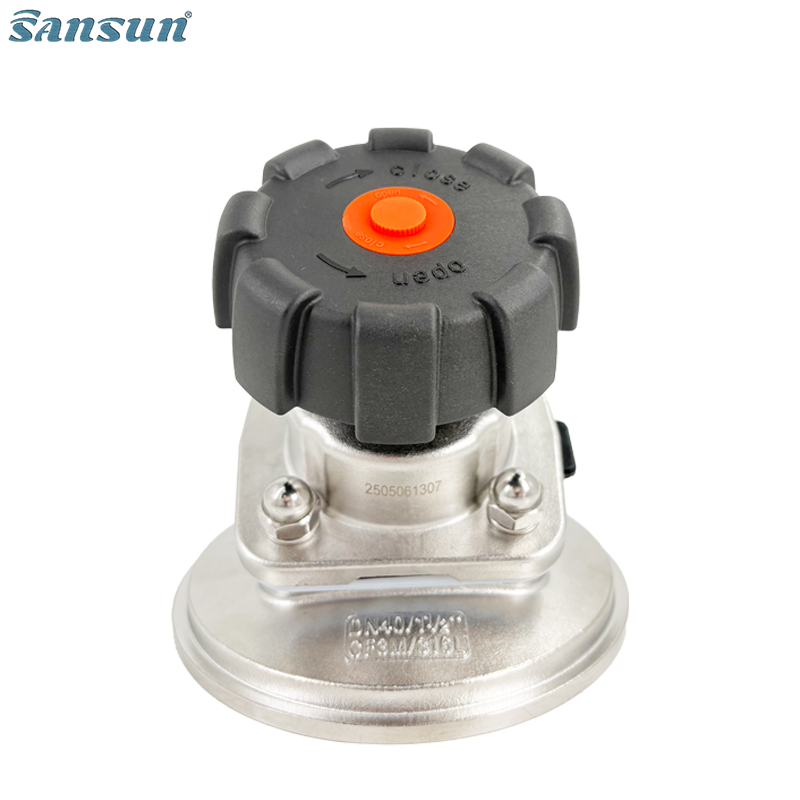

Manual tank bottom diaphragm valve is specially used for discharging medium from tanks,and no resort at the chamber.
Theyare generally installed at the bottom of tanks to playthe role of sampling and drainage.
They can also beintegrated for SlP/ClP The tank bottom valve isevolved on the basis of the diaphragm valve.
ltssealing weir is as close as possible to the tank wallto avoid dead corners at the bottom of the tank.
Tank bottomvalves are mainlyused in thepharmaceutical, food and beverage industries.
Technical Specifications
Max.pressure: 145psi (10bar)
Operating temperature:-40℃ to +130℃ (EPDM)
-40℃ to +150℃ (EPDM+PTFE)
Materials
Valve body: AISI316L
Diaphragm: EPDM+PTFE or EPDM

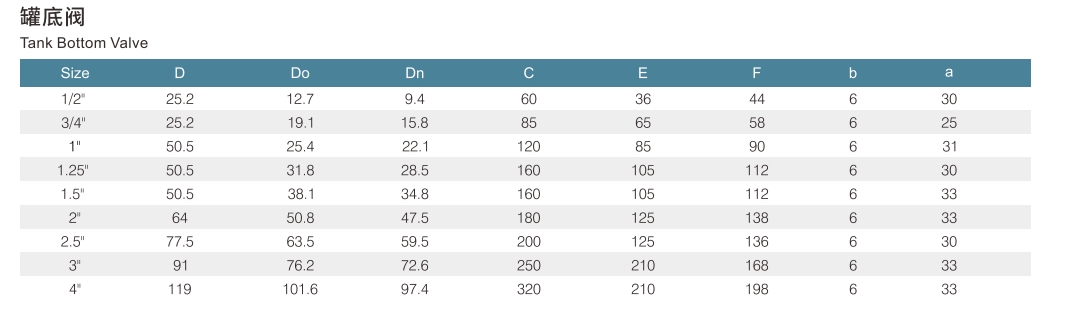

Standard Design
Available in sizes from :1"-4", DN25-DN100
Standard Avaliable: Weld, Clamp, Thread, 3A BPE DIN SMS IDF ISO
Connection: weld, clamp, or others upon request
The Diaphragm of Diaphragm Valve

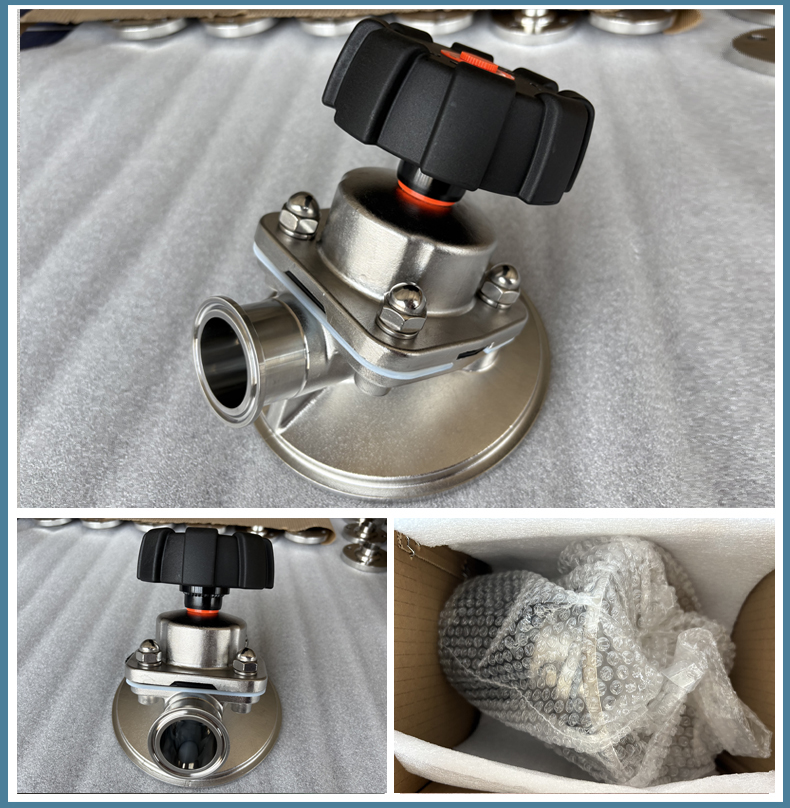

Package
