SANSUN
SV5003

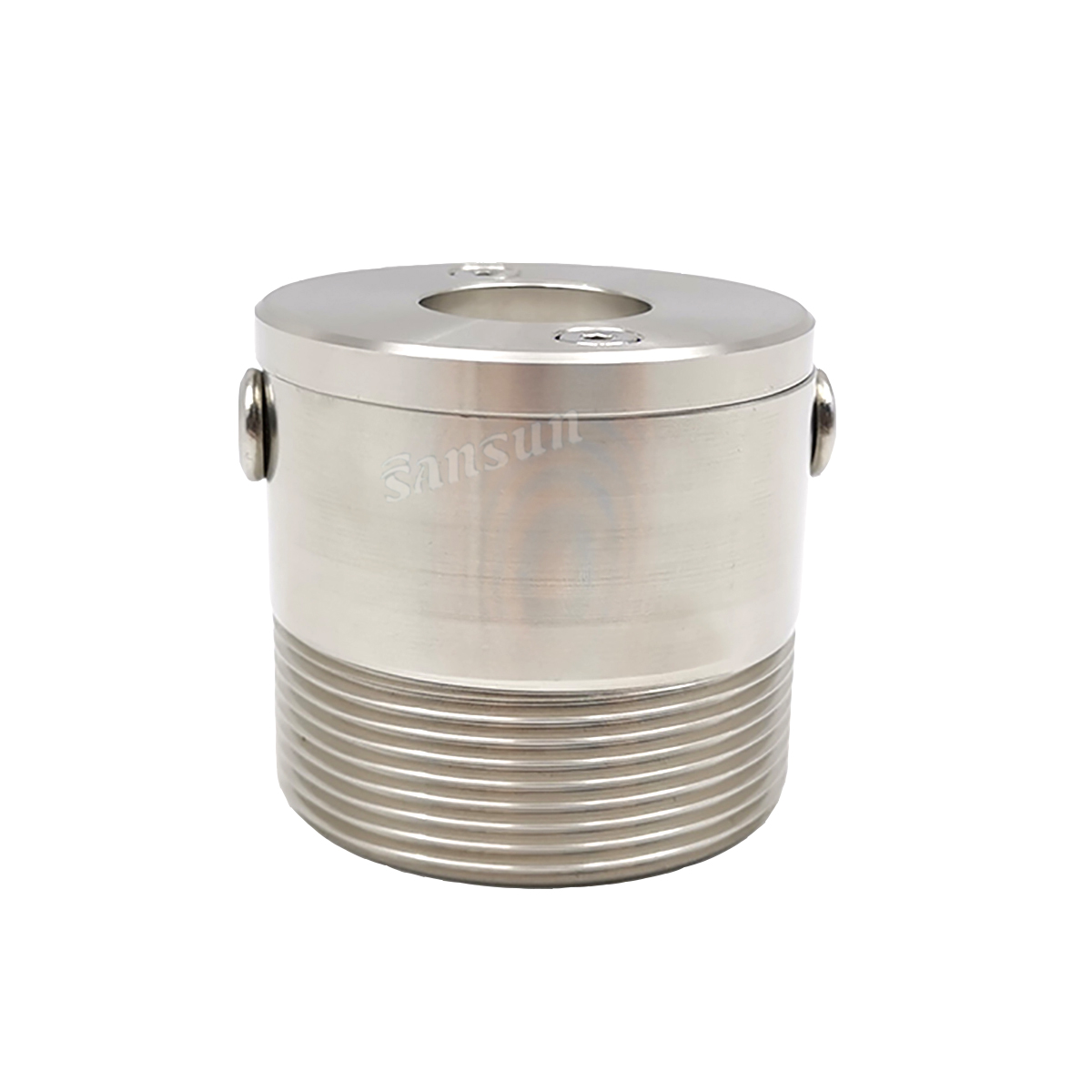

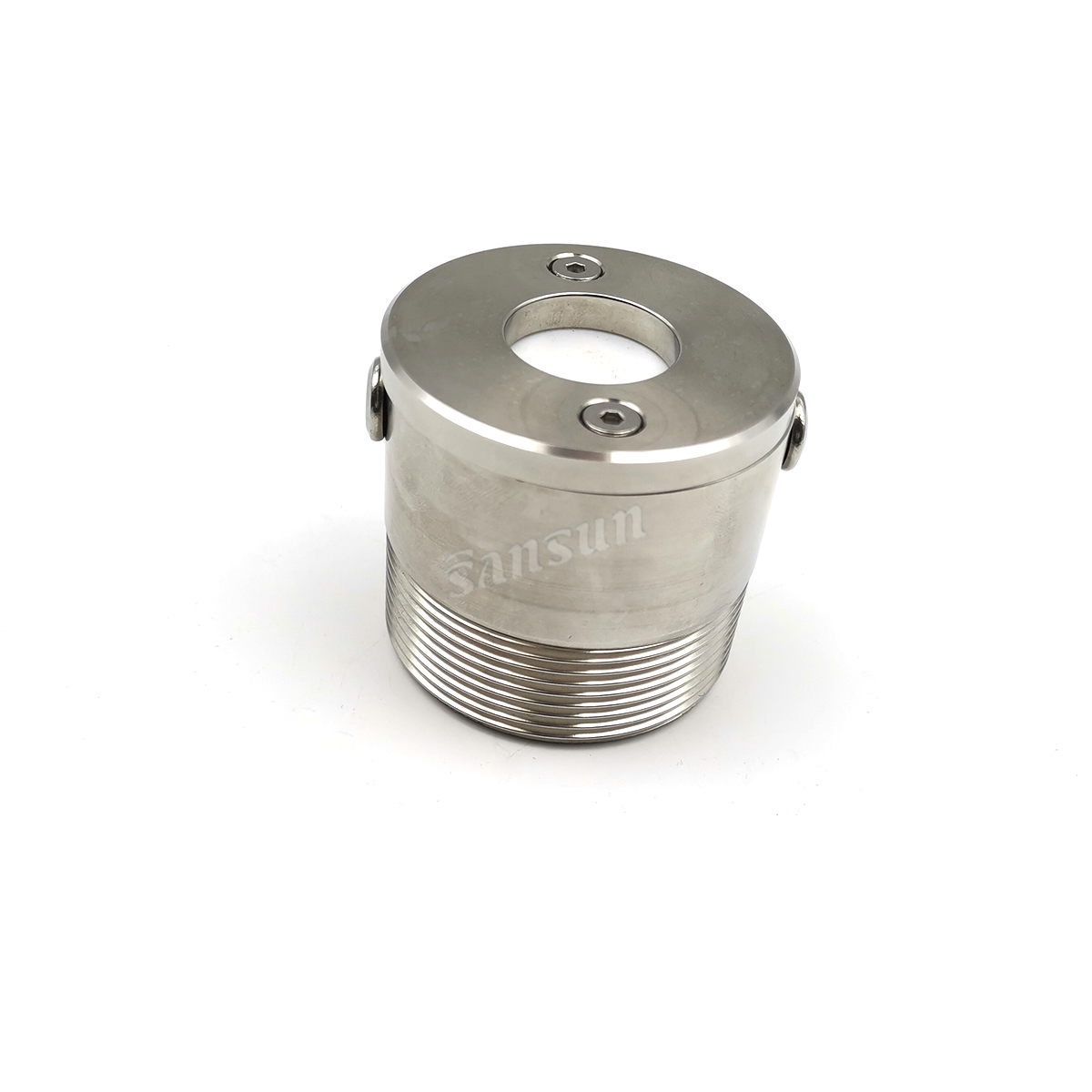

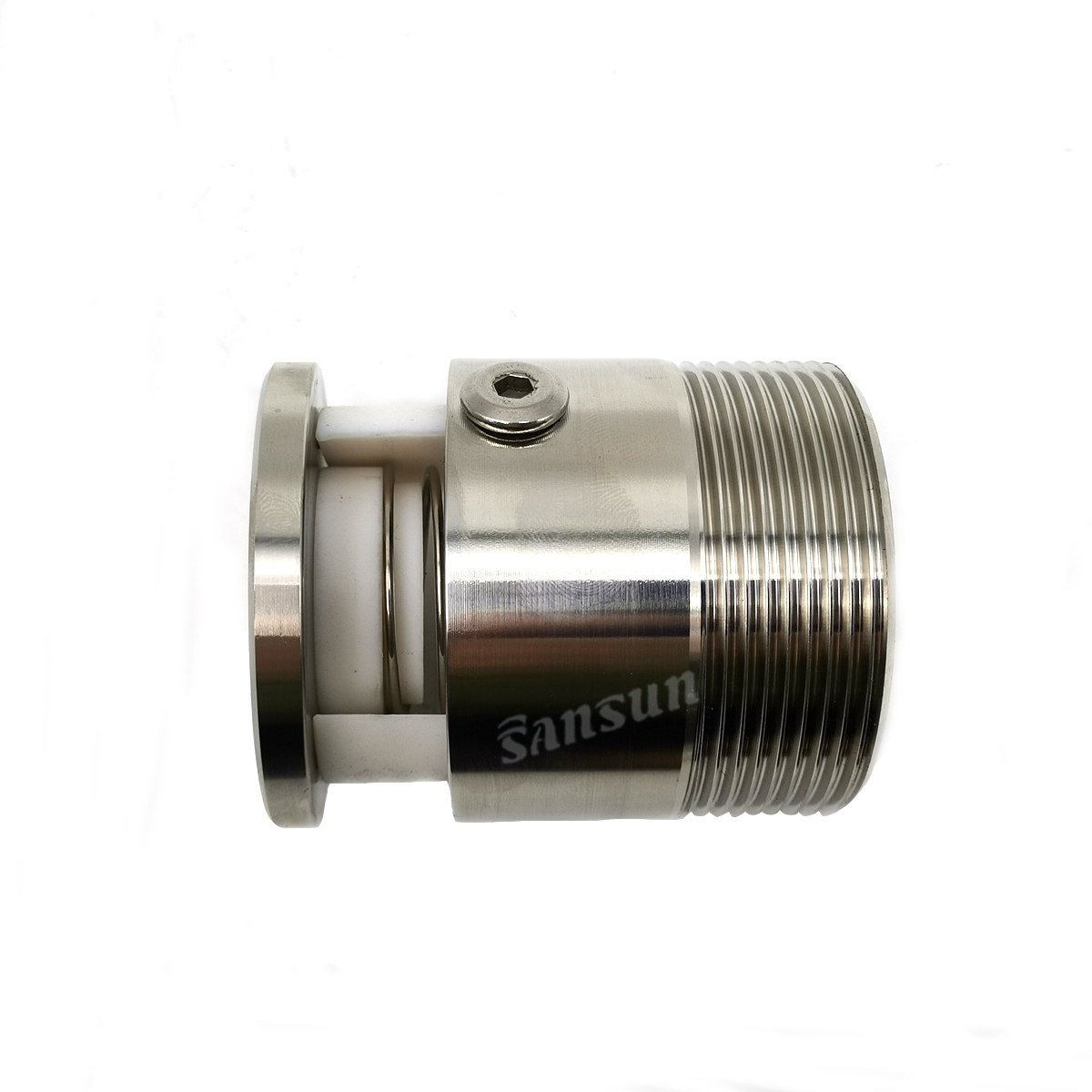

The pressure-vacuum valve is designed to breathe in while the tank is being emptied to equal the pressure inside
and outside the tank and protect the tank from vacuum. When the tank is being filled, the valve allows air to come out,
thus avoiding excess pressure inside the tank which would cause the tank to swell.
Technical Specification
Working Pressure: 14.5psi/ 1bar (standard), could be pre-set before production
Temperature range: medium
Body Materials: SS304 or SS316L
Gasket:EPDM,VITON according to FDA
O-Ring:EPDM,VITON according to FDA
Standard Design
Available sizes: 2″ y 2 ½".
Installation: supposed to be installed overhead tanks
Easy disassembly.
Compact design.
BSP or NPT connections.
Inspection
All kinds of non-standard products are customized according to the requirements of customers.
Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
