| Size | 1''-4''(DN25-DN200) |
| Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | EPDM |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Availably standard: | DIN/3A |
| Connection type | Clamp End,Thread End,Weld End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

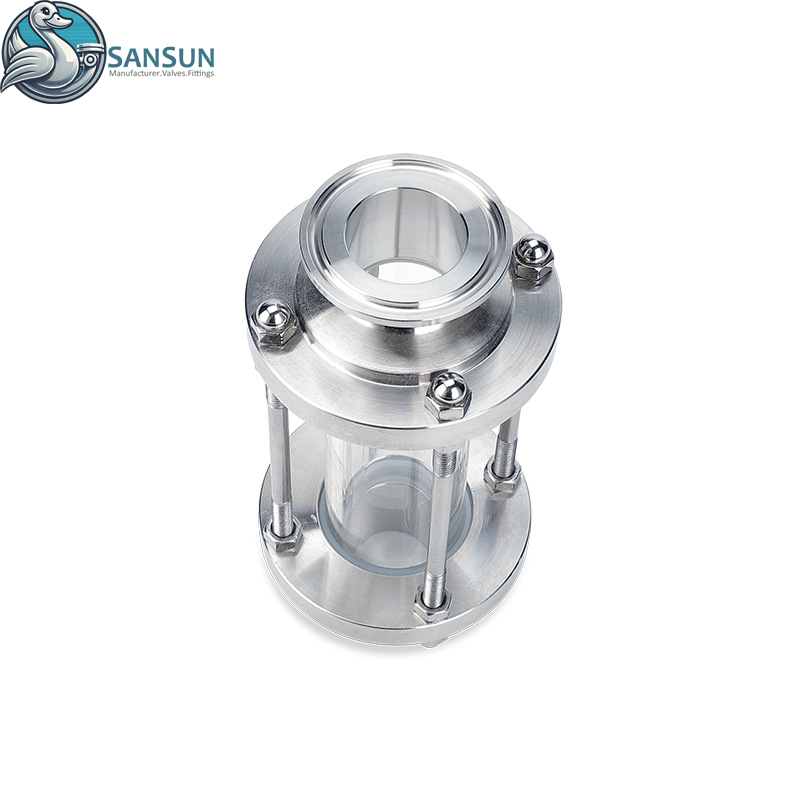

| Application scope: | SANSUN's hygienic stainless steel tri clamp inline straight sight glass made of AISI304 AISI316L specially designed for ai data center liquid cooling cdu coolant distribution unit and closed loop cooling pipeline it supports real time coolant flow observation corrosion resistant easy to install and maintain compliant with OCP specification also suitable for food beverage pharmaceutical fluid monitoring |
