| Size | 1/2''-8''(DN10-DN200) |
| Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | EPDM, Silicone, PTFE, |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Operation: | pneumatic actuator+ ControlTOP |
| Pipe Joint Systems: | DIN/3A /SMS |
| Connection type | Tri-Clamp End, Butt Weld End |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |

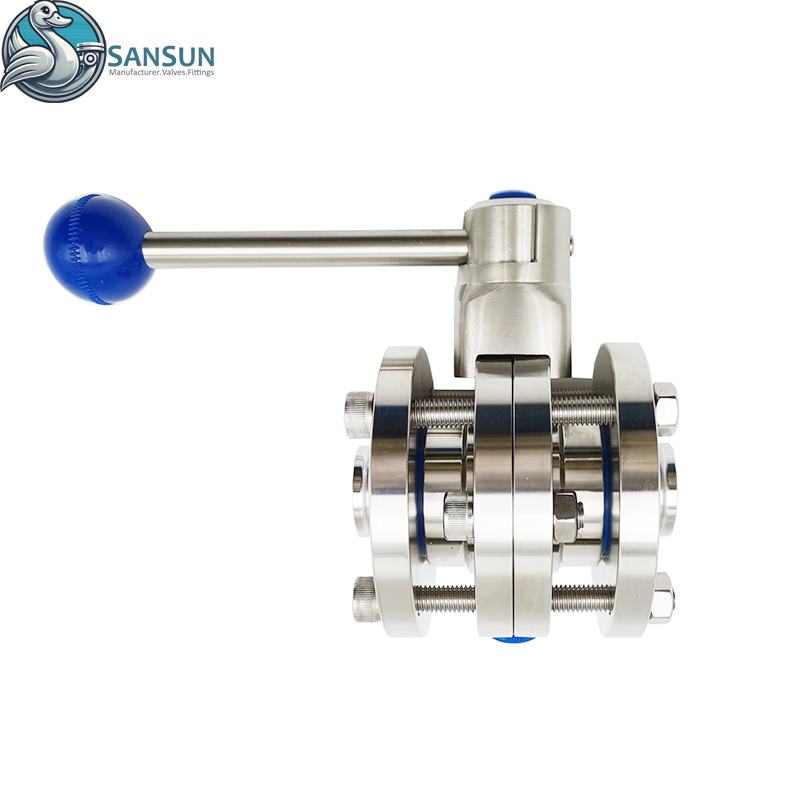

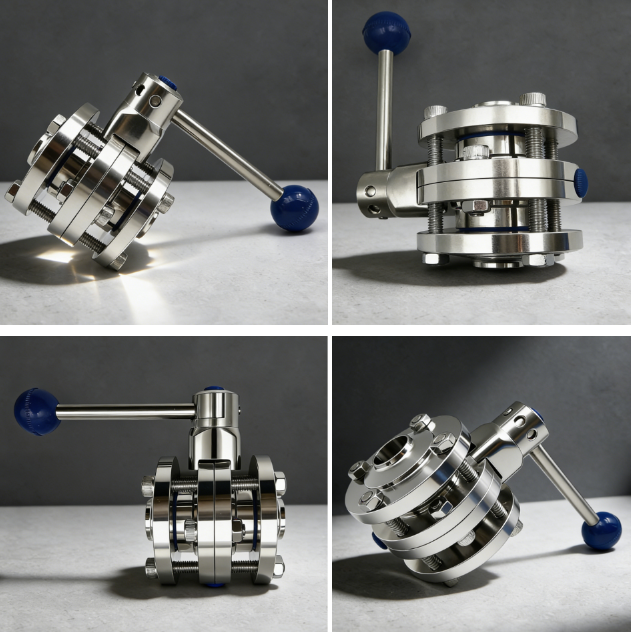

| Application scope: | SANSUN's hygienic three piece manual butterfly valve fits data center liquid cooling projects Ideal for CDU closed loop cooling circuits rack manifold pipelines with glycol and treated cooling water. It realizes isolation shut off and flow regulation allowing partial branch maintenance without system shutdown. Also suitable for food beverage pharmaceutical and cosmetic hygienic pipelines AISI304 AISI316L stainless steel body delivers good corrosion resistance for continuous operation. |
