SANSUN
Operating Principles

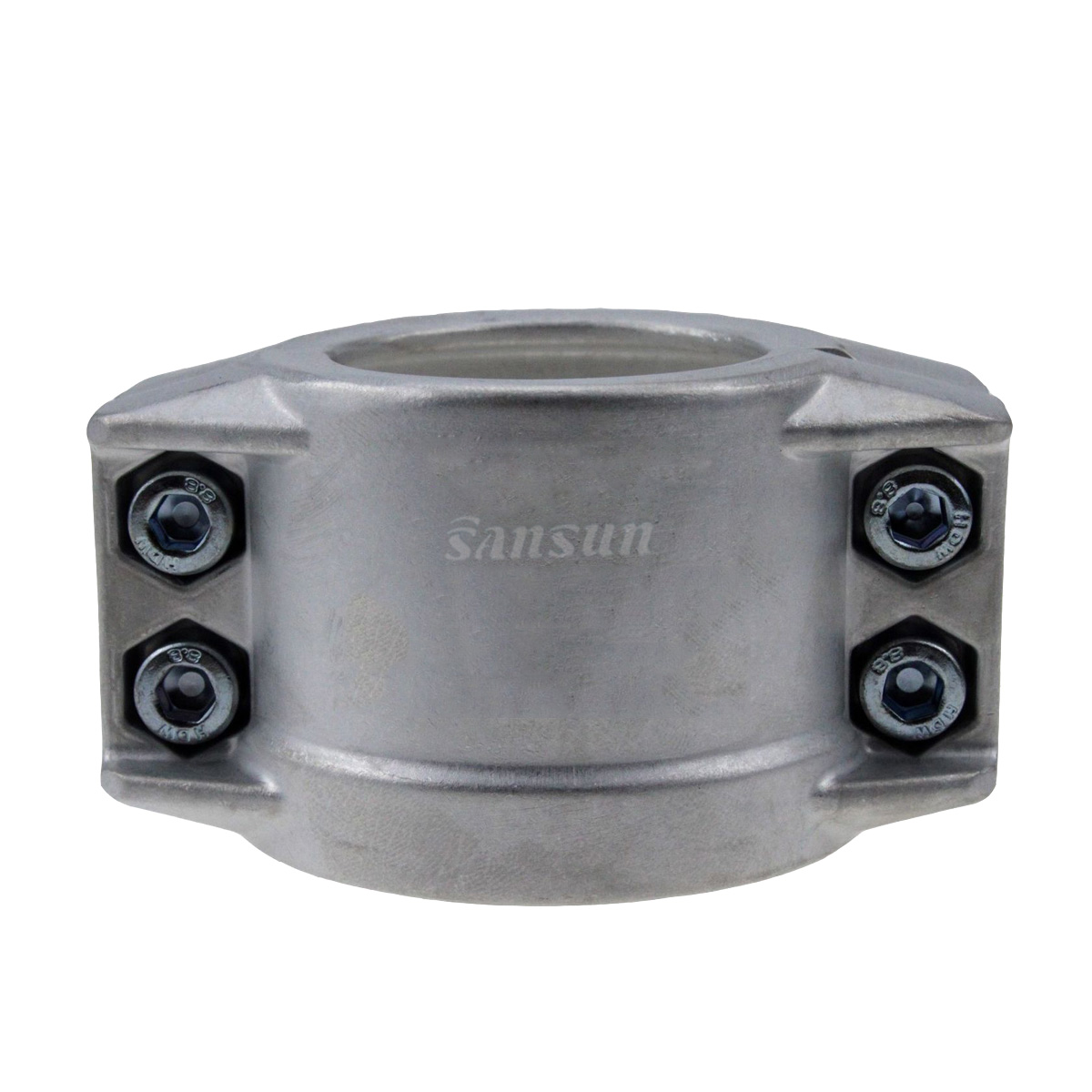

The safety clamp is made from 304 stainless steel alloy (Also available in 316).
It is used to join two separate tri-clamp ends to one another.
A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection.
Do not over tighten wing-nut as this may damage the product.
The recommended amount of tension is to tighten the wing-nut until it becomes snug,
then perform one more half twist for the proper amount.
Materials
Materials: AISI-304 or AISI-316L

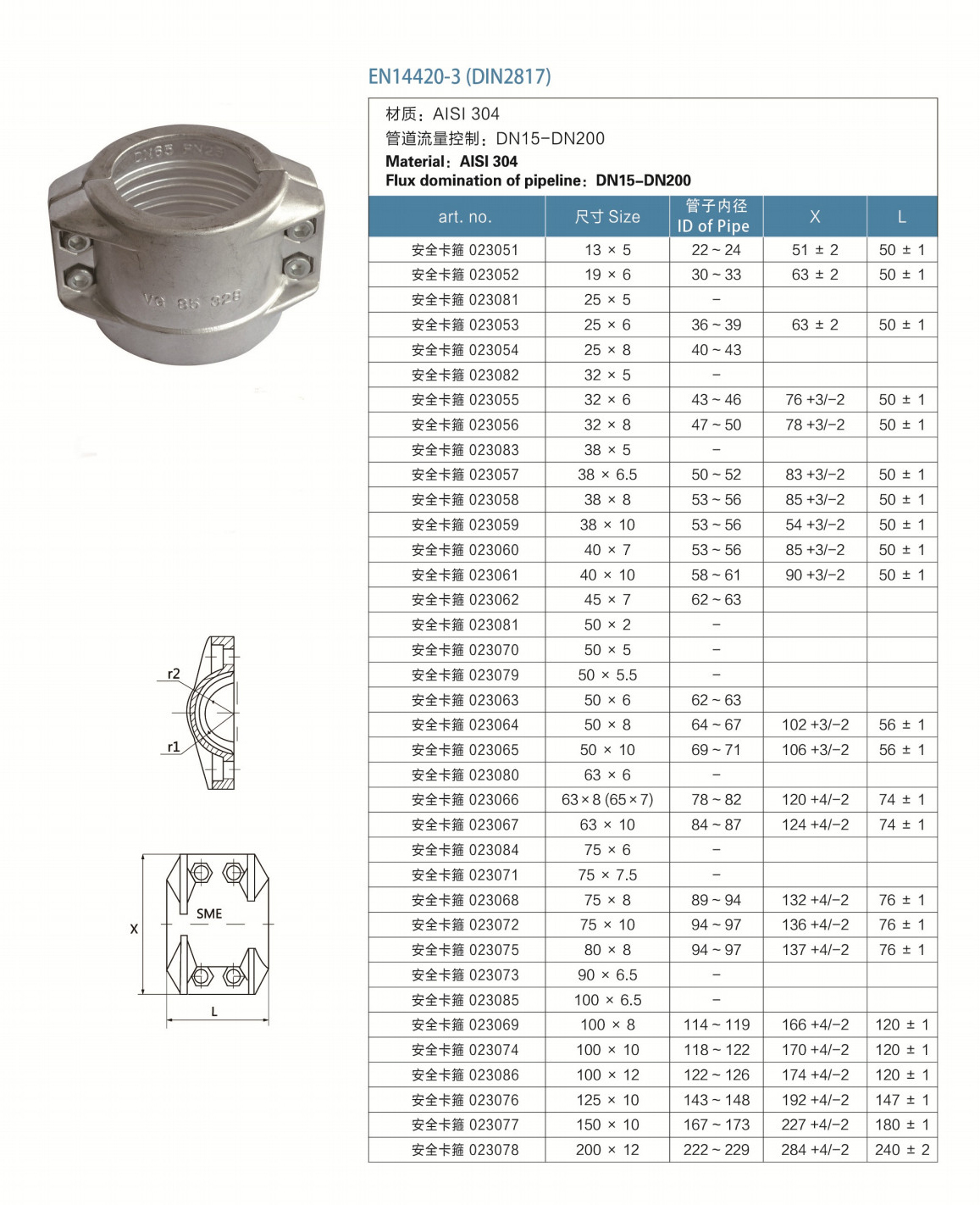

Standard Design
Available sizes:DN15-DN200
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp
Clamp Nut
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
Operating Principles
The safety clamp is made from 304 stainless steel alloy (Also available in 316).
It is used to join two separate tri-clamp ends to one another.
A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection.
Do not over tighten wing-nut as this may damage the product.
The recommended amount of tension is to tighten the wing-nut until it becomes snug,
then perform one more half twist for the proper amount.
Materials
Materials: AISI-304 or AISI-316L
Standard Design
Available sizes:DN15-DN200
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp
Clamp Nut
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
