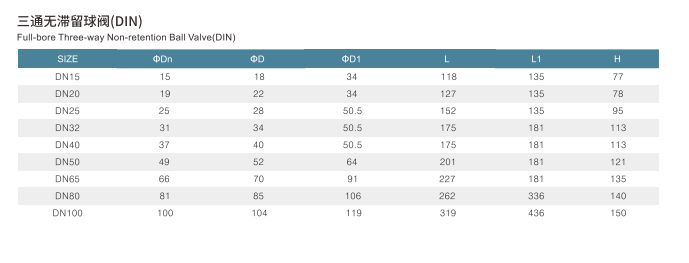

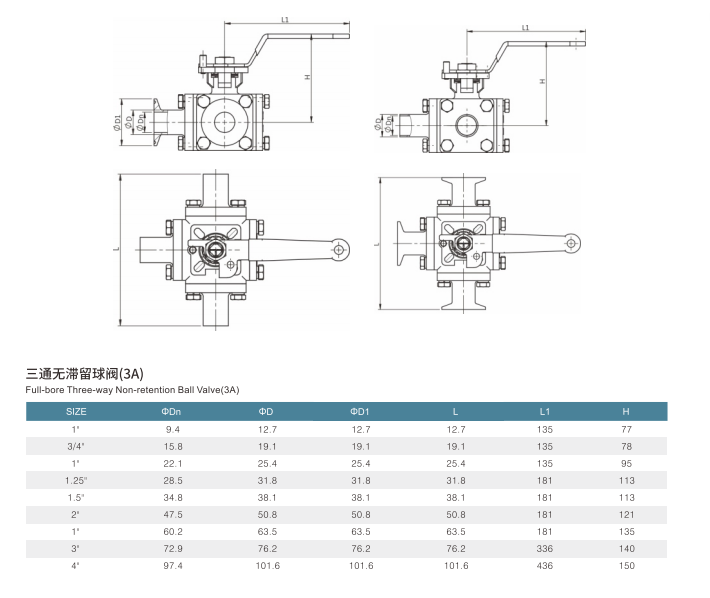

| Size | 1"-4" (DN10-DN100) |
| Valve Body Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Vale Disc Material: | AISI304/AISI316L ,1.4404/1.4301 (Forged) |
| Seal Material: | PTFE |
| Surface Finishing： | Ra < 0.4-0.8 µm (32 µin) |
| Max Working Pressure: | 145psi (10bar) |
| Helium Leak Test: | <1 × 10⁻⁹ mbar・l/s |
| Cleanliness: | Passivation treatment, Conforms to ASTM A380 standard |
| Availably standard: | DIN/3A |
| Ball Core： | L Port、T Port |
| Connection type | Weld End、Clamp End、Thread End |
| Pneumatic Operation | Sensor,Pneuamtic actuator(single acting,double acting),electric actuato,C-TOP, C-top controller(AS-1） |
| Certification | US 3-A, FDA, CE PED/2014/68/EC, Certification |
| Application scope: | Widely applicable to food, dairy, beverage, pharmaceutical and fine chemical industries. Ideal for hygienic pipelines to realize fluid diversion, mixing and safe on-off control. |
