SANSUN
Operating Principles

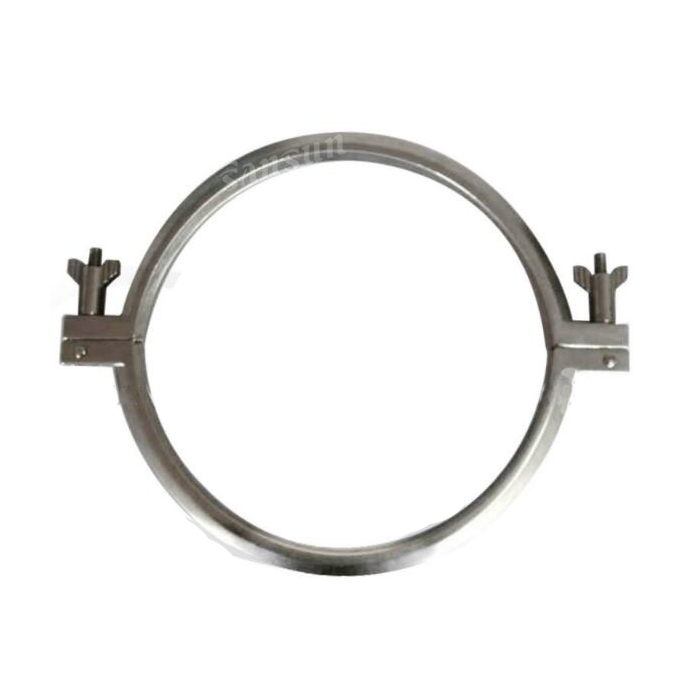

The clamp is made from 304 stainless steel alloy (Also available in 316).
It is used to join two separate tri-clamp ends to one another.
Sizes on this product range from 1 inch all the way up to 12 inches in diameter.
A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection.
Do not over tighten wing-nut as this may damage the product.
The recommended amount of tension is to tighten the wing-nut until it becomes snug,
then perform one more half twist for the proper amount.
Materials
Materials: AISI-304 or AISI-316L

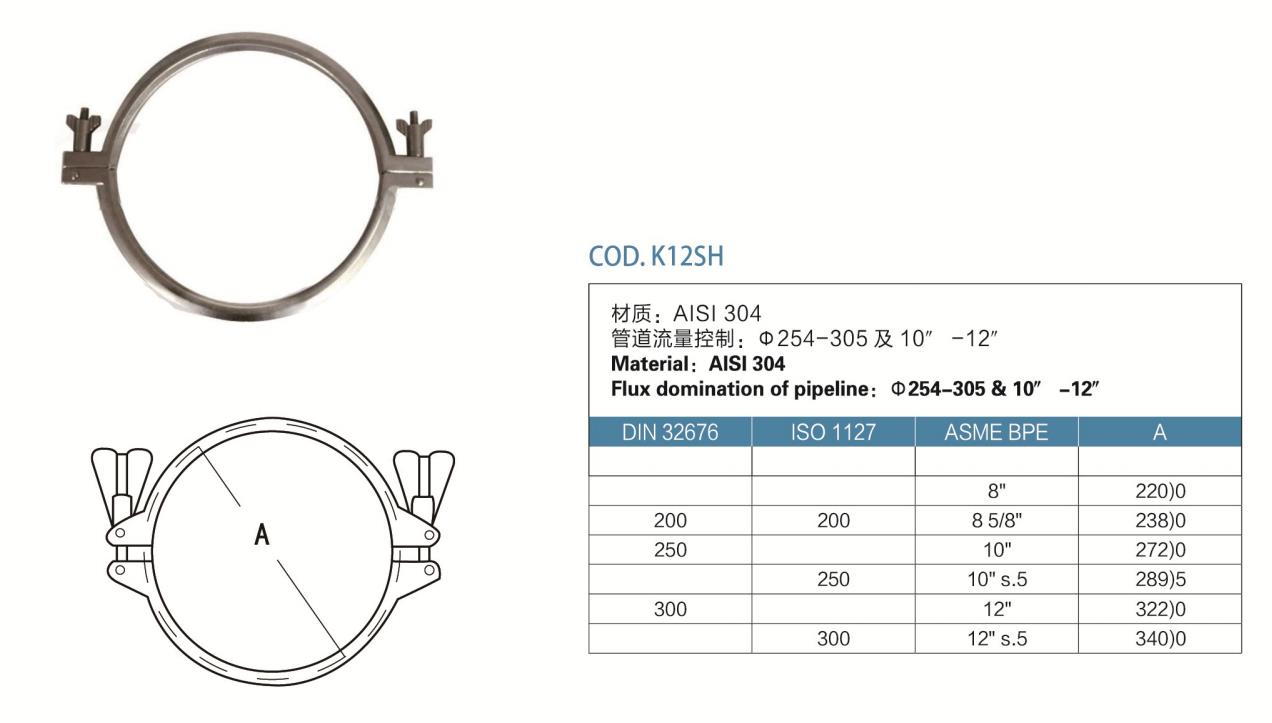

Standard Design
Available sizes: 8"-12"
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp
Clamp Nut
Inspection
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
