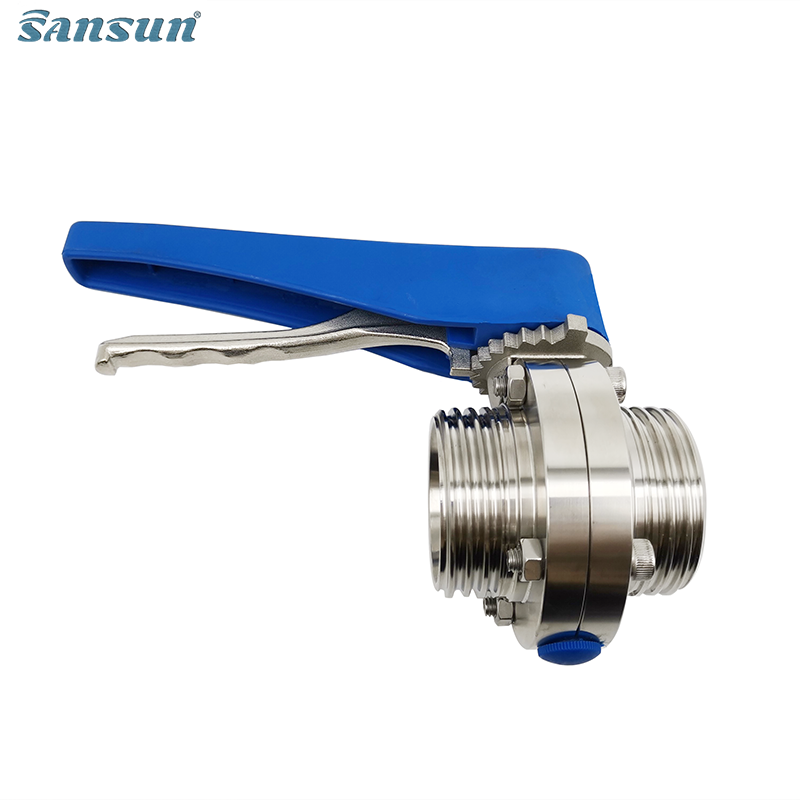

Food Grade Male Thread Butterfly Valve With Muti-position Handle

Operating Principles

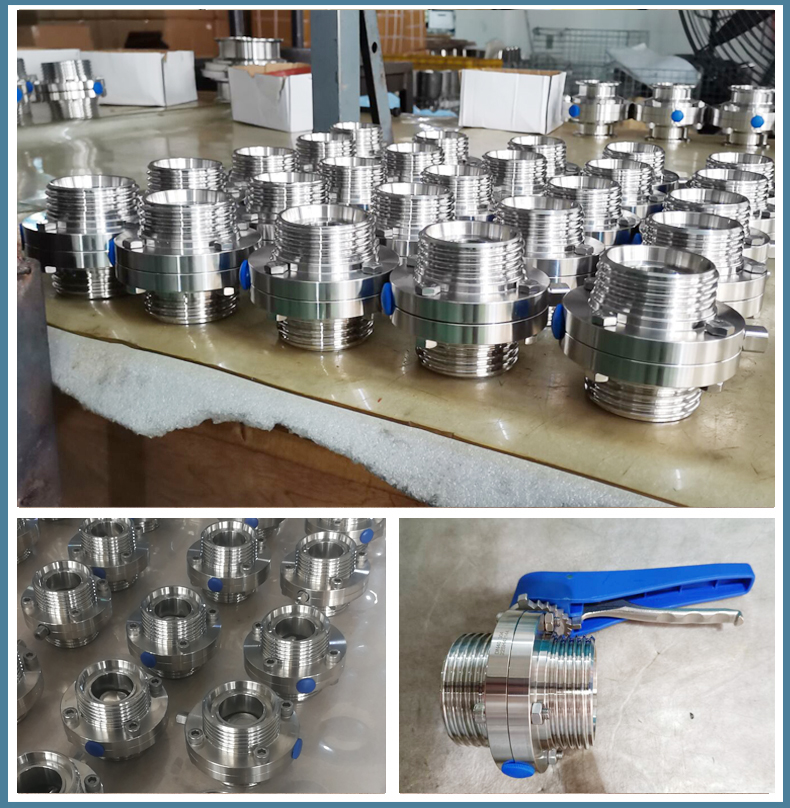

         Sanitary Steel Good Quality Male Butterfly Valve

         The male butterfly valves can be operated automatically through actuator or manually with the handle.

         The handle blocks the valve in the "open" or "closed"position, of course there are the other position available.

         The actuator push piston of axial movement into 90 °，which controls butterfly valve.

         The butterfly valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.

Technical Specifications

Max.pressure: 10 bar (DN15-DN100);8 bar (DN125-DN150)

Min.pressure: 0.2 bar p.abs

Operating temperature:-10℃ to +120℃ (EPDM)

Materials

Butterfly plate: AISI316L/304(forged)

Valve body: AISI316L/304(forged)

Handle: AISI304/PP

Surface finishing: Ra=0.8

Standard Design

Available in sizes from DN10 / 1" to DN150/ 4"

The size of multi-position handle uo to DN100 / 4"

The size of pull handle up to DN 200/ 8"

Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A

Connection: weld, clamp, thread, single weld single thread, flange

Handle:Pulling handle/Multi-positon handle/multi-position stainless steel handle

Control: position sensor, C-TOP controller, C-TOP controller(AS-I)

Butterfly Valves Curve

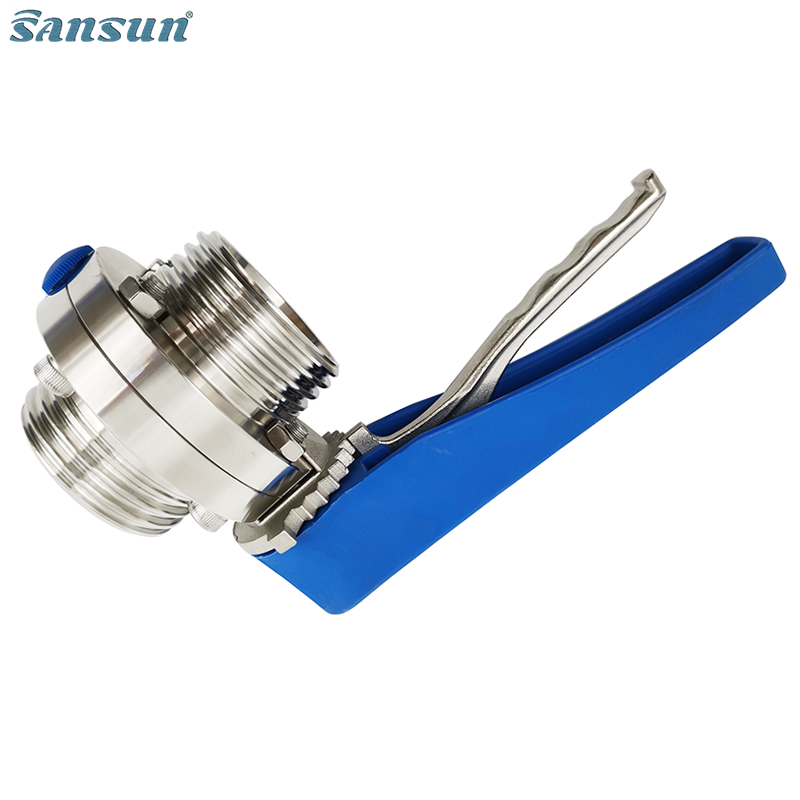

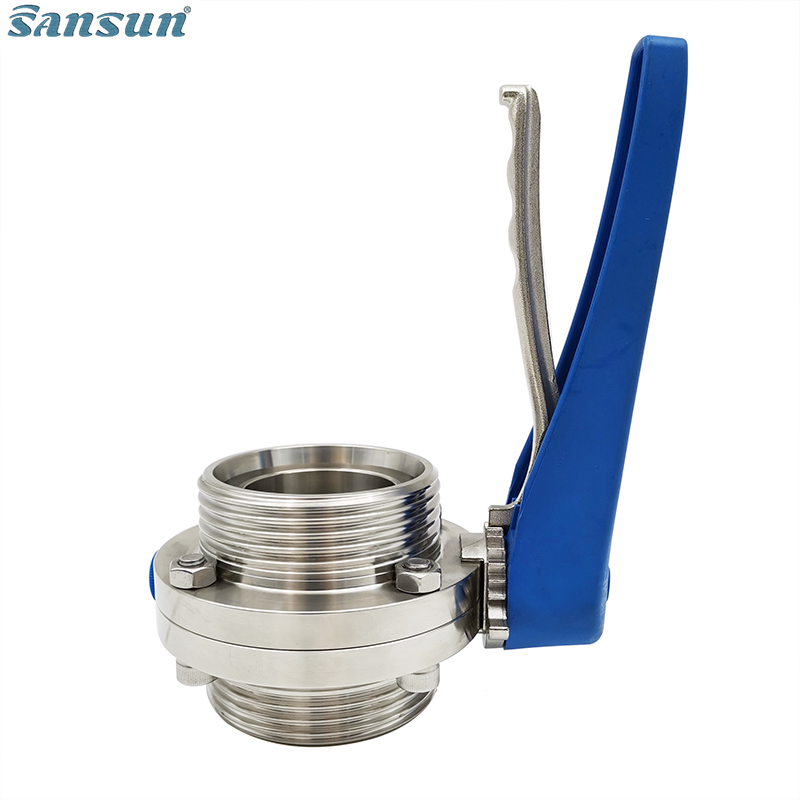

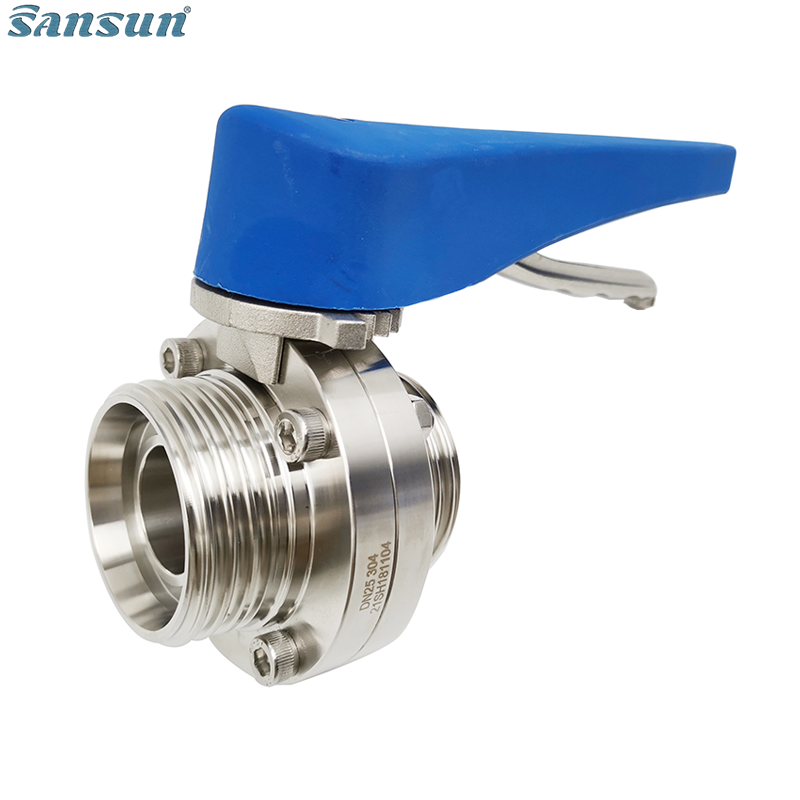

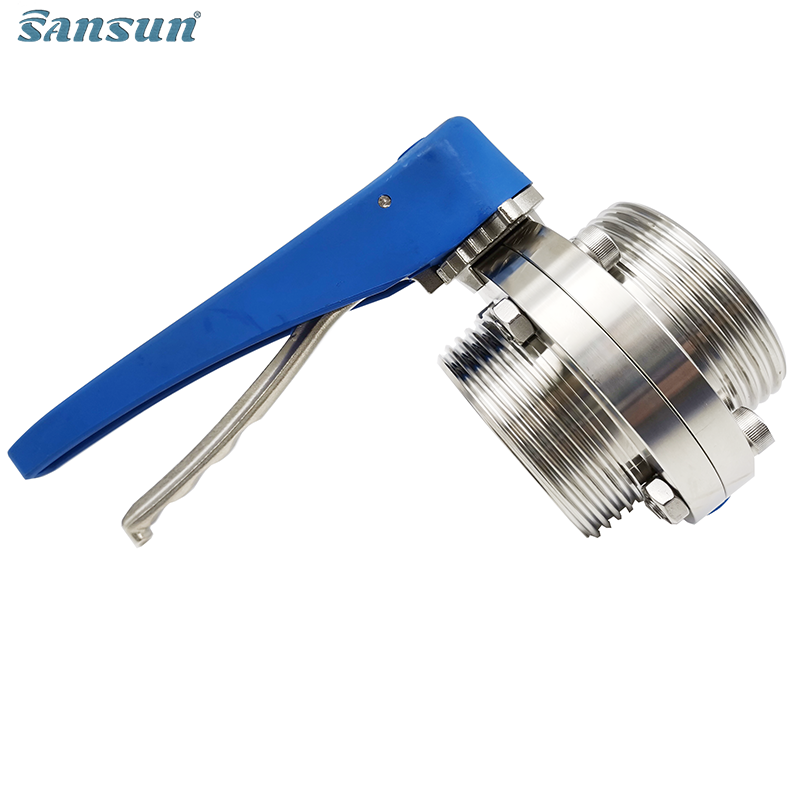

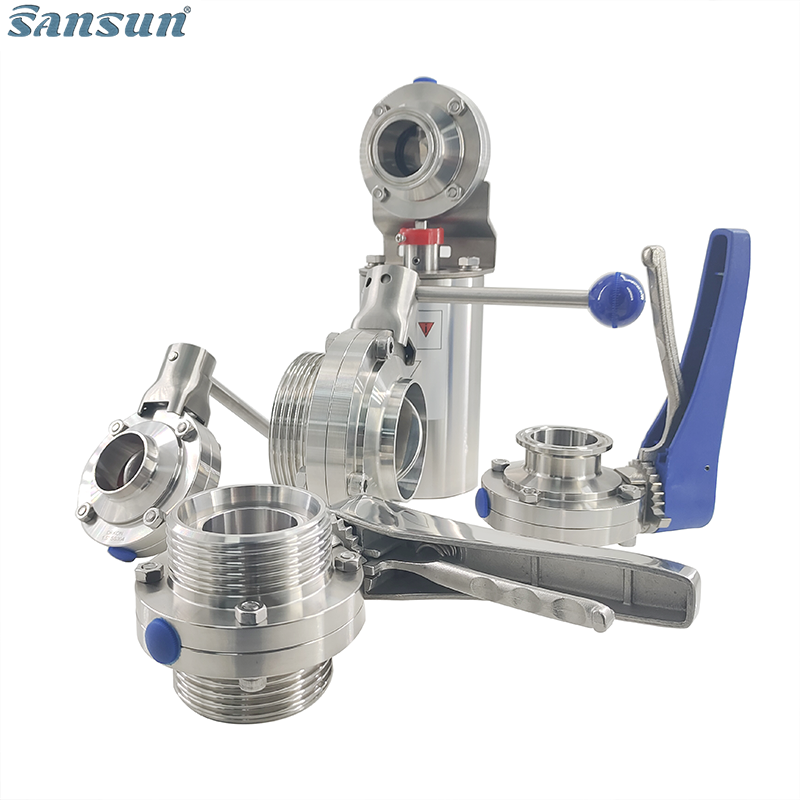

Butterfly Valve Handle Style

Exploded view of Butterfly Valve with Pulling Handle

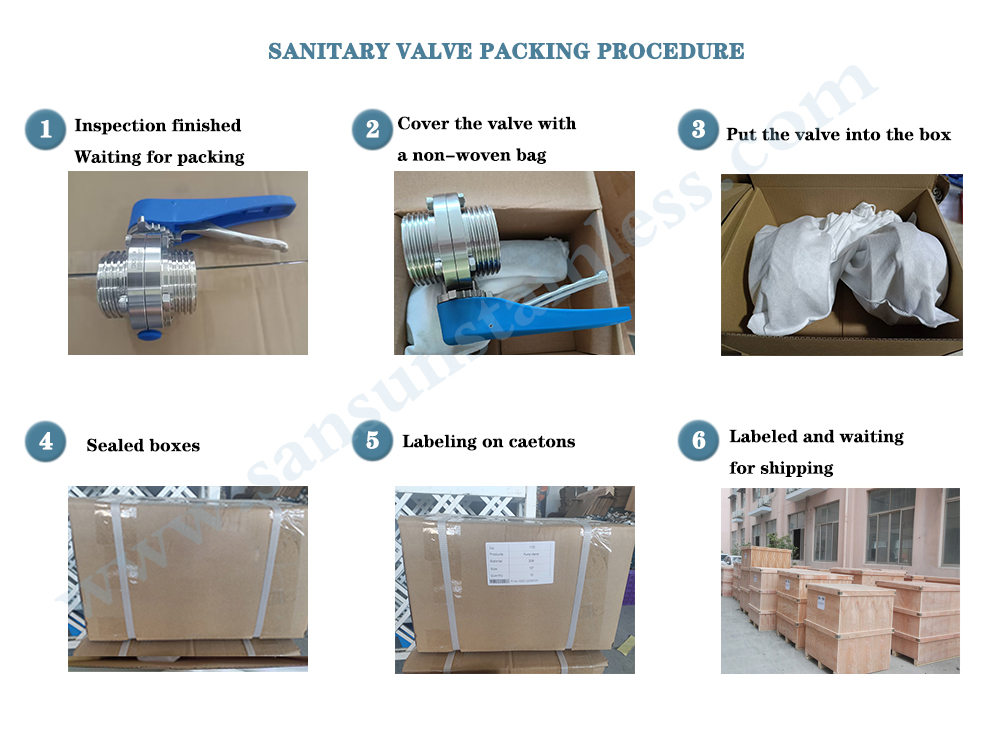

Package
